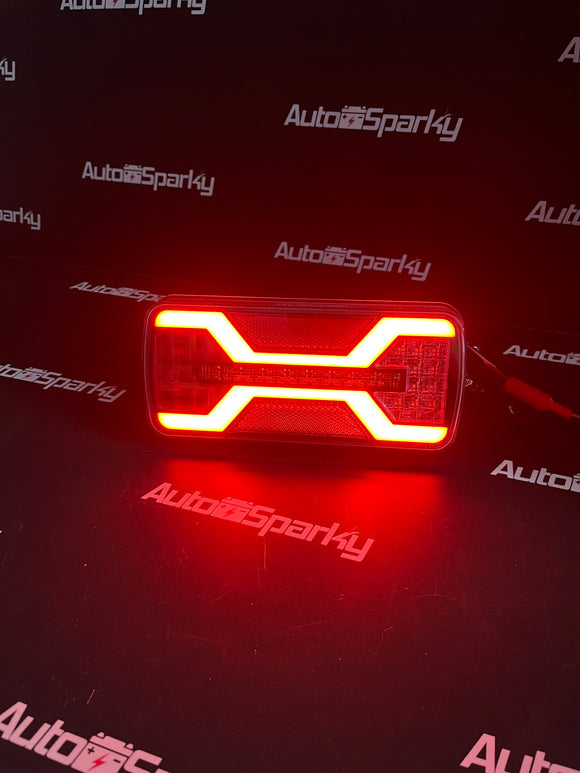

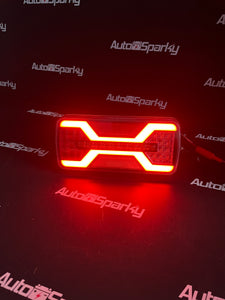

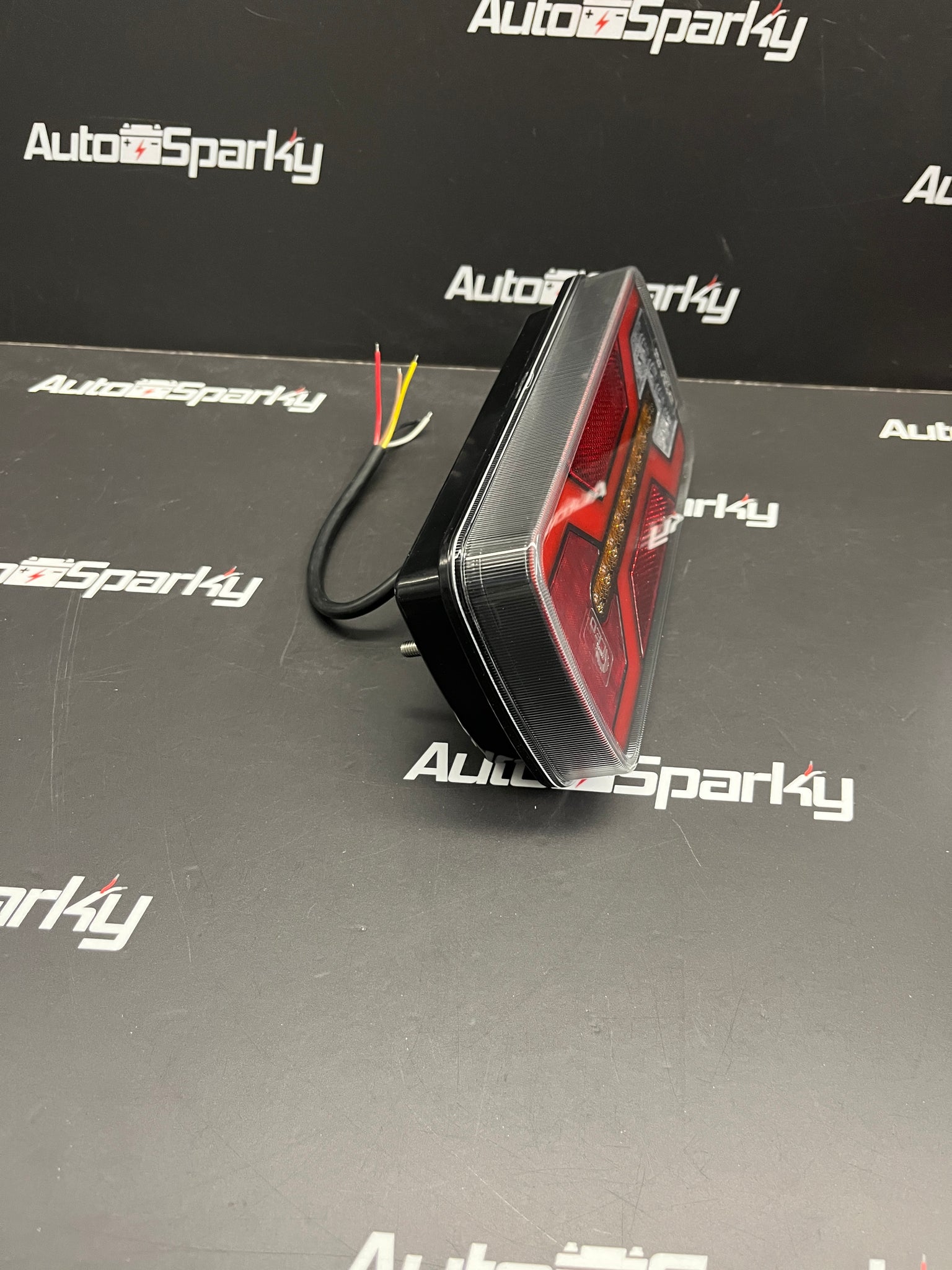

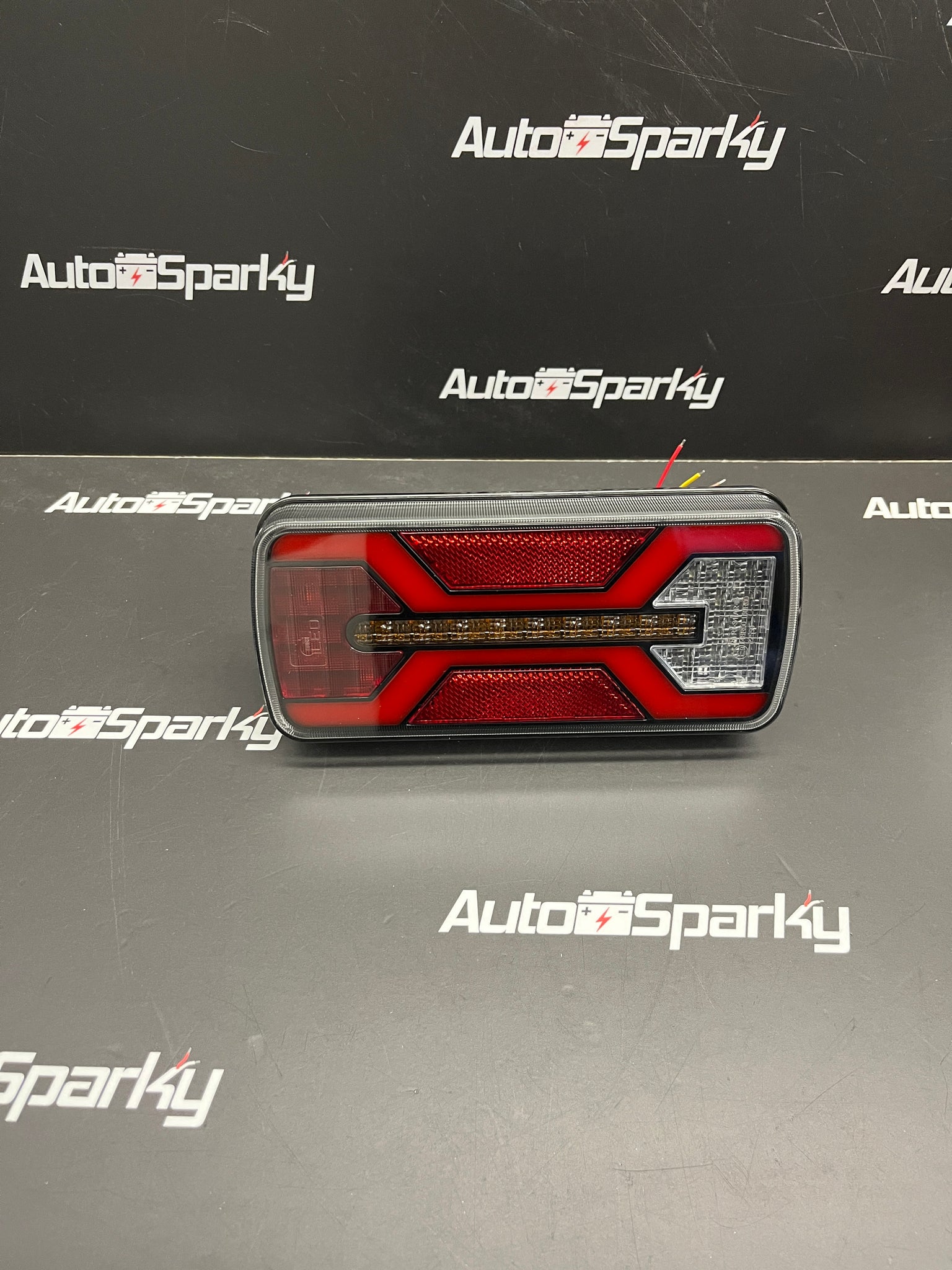

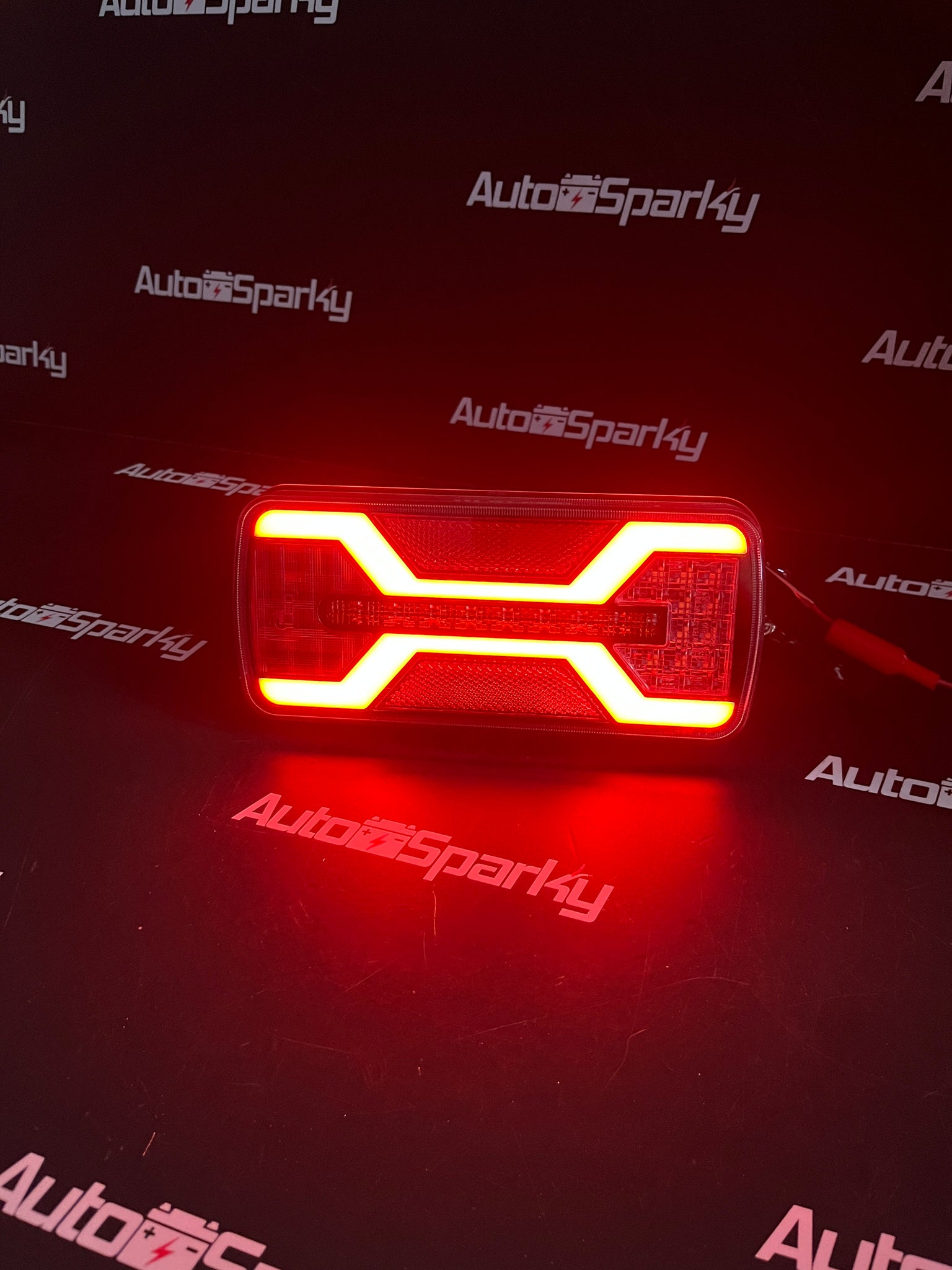

X Spider Neon Style LED Tail Lights - Pair

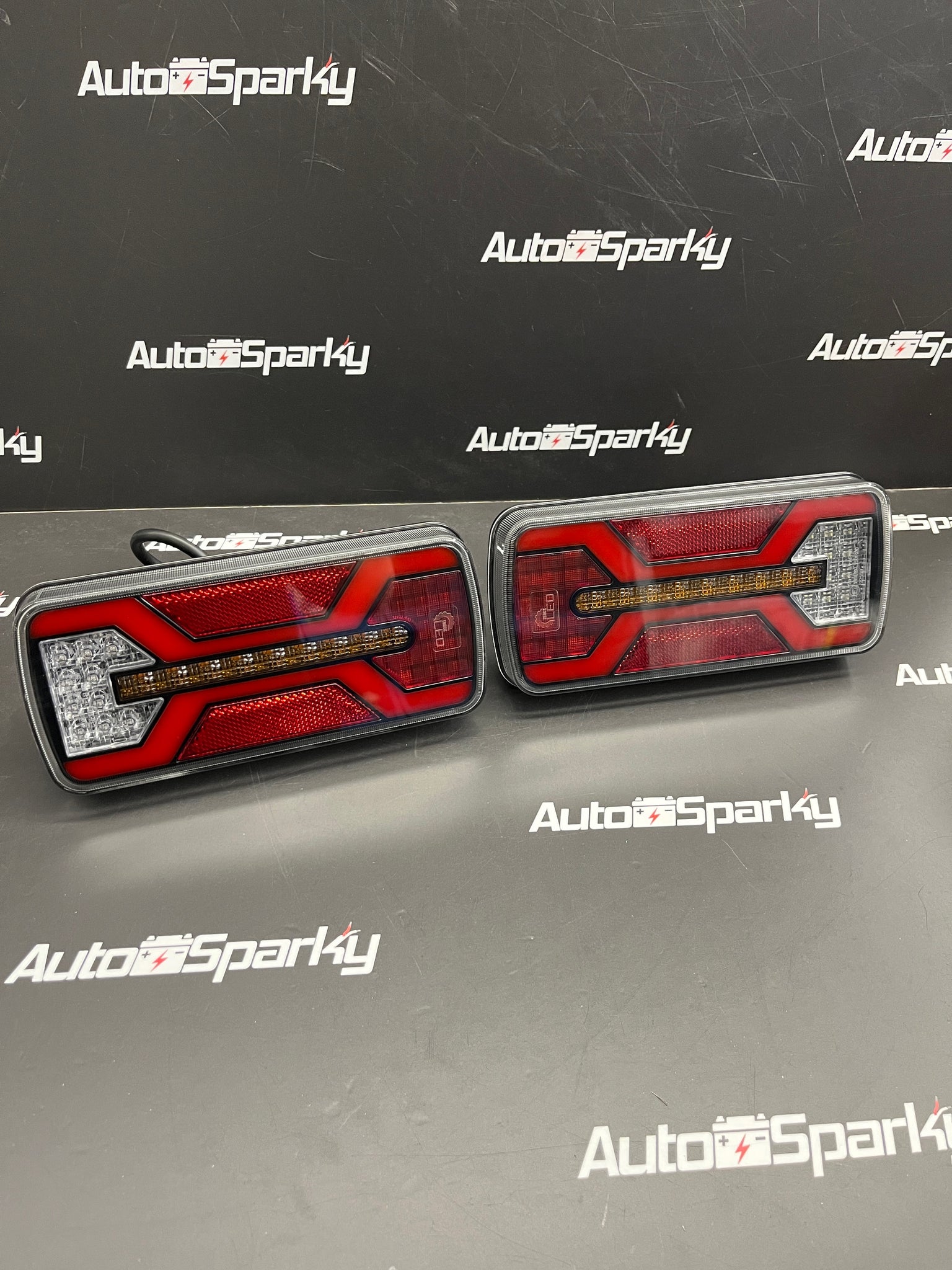

Sold as Pair, Left & Right

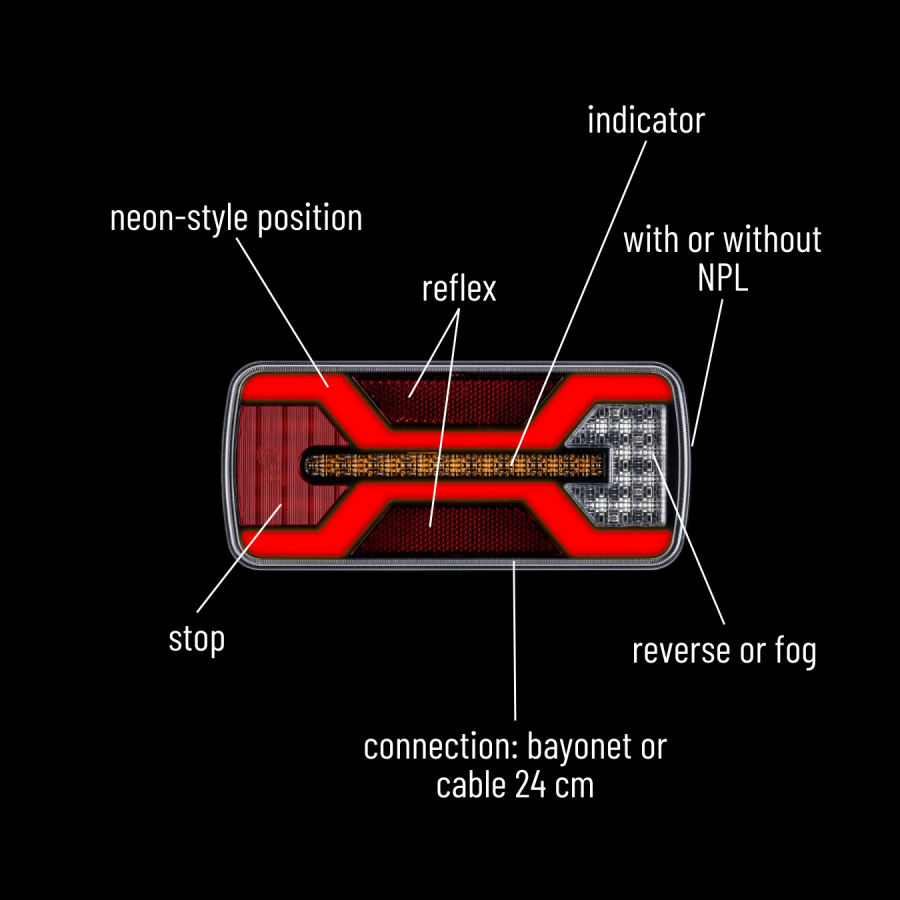

Tail,brake,indicator, reverse, fog & reflector
The X-SPIDER 1 L2424 P/M LED rear light is a lamp that can be mounted both vertically and horizontally, which translates into greater comfort of use and expands functional possibilities. The high IP67 tightness class makes the L2424 lamp resistant to dust and moisture, which is why it has a much longer service life. The housing and lampshade made of high-quality materials protect the most important elements against mechanical damage.
Characteristics of the X-SPIDER 1 L2424 P/M LED rear light:
Thanks to this light, work on the road is much safer in all conditions
The multitude of functions emphasizes the wide range of applications of the reflector
High-performance diodes provide the user with good visibility of the route
The lamp meets EU requirements, which emphasizes its high quality and professionalism
The possibility of mounting the lamp vertically and horizontally emphasizes its functionality
High tightness class and strong construction extend the life of the lamp
Lamp equipped with Smart Load Device (advanced resistor), ensuring proper operation of the LED lamp in various vehicle electrical systems
Technical data

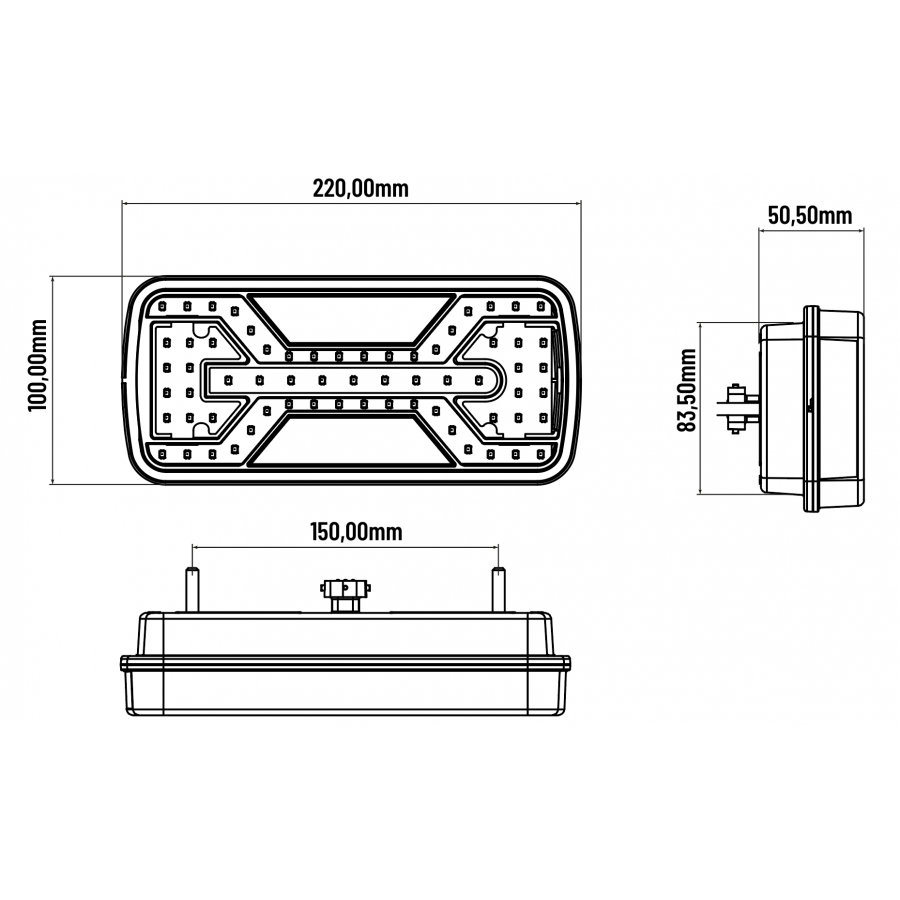

• Product dimensions: 220x100mm
• Cable: 240mm
• Working voltage: 12/24V
• Approvals, certificates:
ECE R10, R148, R150
• Power consumption:
2,8W+3,5W+21,5W+2,4W
• LED quantity: 65 pcs
• Material of execution:
Housing: ABS+PC
Lens: PMMA+PC
• Working temperature: from -40°C to + 60°C
Functions
• Rear lamp LED
• For automoƟve use only
• The lamp has road approval ECE R10, R148, R150 authorizing it to be used on public roads
• The lamp is intended for vehicles with 12/24V installation
• Reverse polarity protection
Mounting method
• Installation only in specialized workshops or professional service
• Lamps must be installed only in accordance with the UNECE regulations

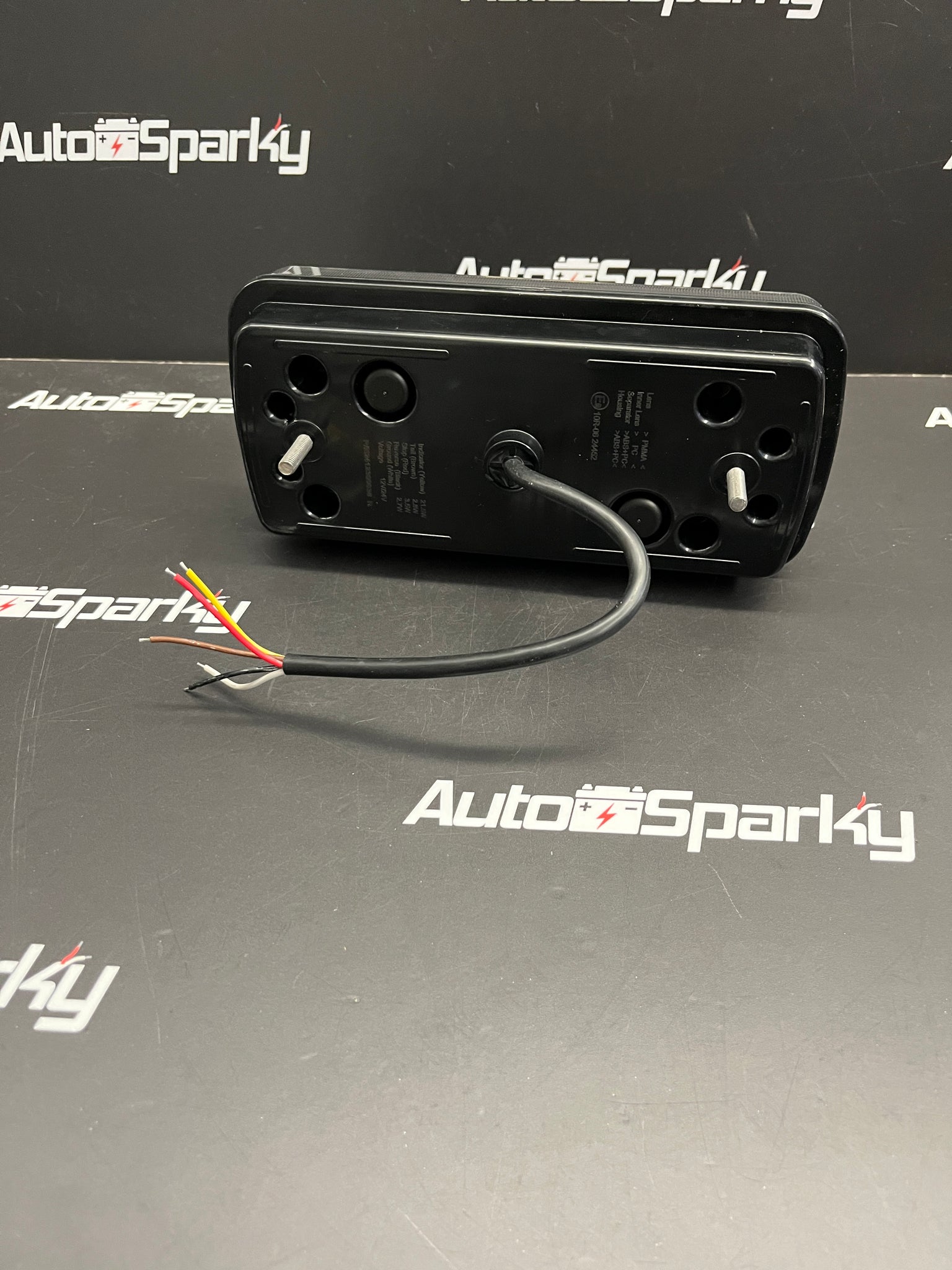

Wire connection
White - Ground/Earth
Brown - Position/Tail
Red - STOP
Yellow - Indicator
Black - Fog or Reverse
