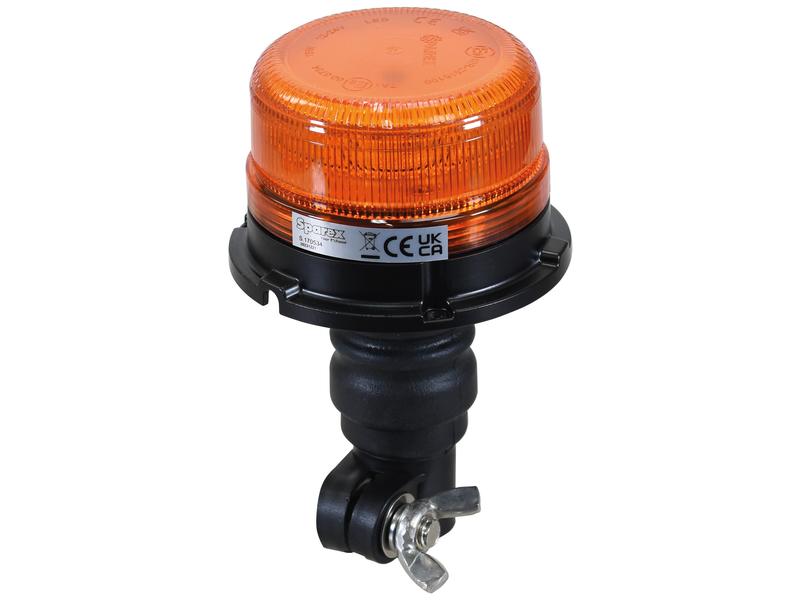

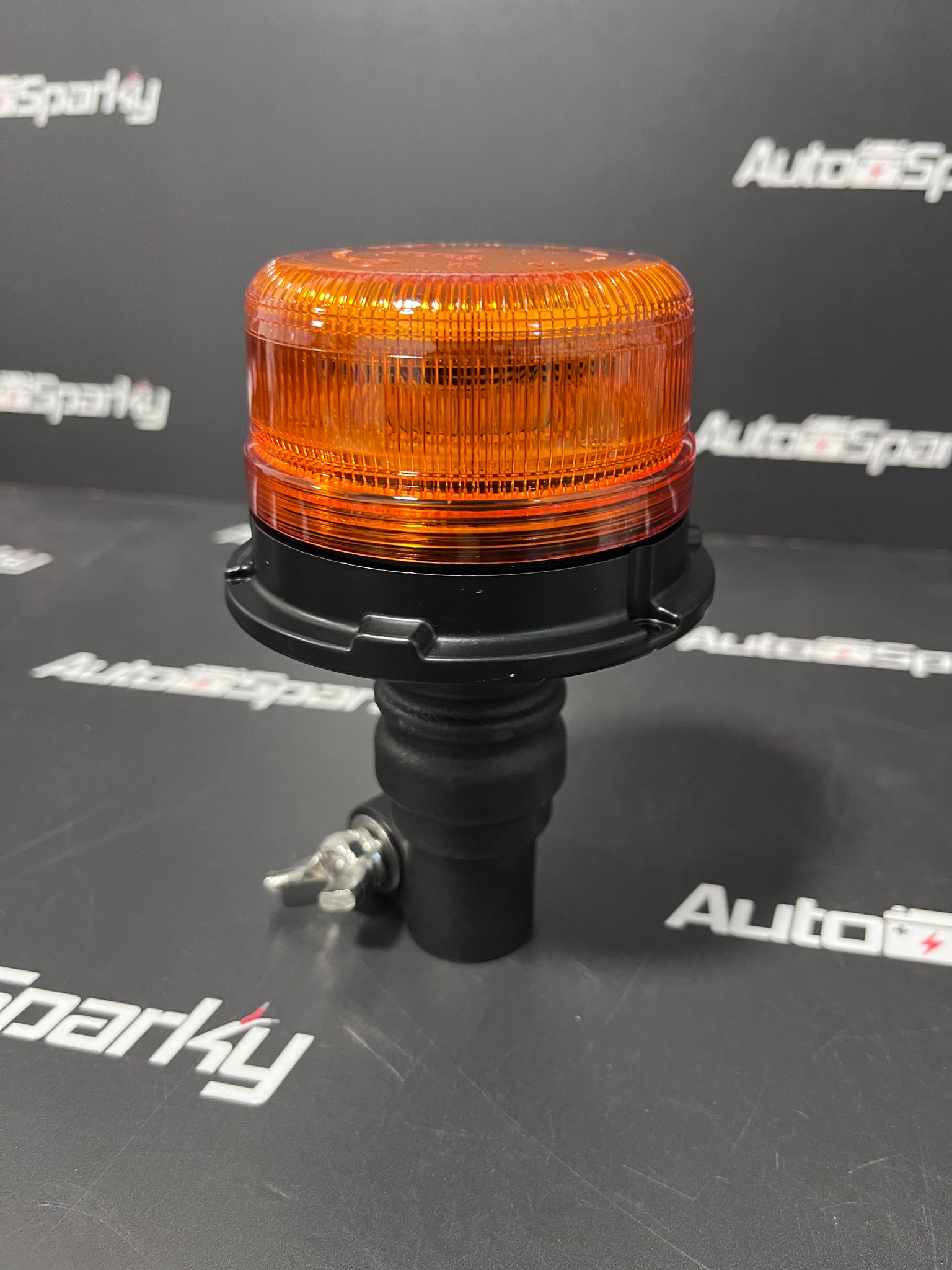

Ultra Compact LED Pole Mount Beacon - Sparex

Single Flash, Double Flash, Rotating
Interference Class 5
Overall height150mm
Ø80mm
Profile: Ultra-Compact
IP Rating: IP66
ECE Rating Reg 10, Reg 65

Brand
Sparex
CE Approved
Yes
Connection Type
None
ECE Rating
Reg 10, Reg 65

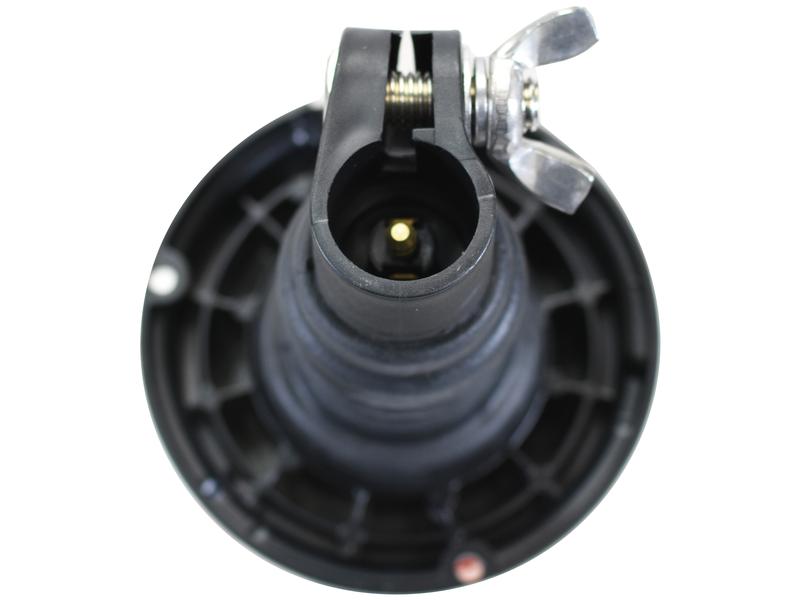

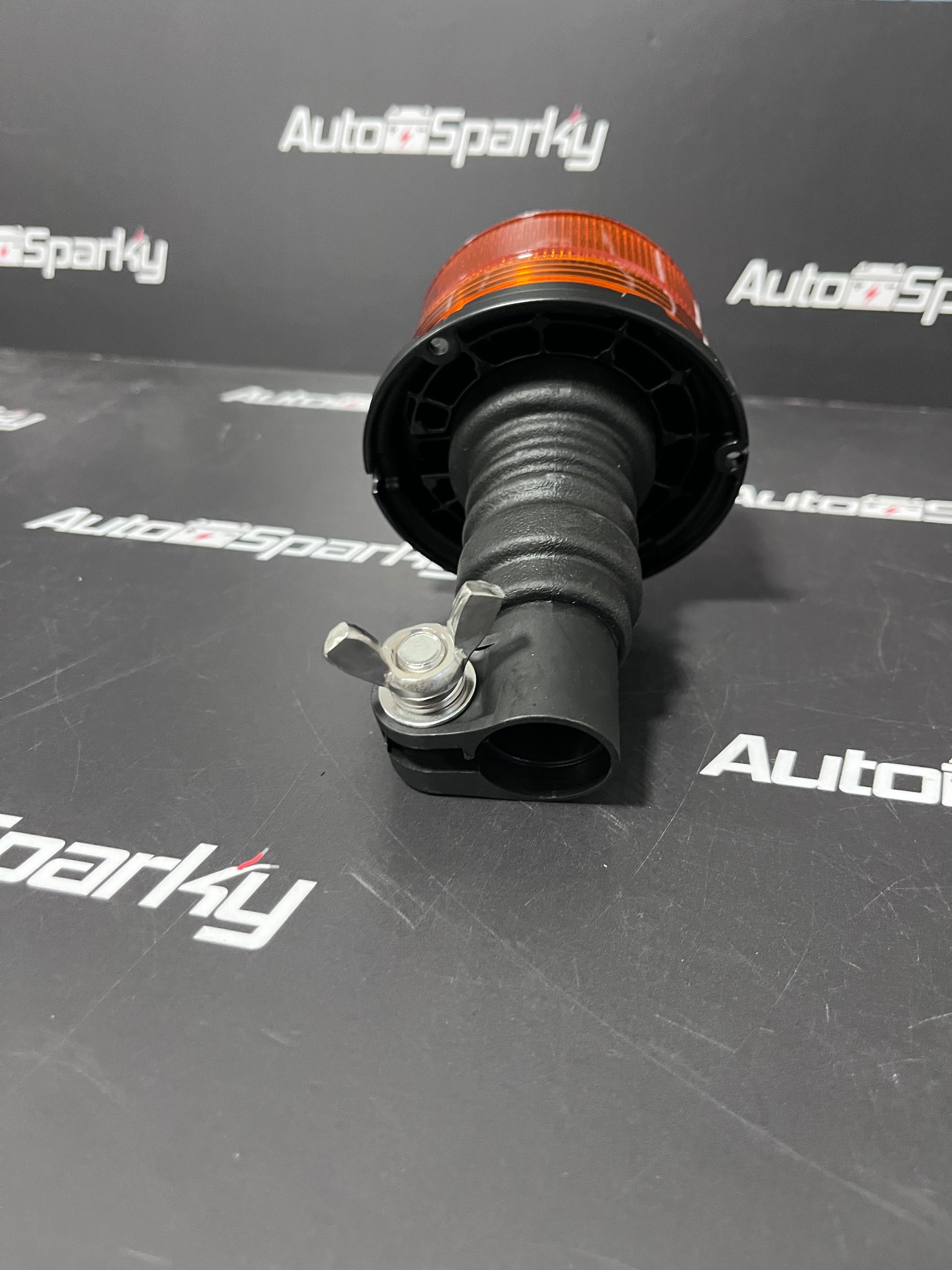

Fixing:
Flexible Pin
Function
Single Flash, Double Flash, Rotating
Housing Material
Aluminium
Interference EMC EMI CISPR 25 Description
Class 5: No electromagnetic interference
Interference EMC EMI CISPR 25
Class 5
IP Rating
IP66
Lens Colour
Amber
Lens Material
Polycarbonate
Light source
LED
Number of LEDs:
24 LEDs
Overall height (ins)
5-29/32
Overall height (mm)
150
Parts_Tier
Sparex
Power Consumption @ 12V:
1.25Amps
Power Consumption @ 24V:
0.62Amps
Profile
Ultra-Compact
RoHS Approved
Yes
SAE Approved
No
Shape
Round
Volts
12-24V
Watts
15W
With Noise Suppression
Yes
Working Temperature °C
-30°C to 50°C
Ø (mm)
80
