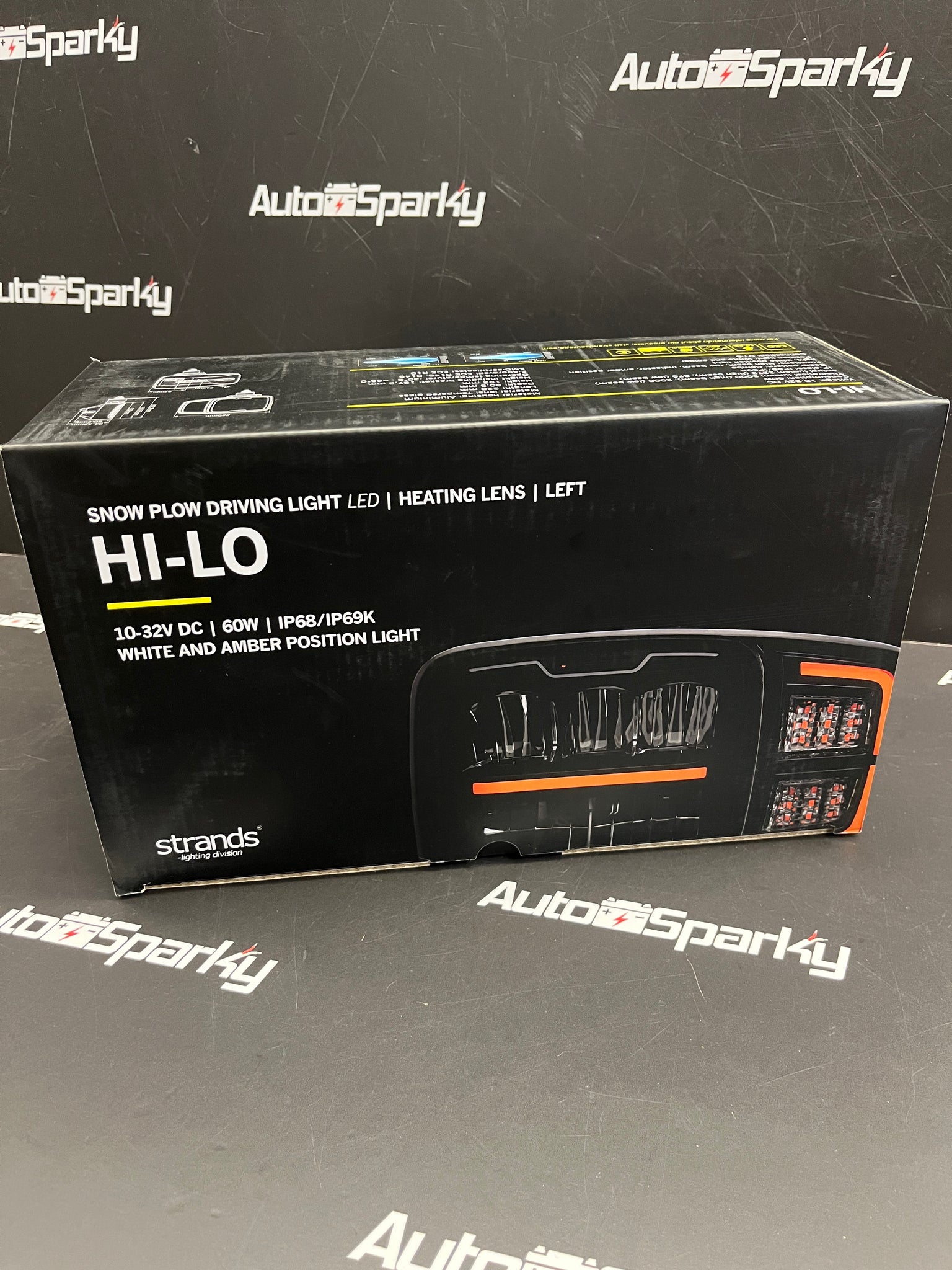

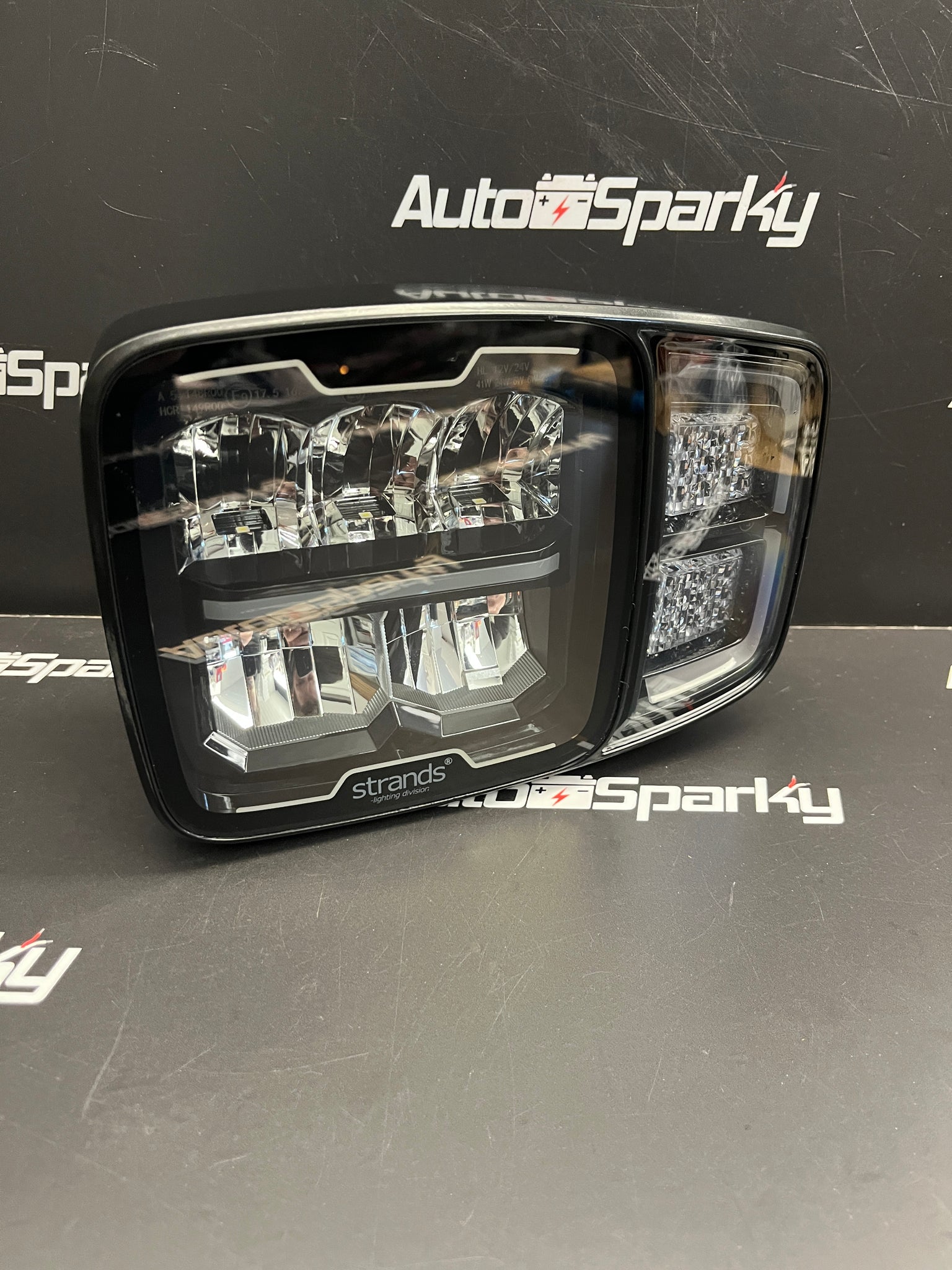

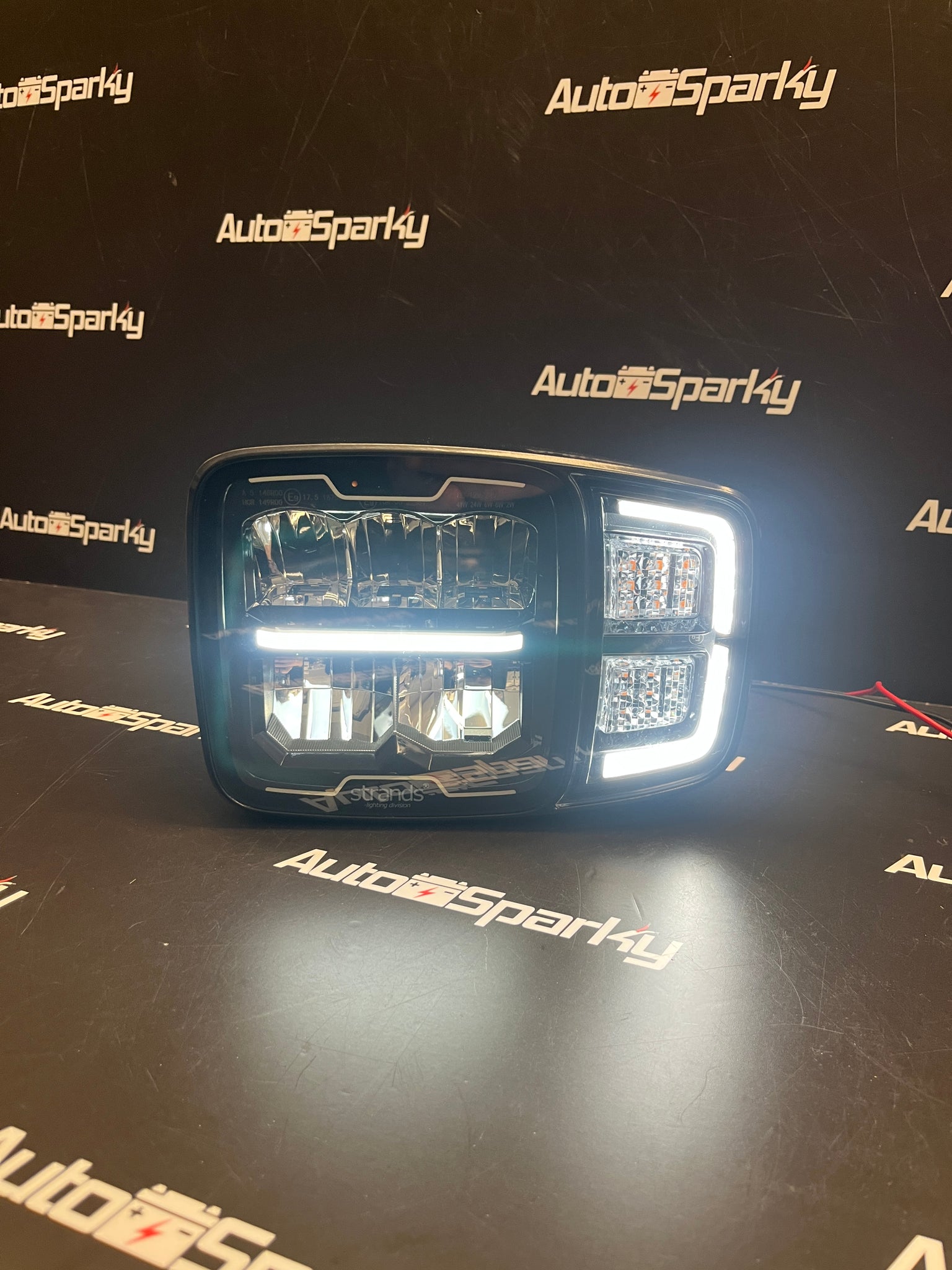

Strands HI-LO Snow Plough LED Lamp with High Beam, Dip Beam, Position Light, Heated Lens & Indicator on Front & Back of Lamp

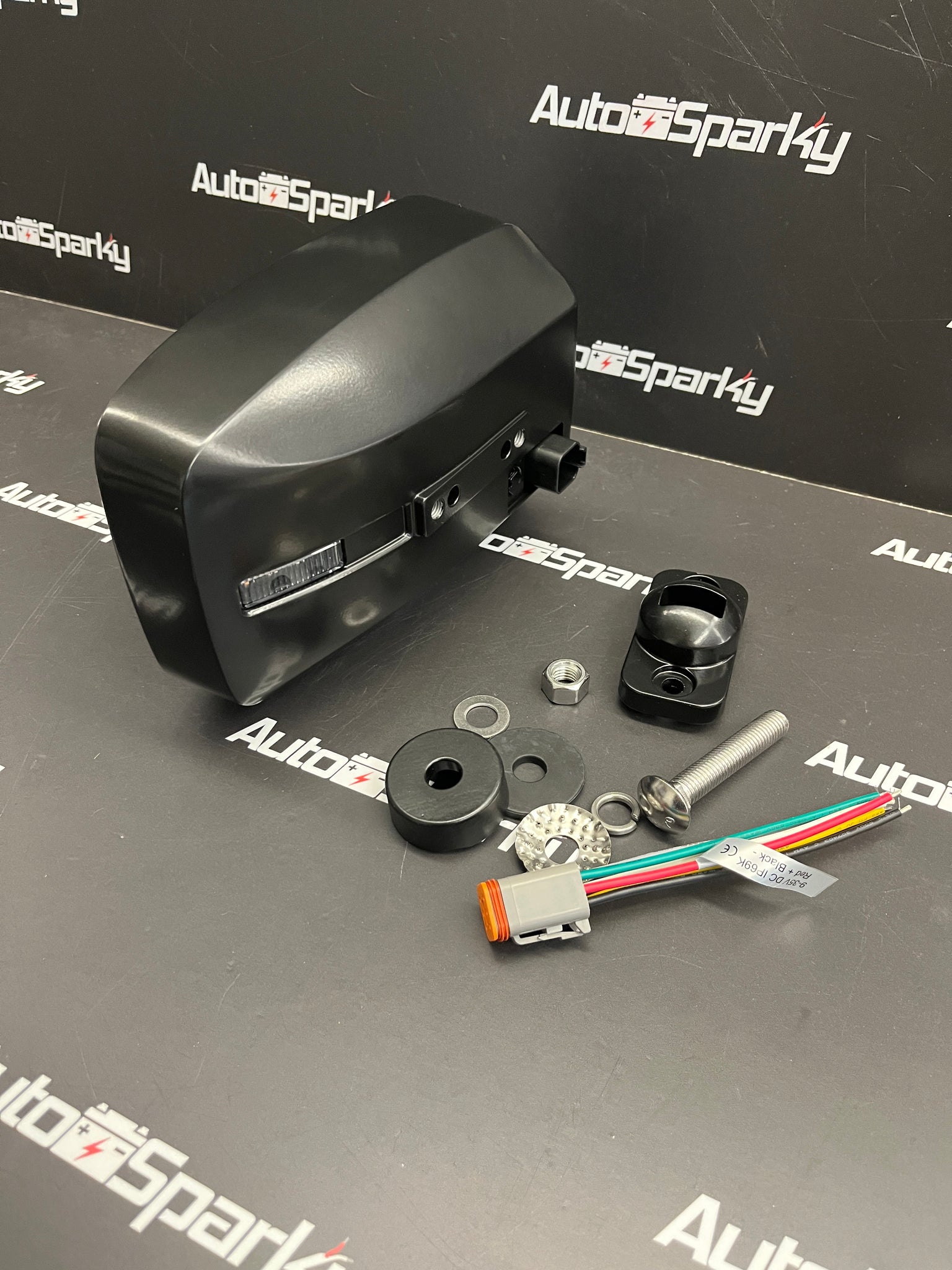

This HI-LO Light from Strands is packed full of great features for drivers of heavy plant machinery, tractors or trucks. This lamp is fully E Approved for use on European roads. The mounting bracket included can be fixed to the bottom of the lamp (pictured) or at the back of the lamp. Like all Strands Lights it comes with a 3 Year Warranty and is built to last. An incredible lighting upgrade for heavy vehicles this winter.
Features:
High Beam ( 5000 Raw Lumens)
Low Beam (2000 Raw Lumens)

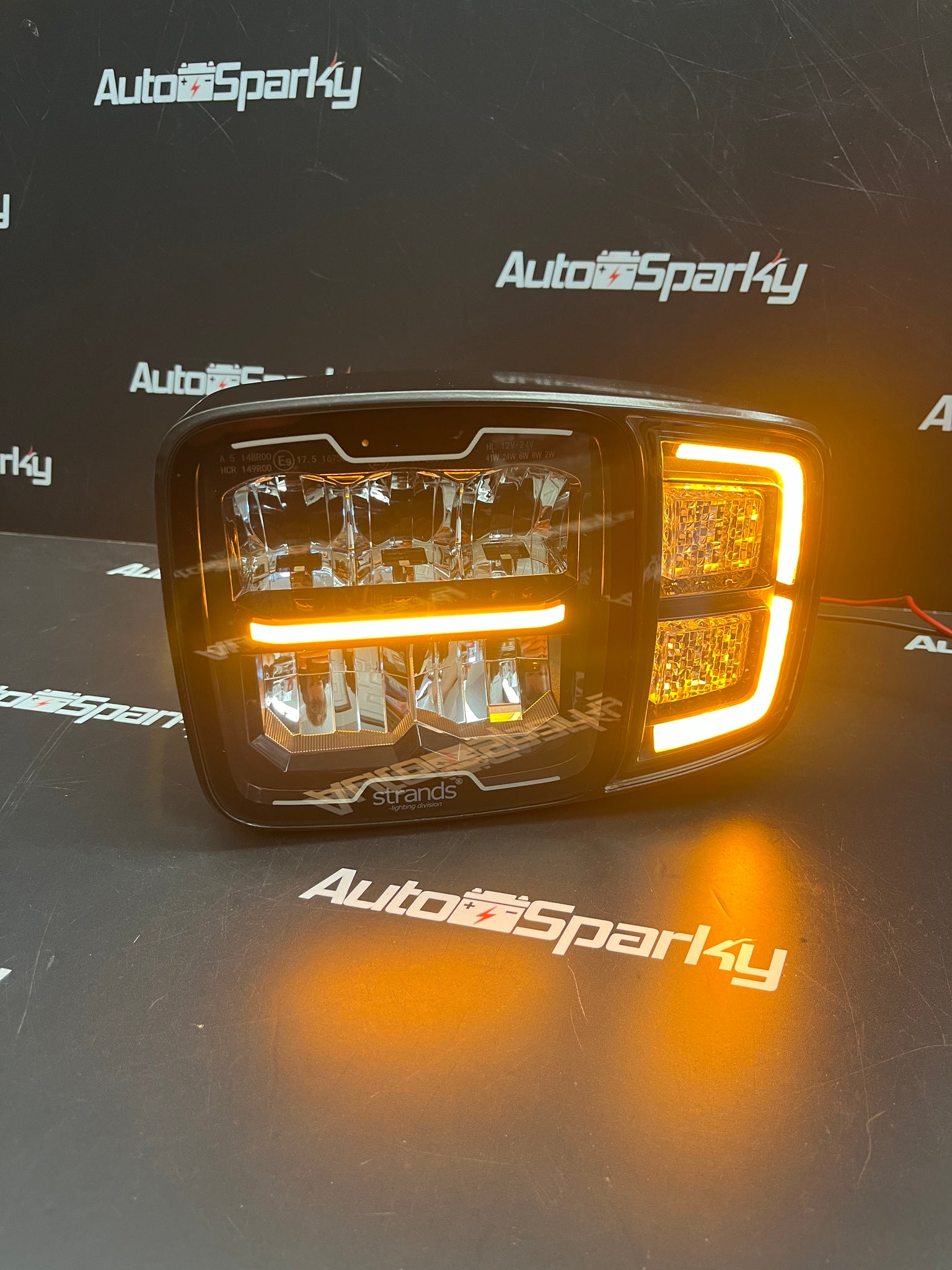

Position Light (Set to White or Amber on installation)

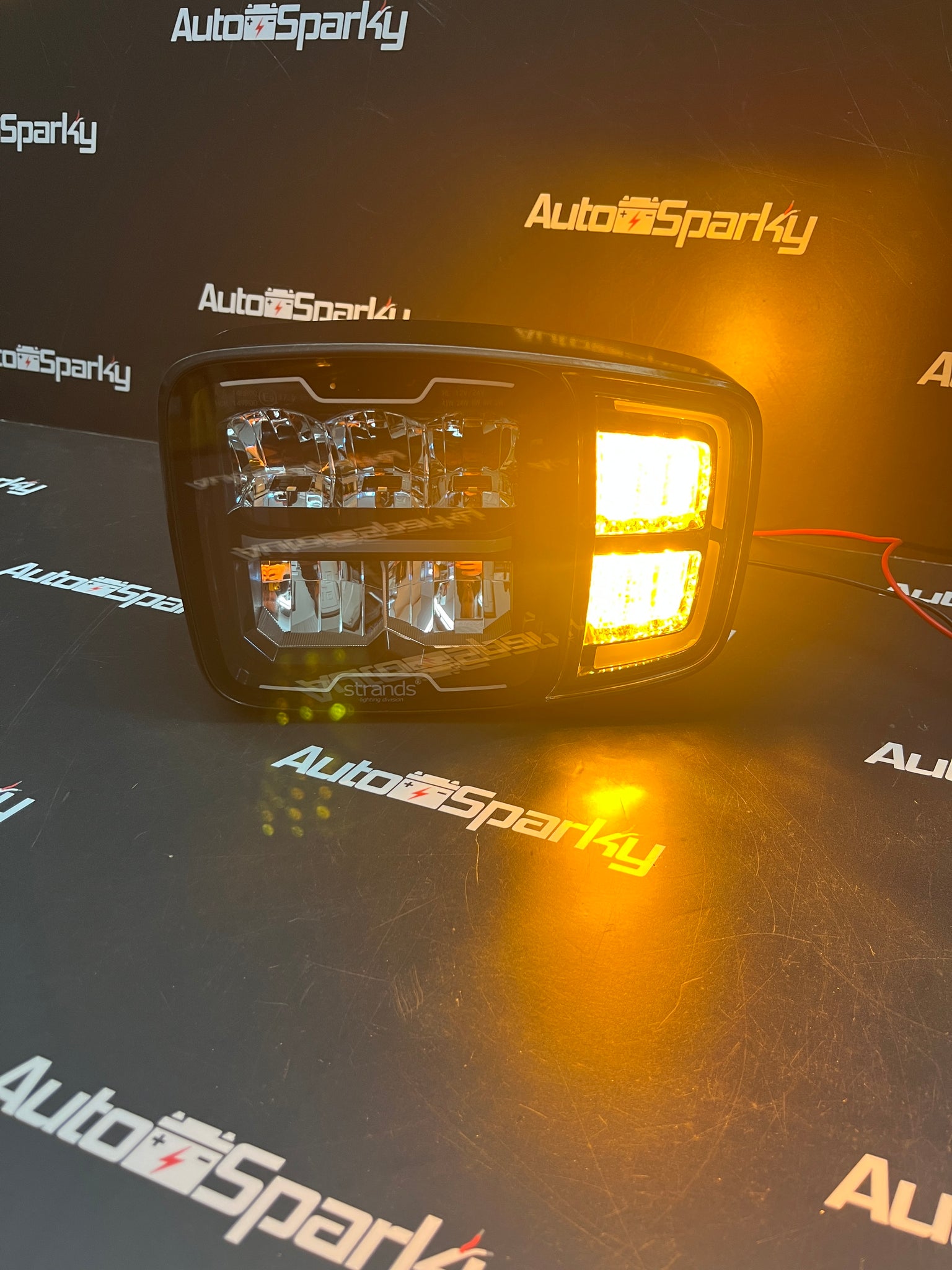

Indicator (Front & Rear of lamp)
Heated Lens (@ 5 Degrees Cel)
HI-LO-Strands Specifications:
PCS LED´s 5
Voltage (V DC) 10-32V DC
Theoretical effect (w) 12V 30W Low Beam
60W High Beam
Theoretical effect (w) 24V 30W Low Beam
60W High Beam
Consumption (w) 12V 24W Low Beam
41W High Beam
Consumption (w) 24V 24W Low Beam
41W High Beam
Consumption specific function (w) 12V High beam: 60W
Low beam: 30W
White position light: 2W
Amber position light: 4W
Front direction indicator: 6W
Side direction indicator: 6W
Consumption specific function (w) 24V High beam: 60W
Low beam: 30W
White position light: 2W
Amber position light: 4W
Front direction indicator: 6W
Side direction indicator: 6W
Functions High beam low beam white position light amber position light indicator
Theoretical lumen 5000 (high beam)
2000 (low beam)
Actual lumen 2273 (high beam)
876 (low beam)
1 LUX @ m 275 (high beam)
171 (low beam)
Kelvin 6000
IP-class 676869K
Colour housing Black
Colour lens Clear
Colour LED´s White
Beam pattern Combo
Position light Yes

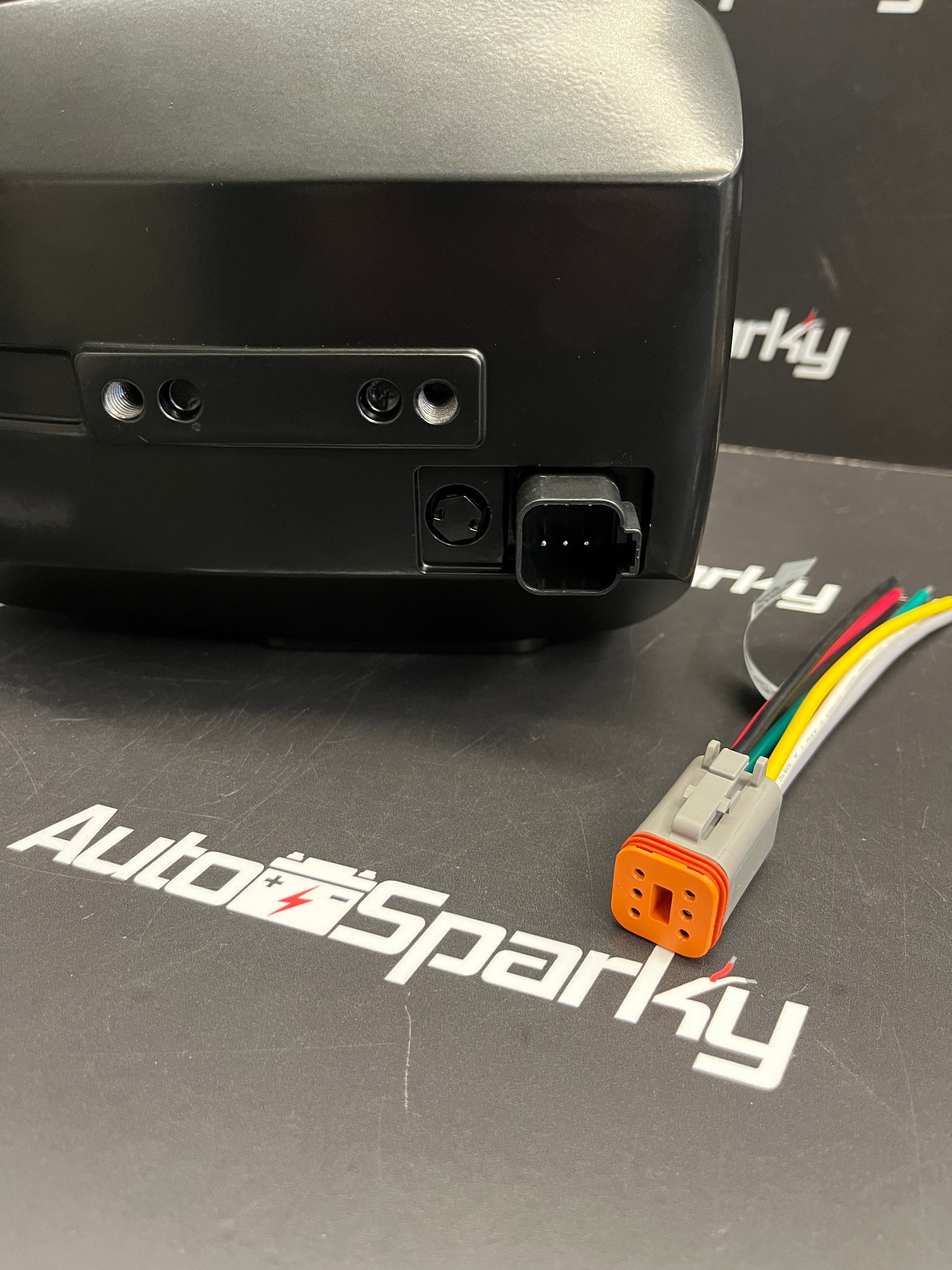

Connection DT-6
Material bracket Die Cast Aluminum
Material housing/chassi Aluminum
Material lens Tempered glass
Length (mm) 220
Depth (mm) 80.5
Height (mm) 152
Height including bracket (mm) 197.2
Operating temperature -30°C – +65°C
ADR-approved No
E-approved Yes
According to regulation R148R149
Reference number 17.5
EMC ECE R10
