Purelux Radar Reverse Light with Red Tail Light / Marker - 9 cm / 32Watt / Wide Beam
Small and sleek reversing light equipped with a red position light and a wide and even beam that is vertically flattened but opens up to 180° in width. Shock, water and dust resistant design, perfect for low installation heights and challenging road conditions. Suitable for 12V and 24V systems. Road-approved!

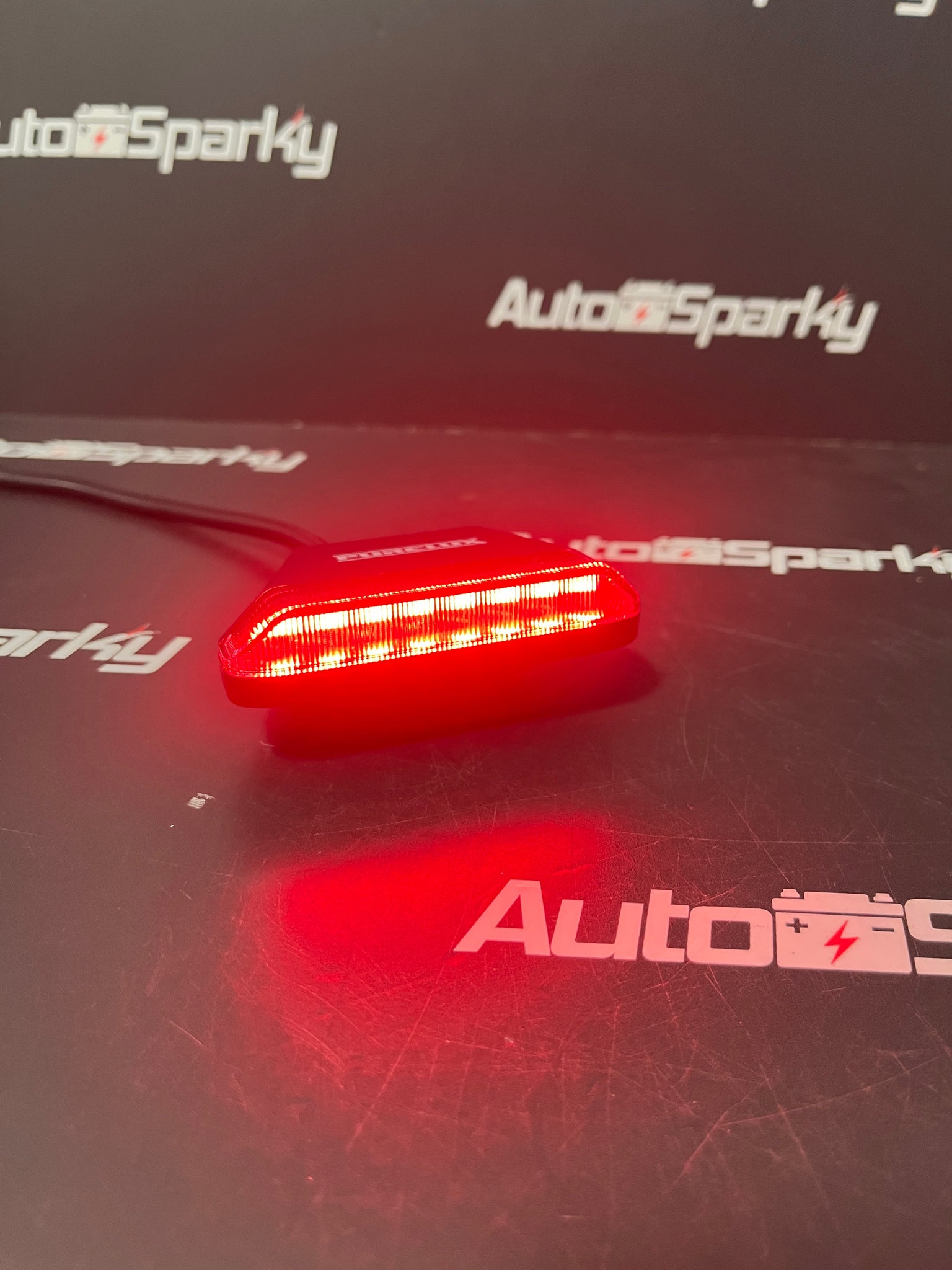

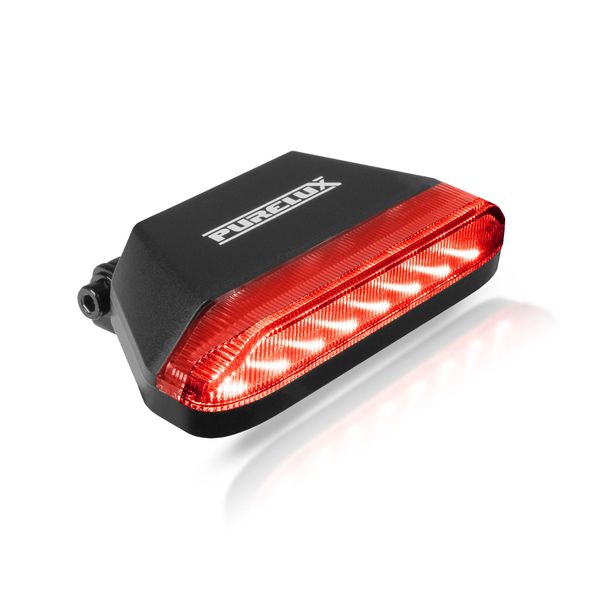

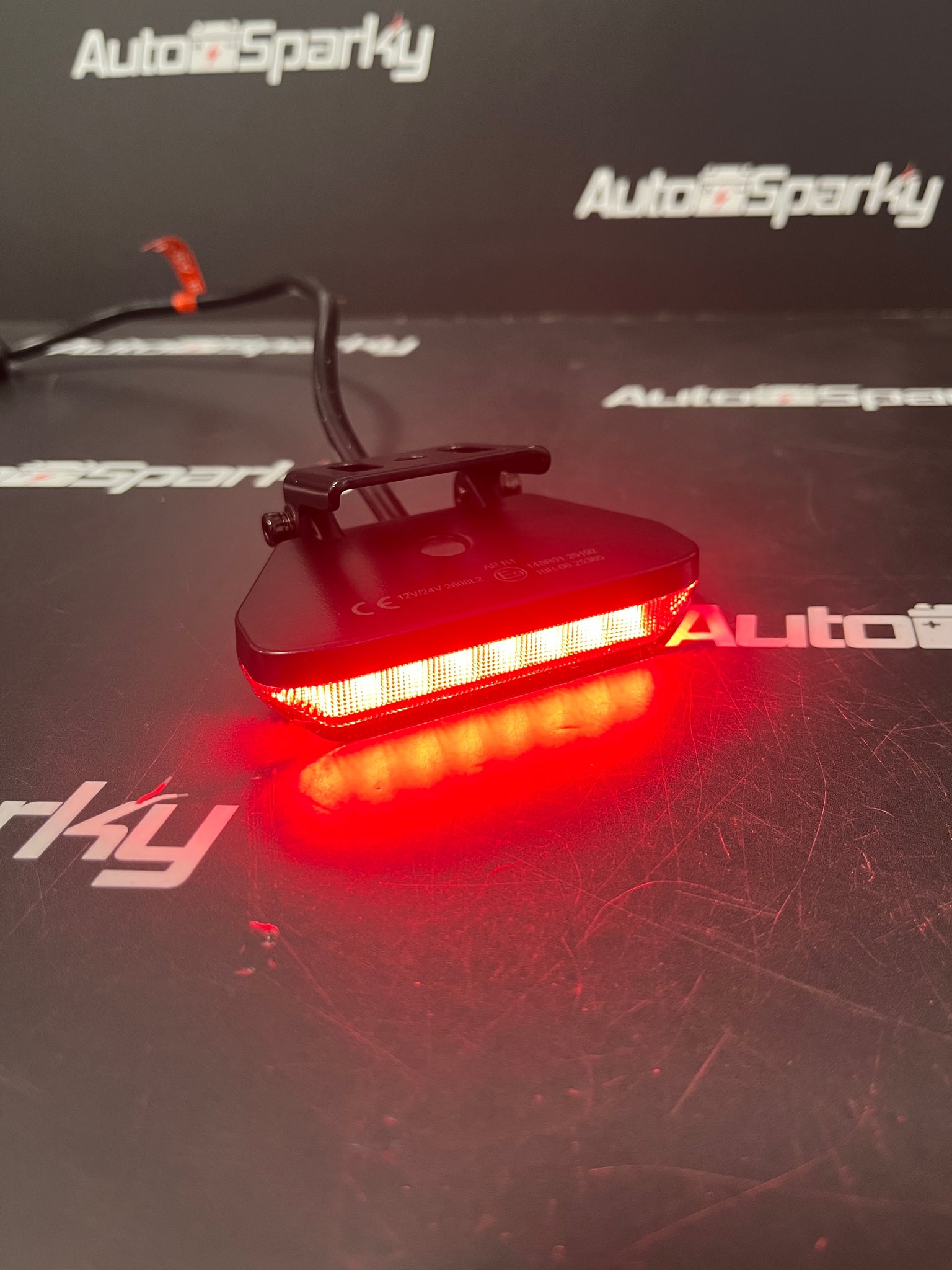

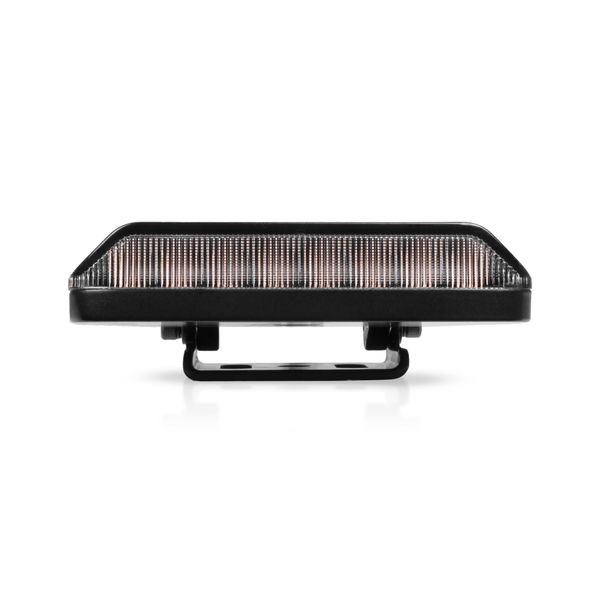

Purelux Radar DRL is a road-approved reversing light, equipped with a red position light. An incredibly small and flat design, a vertically precisely cut-off beam pattern, 2232 lm light output, and a shock-, water-, and dustproof construction make it an excellent choice for low mounting heights. The Radar DRL is the answer to requests from the field for a version with a position light, and here it is: all the top features of the Radar, complemented by a red position light!

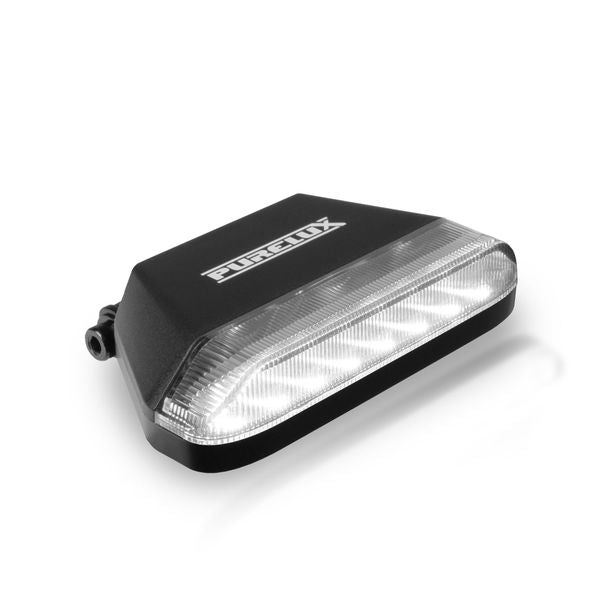

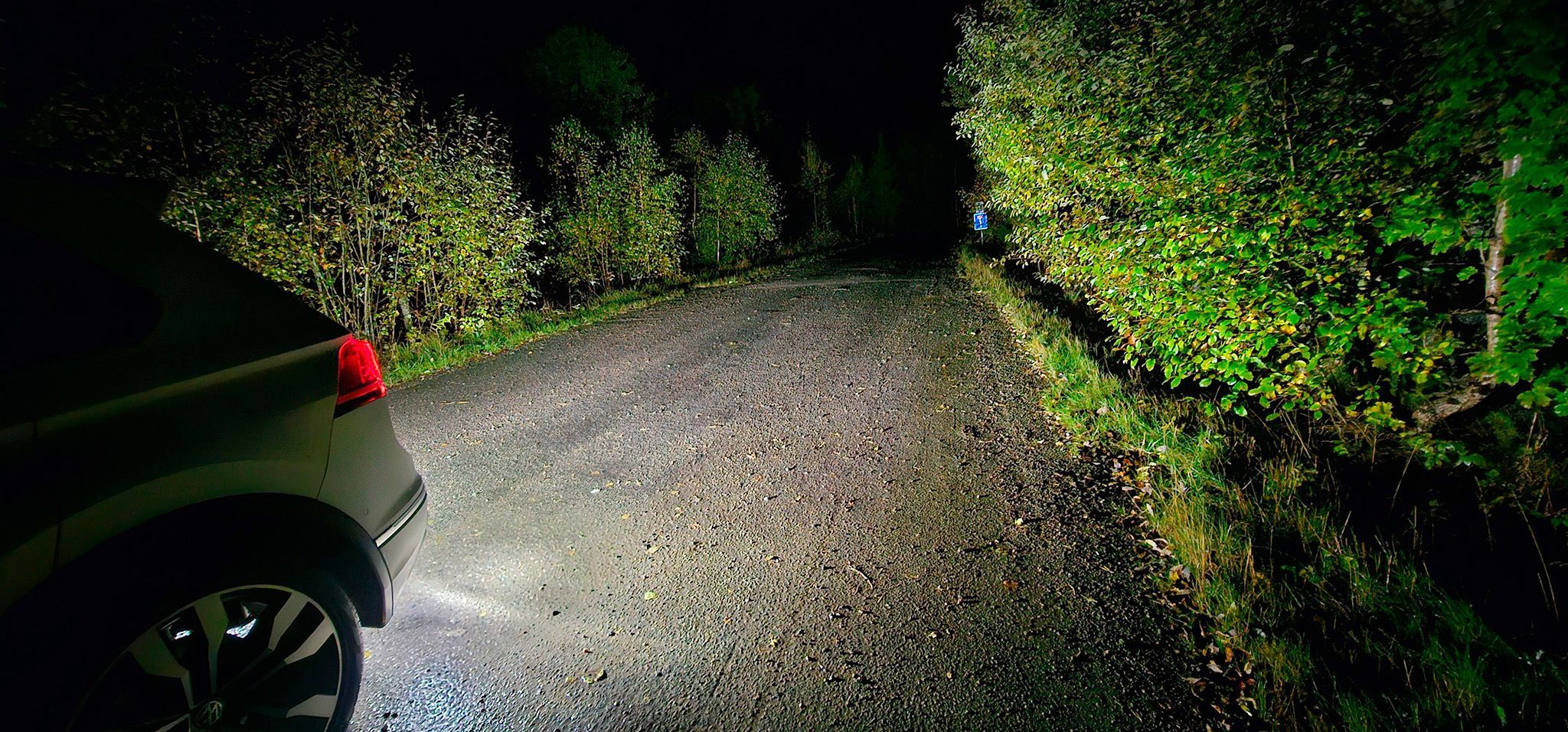

Radar DRL is only 9 cm wide and less than 2 cm thick, so it can be easily installed even in tight spaces. The lamp produces an excellent 2232 lumens of light output for its size, which illuminates the terrain and obstacles behind it much better than standard vehicle reversing lights. Thanks to the innovative LED and reflector technology, Radar's light beam is very flat vertically, but it opens up to 180° in width. The beam is therefore much wider than in many other reversing lights of the same size on the market. The range of Radar's flat light beam is 47 m @ 1 lux, so it offers the driver excellent visibility both to the sides and directly behind. Thanks to its small size, it is easy to install several lamps, e.g. in large vehicles, so that the light output, beam width and range can be multiplied if necessary!

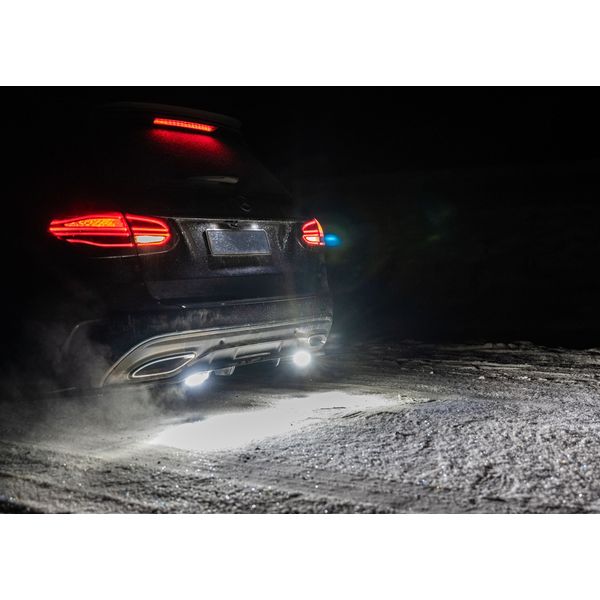

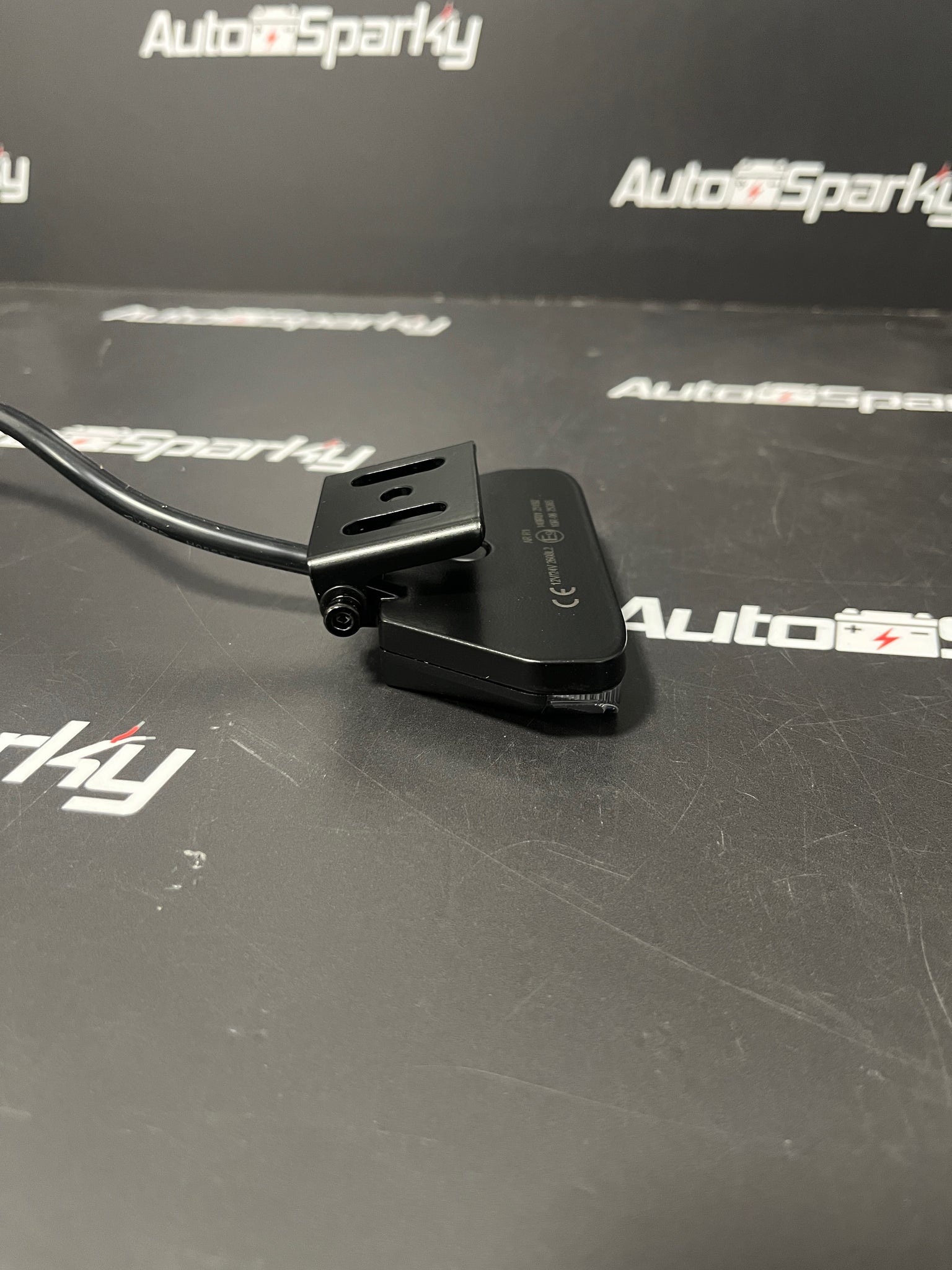

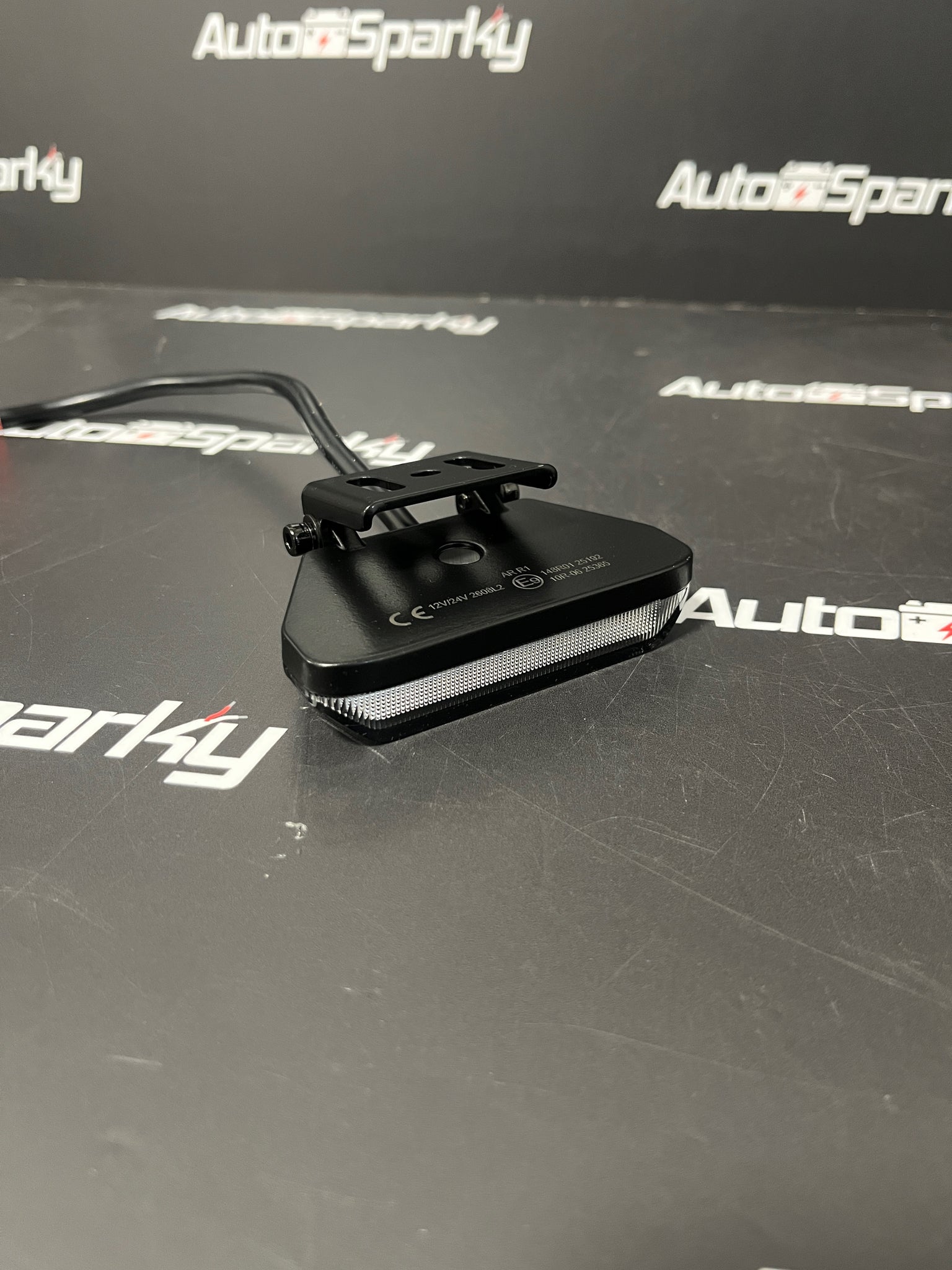

Purelux Radar DRL is equipped with a color temperature of 5000K that is easy on the eyes, making it the optimal choice for working in both low light and pitch darkness. The neutral color temperature is bright enough to create a clear contrast between the light and possible obstacles, but it is not too bright to dazzle the driver in poor weather conditions, such as rain or snow. This makes it much easier to observe terrain, obstacles behind the vehicle, and people and animals. In addition to its excellent lighting properties, Radar is very easy to install: the light comes with a low and durable mounting base that allows it to be mounted very close to the bottom of the rear bumper, making it easy to aim the light exactly where you need it.
Purelux Radar is protected against water and dust according to the IP69K classification, and its robust body is made of an aluminum alloy that is extremely resistant to vibrations and impacts, and the surface is finished with a black powder coat that protects against corrosion, chemicals and UV radiation. The light can therefore be installed without worry under the rear bumper and near wheel arches and tires. The durable structure, small size and excellent light output for its size enable versatile use in various vehicles, from ATVs and passenger cars to construction machinery and heavy equipment. Radar is radio interference-protected according to the ECE R10 standard and approved as a reversing light according to the ECE R23 standard. The DT-2 connector in the power cord makes installation easy. Two-year (24-month) warranty!
Delivery contents (1pcs)
Purelux Radar DRL
Power cord with DT-2 connector, 500 mm
Mounting rail
Rubber mounting backing
Installation and connection instructions (EN/FI/SE/NO/DK)
Specifications
Make and model: Reverse light Purelux Radar DRL
Intended use: As a reversing light and work light in vehicles/machinery
Operating voltage: 9-36V
Manufacturer's declared power: 32 W
Manufacturer's declared luminous efficacy: 2100 lm
Manufacturer's stated color temperature: 5000 K
Mounting: Mounting bracket
Connector: DT-2
Cable length: approx. 500 mm
Dimensions: 86 x 18 x 56 mm (Width x Height x Depth)
Height with mounting foot: 29 mm
Weight: 130g
IP rating: IP69K
Operating temperature: -40°C - +60°C
Approvals: EMC ECE R10, R7, R23, CE, RoHS
