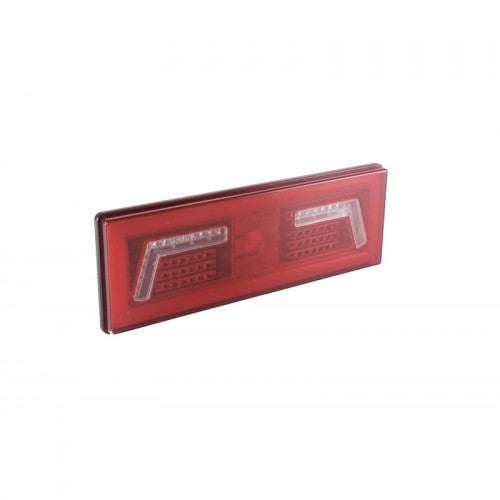

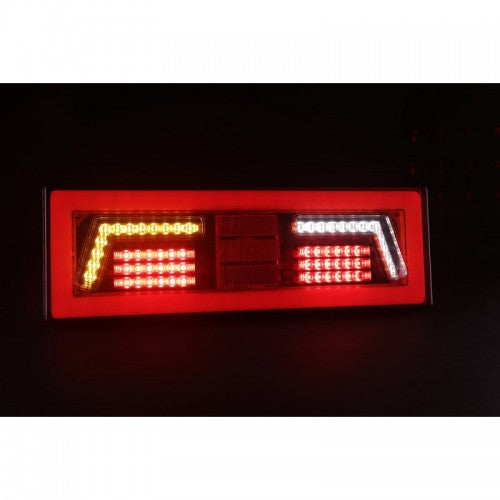

Large Neon Effect LED Combination Truck/Trailer Tail Light with Triangle Reflector - Pair (Left & Right)

Sold as pair (Left & Right) L1859 & L1860

Technical data

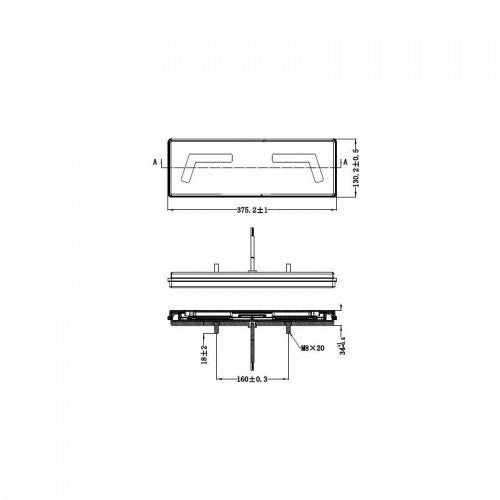

• Product dimensions: 375x130mm
• Cable: 300mm
• Working voltage: 12/24V
• Approvals, certificates:
ECE R3, R6, R7, R10, R23, R38
• Power consumption: 2W + 2W + 22W + 3W + 3W
• LED quantity: 96pcs
• Material of execution:
Housing: ABS+PC
Lens: PMMA+PC
• Working temperature: from -40°C to + 60°C

Functions
• Rear lamp LED
• For automoƟve use only
• The lamp has road approval ECE R3, R6, R7, R10, R23, R38 authorizing it to be used on public roads
• The lamp is intended for vehicles with 12/24V installation
• Reverse polarity protection

Mounting method
• Installation only in specialized workshops or professional service
• Lamps must be installed only in accordance with the UNECE regulations

Wiring:

Ground - White, Position - Grey, Indicator - Yellow/Green, Stop - Blue, Fog - Brown, Reverse - Black
