Front Fog Light with White or Amber Parking Light - PURELUX F330 - 9cm / 3.5"
A fog light approved for road use, equipped with two power settings and a two-color parking light. The 90 mm diameter fits in place of standard-size fog lights. Measured light output: 1,825 lm; range: 107 m @ 1 lux.

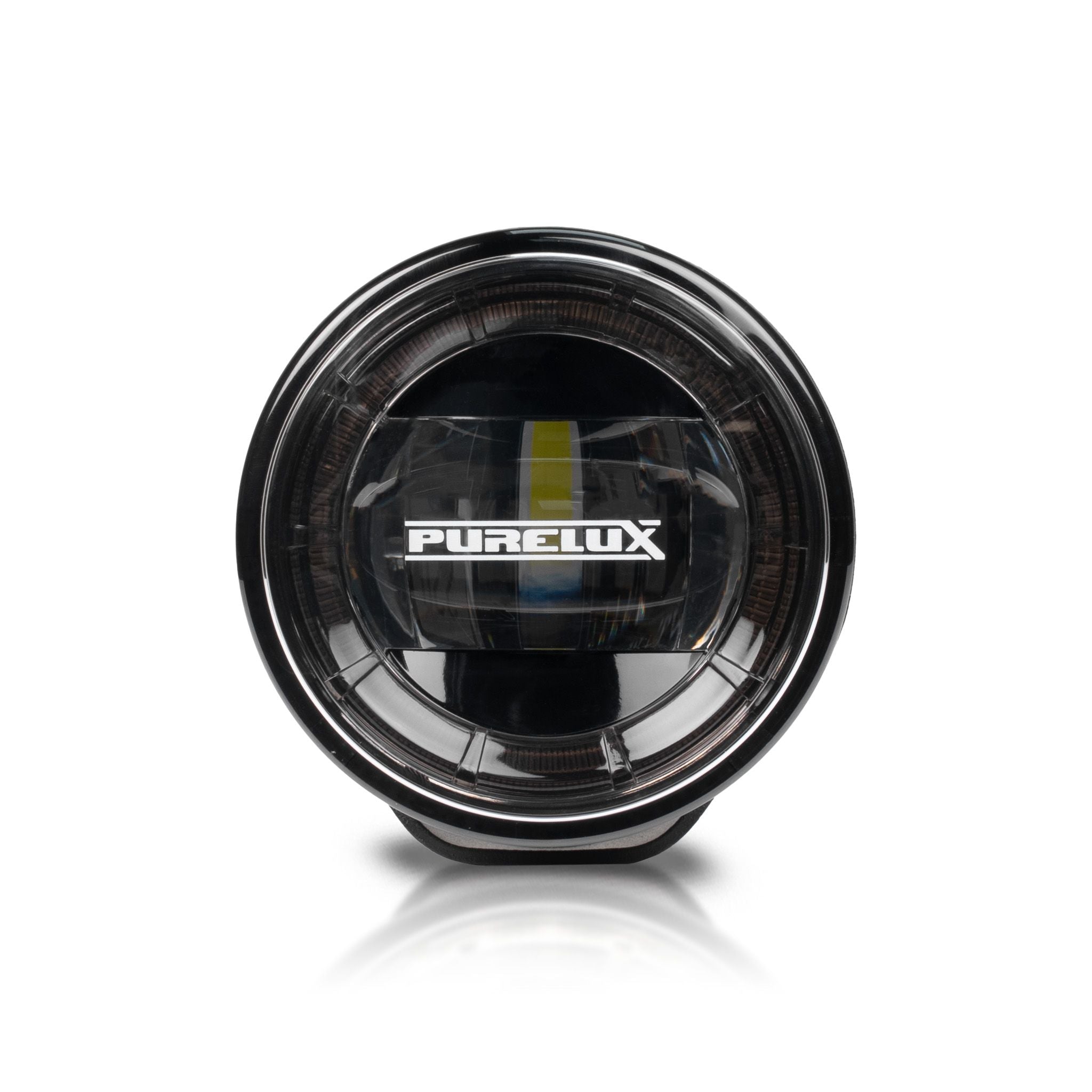

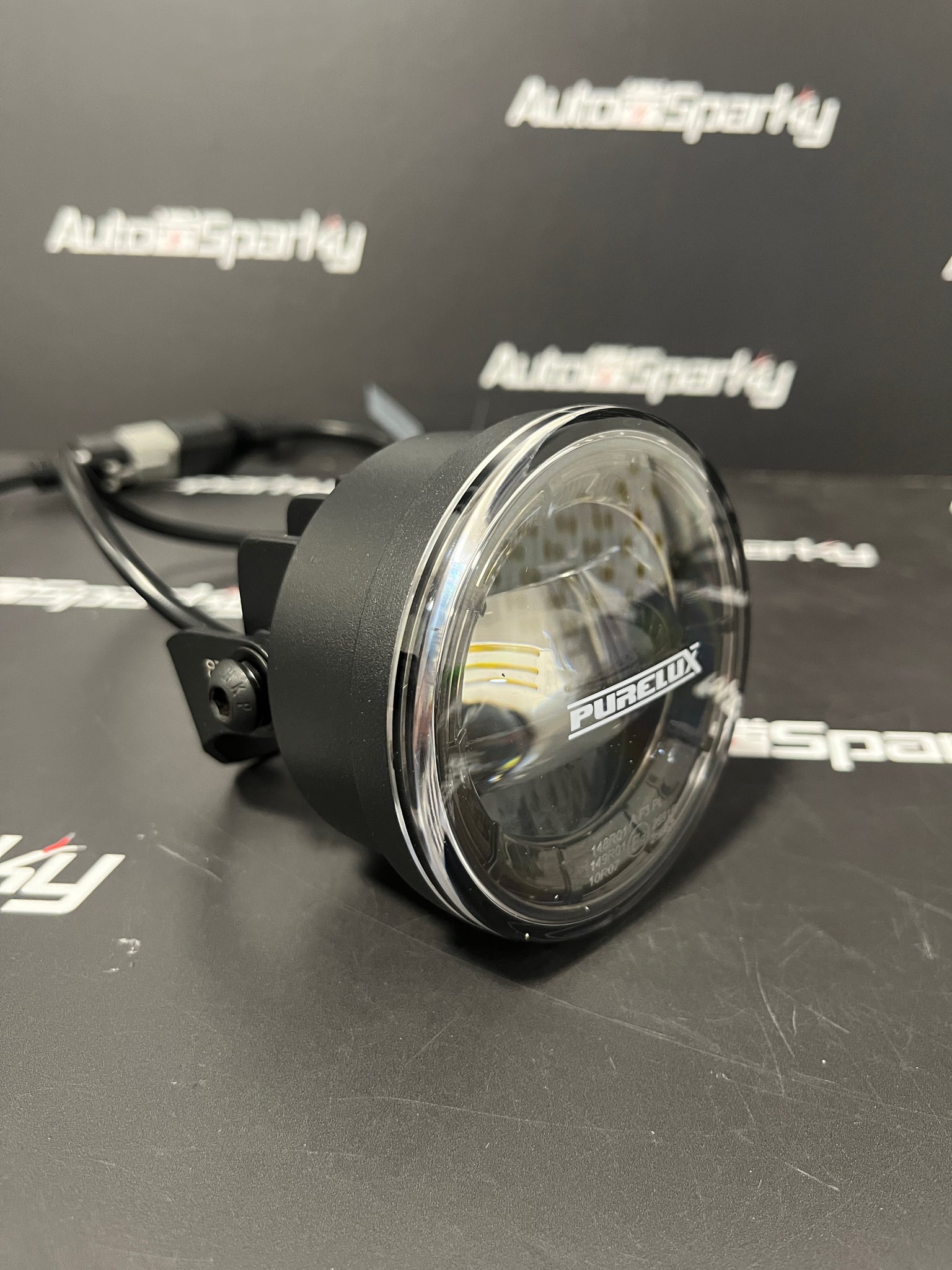

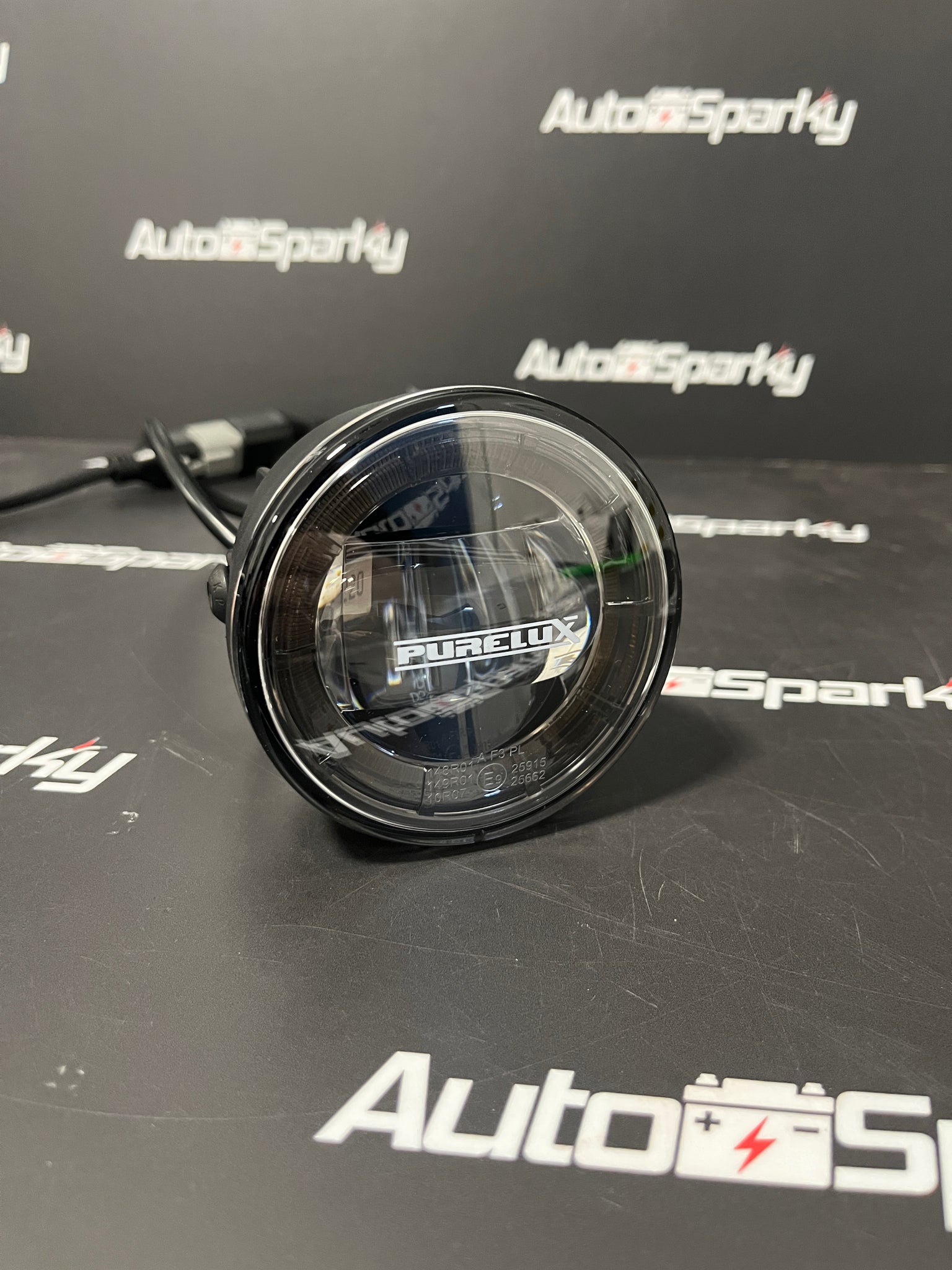

The Purelux F330 is a fog light equipped with two power modes, a two-color parking light, and road approval; its 90 mm diameter is designed to fit in the mounting locations of standard-sized fog lights. The F330 is a further development of the highly popular F210: the much-praised beam pattern has been retained, but the output has been significantly increased. Unlike any other fog light, the F330 features two different power modes, each of which produces significantly more light output than a vehicle’s standard fog lights. When using the unrestricted PowerBoost mode, the light output of a single bulb reaches up to 1,825 lumens, and the beam range is an impressive 107 meters @ 1 lux.
The beam is strictly limited vertically, which means that the light does not form any kind of diffuse light reflecting from the fog into the driver's field of vision. The light can therefore be directed onto the road as a wide "light carpet", so that when viewed from the driver's seat, the light does not dazzle at all, but instead penetrates the fog from below. The precise beam also enables very low installations, e.g. directly in place of the car's own fog lights at the bottom of the front bumper. The precisely limited beam with a neutral color temperature of 5500 Kelvin effectively penetrates not only fog but also rain, improving driving safety in poor weather conditions.

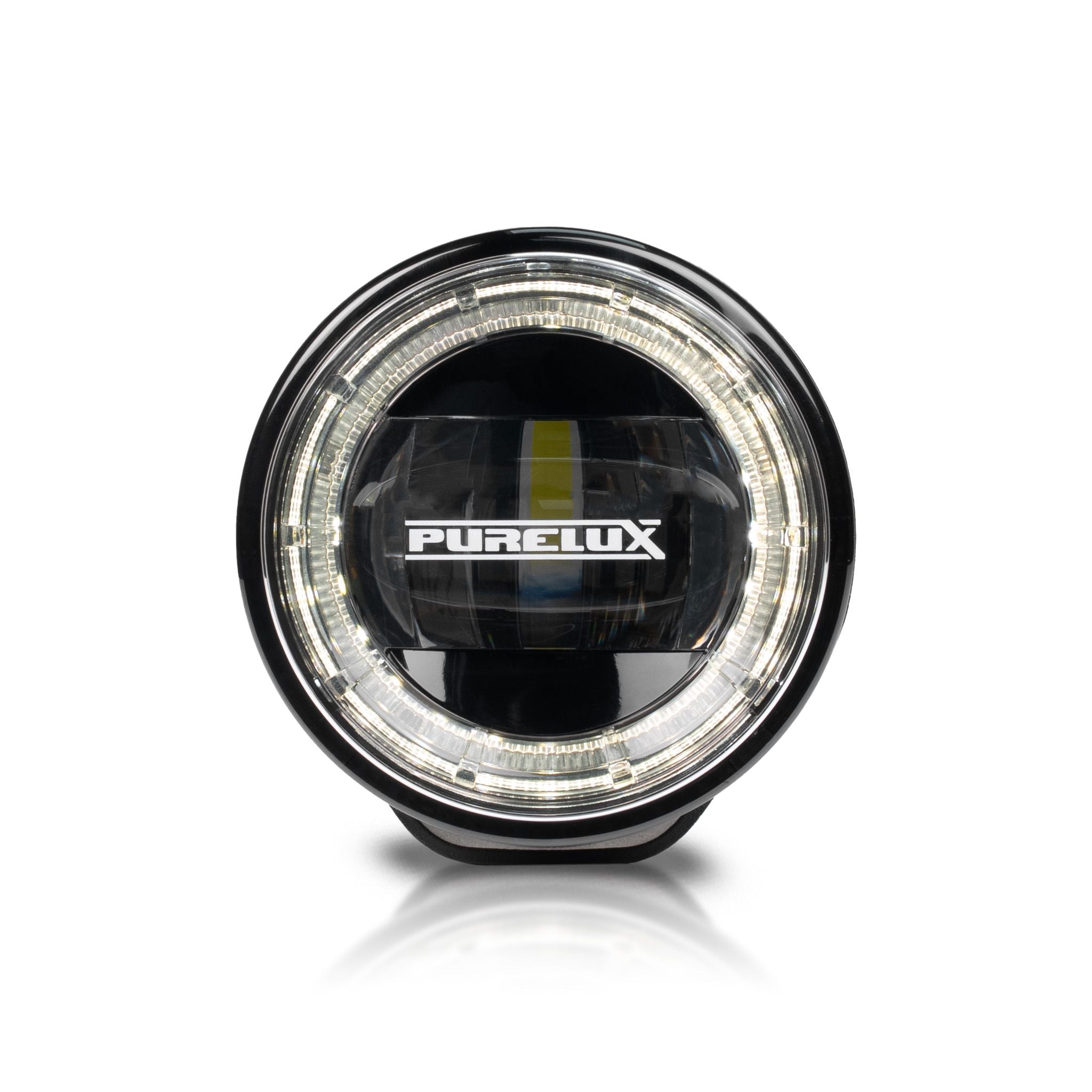

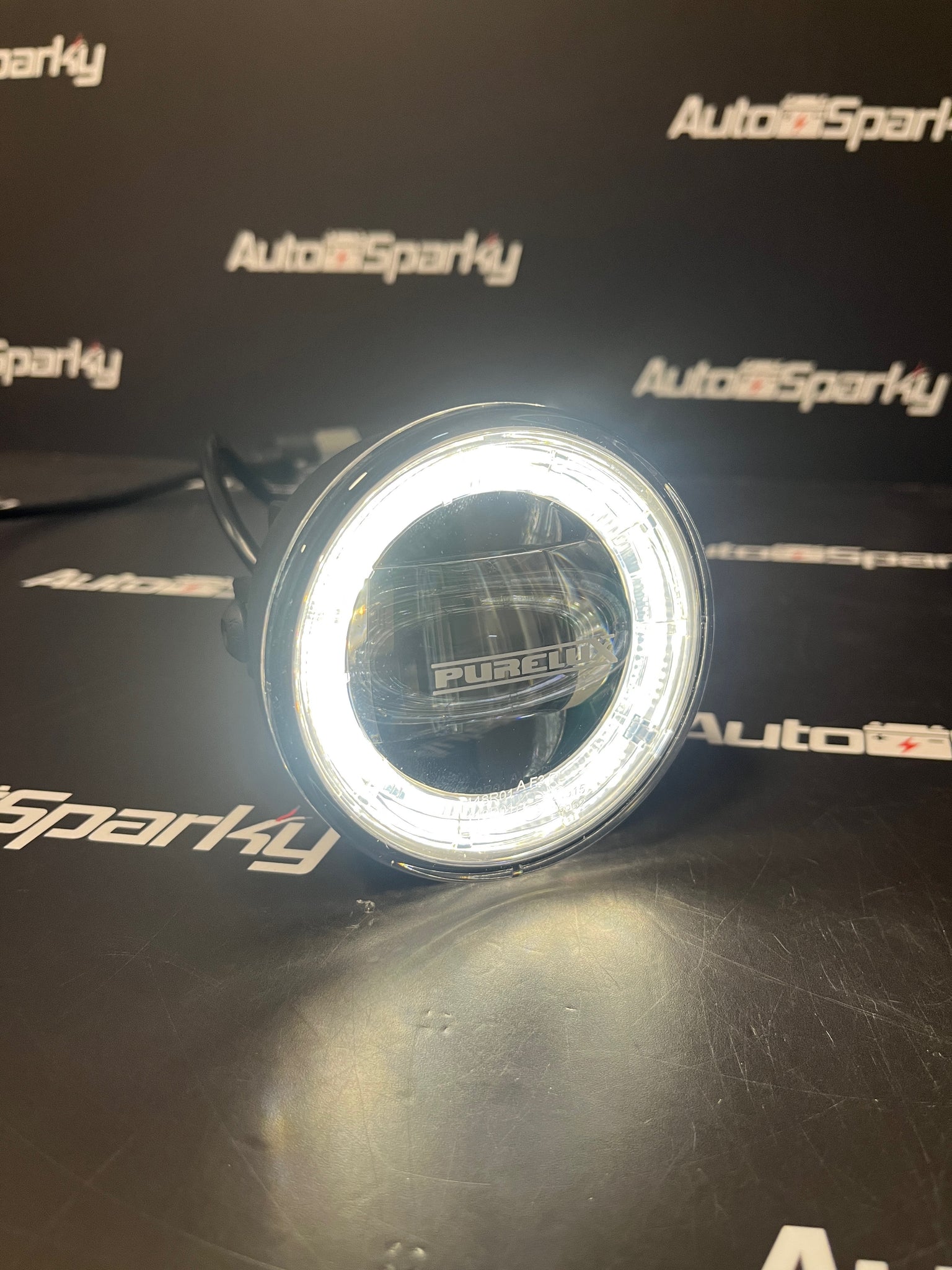

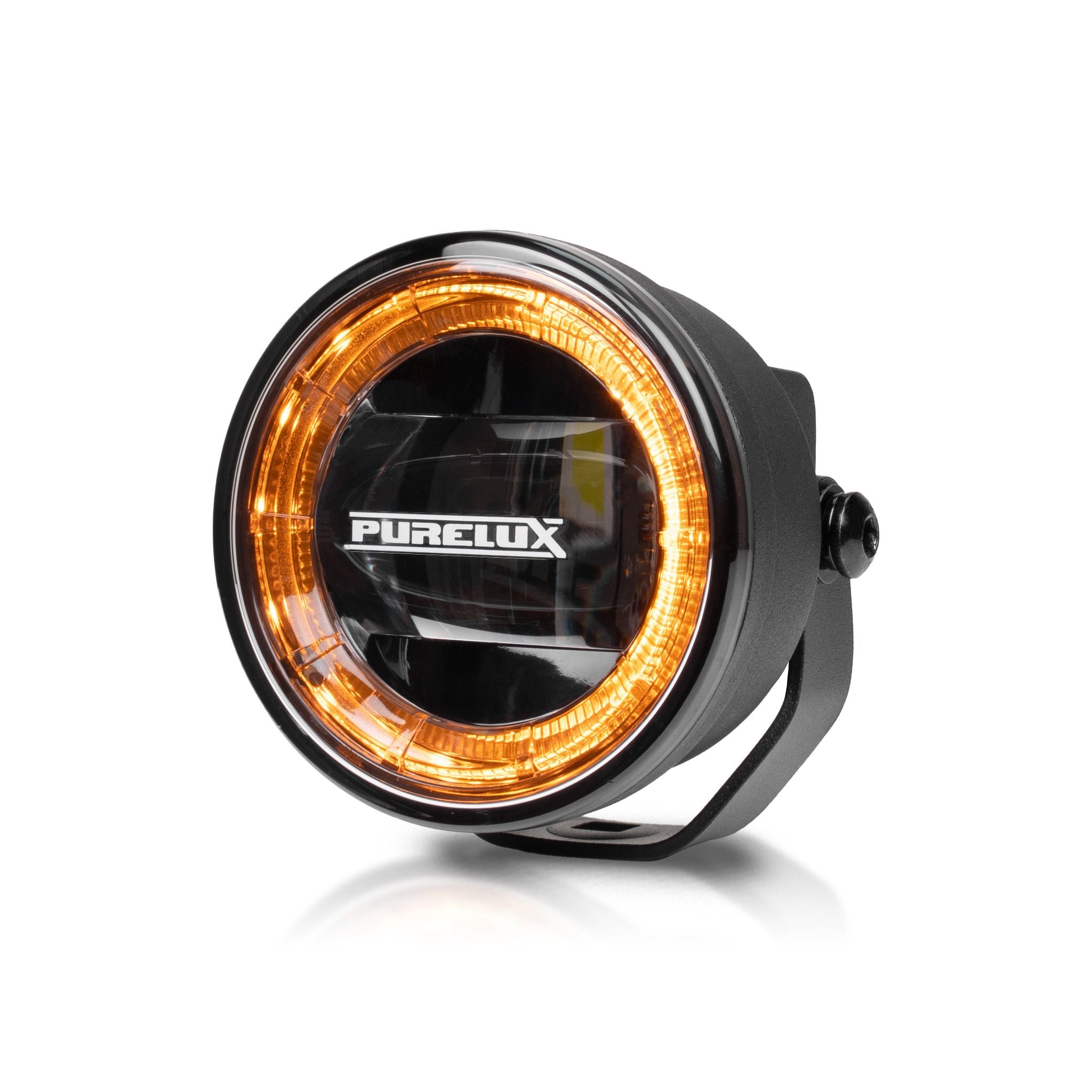

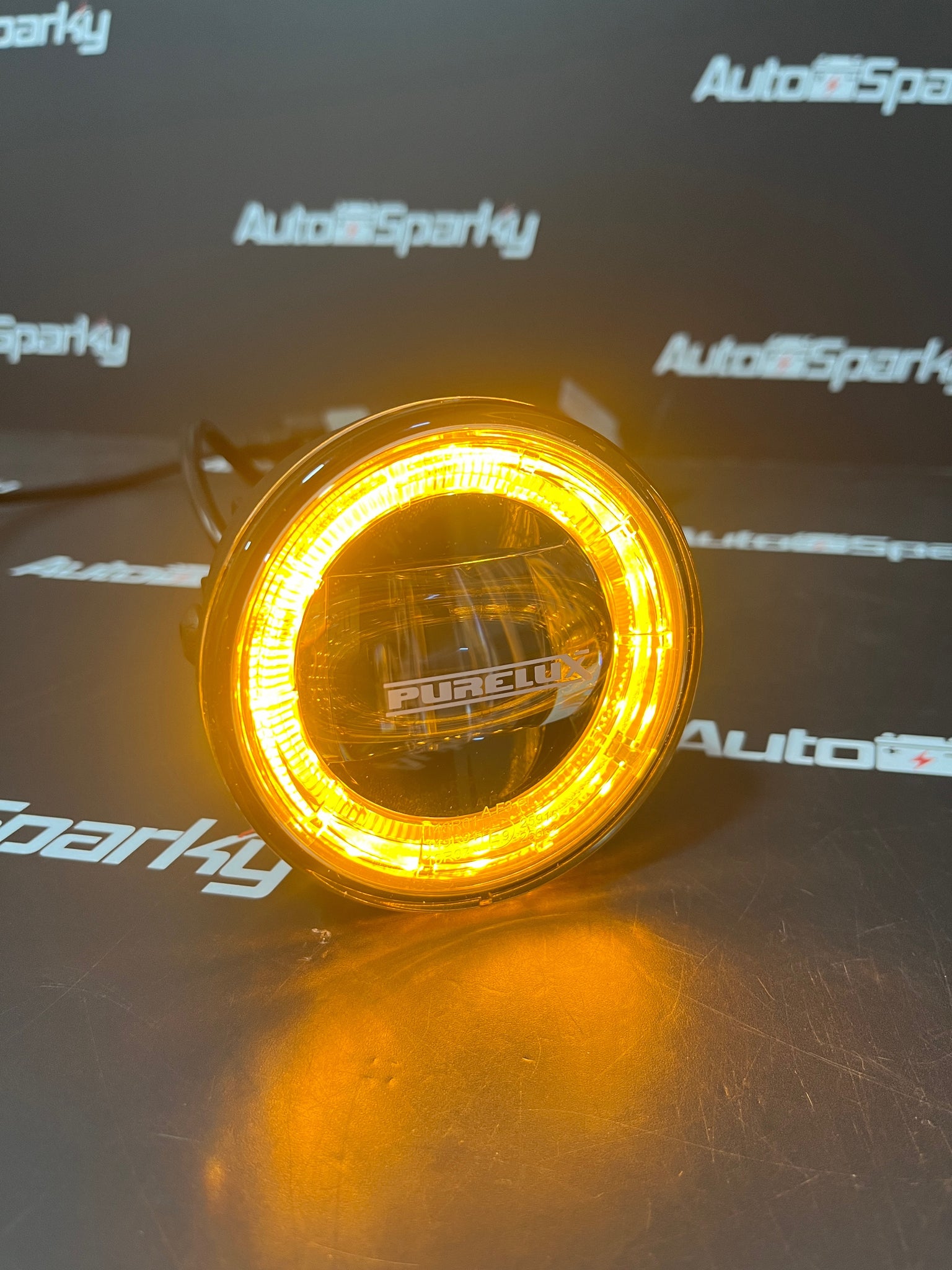

Unlike other fog lights on the market, the Purelux F330 also features an orange or white parking light that wraps around the outer edge of the lens, giving the light a stylish overall look. The lamp body diameter is 90 mm, so it is easy to install directly in place of the vehicle's own fog lights. There are separate wires for the PowerBoost mode and the road-approved power mode, which allows the unlimited power mode to be connected, for example, behind a separate switch.
Purelux F330 is completely protected against dust and water with the highest possible protection rating (IP68/IP69K). In addition, its strong aluminum body is shock and vibration resistant, ensuring durability even in the toughest applications. The wide operating voltage range (10-32V) allows installation in both 12V and 24V systems. The luminaire is protected against radio interference in accordance with the ECE R10 standard. Two-year (24 months) warranty!
Basic delivery content
Purelux F330

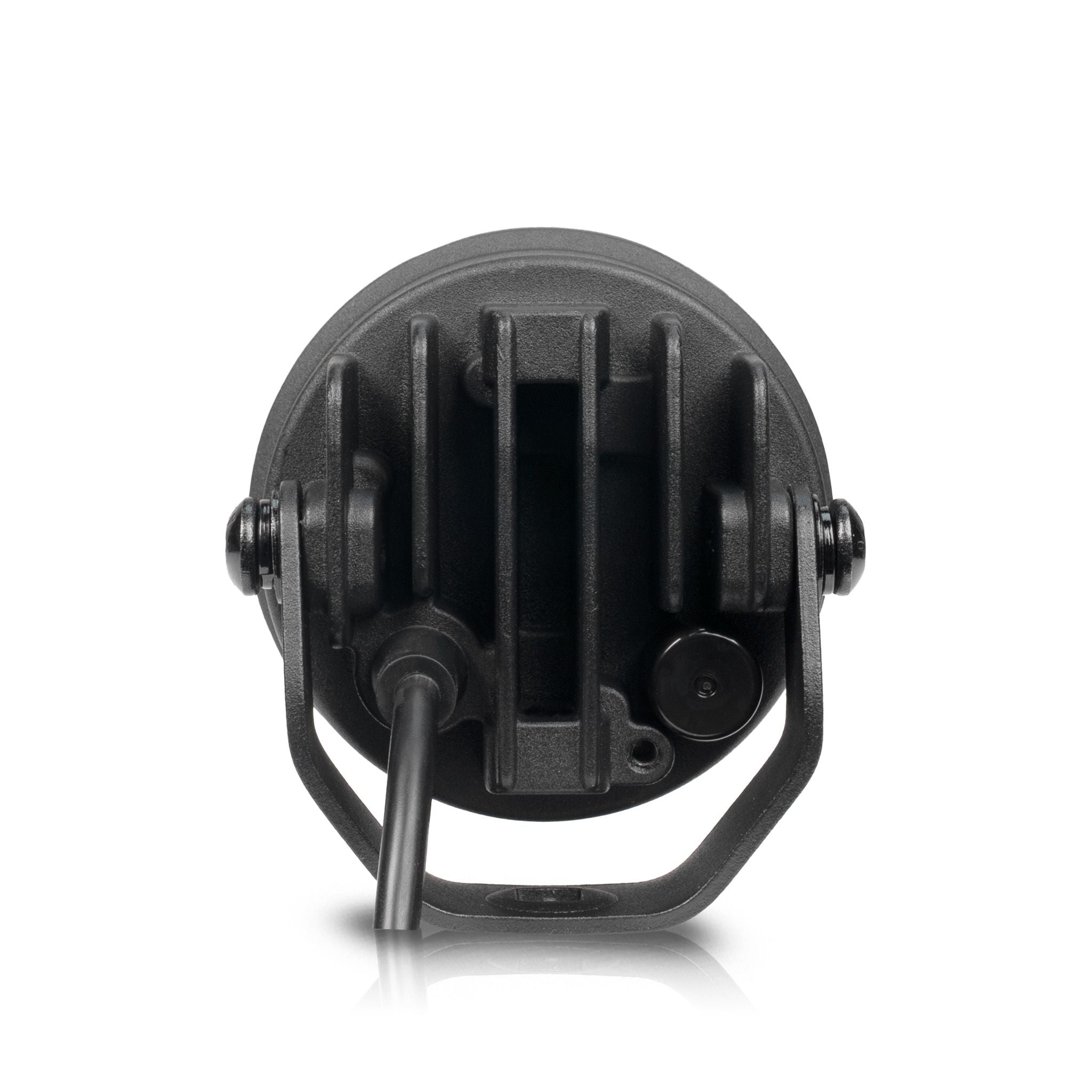

Mounting foot
Mounting bolt
Power cord with DT-6 connector
Connection and installation instructions
Technical Specifications
Brand and Model: Purelux F330
Intended Use: Fog light for work vehicles / cars
Operating voltage: 10–32 V (DC)
Purelux PowerBoost®: 1.1875A @ 24V
Road mode: 0.60A @ 24V
Calculated power: 15 W (Road traffic mode) / 30 W (Purelux PowerBoost®)
Purelux PowerBoost®: 28.5 W
Road mode: 14.6 W
Manufacturer-specified light output: 1,800 lm (Purelux PowerBoost®) / 1,000 lm (Road Traffic Mode)
Color temperature specified by the manufacturer: 5500K

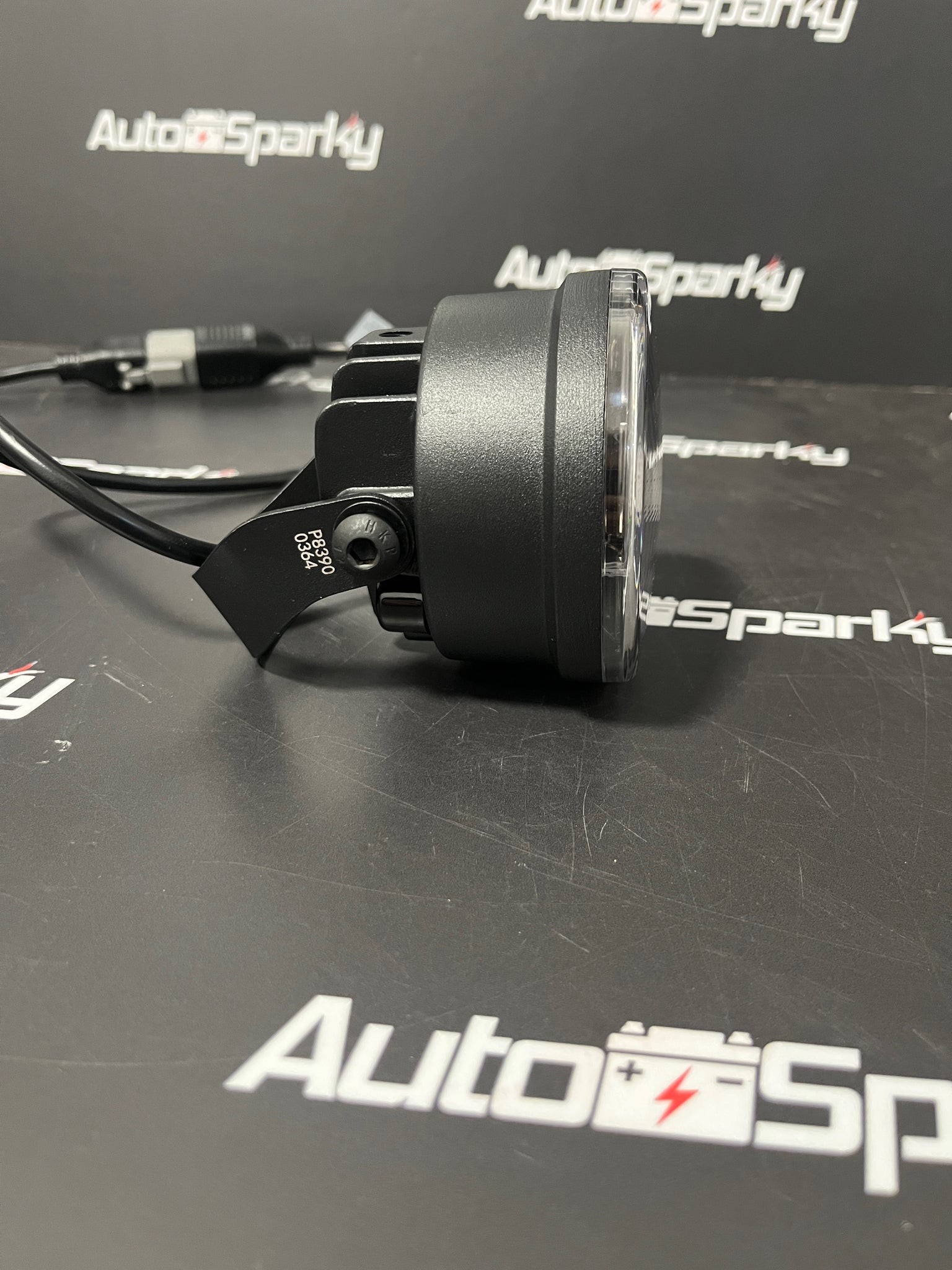

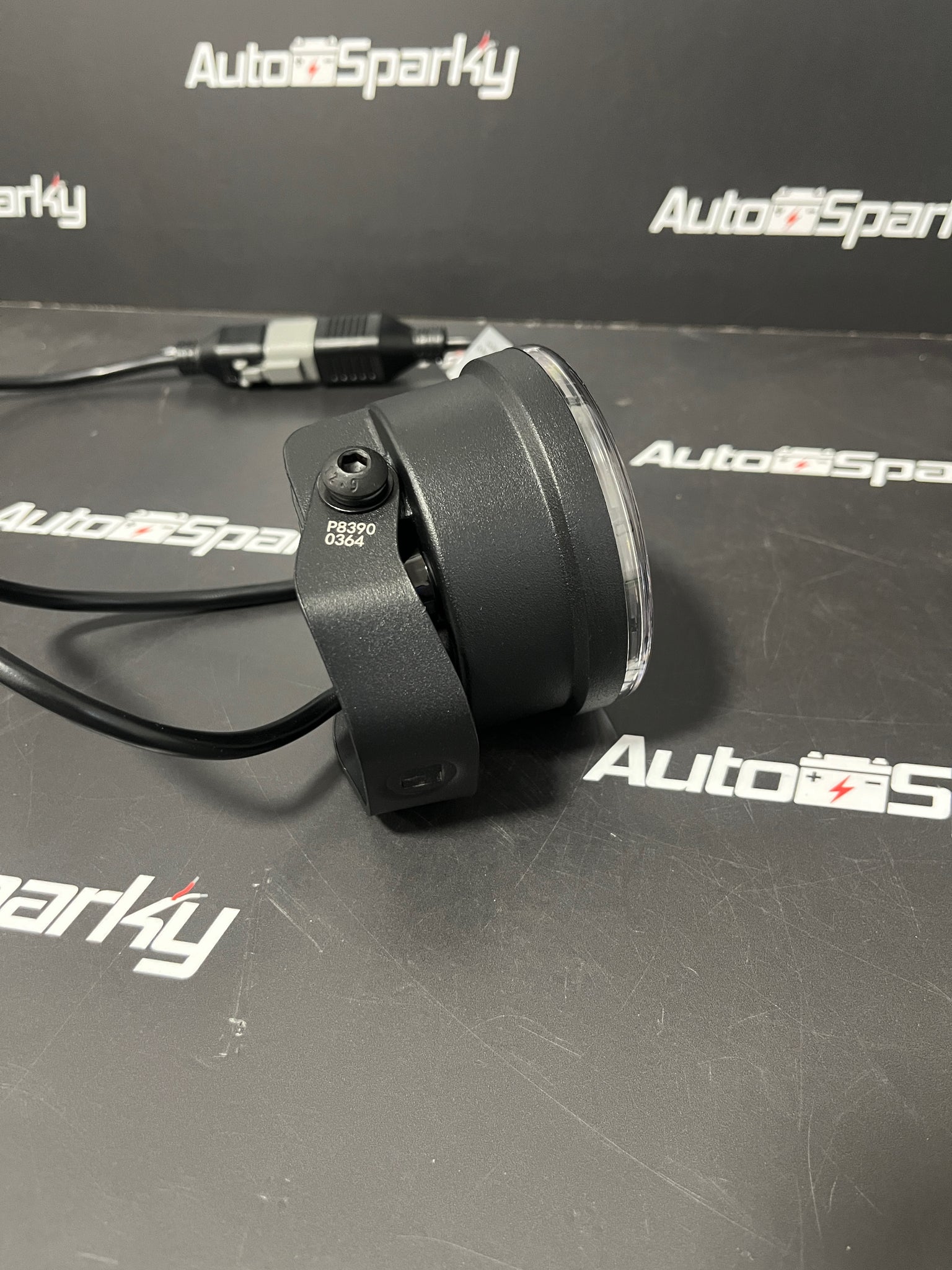

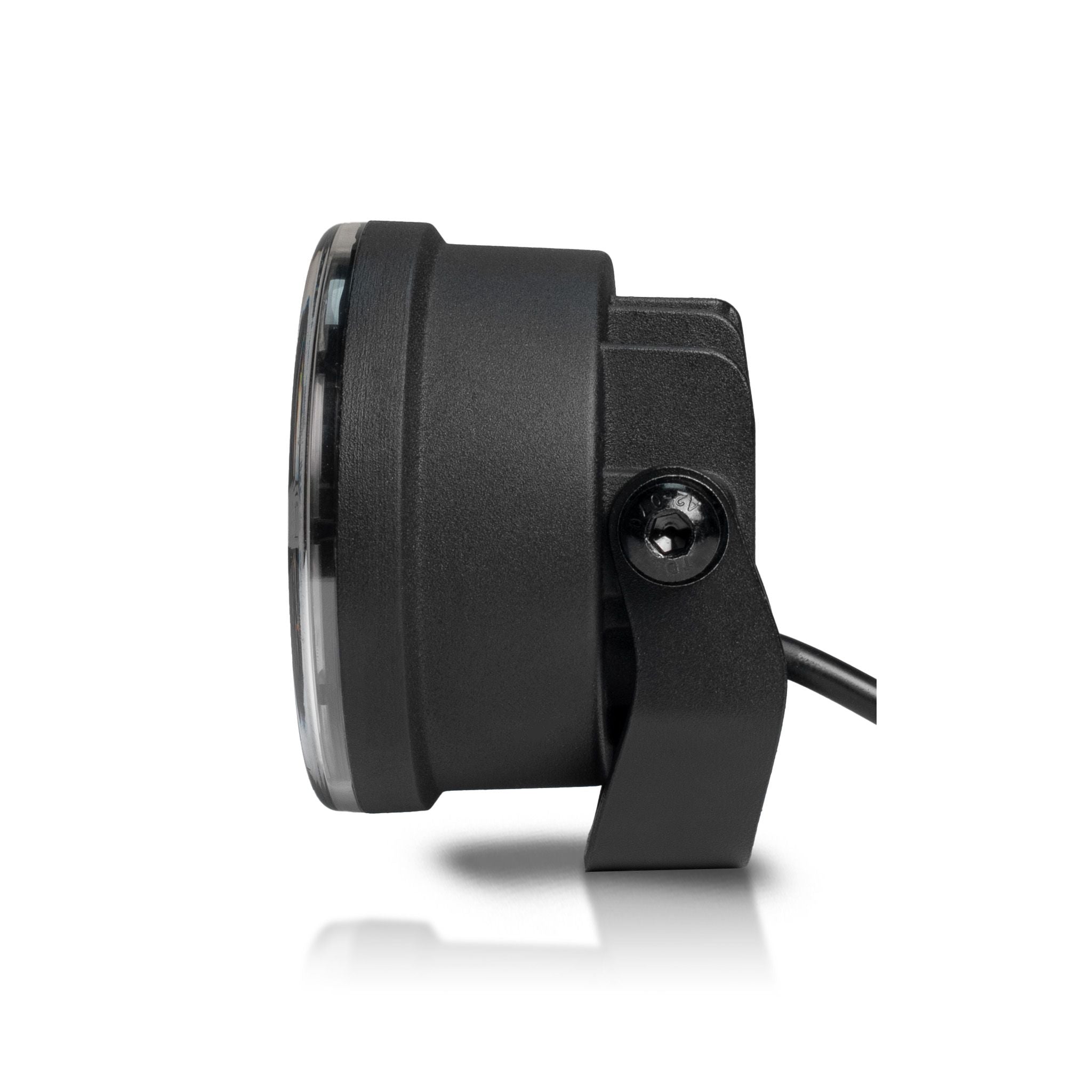

Mounting: Mounting bracket
Connector: DT-6
Cable length: approx. 50 cm

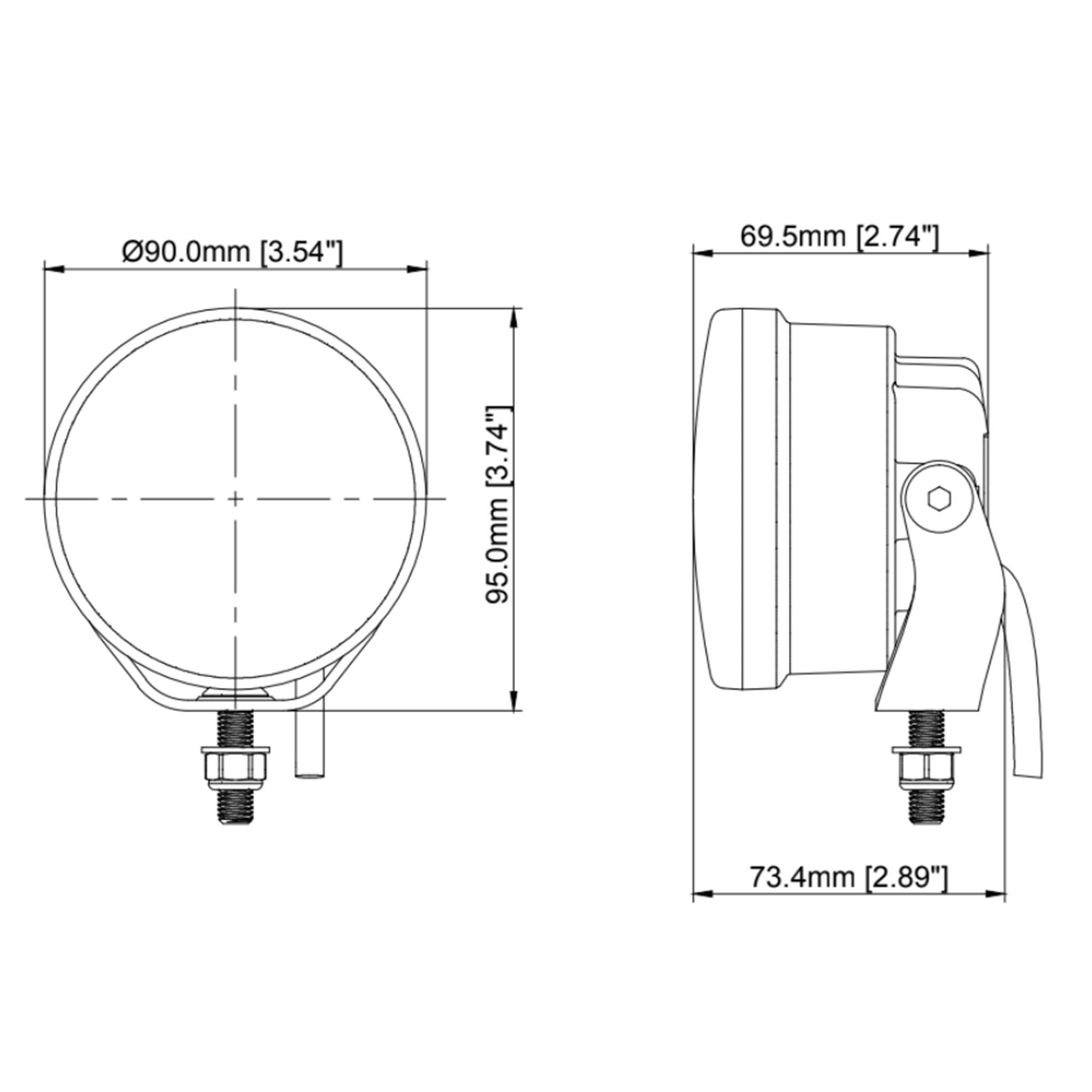

Dimensions: 90 x 90 x 69 mm (Width/Height/Depth)
Height with stand: 95 mm
Weight: 500 g
IP rating: IP68/IP69K
Certifications: CE, RoHS, ECE R10, R148, R149
Warranty: 24 months
Connection
Red: PowerBoost mode (+)
Black: Ground (-)
Brown: Road mode (+)
Yellow: Orange parking light (+)
White: White parking light (+)
