ESB Coiled 5m Extension Cable - 24v
ESB Coiled 5m Extension Cable - 24v
ESB Coiled 5m Extension Cable - 24v

ESB Coiled 5m Extension Cable - 24v

Tax included. Shipping calculated at checkout.

• Cable length: 5m
• Cable: 5X1.5+2X4MM
• Working voltage: 24V
• Pins quantity: 7 pcs
• Material of execution:
• Pins: brass
Working temperature : from -20°C to +80°C

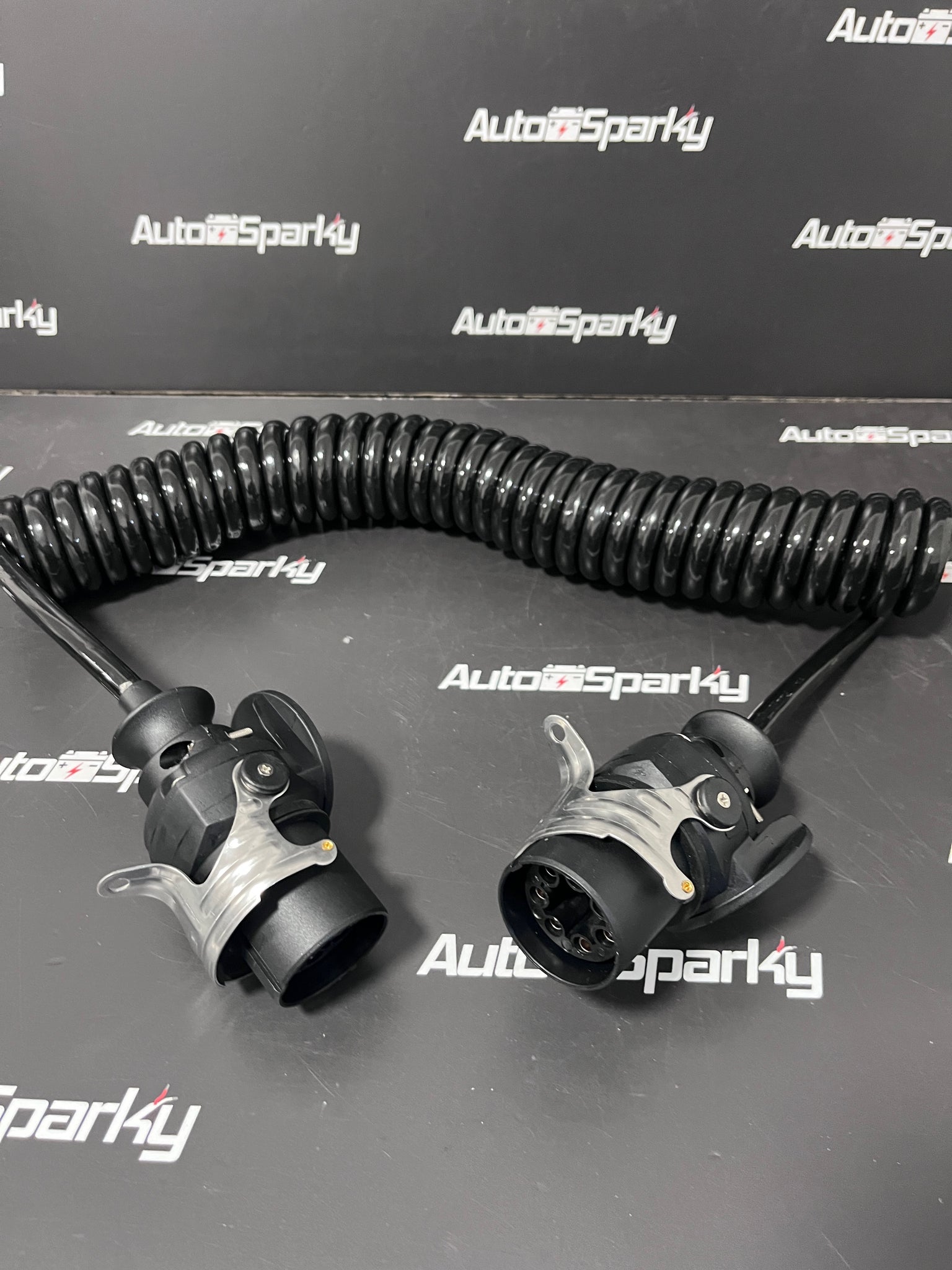

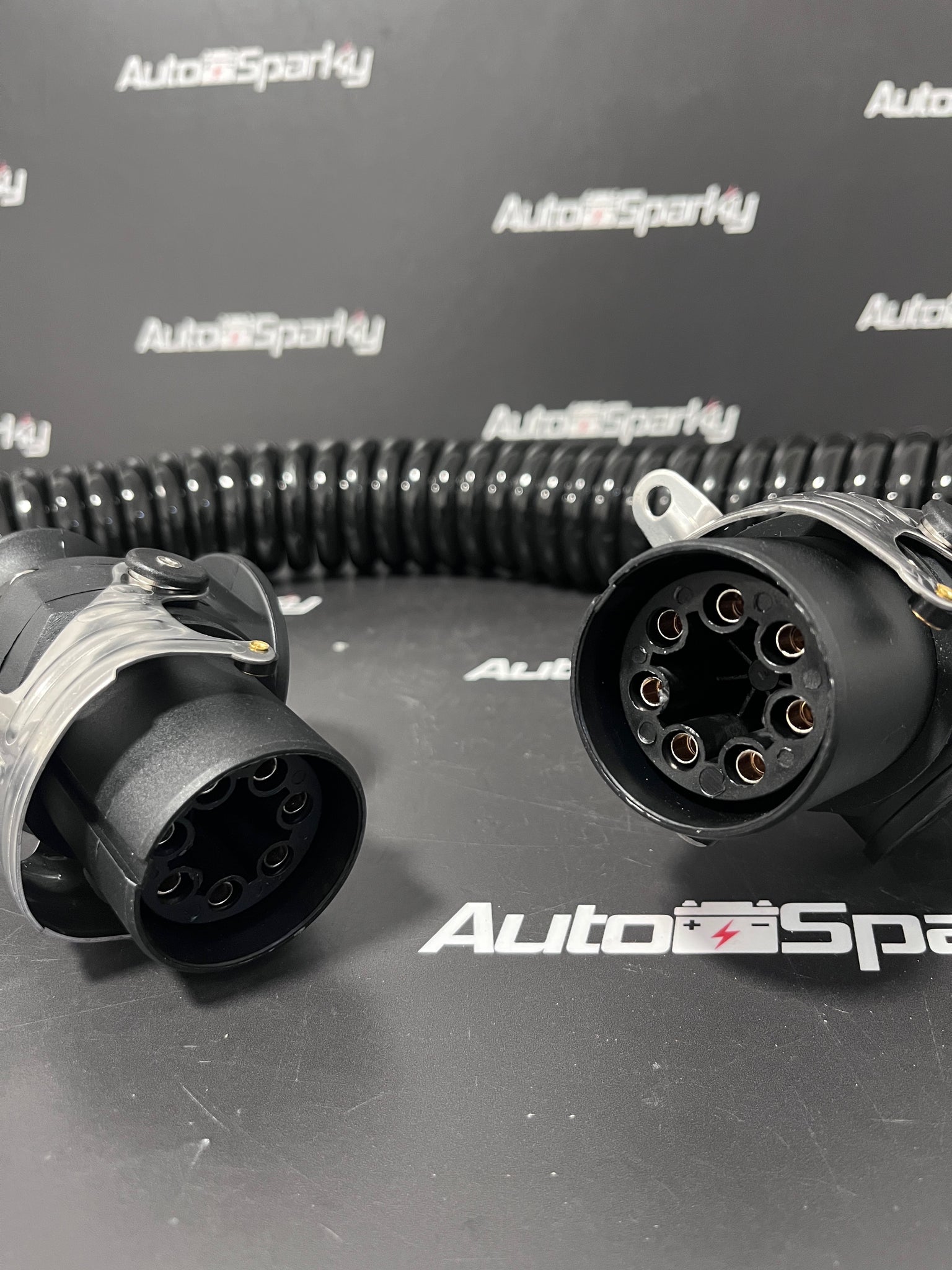

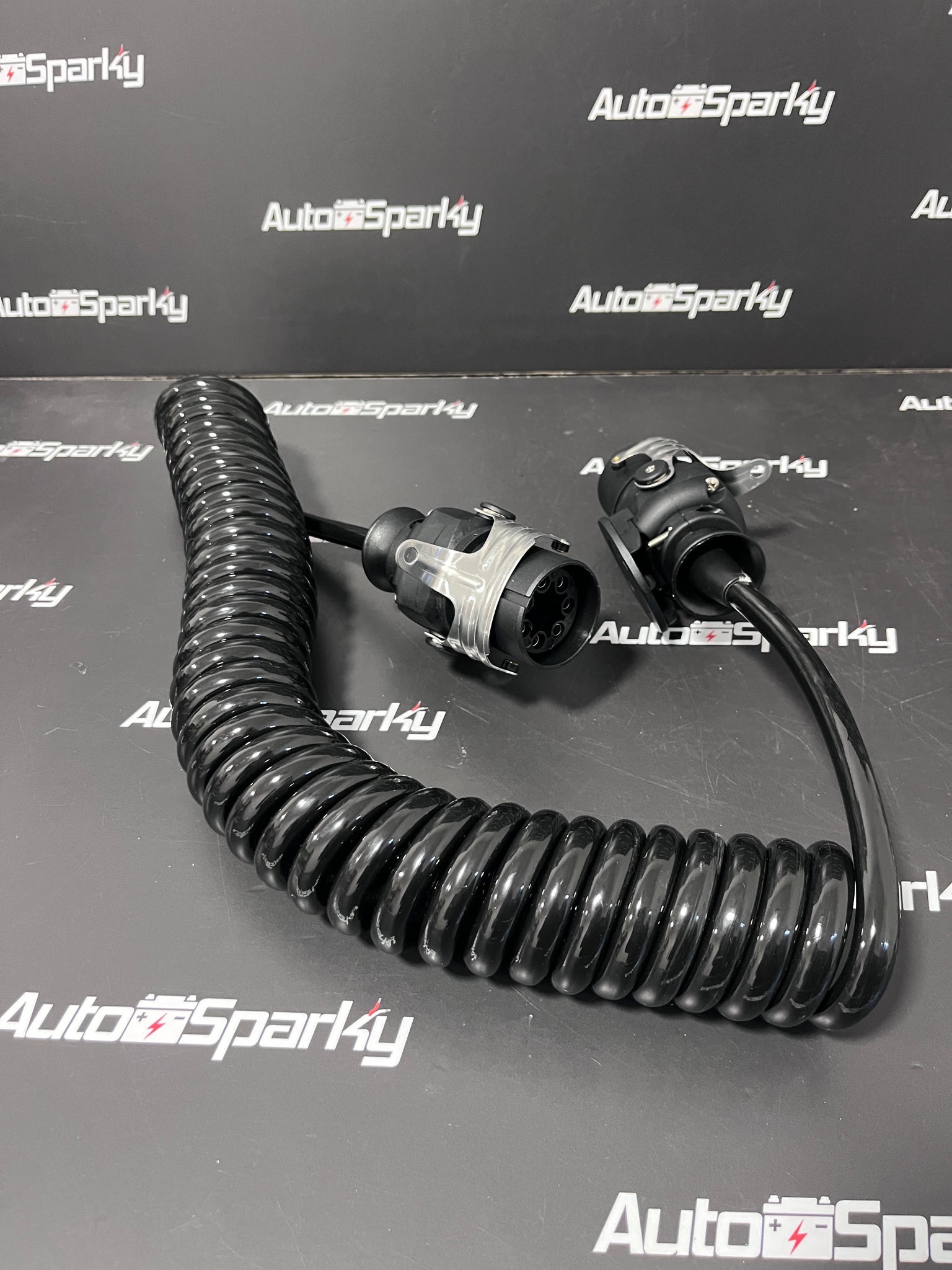

The EBS 5m electric cable is an element through which the user can make a solid connection between the trailer and Truck. The connection created in this way allows the use of the braking system or lighting functions in the trailer itself. The supported functions include: +24V permanent; +24V via the ignition switch; ground (pin 2); ground (pin 1); ABS failure signaling when voltage is below +5V; CAN H for EBS and ABS; CAN L for EBS and ABS.
