Epix16+ XL LED Lightbar - 16" 140Watt 11,500Lumen Powerboost Driving Light - Amber or White DRL - LEDSON

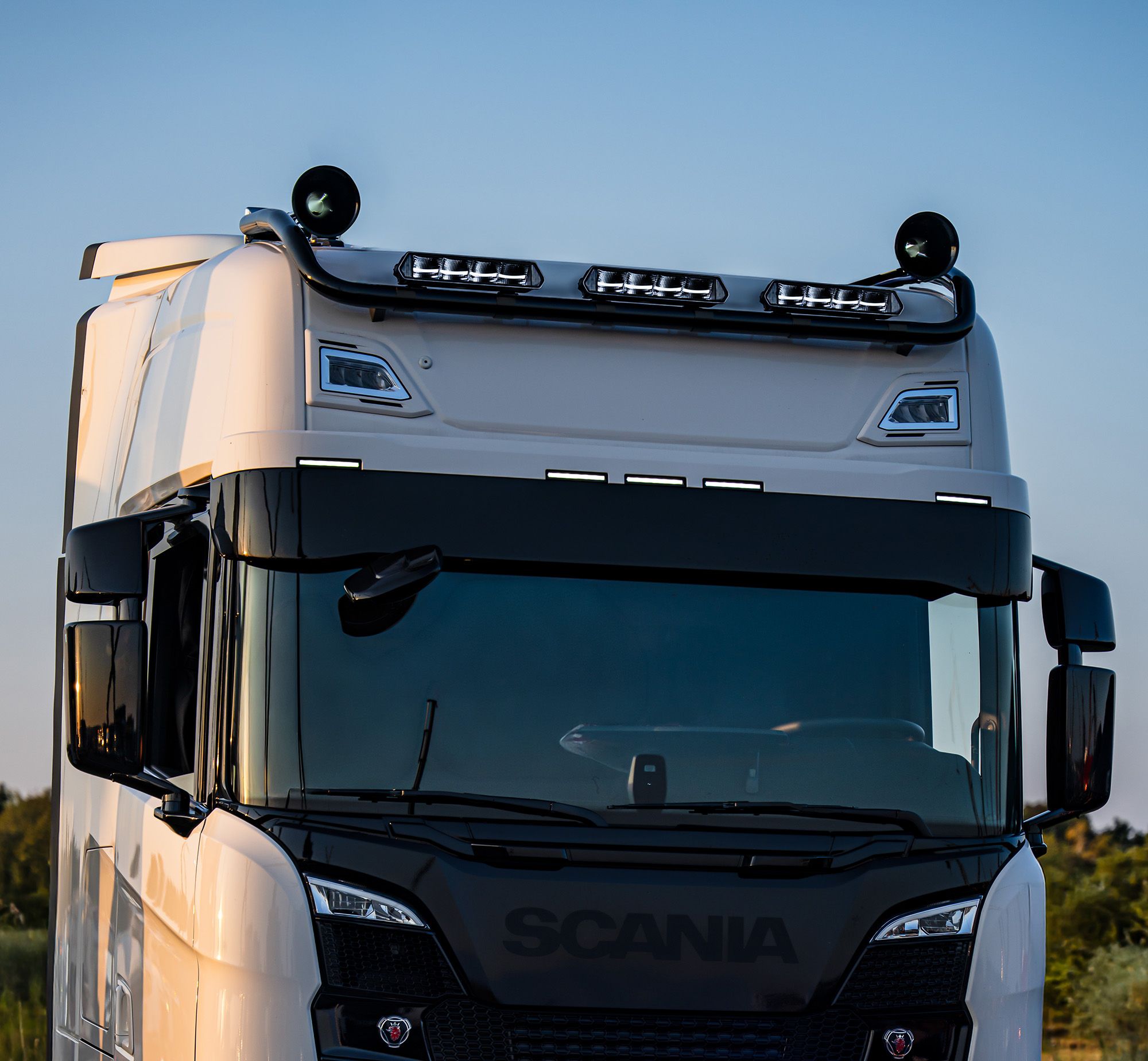

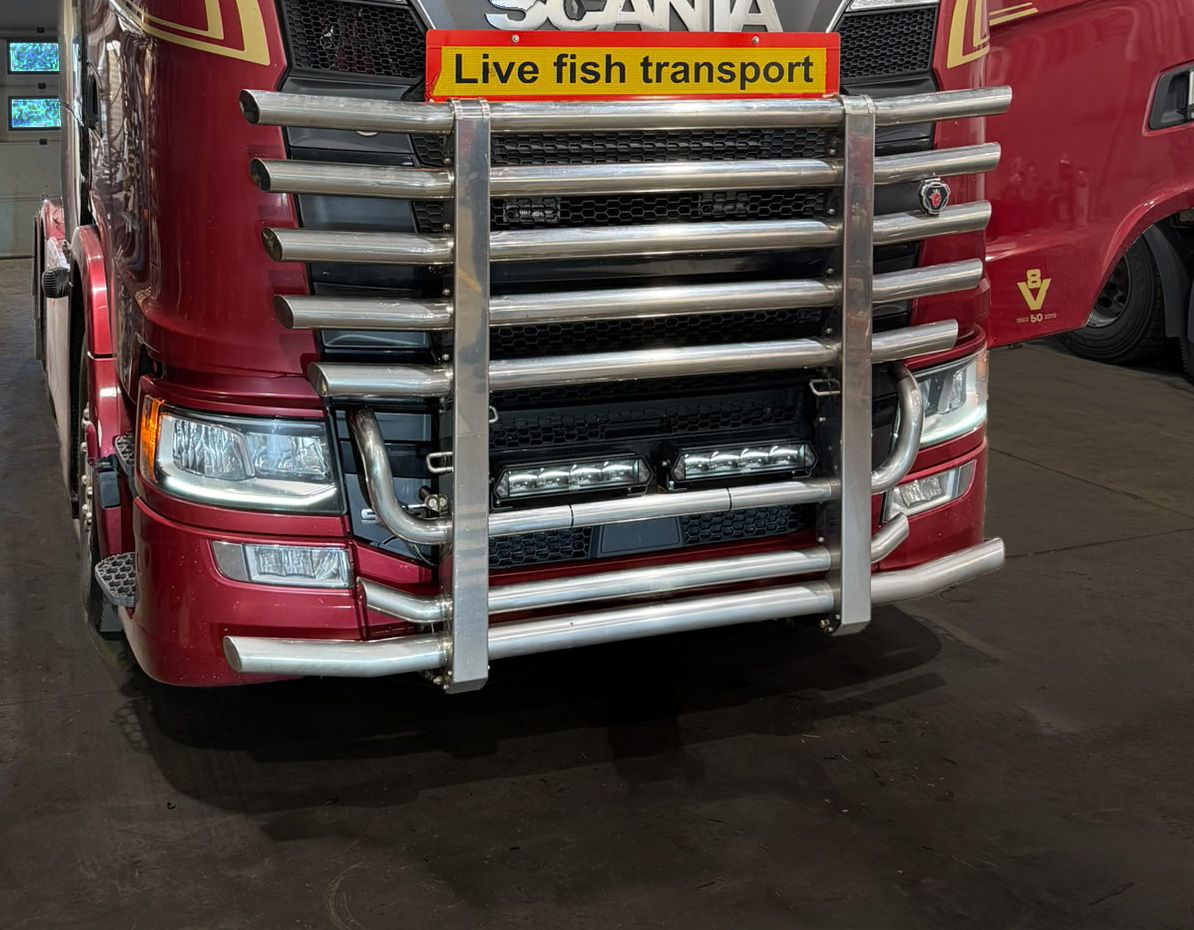

Epix16+ XL is a powerful and elegant LED bar designed for roof or grille mounting on trucks, where both range and design play a crucial role.

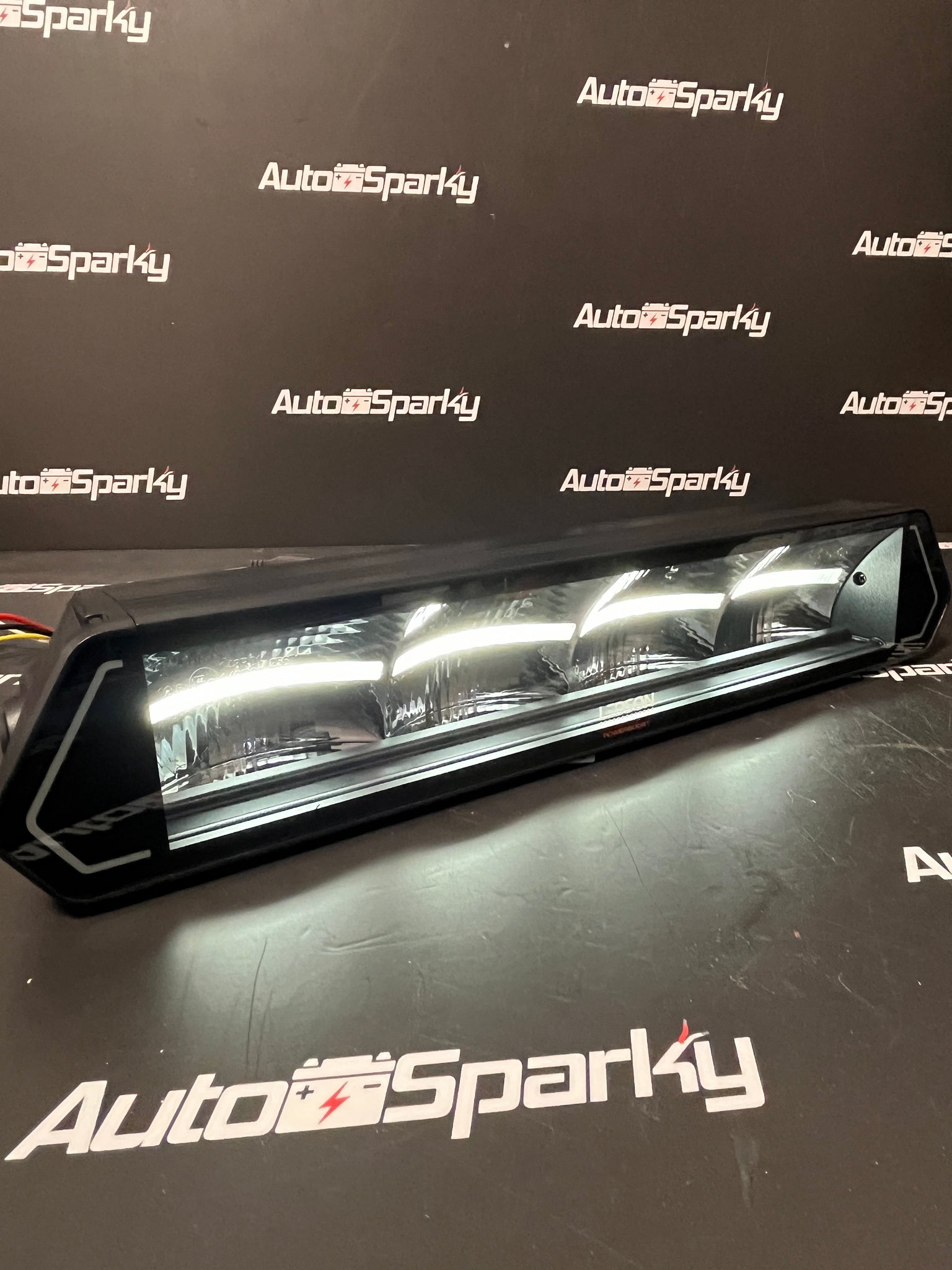

With an impressive beam pattern and powerboost function, it delivers maximum light when required, while being E-approved for legal on-road use. A refined position light with dynamic activation adds an exclusive feel.

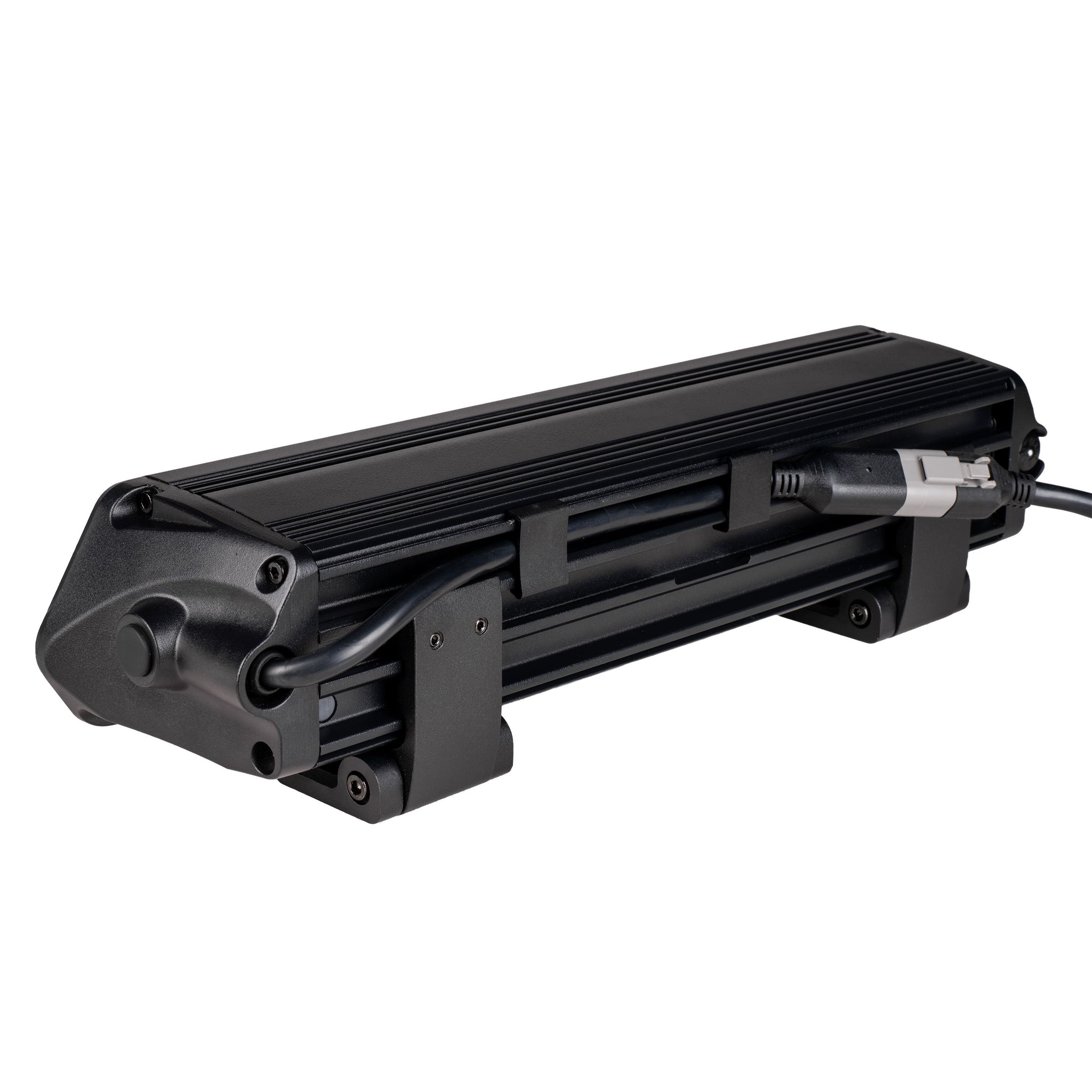

The LED bar is available in two versions – with or without an integrated strobe light – and the strobe function can be synchronized with other auxiliary lights from Ledson. Installation is simplified with smart cable clips that neatly conceal the wiring within the rear heat sink.

Epix16+ XL is a perfect combination of performance, functionality, and design.

Specifications:
Selectable: E-approved mode / powerboost mode
Range at 1 lux: 237 m (R149)
Range at 1 lux in powerboost mode: 653 m
Lumens: PB 11,500 (actual 9,200)
E-approval: R149 (reference number 12.5) / R148 (white position light)

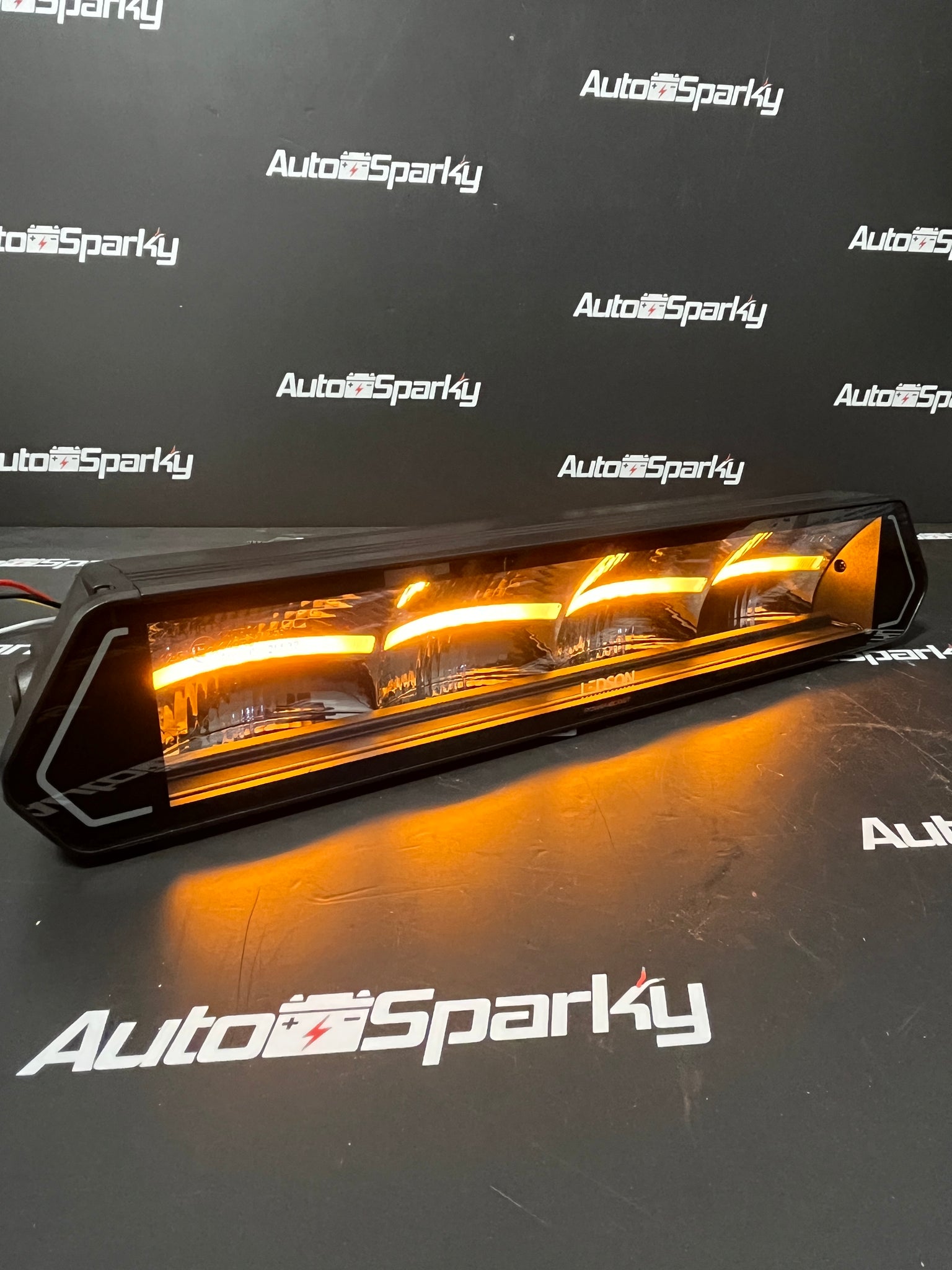

Selectable position light: White or yellow/orange
Beam pattern: Driving beam (wide and elongated)
EMC protected: ECE R10
Colour temperature: Neutral white light (5000K)
Cable with 4-pin DT connector
Compatible with Ledson Connect (sold separately)
Power: 140 W (4 × 35 W LEDs)
IP rating: IP69K
Load: 0.9 A @ 12 V and 0.5 A @ 24 V (R149)
Load in powerboost mode: 11.1 A @ 12 V and 5.1 A @ 24 V
Voltage: 9-36 V
Side-reflective optical system
Aluminium housing
Polycarbonate lens
Electronic thermal management

Dimensions:
Width: 410 mm
Height: 75 mm
Depth: 85 mm
