Atlas 320 LED Driving Light - Amber or White DRL & Amber Strobe - 6000lumen / 60Watt - TRALERT

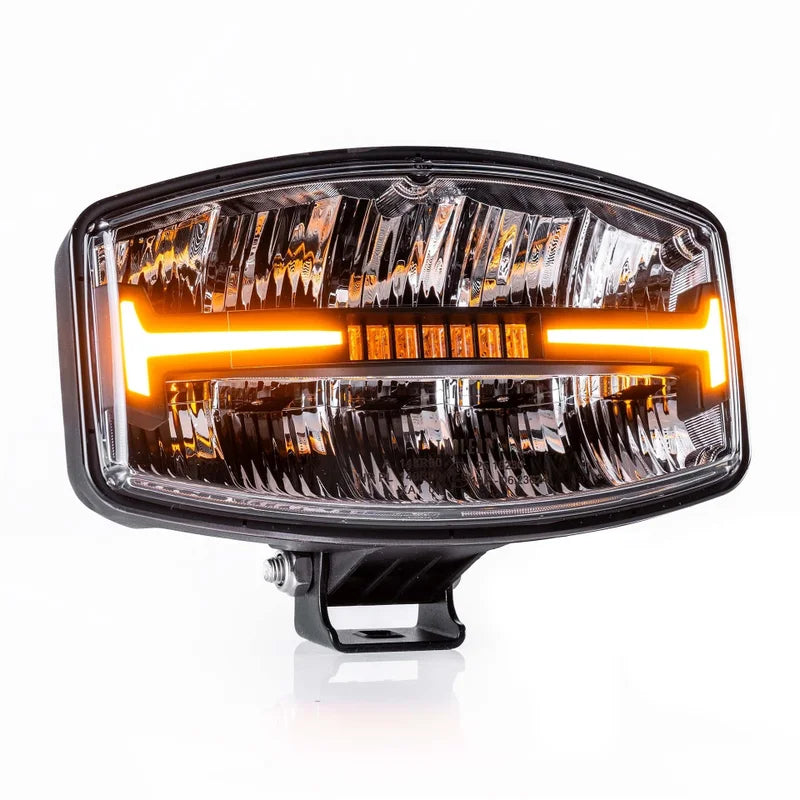

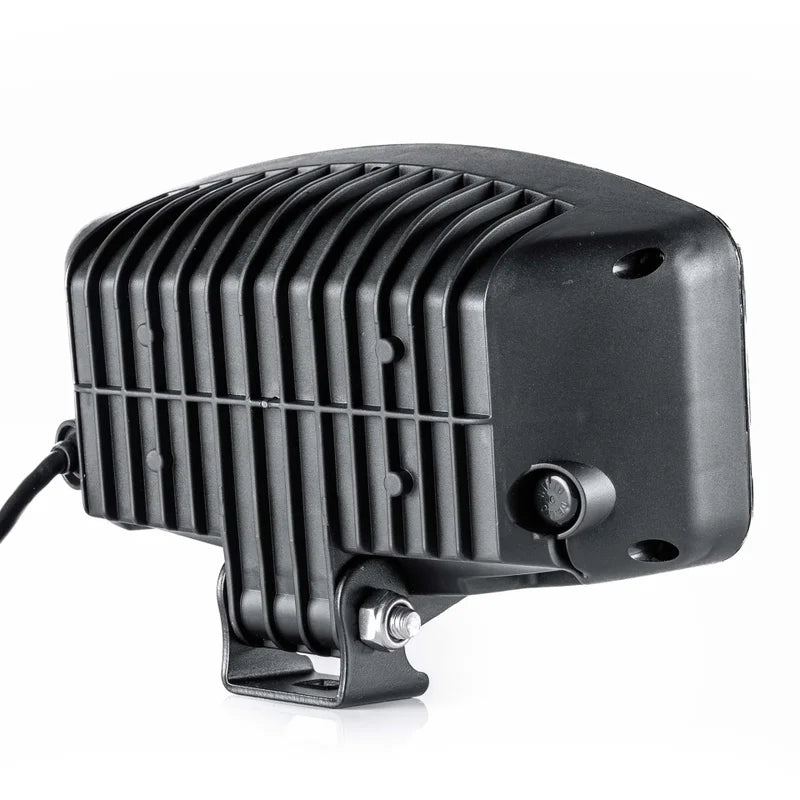

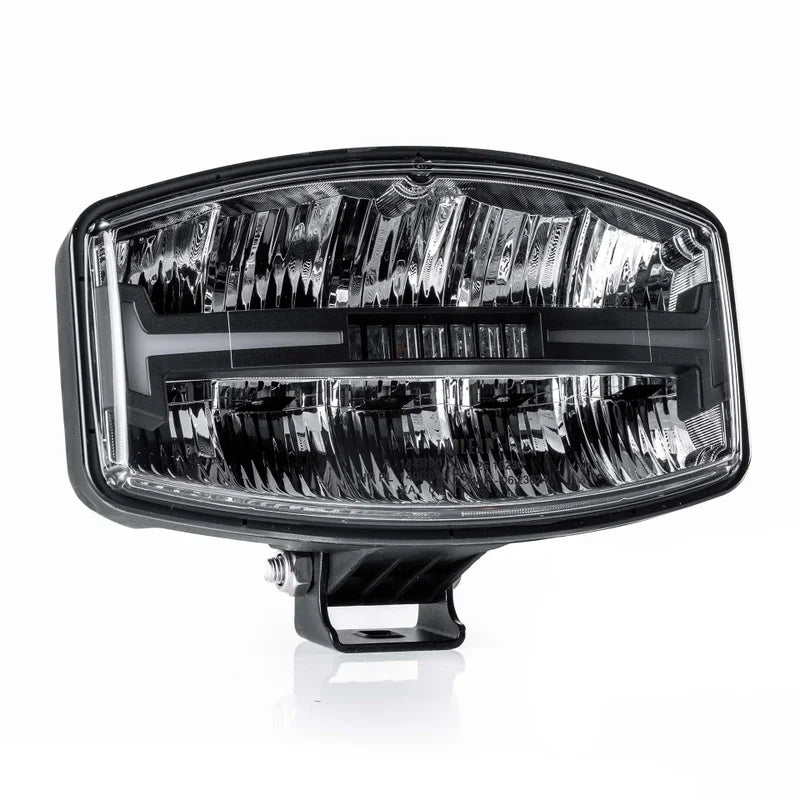

With this LED driving light, the TRALERT® Atlas serie offers a robust lighting solution for vehicles in agriculture, construction and transport applications, among others. Thanks to the Driving Beam light image, the luminaire is suitable for medium to long distances. This LED driving light features duo-color driving lights with both amber and white light, and also includes a warning light function. The housing is made of graphene and fitted with an impact-resistant polycarbonate lens.

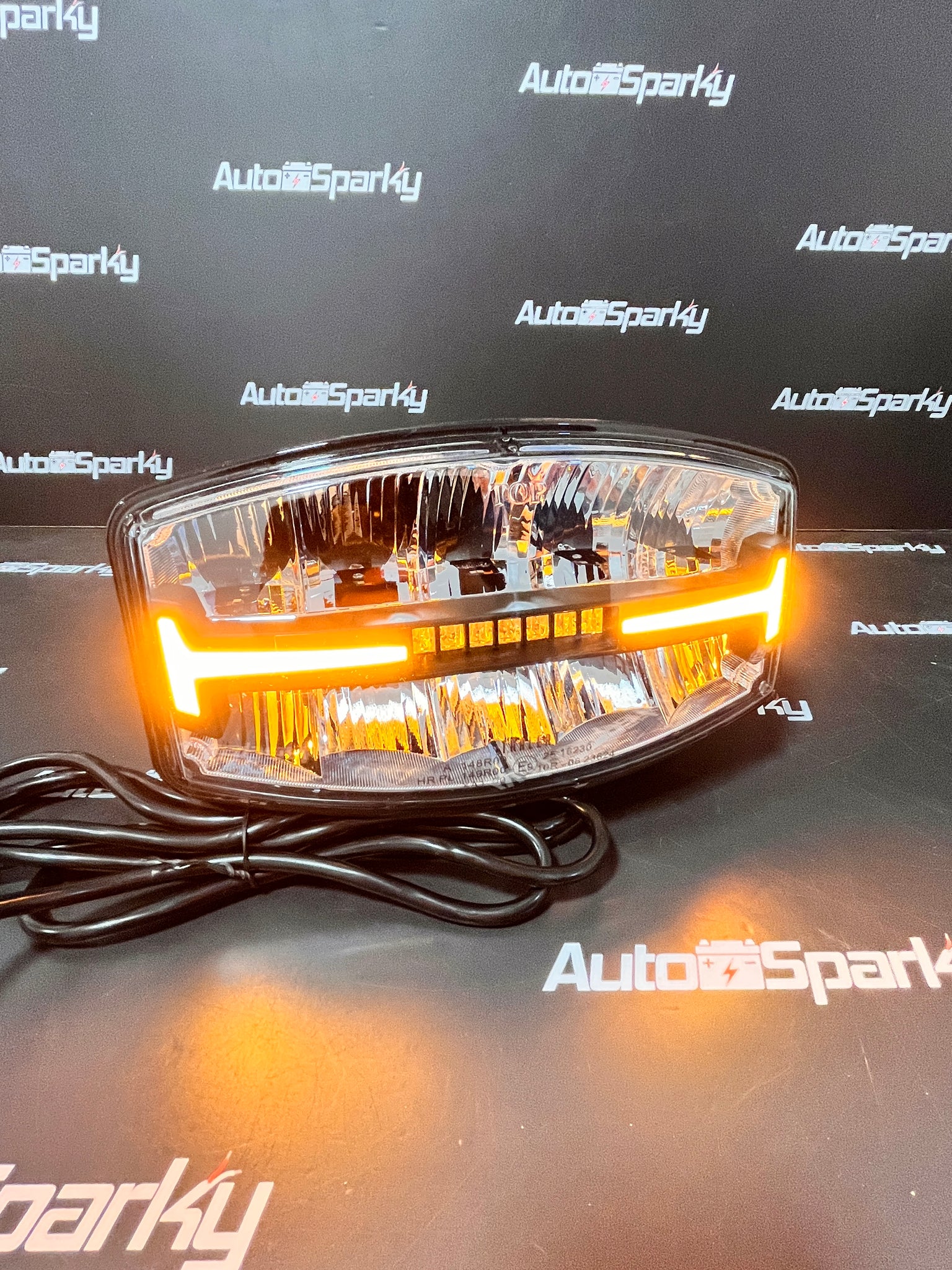

The driving light is equipped with 300 cm connection cable with open wire end as standard and is suitable for 10-30 V systems. With a light output of 6,000 lm and a power consumption of 51.75 W, this model offers a versatile lighting solution. The version complies with various approvals, including CE, ECE-R10, ECE-R65, ECE-R148, ECE-R149 and CISPR25 Class 3. In addition, protection against dust and water is ensured via IP69K classification. Mounting is via surface mounting.

Plus points of this series:
- Driving lights in popular dimensions

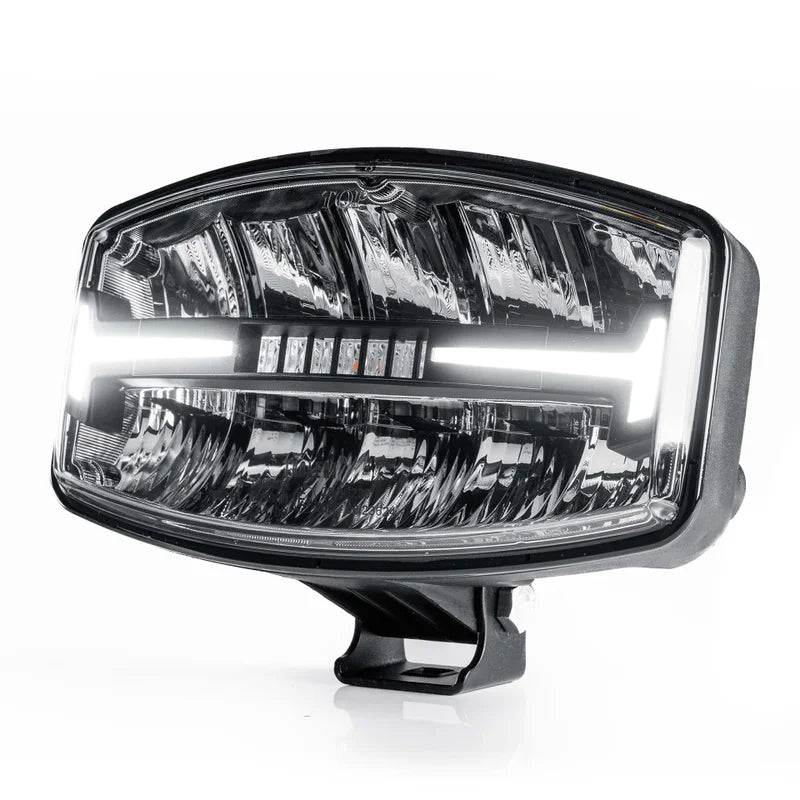

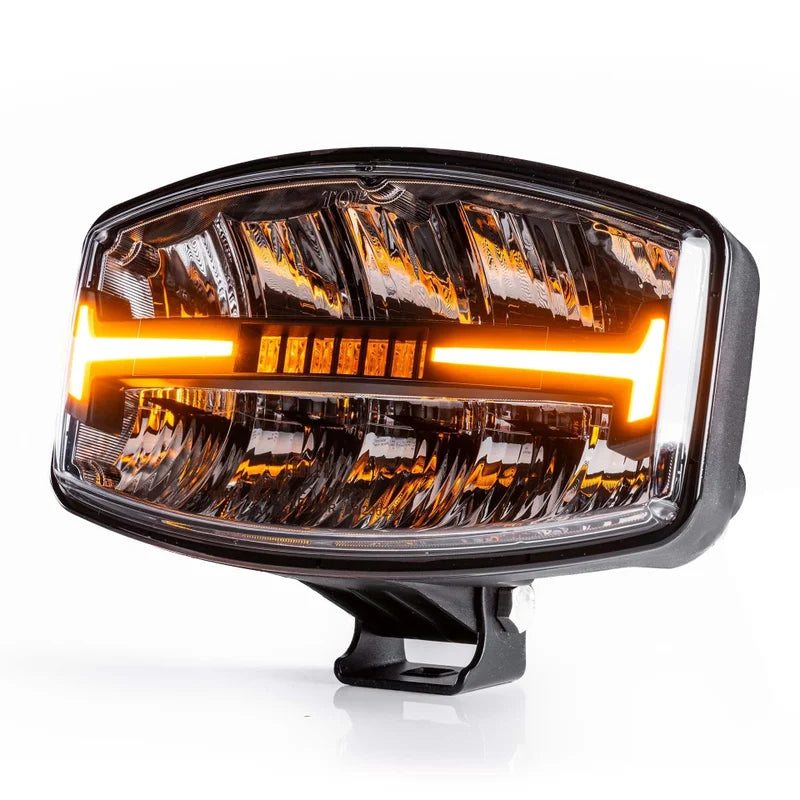

- Equipped with duo-color position lights as standard
- Optionally available with built-in R65 LED warning lights
- RFT lens technology for an ideal beam

General
Voltage
10-30v
Pattern type
Flashing
Certification
CE, CISPR25Class3, ECE-R10, ECE-R148, ECE-R149, ECE-R65
Warranties
2 years
Brand
TRALERT®
Suitable for:
4×4, Commercial vehicles, Trucks
Dimensions
Dimensions
244.4 x 138.4 x 110mm
Shape
Oval
Light image
Light image
Driving Beam
Light colour

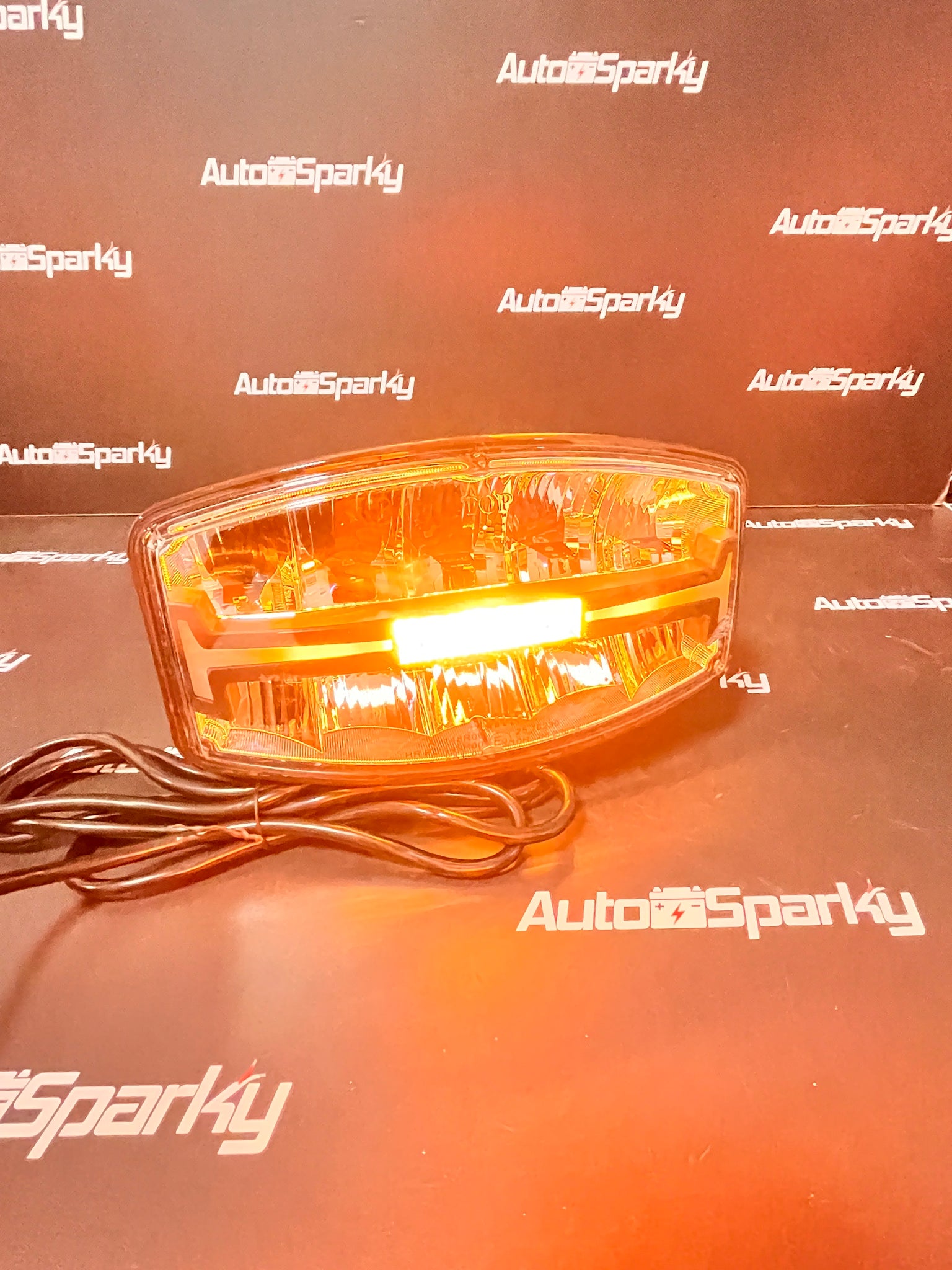

Amber, white

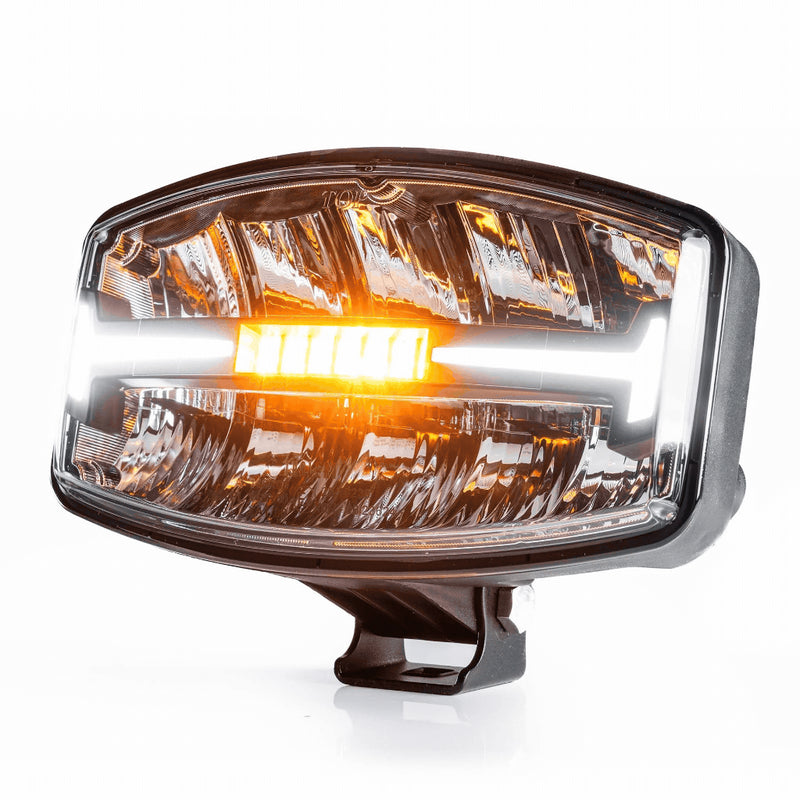

Warning light function
Flashing
Lumen
6000 lumens
Flash patterns
1
Pattern type
Flashing
Light range
1 Lux @ 340m
Position lights
Yes

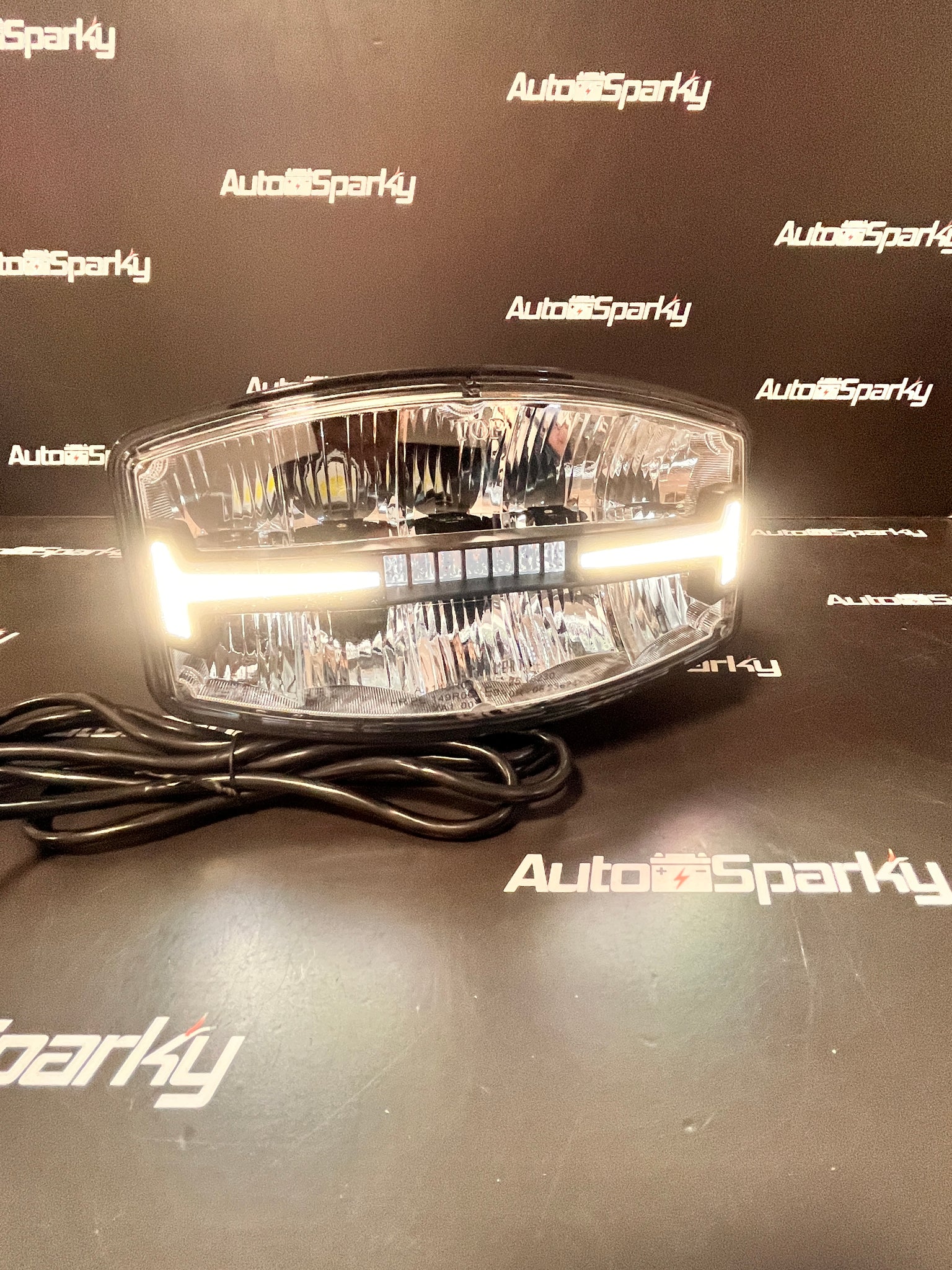

White position lights
Yes
Amber position lights
Yes
Reference number
25
Materials
Housing material
Graphene
Housing colour
Black
lens material
Polycarbonate
Lens colour
Transparent
Technical
Connectors
Open wire end
Cable length
300cm cable
Wattage
60 Watt
Lumen
6000 lumens
Protection class
IP69K
Power consumption
12V: 2.5A / 24V: 1.25A
Mounting
Surface mounting
Warning light functions
Yes
Alternative for
Hella Jumbo 320
Driving lights functions
Amber position lights, Warning light functions, White position lights
