9" Nova Series LED Driving Light - 150w 13600lm - Amber or White DRL - Tralert

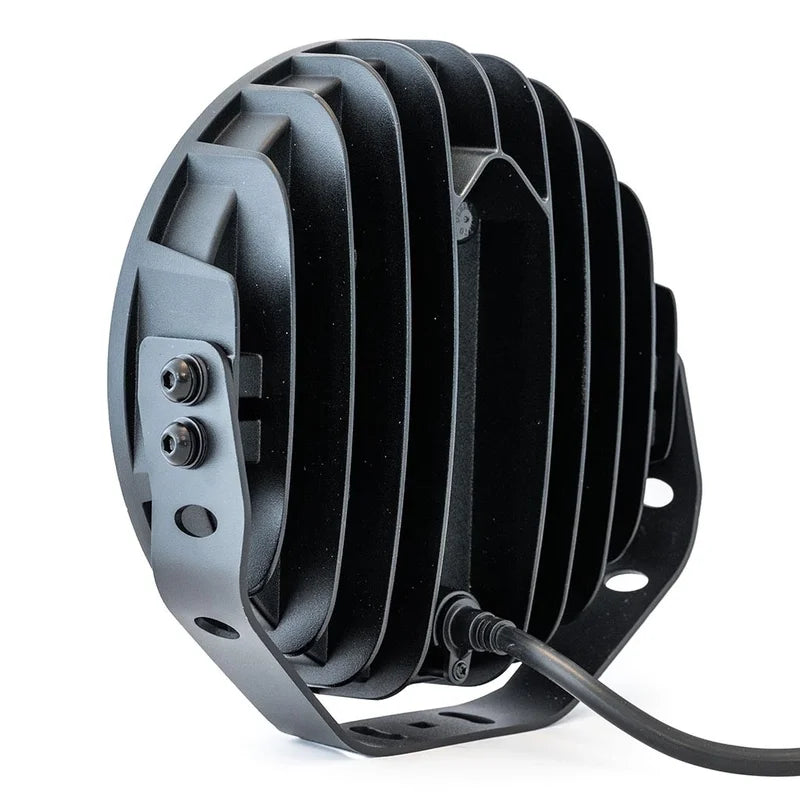

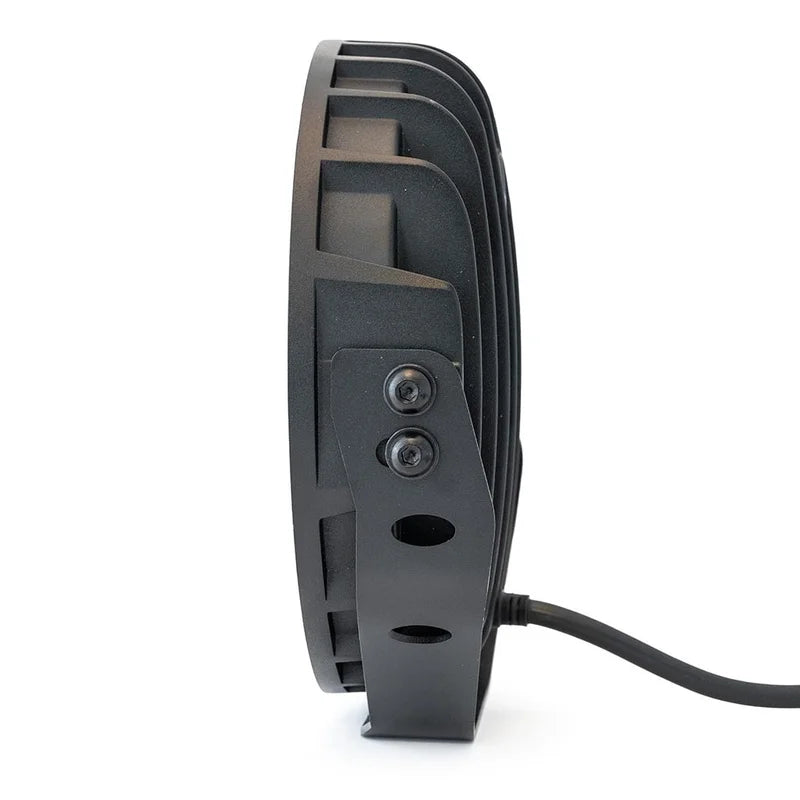

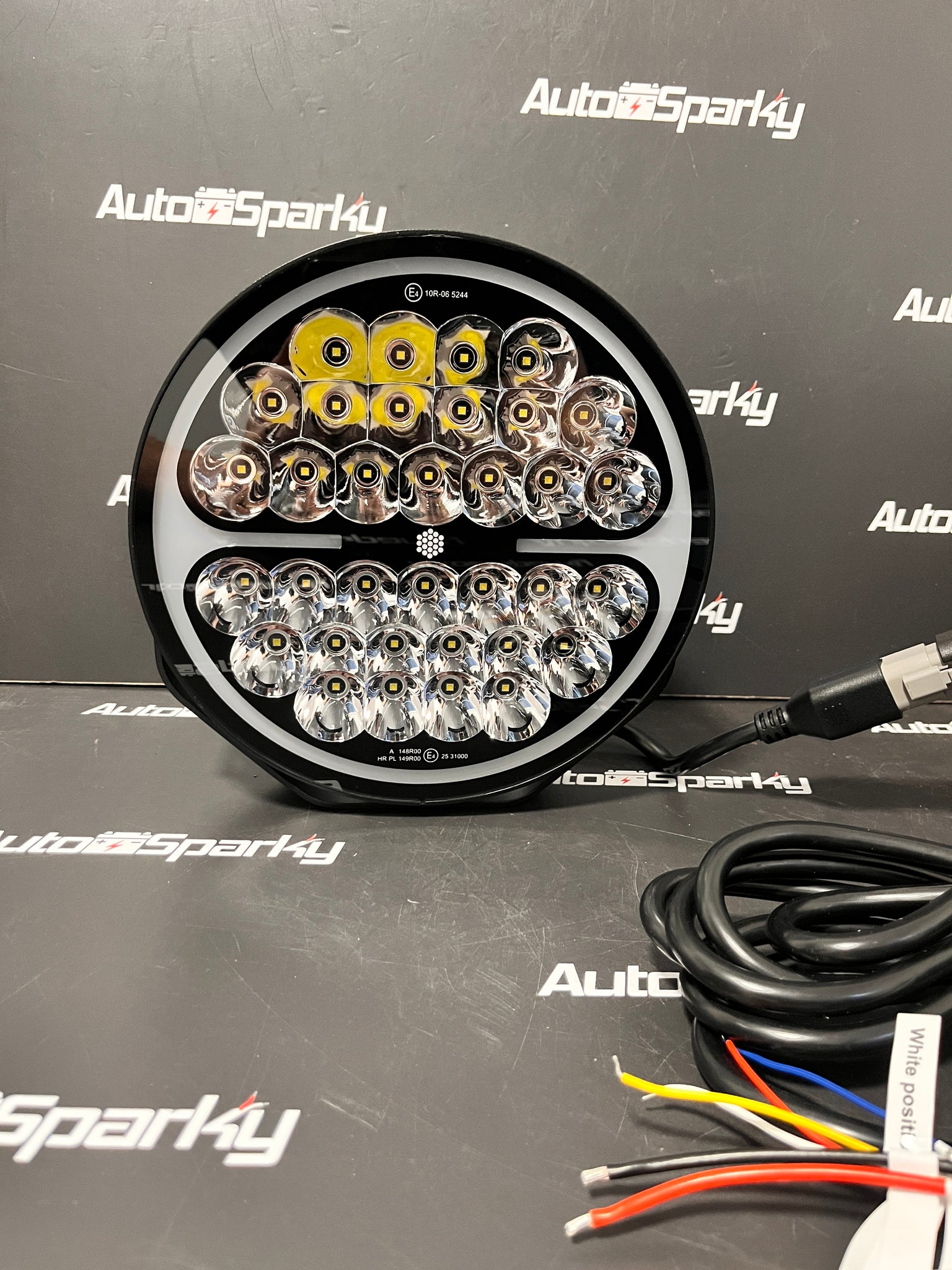

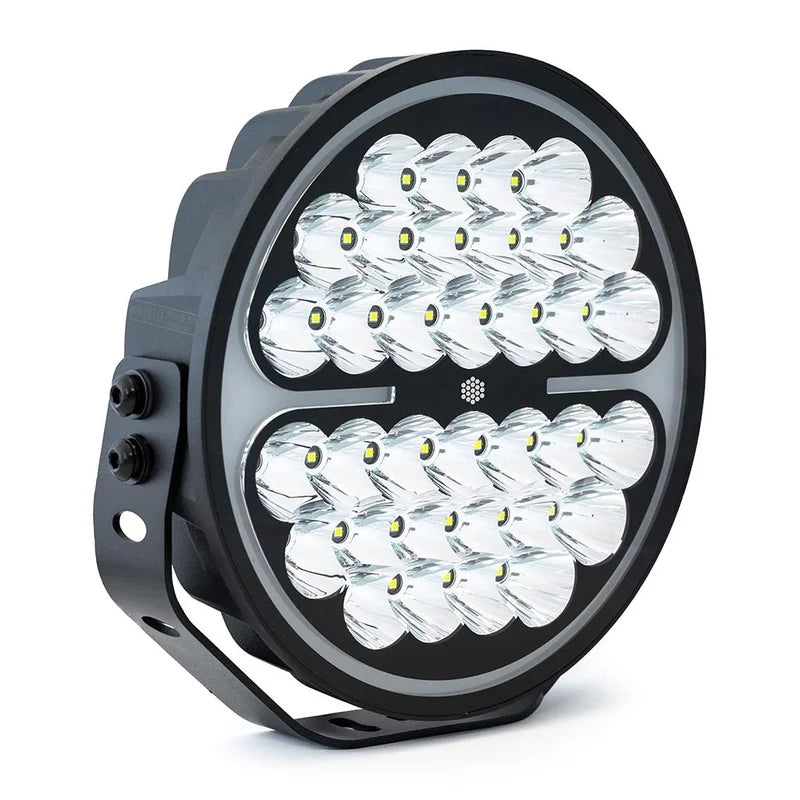

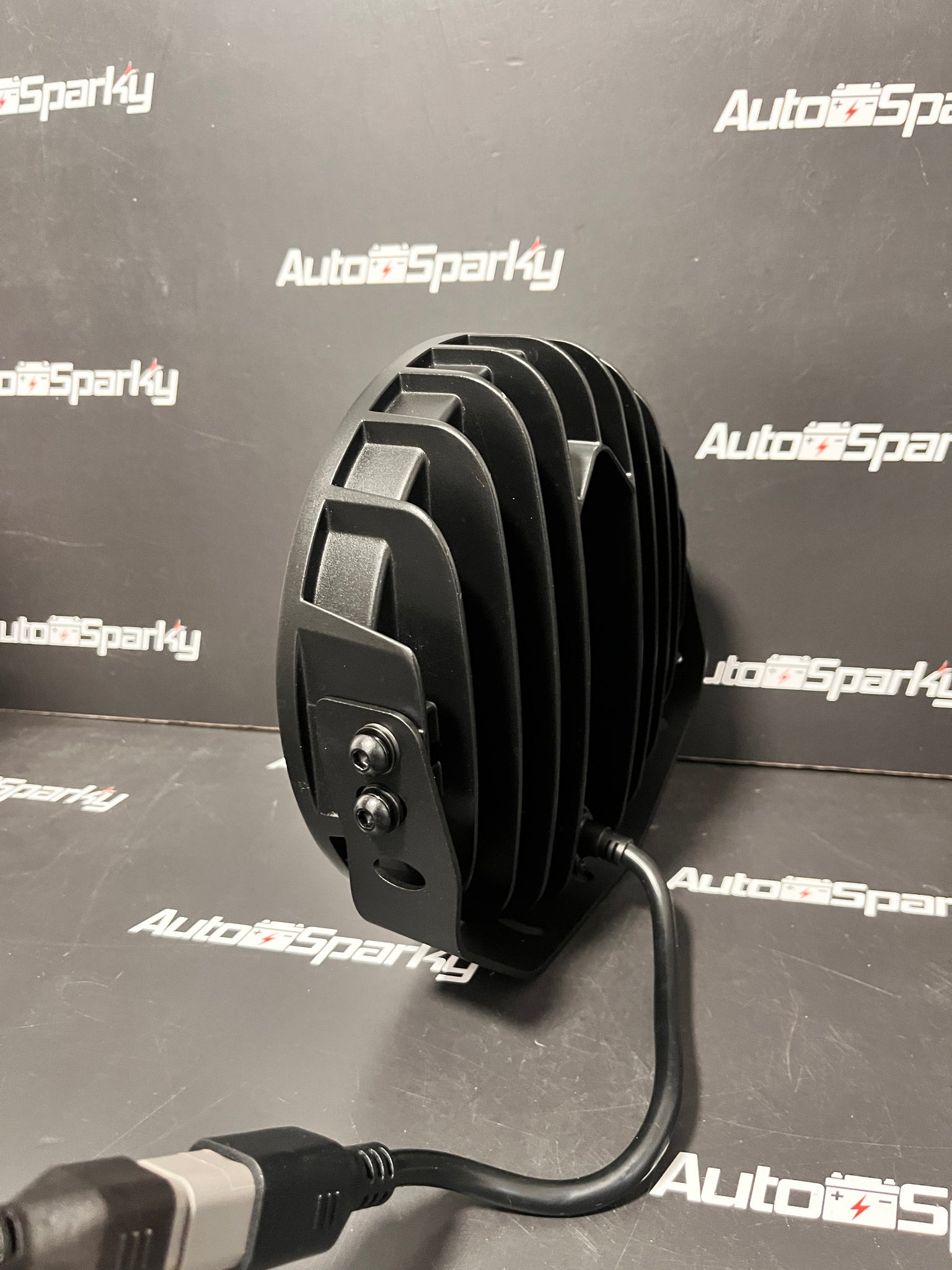

The TRALERT® Nova Series LED driving lights are designed for vehicles that require powerful lighting in a variety of conditions. This LED driving light delivers a light output of 13,600 lm and is equipped with a Driving Beam light image and duo-color driving lights in amber and white. The aluminium housing and polycarbonate lens offer resistance to shock and vibration. Thanks to its IP68 rating, the luminaire is fully protected against dust and water.

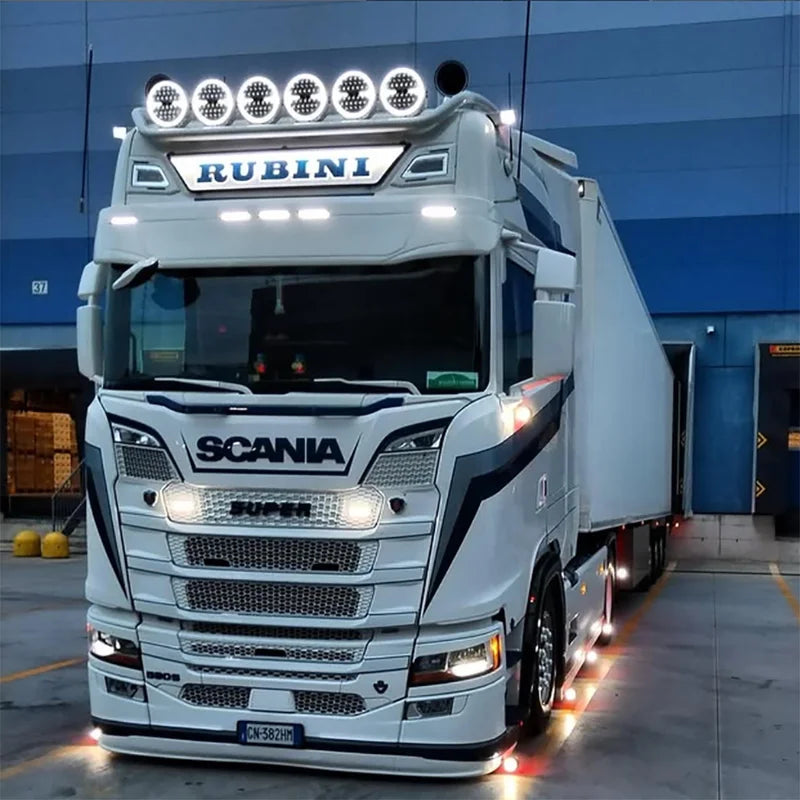

The driving lights operate within a voltage range of 9-36 V and feature a warning light function. The unit is connected via a 6-PIN Deutsch connector and features a cable length of 300 cm. With dimensions of ø225 x 63 mm and surface mounting, this LED driving light is suitable for a variety of applications in transport, agriculture or industrial vehicles. Certifications according to CE, ECE-R10, ECE-R148 and ECE-R149 are applicable.
Plus points of this series:
- Unique round LED driving lights
- High light output of up to 13,600 lumen

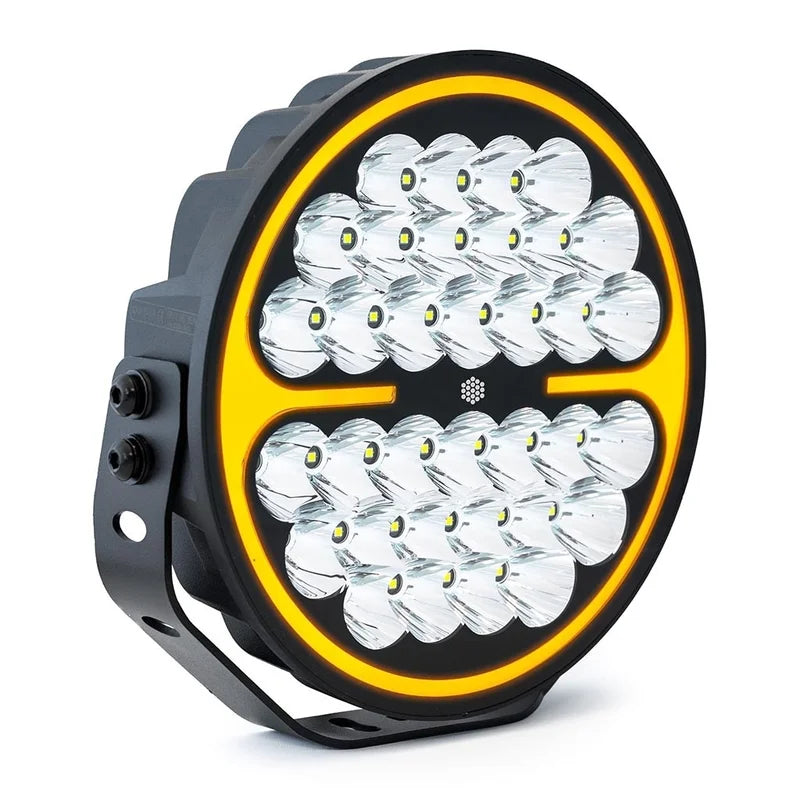

- Stylish duo-color position lights
- IP68 dust- and waterproof
General
Voltage
9-36v
Pattern type
Flashing
Certification
CE, ECE-R10, ECE-R148, ECE-R149
Warranties
3 years
Brand
TRALERT®
Suitable for:
Trucks
Dimensions
Dimensions
ø225 x 63mm
Shape
Round
Light image
Light image
Driving Beam
Light colour
Amber, white
Warning light function
Flashing
Lumen
13600 lumens
Flash patterns
4
Pattern type
Flashing
Light range
10 lux @ 192m / 1 lux @ 580m
Number of LEDs
34x Osram LEDs
Position lights
Yes
White position lights
Yes
Amber position lights
Yes
Reference number
25
Materials
Housing material
Aluminium
Housing colour
Black
lens material
Polycarbonate
Lens colour
Transparent
Technical
Connectors

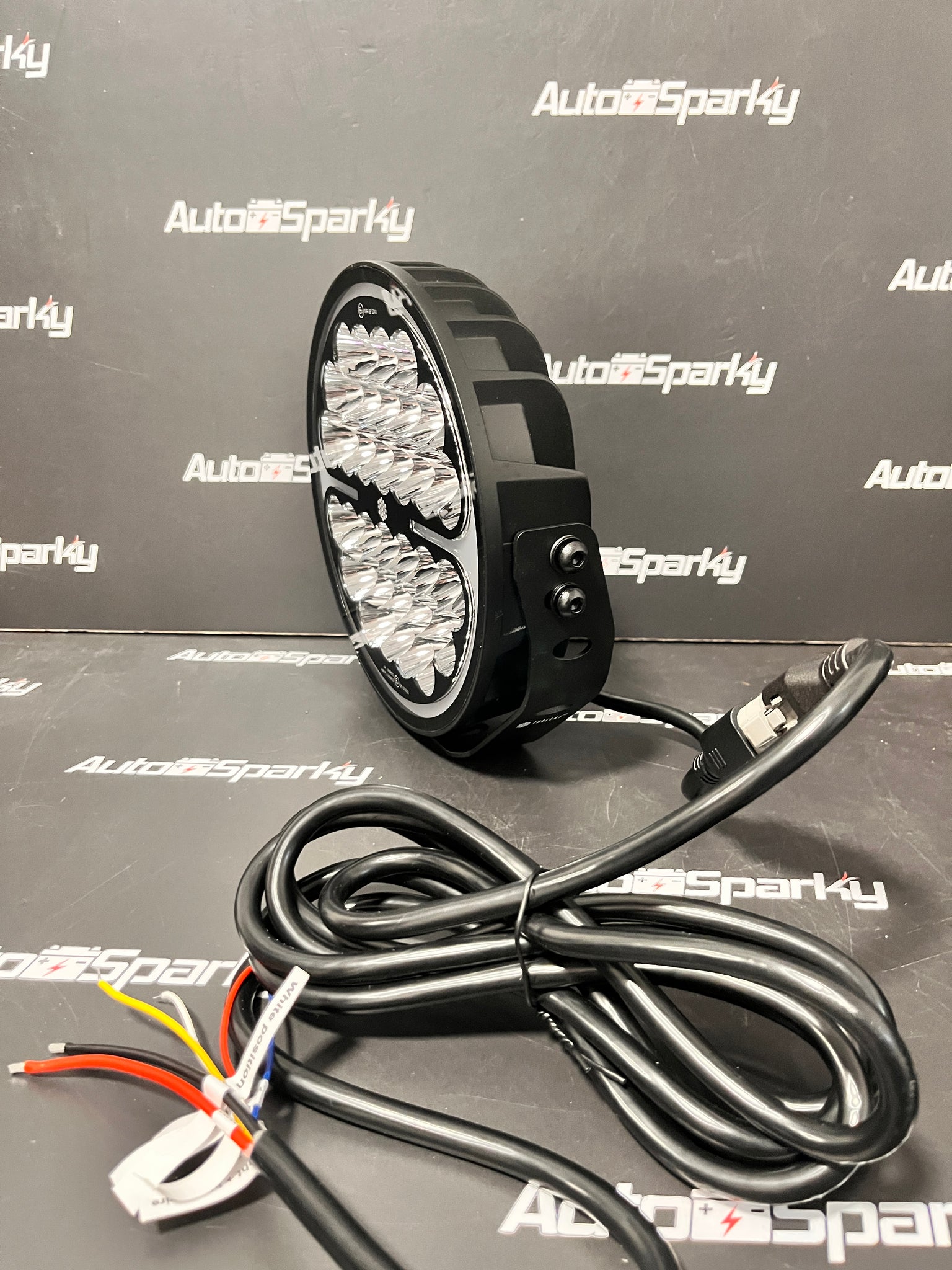

6-PIN Deutsch connector
Cable length
300cm cable
Wattage
150 Watt
Lumen
13600 lumens
Protection class
IP68
Power consumption
12V: 12.5A / 24V: 6.25A
Mounting
Surface mounting
Warning light functions
Yes
Alternative for
Strands Siberia
Driving lights functions
Amber position lights, Warning light functions, White position lights
