7" Wireless Solar Powered, Rechargeable or Hard Wired Magnetic Compact Camera Kit

Wireless 2.4G camera system equipped with a 7-inch HD monitor.

This system can be installed quickly without wiring or drilling, making it suitable for older forklifts as well.

Main features

7-inch IPS HD monitor, 1024×600 resolution
2.4GHz digital wireless transmission with stable signal
The kit includes 1 camera
Night vision camera with infrared LEDs
Red laser guide for precise fork alignment
Eliminates dead zones and reduces the risk of accidents
Supports SD card recording (card not included)
Loop recording function
One-button video lock
Collision detection function
Normal or mirror image, adjustable from the menu
Multilingual OSD menu

Power supply and installation

Monitor with built-in magnetic battery 9600 mAh
Long standby time (up to 24 hours)
Charging via USB Type-C
Supply voltage: DC 12–36V
Compatible with 12V and 24V vehicles
Quick installation with powerful magnets, no permanent modifications required
Resistance to harsh conditions

Monitor: IP67 (water and dust resistant)
Camera: IP68 (water and dust resistant)
Monitor operating temperature: -20°C ~ +70°C
Camera operating temperature: -25°C ~ +70°C
Reliable operation in rain, dust, cold storage, industrial halls and outdoor areas

Technical specifications

Monitor

Screen diagonal: 7 inches
Resolution: 1024 × 600
Brightness: 500 nits
Built-in receiver: 2.4GHz
Image format: 16:9
Voltage: DC 12–24V
Power supply: DC 12–36V
Water protection: IP67

Camera

Resolution: 720P/1080P AHD
Sensor: 1/3 CMOS
Viewing angle: 53° (precise) to 90°
Lens: 3.6 mm
IR LEDs: 8 pcs.
Minimum illumination: 0.05 Lux
Transmission distance:
30–50 m in working environment
up to 450 m in open space
Mounting: magnetic base
Water protection: IP68

Suitable for

Forklifts
Trucks
Construction equipment
Warehouse vehicles
Agricultural and industrial equipment

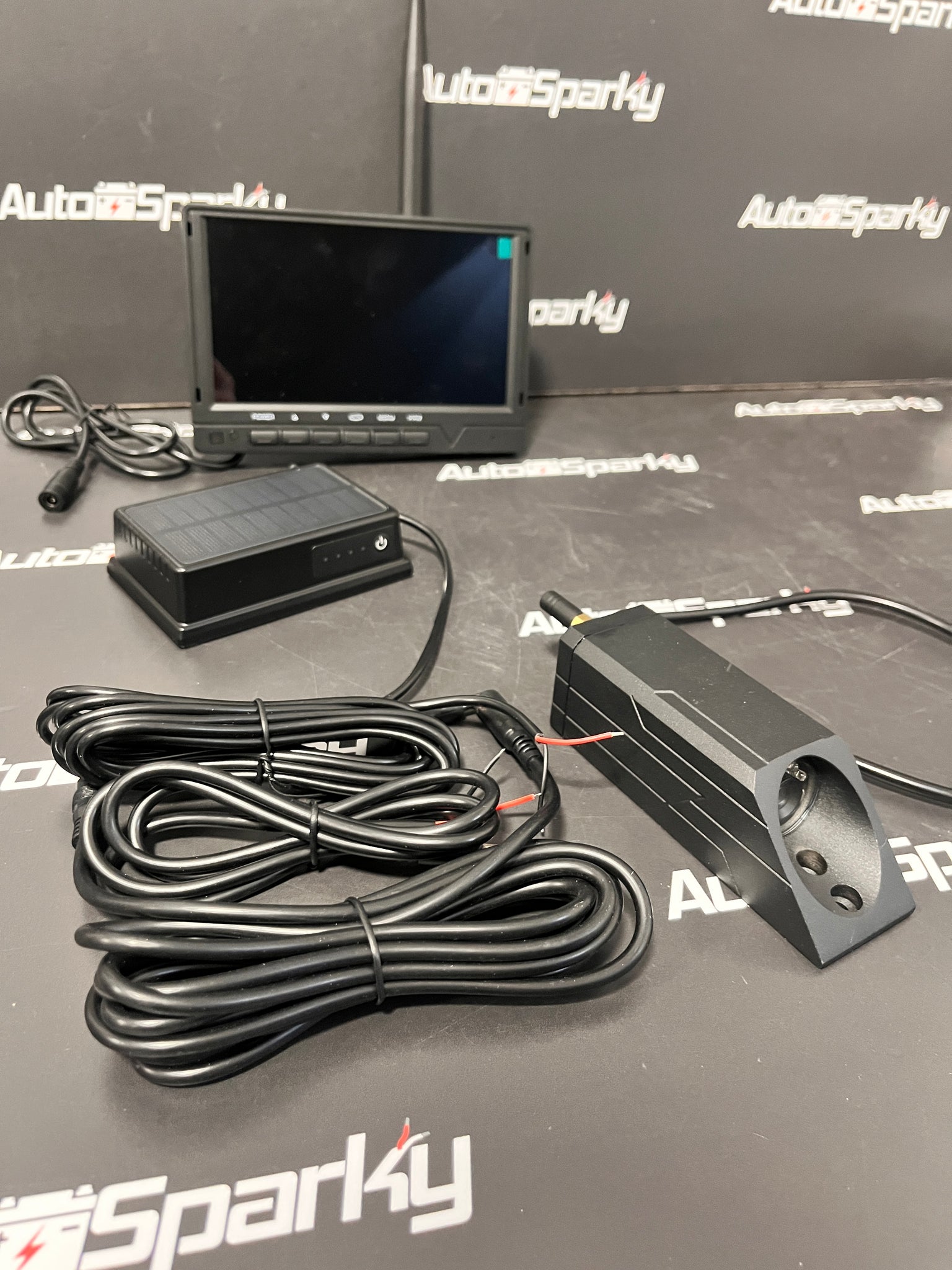

Kit contents

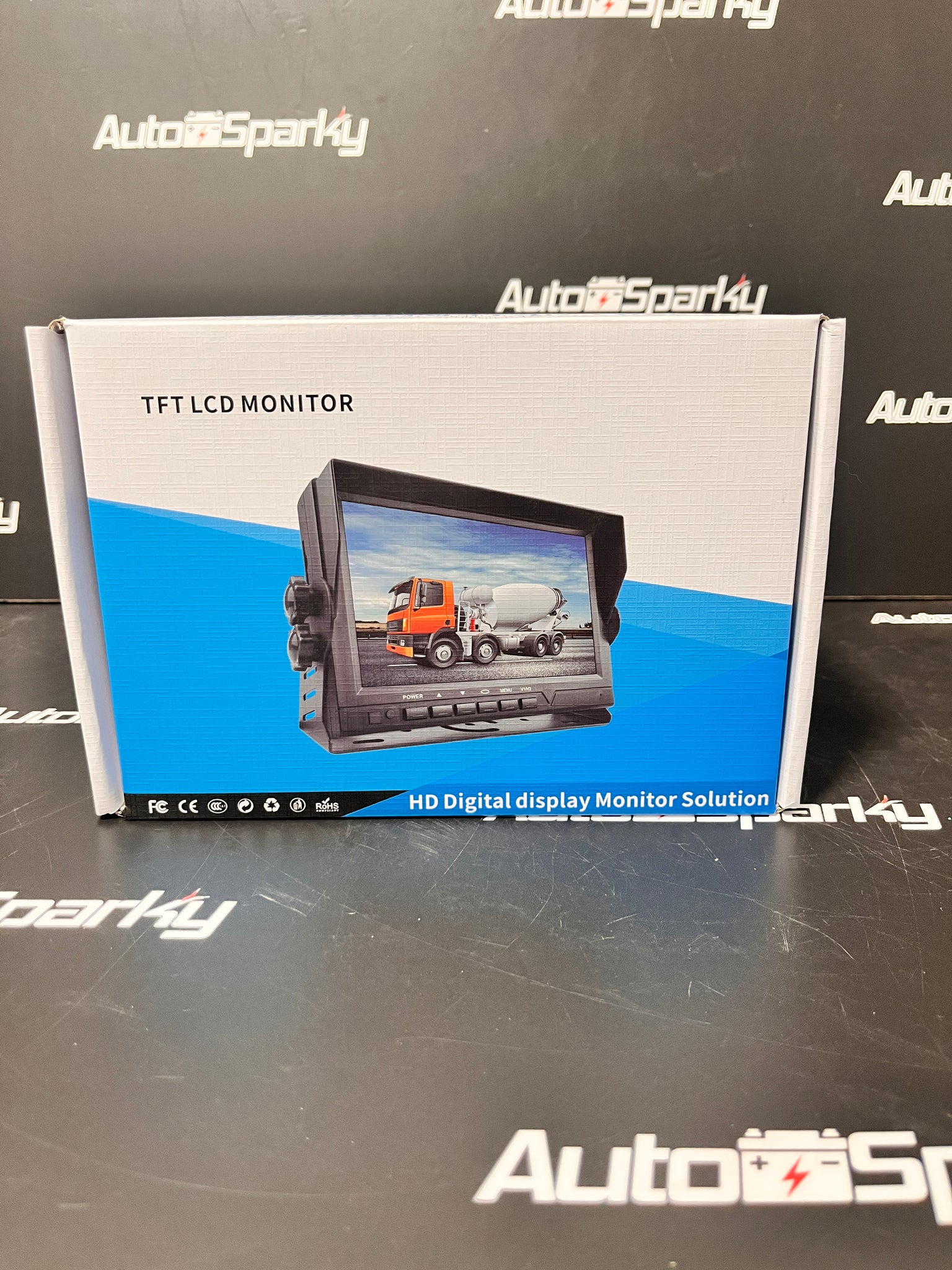

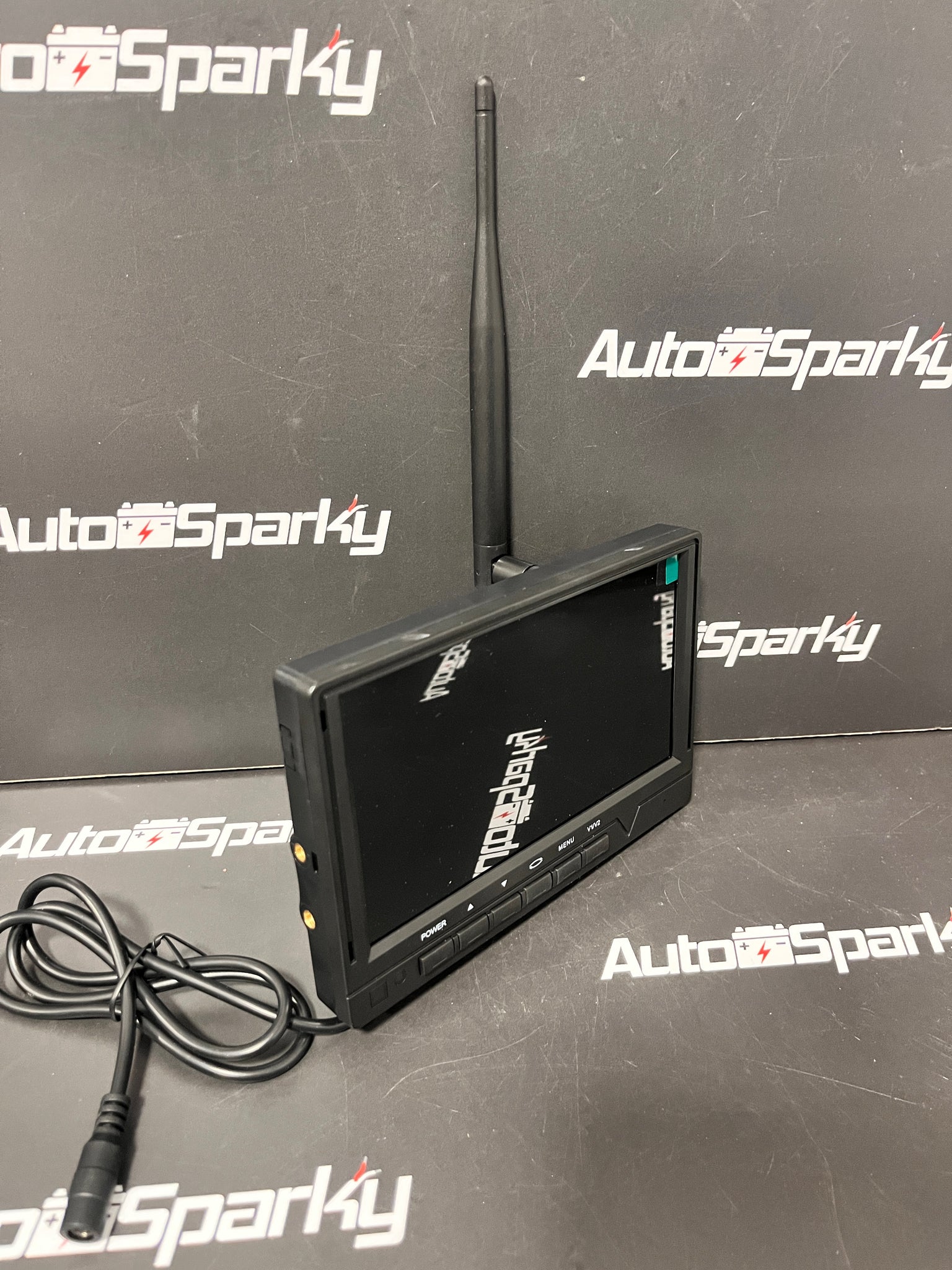

7-inch wireless HD monitor
1 pc. magnetic battery

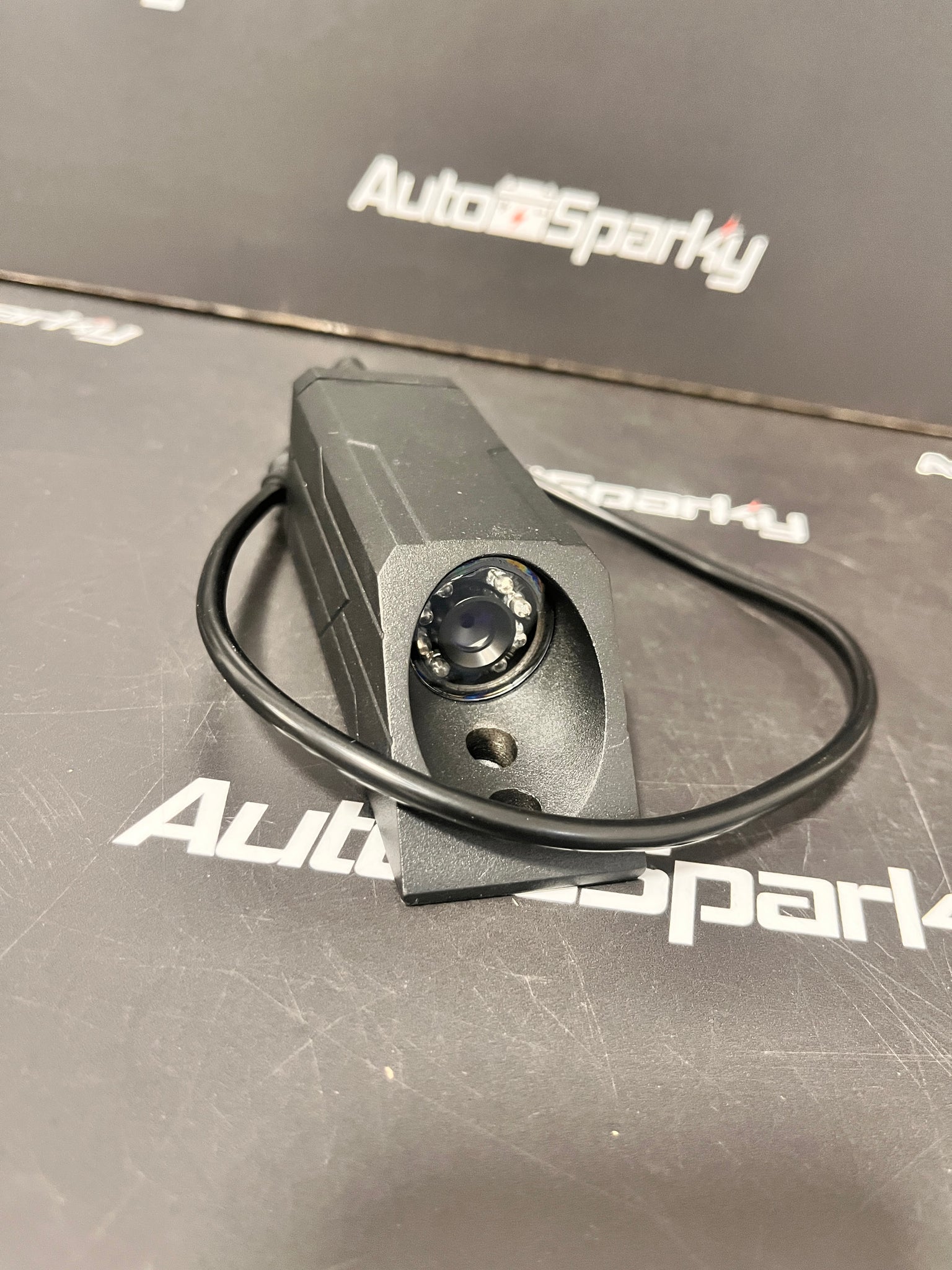

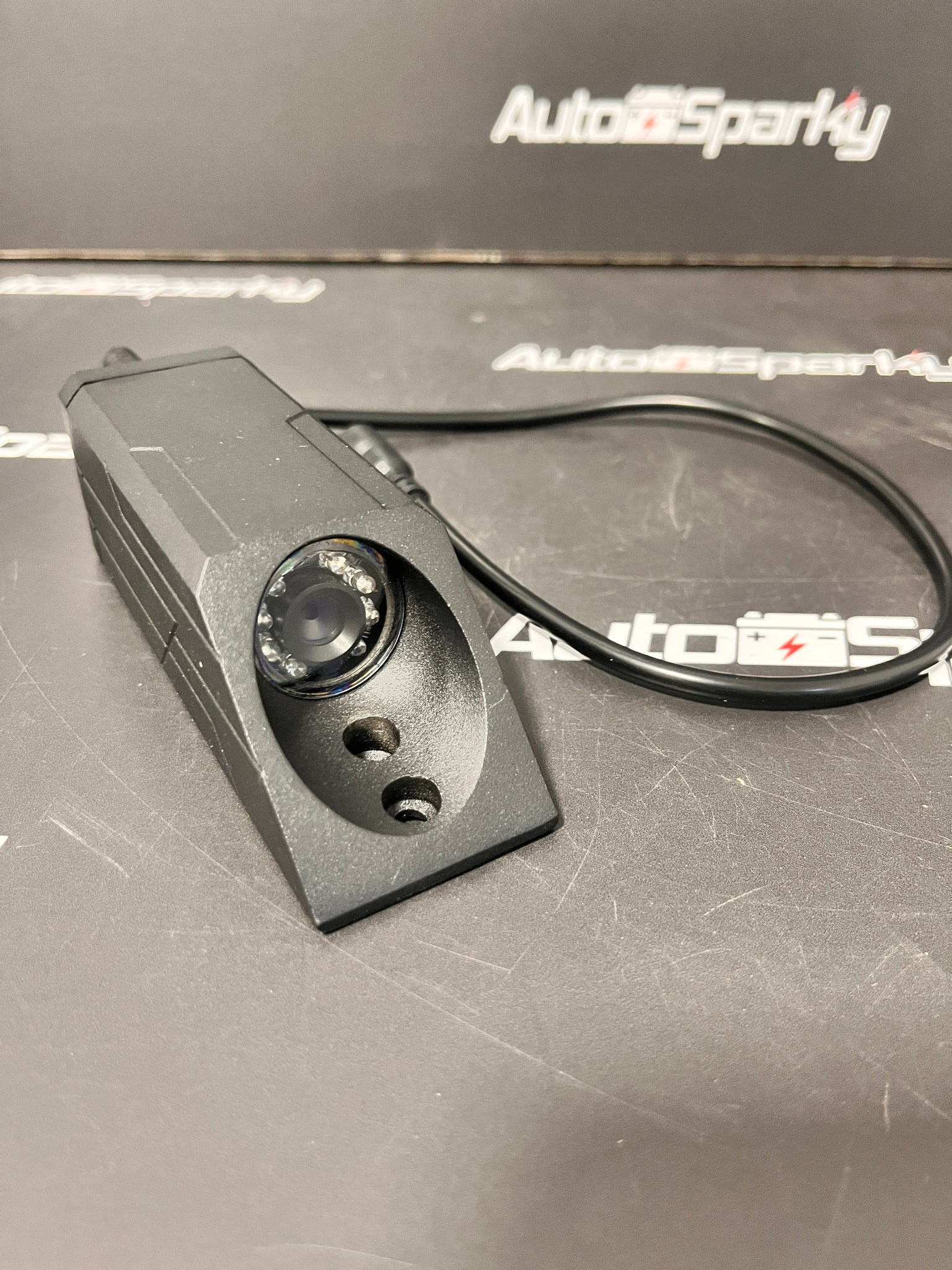

1 pc. wireless infrared camera
Magnetic stands
USB Type-C charging cable and adapter
Mounting accessories

The SD card is not included.
