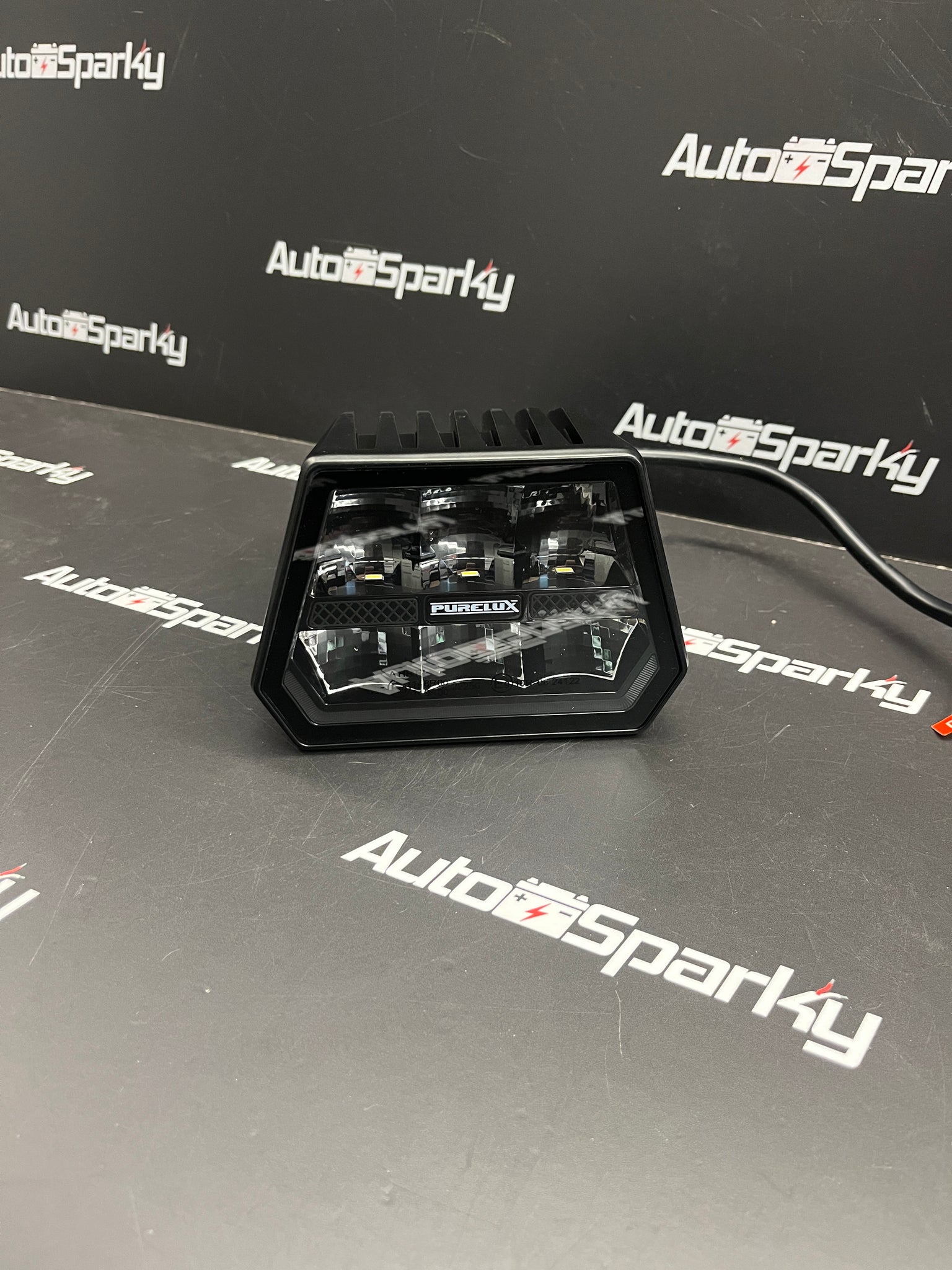

Purelux Panther 5 Driving Light - 6560Lm - Amber or White DRL
A powerful additional light with a unique design, a compact 5" body and a wide combination light beam, which also has two different power modes and a two-color parking light. The low reference number (12.5) makes it possible to install several lights in the same vehicle! Measured light output 6560 lm, range 472 m @ 1 lux.
Specifications
Brand and model: Purelux Panther 5
Purpose: As an additional light in cars / work machines
Operating voltage: 9-36 V (DC)
Reference number: 12.5
Calculated power: 90 W
Power consumption measured by Valostore
Purelux PowerBoost®: 3.18A @ 24V
Road mode: 1.125A @ 24V
Parking lights: 0.26A @ 24V
Power measured by Valostore
Purelux PowerBoost®: 76.4 W @ 24V
Road mode: 27W @ 24V
Parking lights: 6.2 W @ 24V
Light output measured by Valostore: 6560 lm (Purelux PowerBoost®) / 2830 lm (Road traffic mode)
Range measured by Valostore: 472 m @ 1 lux / 944 m @ 0.25 lux (Purelux PowerBoost®)
Range measured by Valostore: 311 m @ 1 lux / 622 m @ 0.25 lux (Traffic mode)
Range with more lights, measured (PowerBoost® / E-approved, @ 1 lux):
With two: 668 m / 440 m (@ 1 lux)
With three: 818 m / 539 m (@ 1 lux)
With four: 944 m / 622 m (@ 1 lux)
With six: 1156 m / 762 m (@ 1 lux)
Color temperature stated by the manufacturer: 5000 K
Measured by Valostore: 4985 K
Mounting: Mounting leg
Connector: DT2-2
The parking lights + wires are separate
Cable length: approx. 50 cm
Dimensions: 147 x 104 x 97 mm (Width x Height x Depth)
Height with mounting foot: 121 mm
Weight: 1222 g
IP rating: IP69K
Approvals: ECE R10, R148, R149*, CISPR25 Class 3
*Road traffic approval does not apply to the Purelux PowerBoost® mode
Other: The light has a ready place for the support iron
Warranty: 36 months
Importer: Handshake.fi
Installation guide

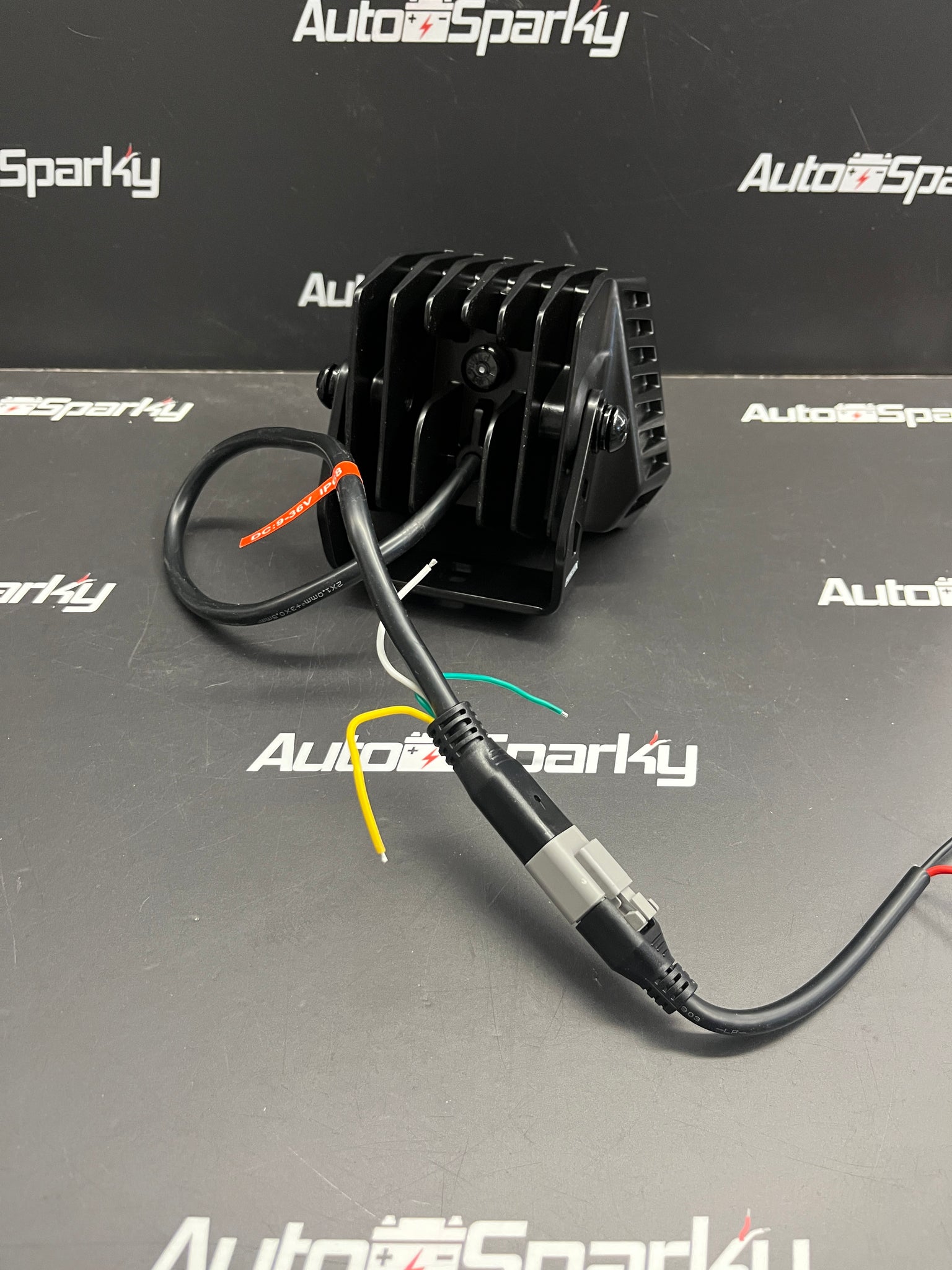

Coupling
DT2 connector: Additional light connection (PowerBoost®)
DT2 connector + Green: Power mode approved for road traffic

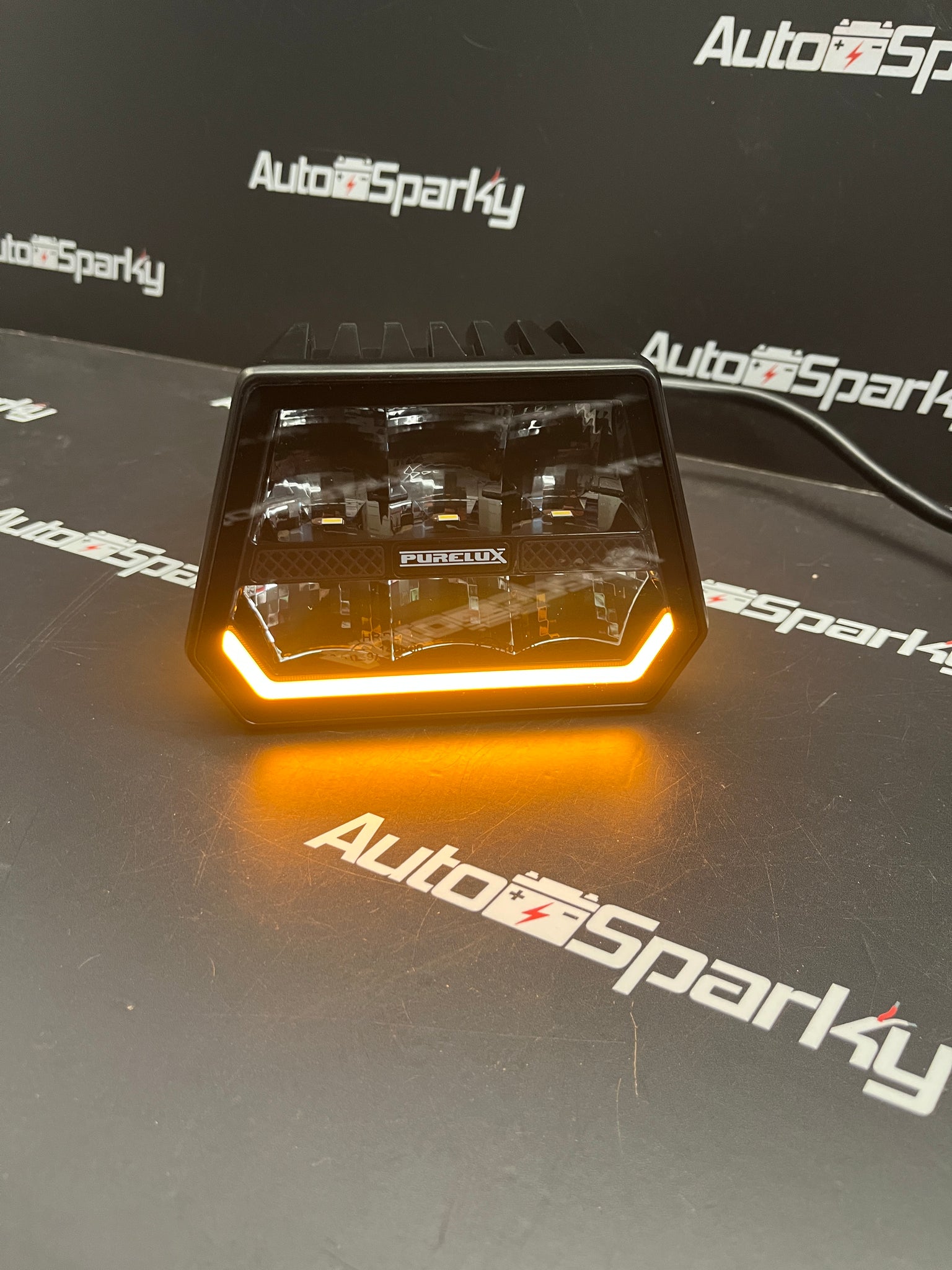

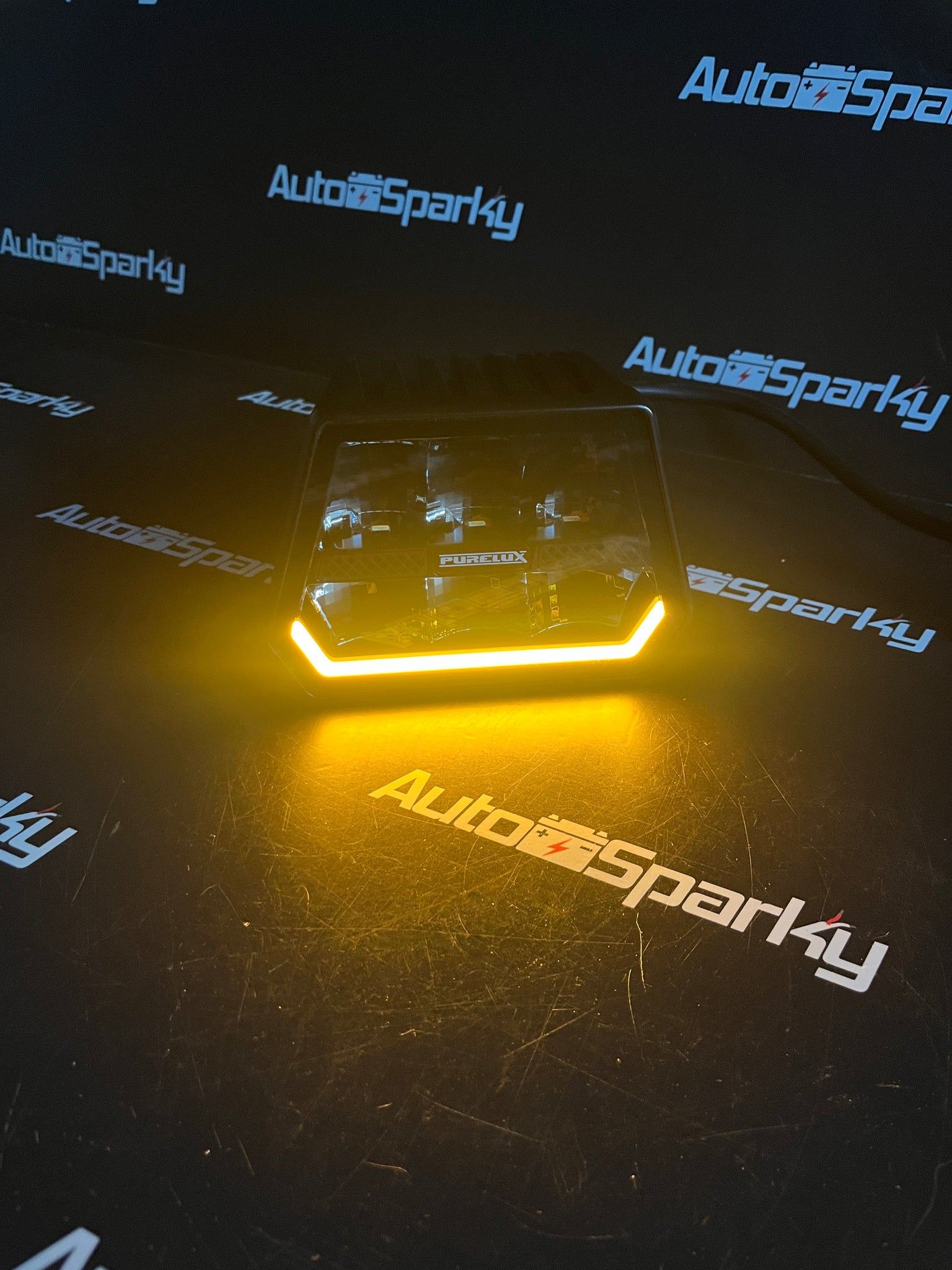

Yellow: Orange parking light

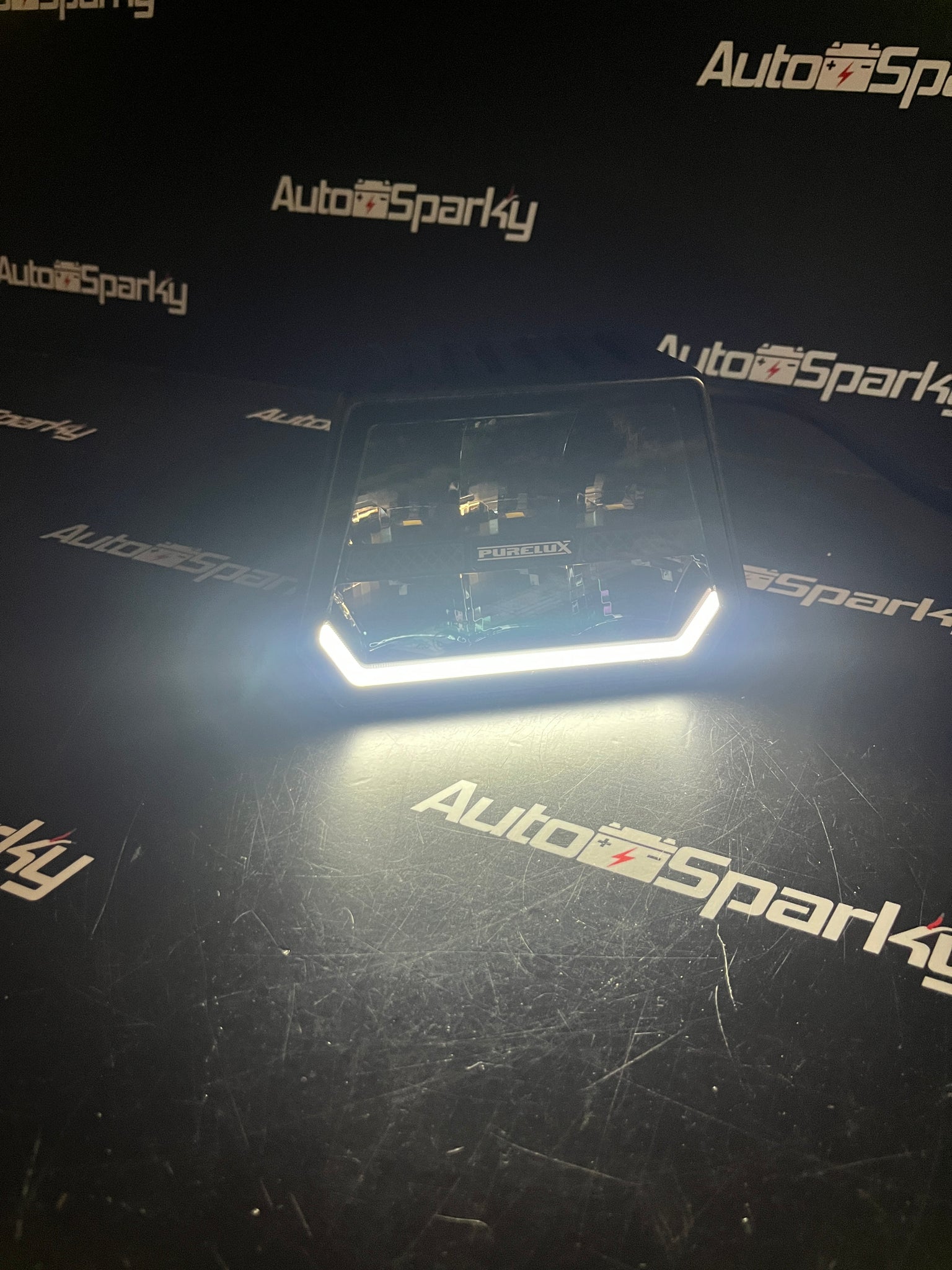

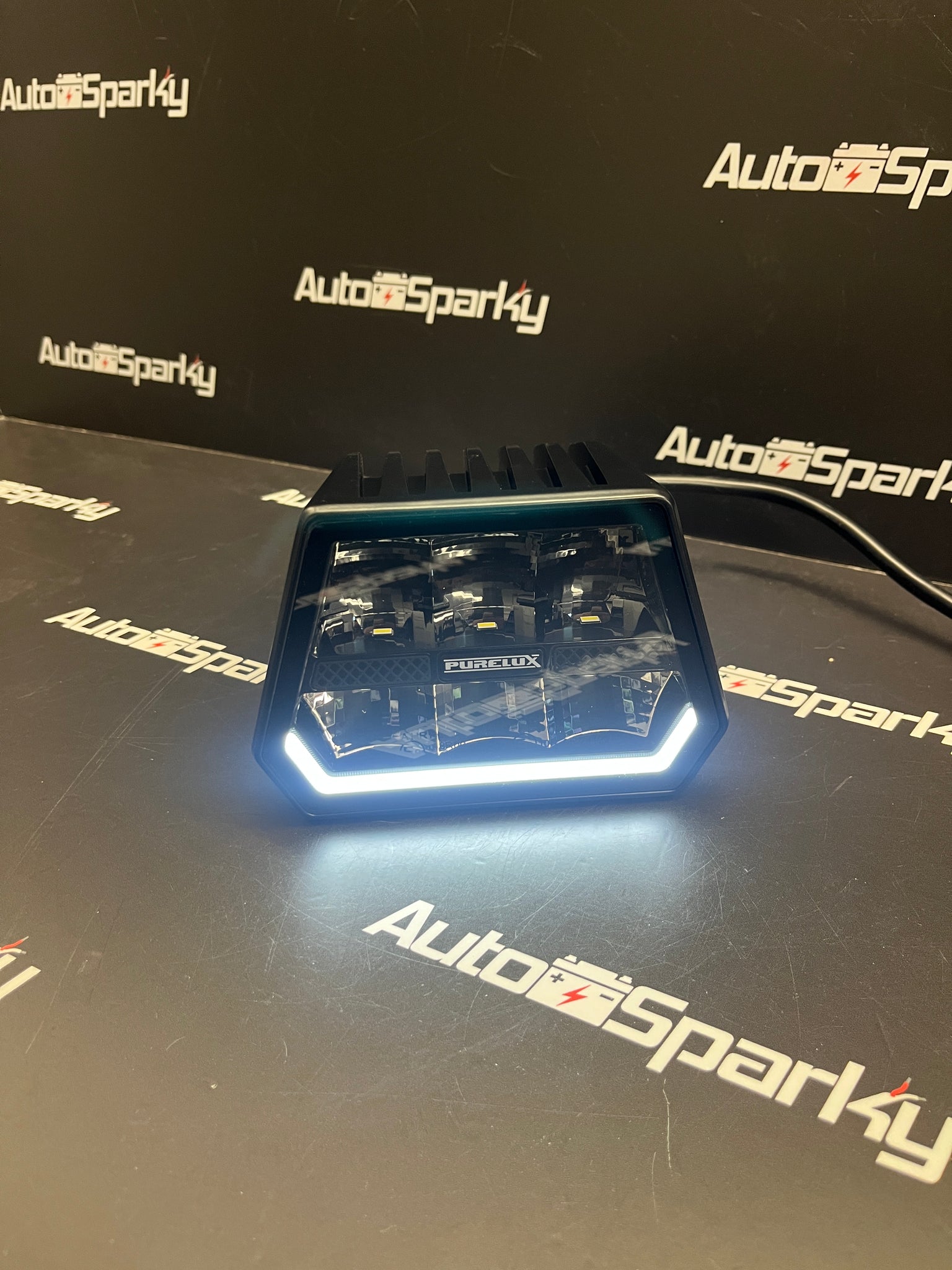

White: White parking light
When the additional light is connected using the DT-2 connector, it lights up in PowerBoost® mode. Power mode approved for road traffic can be switched on by connecting the black wire to ground and the green wire to power.
"Notorious Panther performance"
"Purelux Panther series is made with uncompromising quality and top of the line performance. Every feature is finely tuned to fit any type of situation and vehicle. Don't hesitate, ride with the Panther!” - Purelux

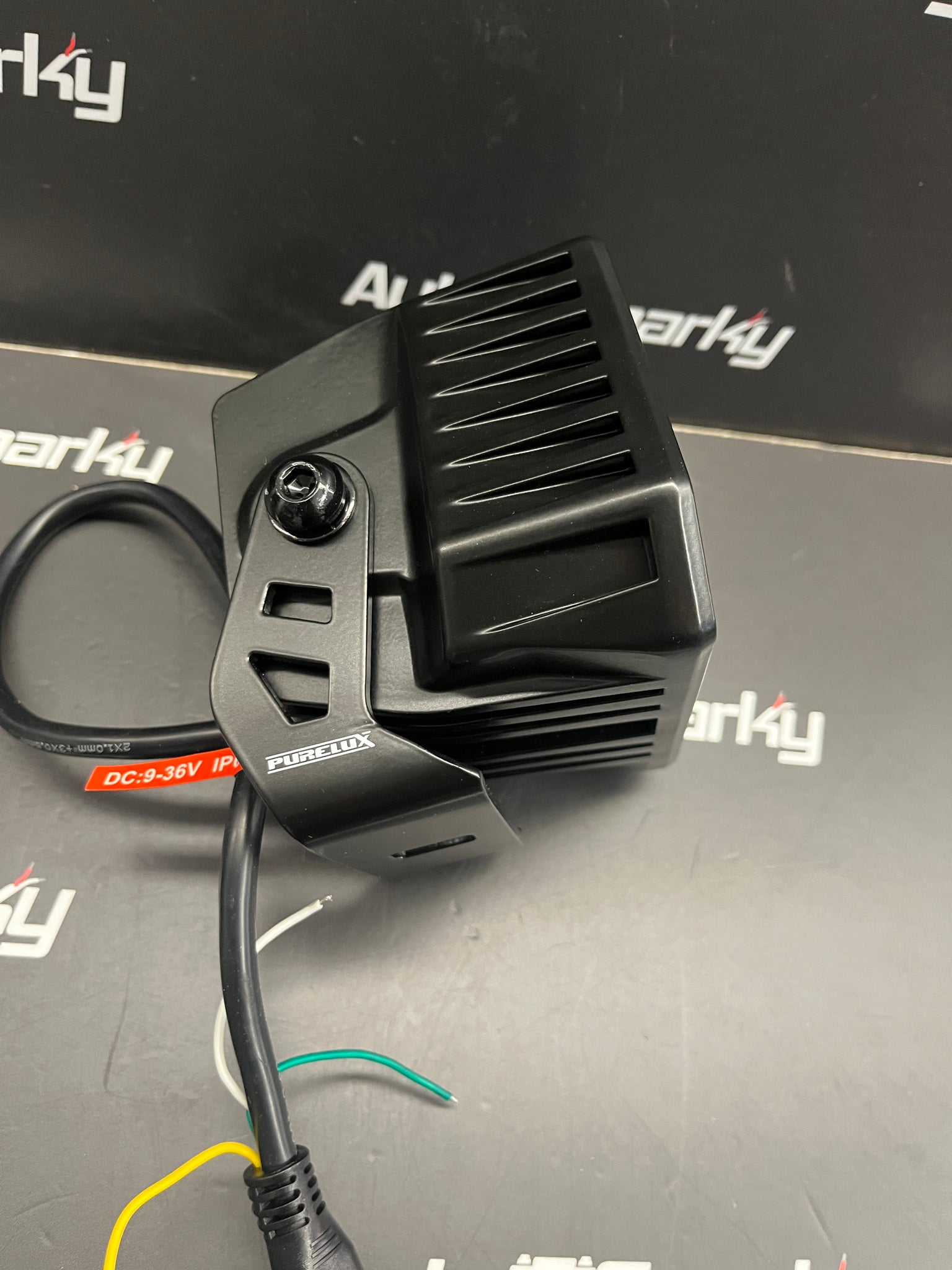

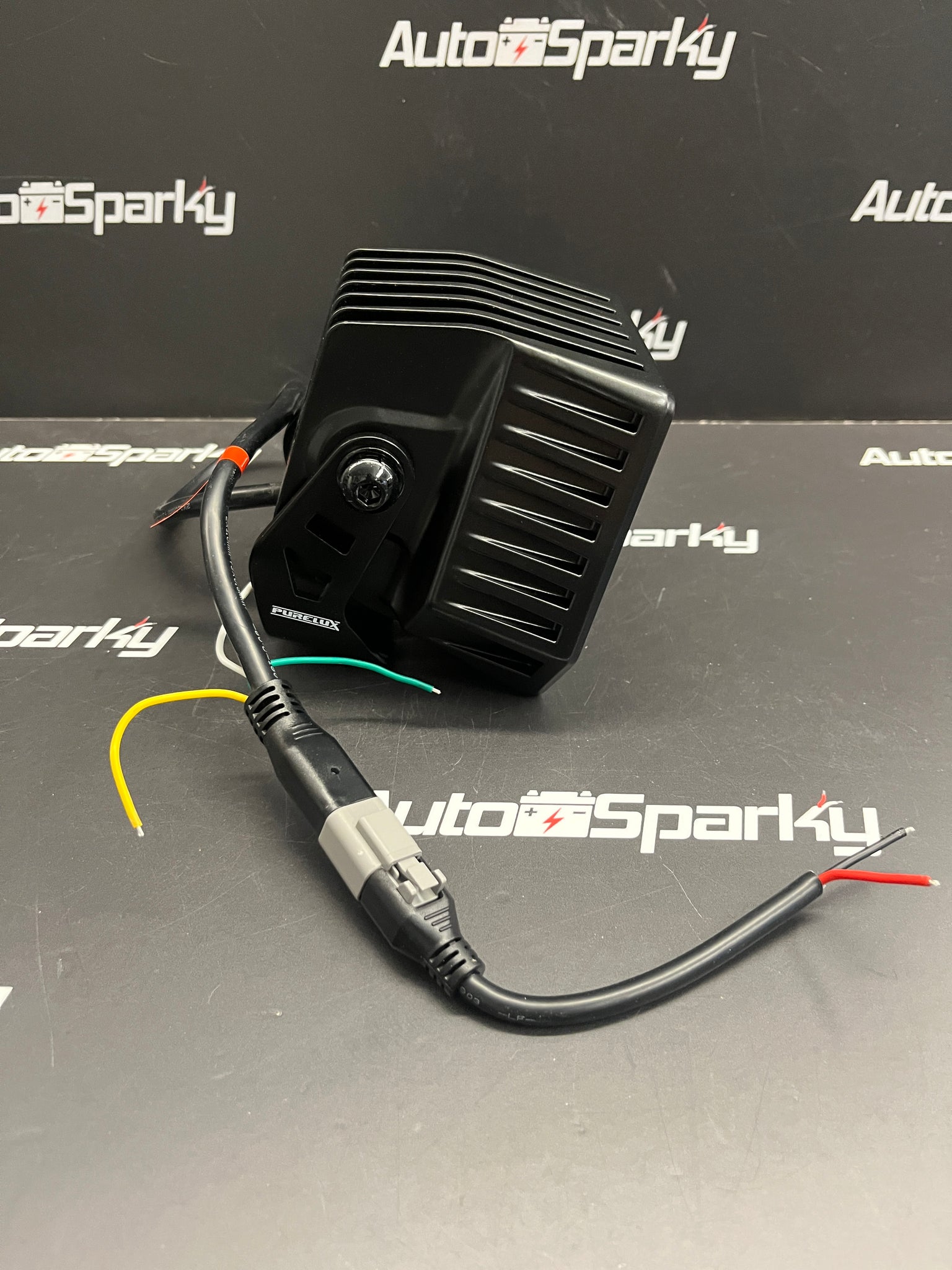

The light is supplied with a mounting foot, and installation is facilitated by the 2-pole DT connector already in place in the light's power cord and the separate wires from the power cord to the parking lights. The complete sets come with ready-made support brackets that can be attached to the fixing bolt of the light mounting foot (the use of support brackets is not necessary, if the installation can otherwise be carried out securely), so they remain hidden and the end result is neat. The wide operating voltage range (9-36V) enables installation in both 12V and 24V systems. The lamp is protected against radio interference in accordance with the ECE R10 standard.
The light beam of the Panther 5 consists of a rectangular wide main beam, where the wide spot in the middle directs the light far ahead, up to almost half a kilometer. In the vertical direction, the light beam is softly delimited, as usual from other lights of the Panther series, thanks to which the light is not drowned in the sky and a dazzling ball of light does not form in front of the bow. However, the height of the light beam is optimized to be sufficient even for hilly terrain and ceiling installations.
In addition to the precisely finished light beam, a feature that significantly improves the driving experience is the light's neutral color temperature of 5000 Kelvin. Neutral color temperature is optimal for road traffic, as it facilitates the observation of terrain shapes and obstacles and does not distort the color of the object. In addition, it dazzles less cool tones from e.g. snow cover or in fog and rain, and reduces the strain on the eyes. The boldly non-standard appearance combined with the 5" size and ferocious performance make the Panther 5 an excellent choice for ATVs, regular cars, SUVs and vans. The light's low reference number (12.5) allows several lights to be installed in the same vehicle without having to remove the car's own high beams.
