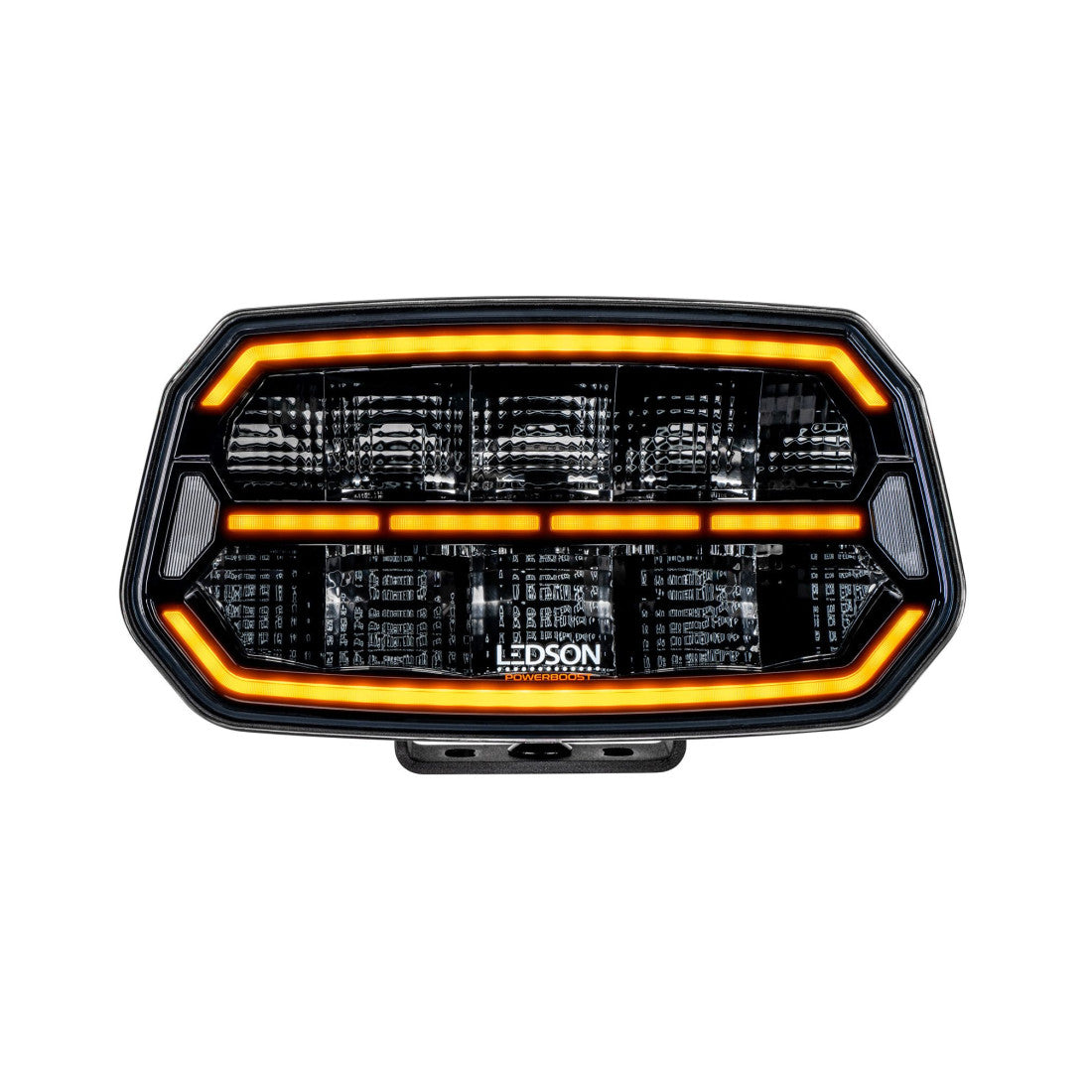

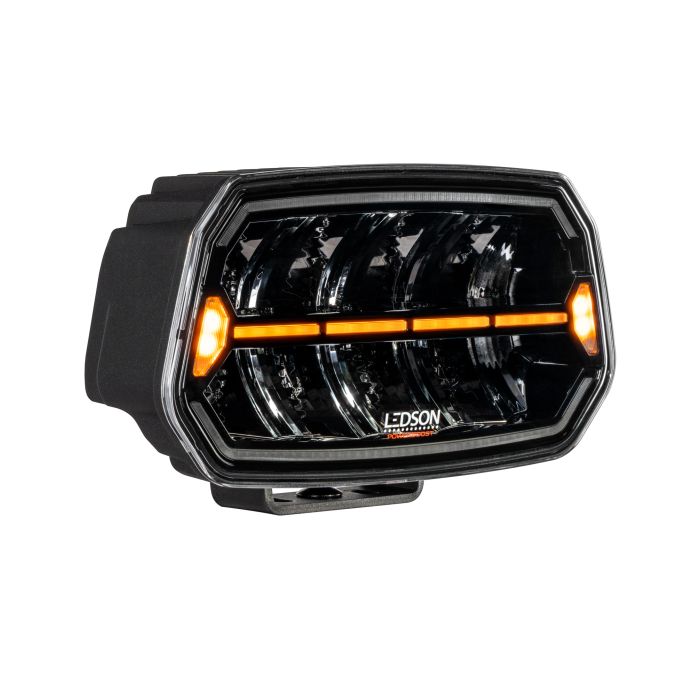

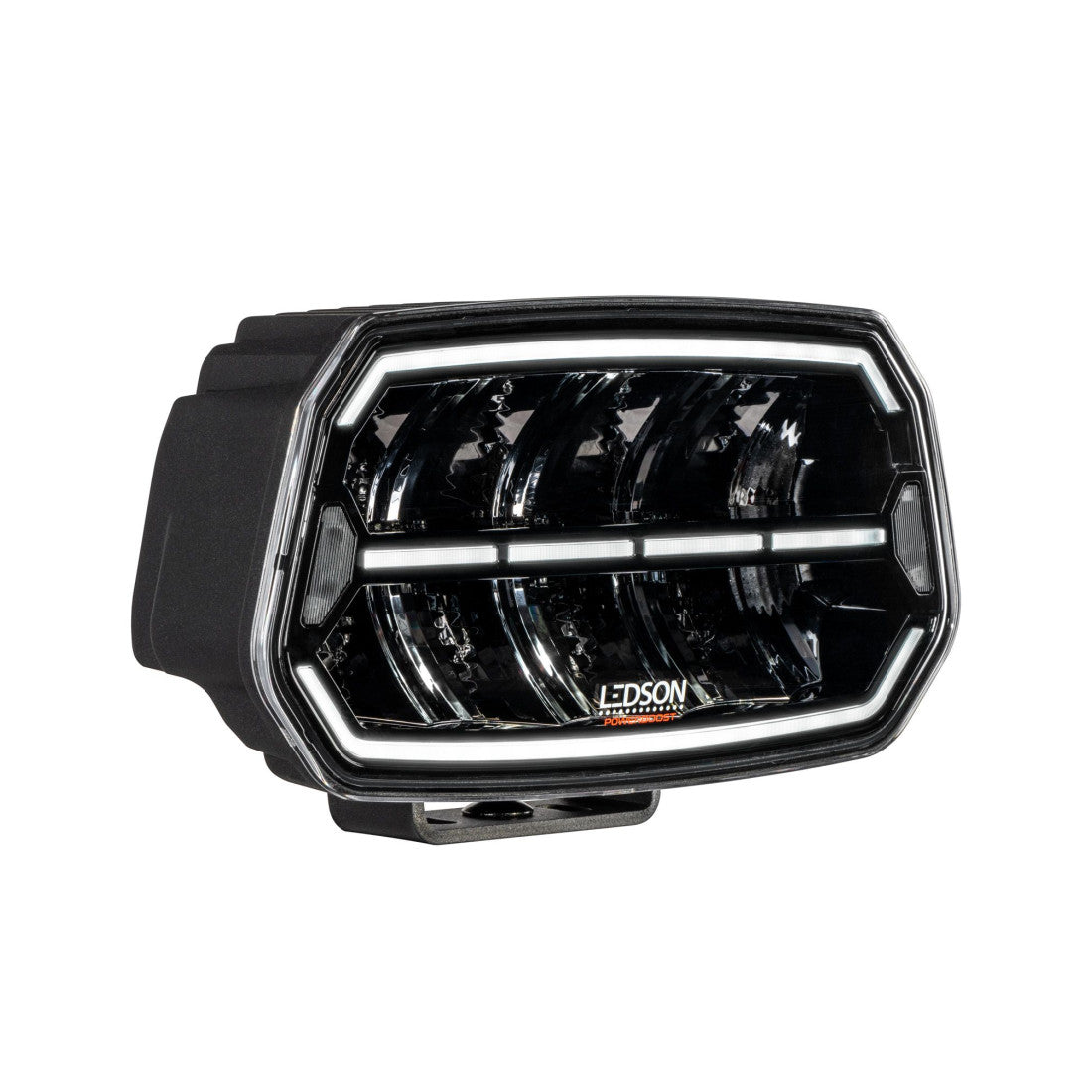

Epix10+ Strobe Auxiliary Driving Light 10" (Powerboost) 11,500Lumens - Amber or White DRL - LEDSON
✓ High-performance auxiliary light with a unique appearance
✓ Strobe light with five different patterns (one R65-approved)
✓ Powerboost allows you to choose the intensity you prefer
Experience exceptional brightness and design in perfect harmony.
Strobe patterns
Single flash (ECE R65 approved), double flash, triple flash, quadruple flash, continuous hyper flash.
Synchronizable and with alternating flash pattern
Epix10+ Strobe can be synchronized with each other, which means that all of the lights use the same flash pattern and strobe synchronized. But you also have the option of an alternating flash pattern, which means that your auxiliary lights can be divided into two different groups so that they strobe opposite of each other (eg right / left or top / bottom). You can synchronize and use alternating flash patterns with an infinite number of lights, i.e. there are no restrictions on the number of lights you use.

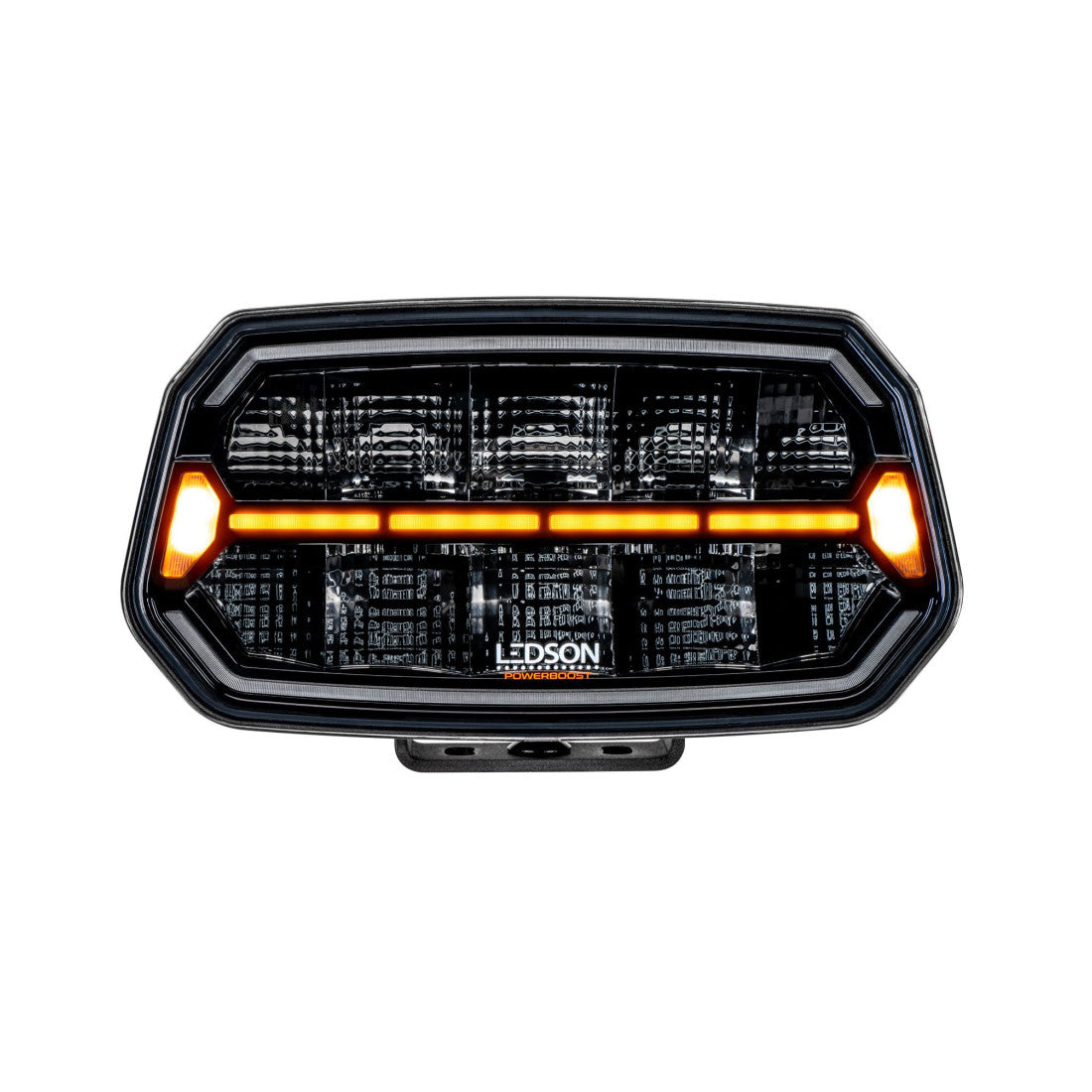

Dynamic Position Light
The Epix10+ Strobe activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.
Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This
Epix10 Strobe comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few easy steps, as shown here. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.
Features and technical specifications:
Strobe light with five different flash patterns, including one R65-approved.

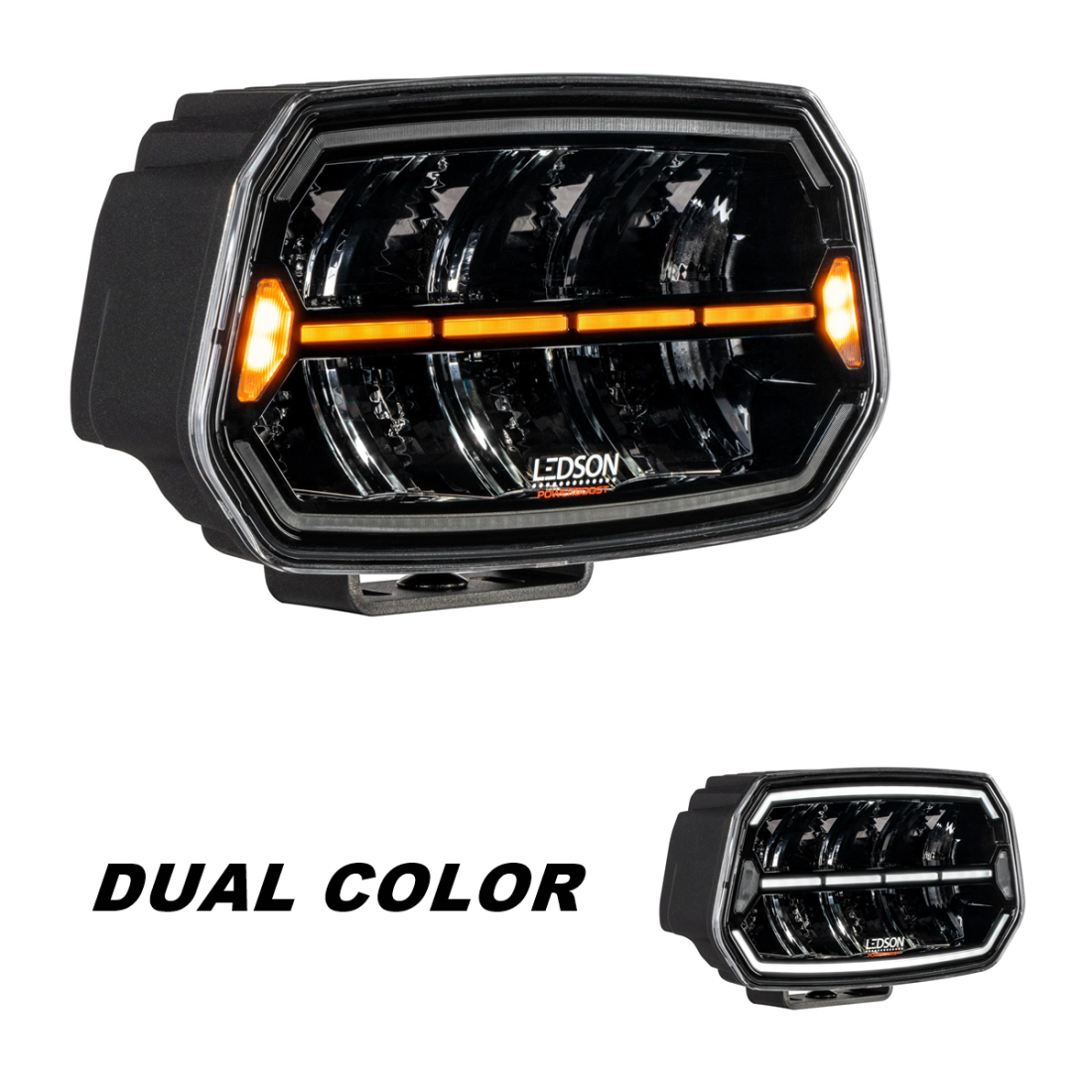

Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
Range in E-approved mode: 359 m (1 lux)
Range in Powerboost mode: 647 m (1 lux)
Driving beam pattern: Enhances the vehicle's standard high beam pattern
E-marked: ECE R112 (Ref. 30), R7 (White position light) - Read more about UNECE regulations here
EMC certified: ECE R10 (does not interfere with radio)
E-approved mode: 2 640 lumens (theoretical), 2 112 lumens (actual)
Powerboost mode: 11 500 lumens (theoretical), 8 200 lumens (actual)
Neutral white light: 5000K
ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
Side-reflecting optical system
Pressure equalization membrane

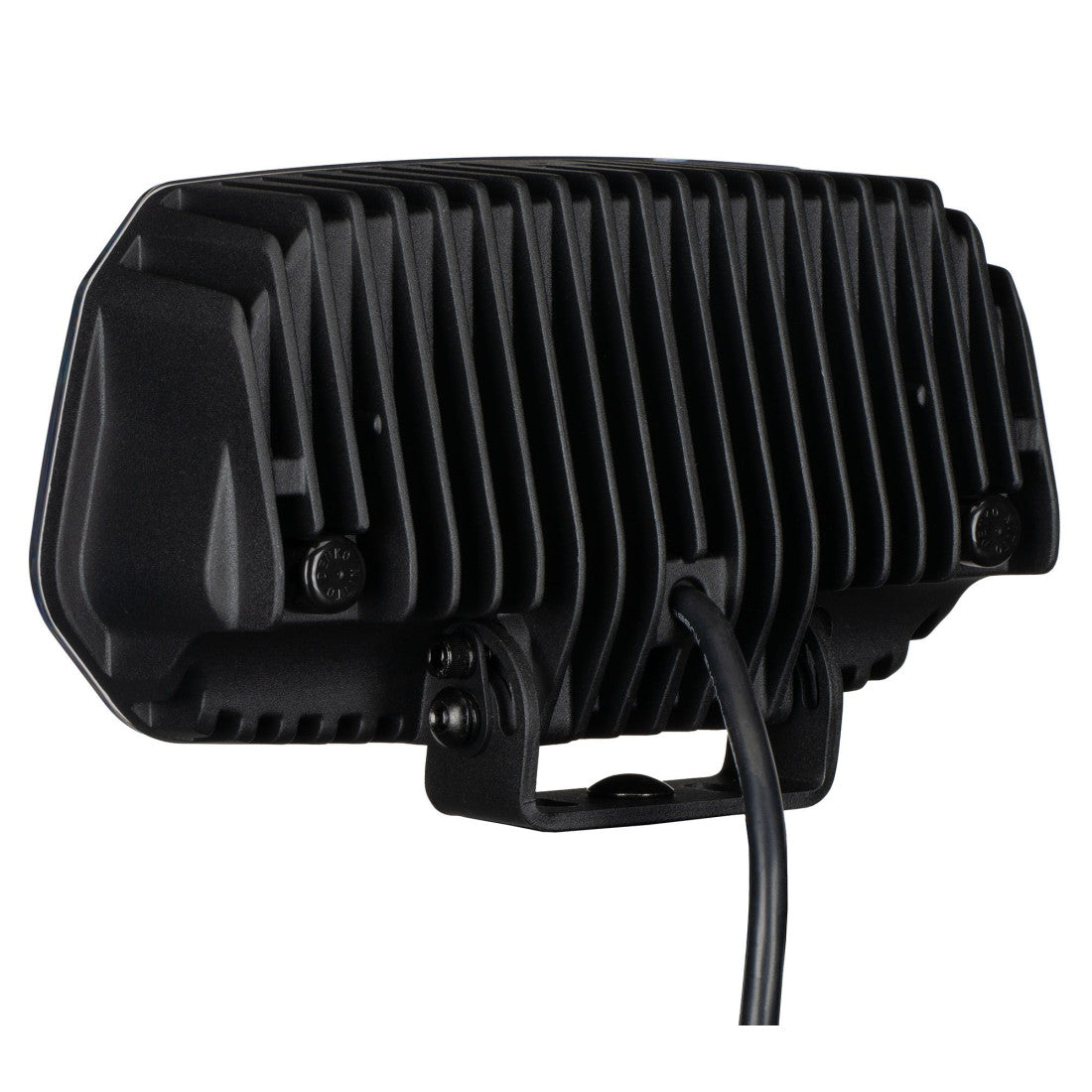

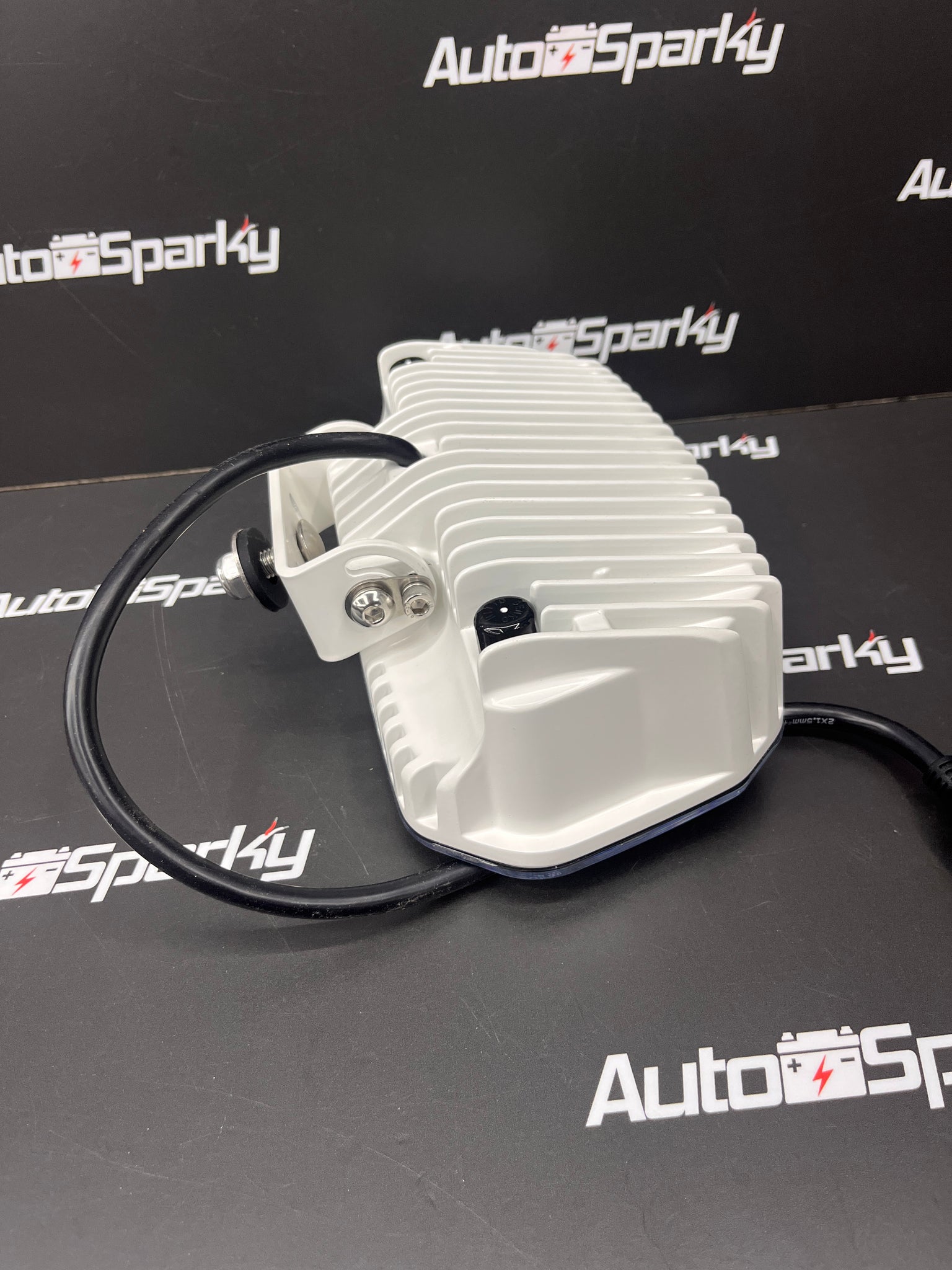

Aluminum heat sink

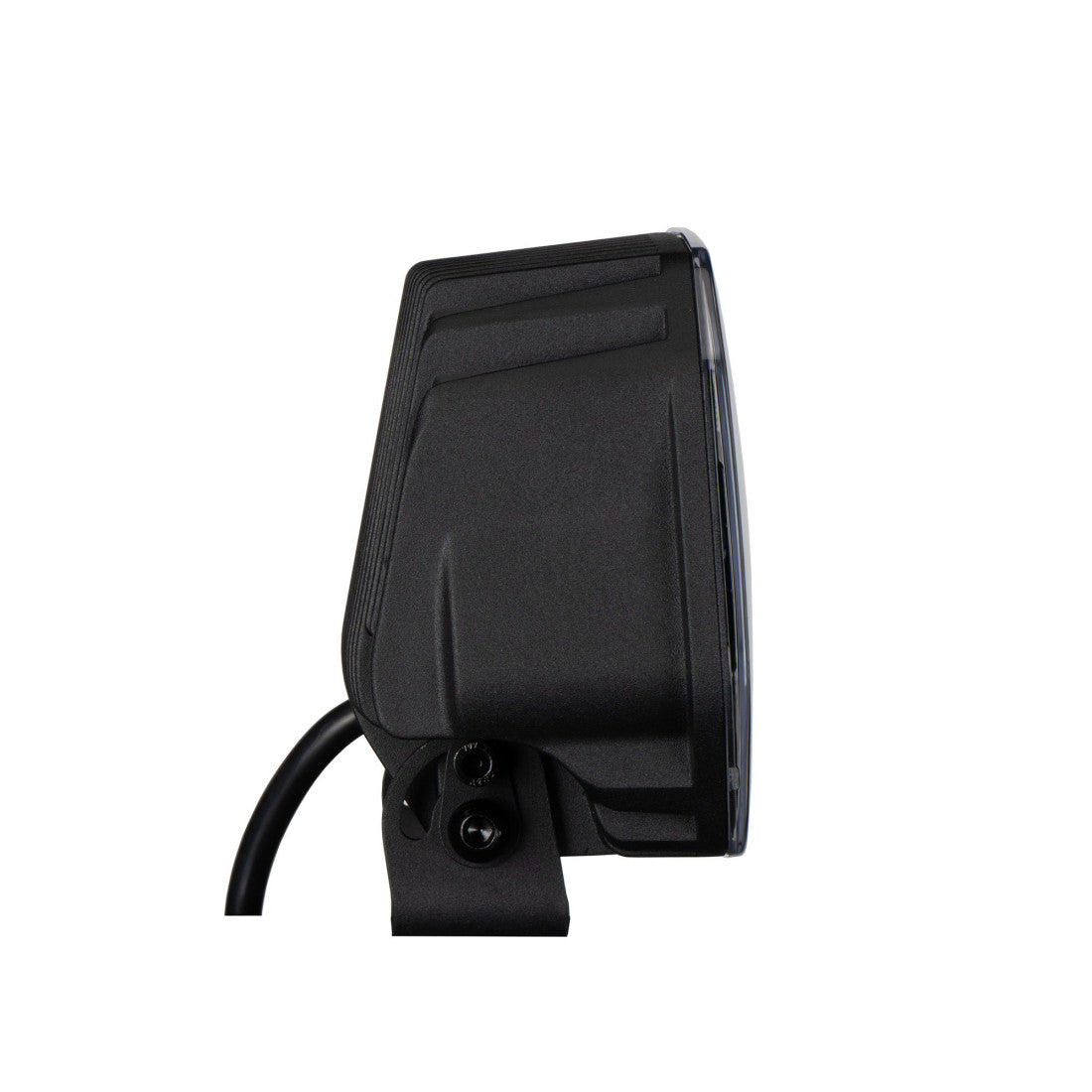

Adjustable stainless steel mount
Polycarbonate lens
36-month warranty
Technical data:
150W (10 x 15W Cree LED), strobe lights 20W (4 x 5W LED)
IP69K (water and dust proof)
Cable with 6-pin DT Connector
Voltage: 9-36 V
Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)
Dimensions & Weight:
Width: 247 mm
Height: 145 mm (incl. bracket)
Depth: 86 mm
Weight: 1,6 kg
Included:

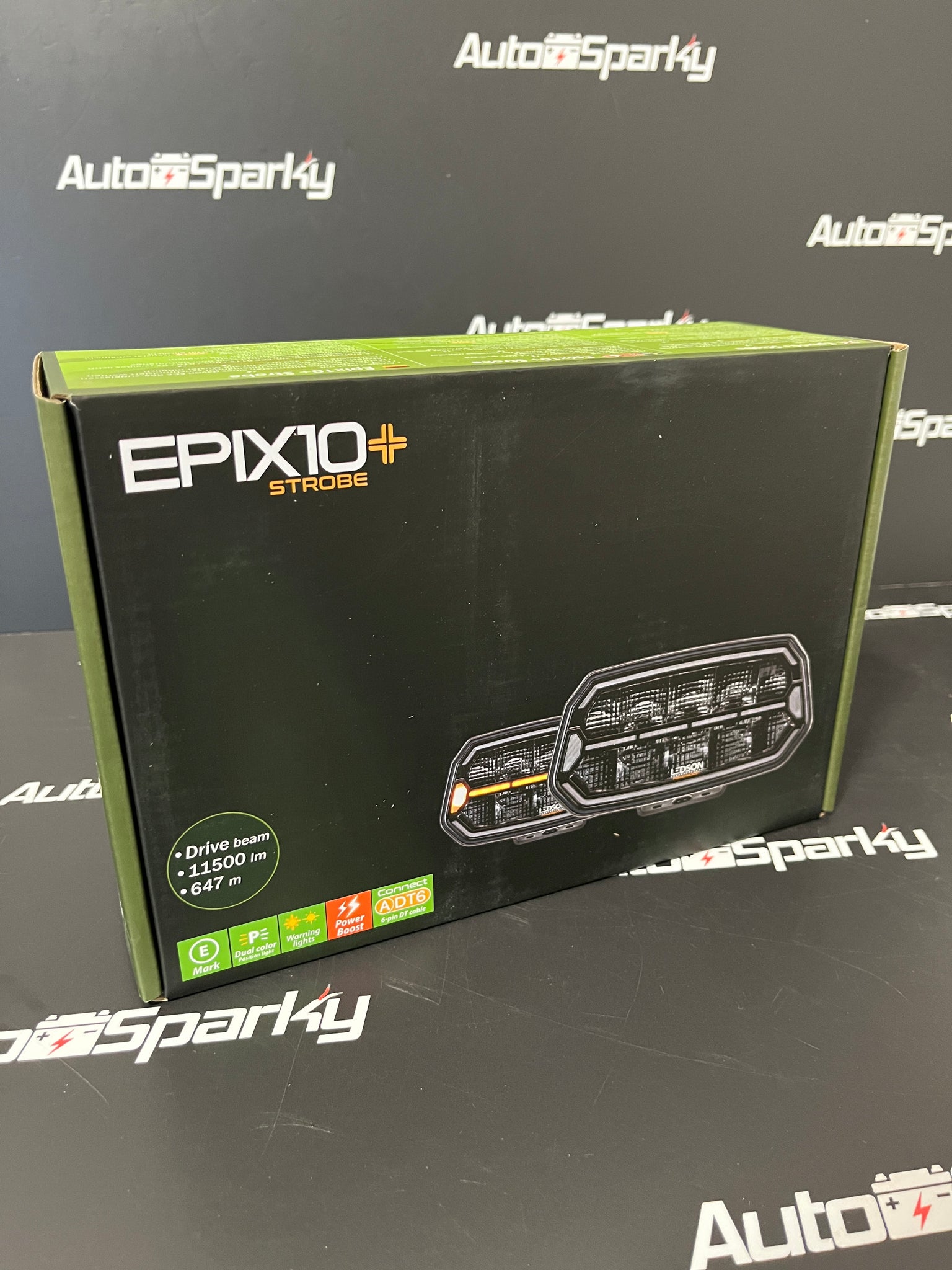

One Ledson Epix10+ Strobe LED auxiliary light 10"
Mounting bracket, bolts, and screws for single or dual mounting points
DT Connector (6-pin) (you will also need a DT harness found here)
Cable instructions (detailed instructions included)
Red: Auxiliary light (+)
Black: Auxiliary light / Position light (- Ground)
White: Position light (+) White light
Yellow: Position light (+) Yellow-orange light
Green: Strobe light (+)
Blue: Synchronization & pattern (+)
Brown: Alternating (+)
Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
