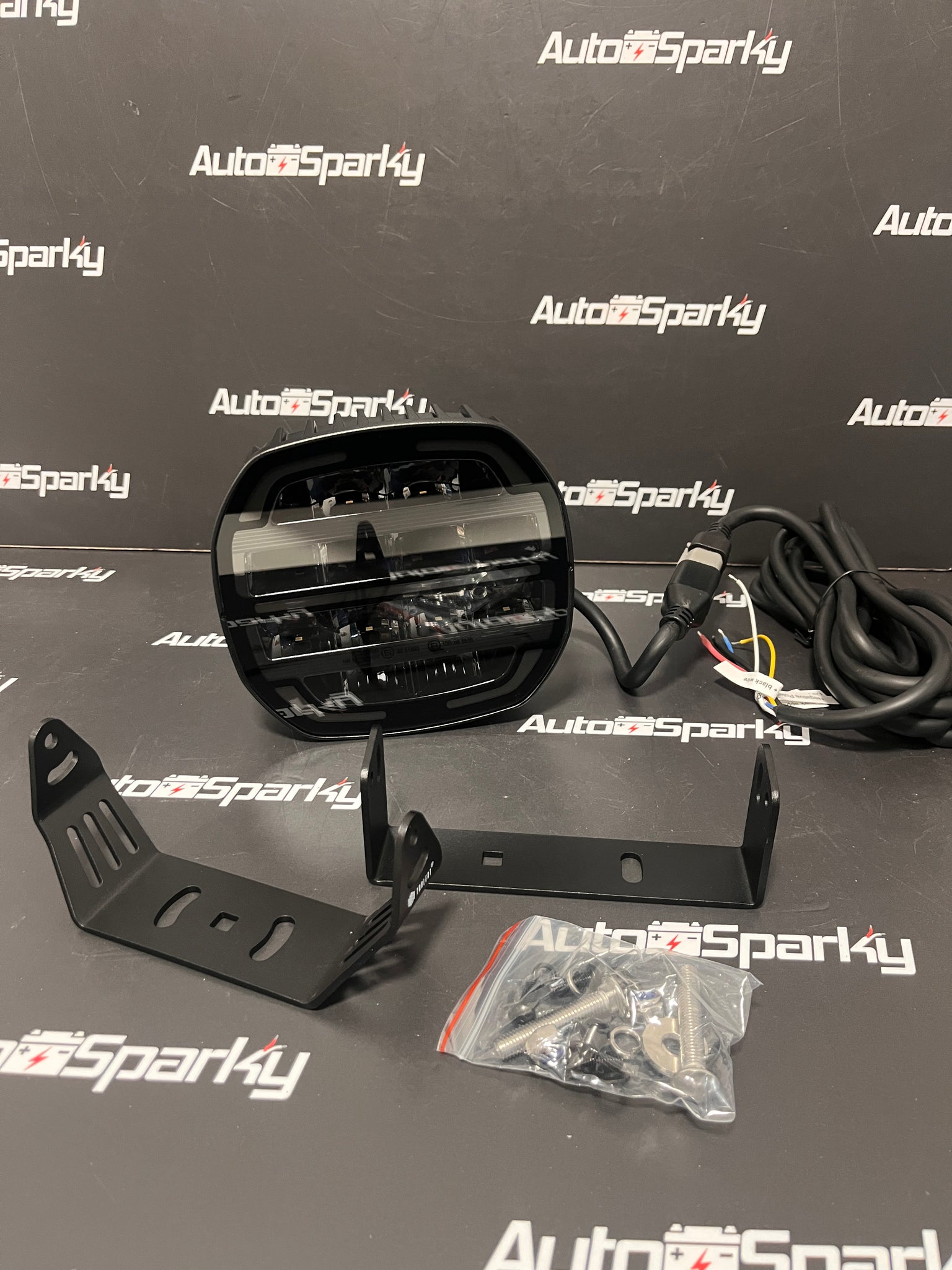

7" Tralert Phantom Driving Light - 14,000lm - White or Amber Position Light

The TRALERT® Phantom serie LED driving lights are designed for applications where high light output and robustness are required. This LED driving light with Driving Beam light image is suitable for use on vehicles in the voltage range 9-36 V and delivers up to 12,000 lm. With a housing made of aluminium and a polycarbonate lens, this model can withstand harsh conditions, while its IP68 rating guarantees optimal protection against dust and water. The standard 6-PIN Deutsch connector and 300 cm cable simplify installation.

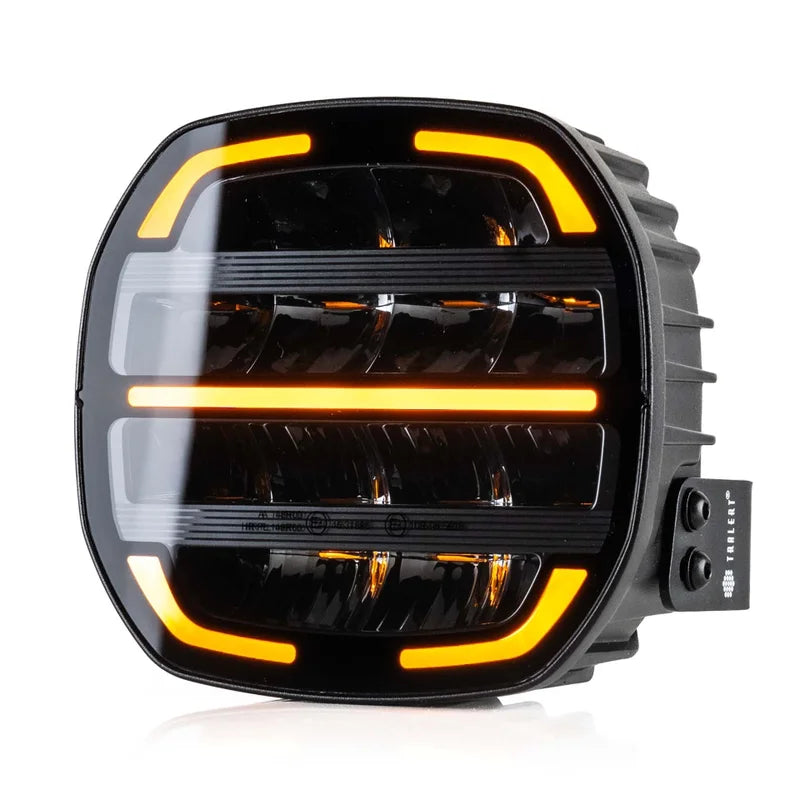

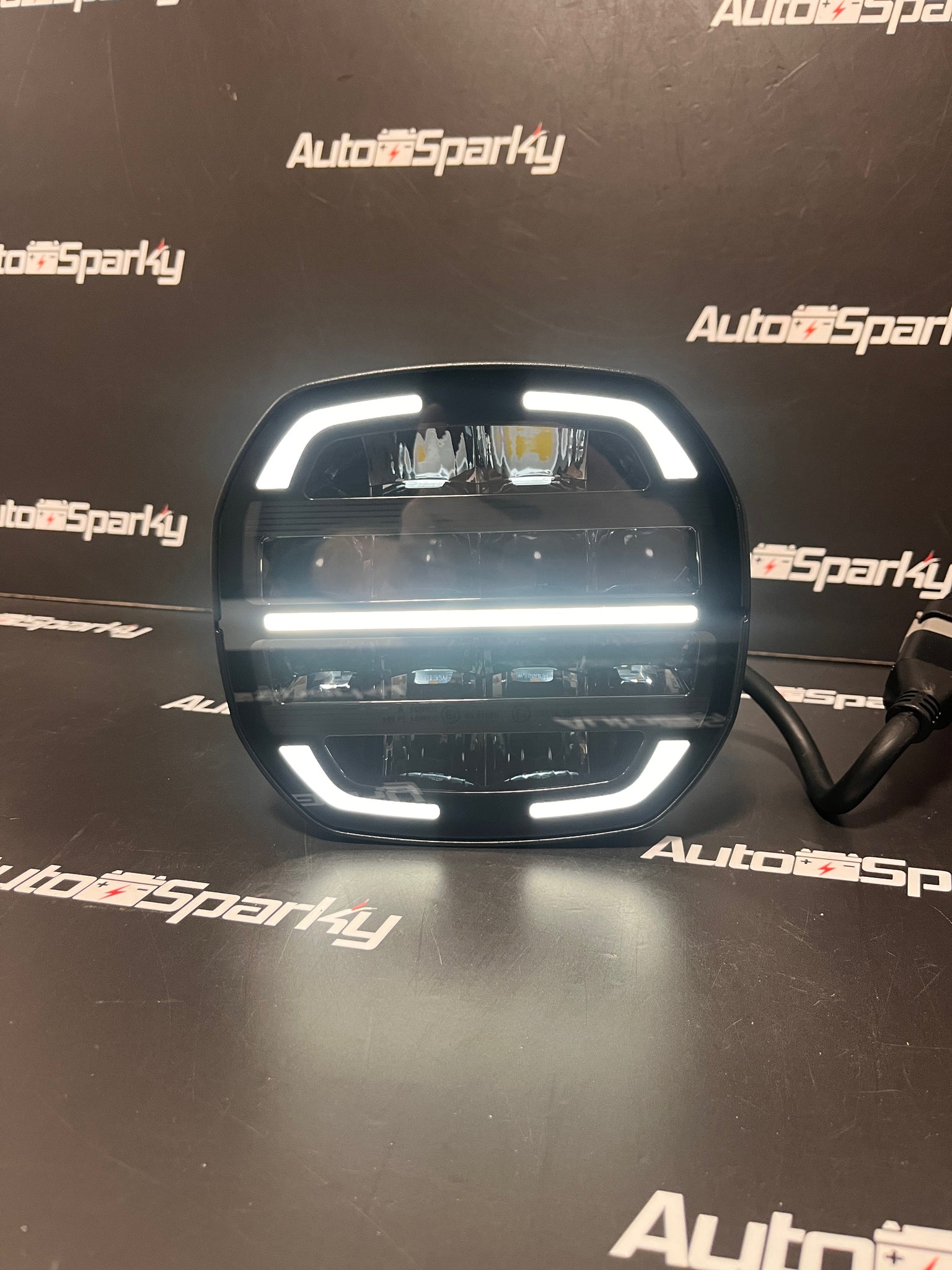

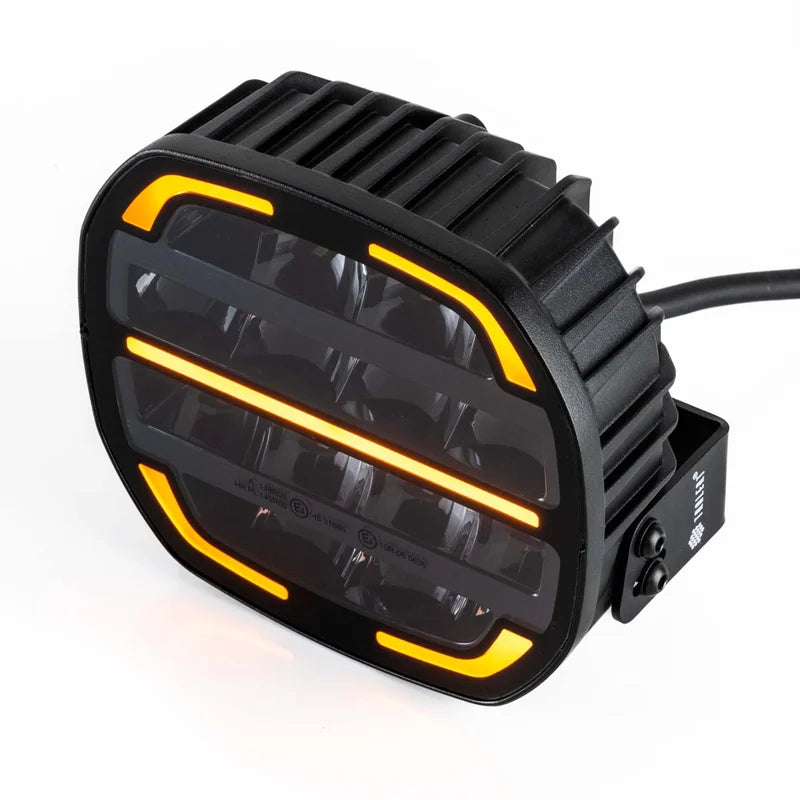

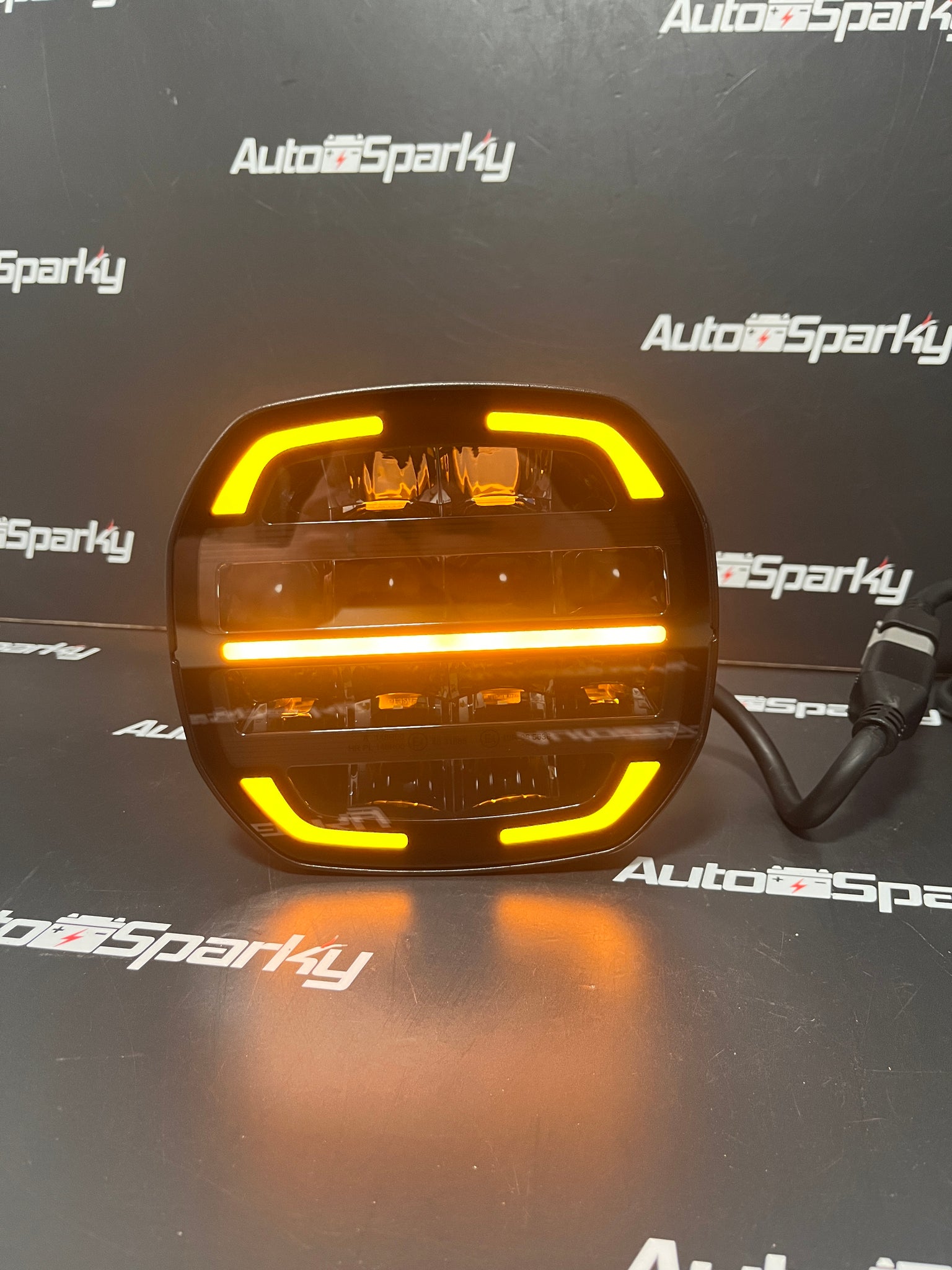

The driving lights have dimensions of 171x159x73 mm and are attached via surface mounting. Thanks to the white and amber coloured position lights with duo-color function, the lighting visually matches other contour lights on the vehicle. This LED driving light meets the requirements of CE, ECE-R10, ECE-R148 and ECE-R149.

Plus points of this series:
- LED driving lights with unique design
- Equipped with duo-color position lights, matching the rest of your contour lights
- Powerful light output of up to 16,000 lumen
- Fully certified and made of high-quality materials

General
Voltage 9-36v
Certification CE, ECE-R10, ECE-R148, ECE-R149
Warranties 3 years
Brand TRALERT®
Suitable for: 4×4, Commercial vehicles, Trucks

Dimensions 171 x 159 x 73mm
Shape Round

Light image Driving Beam
Light colour Amber, white
Lumen 12,000 lumens
Position lights Yes
White position lights Yes
Amber position lights Yes

Materials

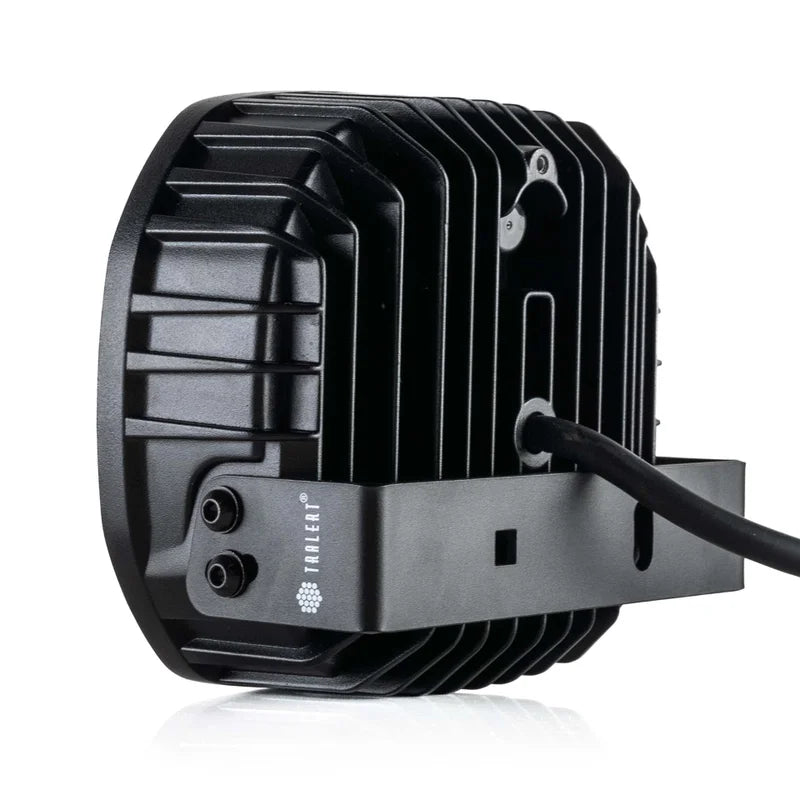

Housing material Aluminium
Housing colour  Black
lens material Polycarbonate
Lens colour Transparent

Technical
Connectors 6-PIN Deutsch connector
Cable length 300cm cable
Wattage 140 W
Lumen 12,000 lumens
Protection class IP68
Power consumption 12V: 11.3A / 24V: 5.44A
Mounting Surface mounting
Warning light functions No

Driving lights functions
Amber position lights, White position lights
