Purelux Flash Halfbar / Corner Strobe - 12/24V / 30W / 220mm
A low, super stylish crescent shaped warning light. Illuminates 180° instead of the traditional 360°, so that the light can be directed in the right direction. 12/24V.

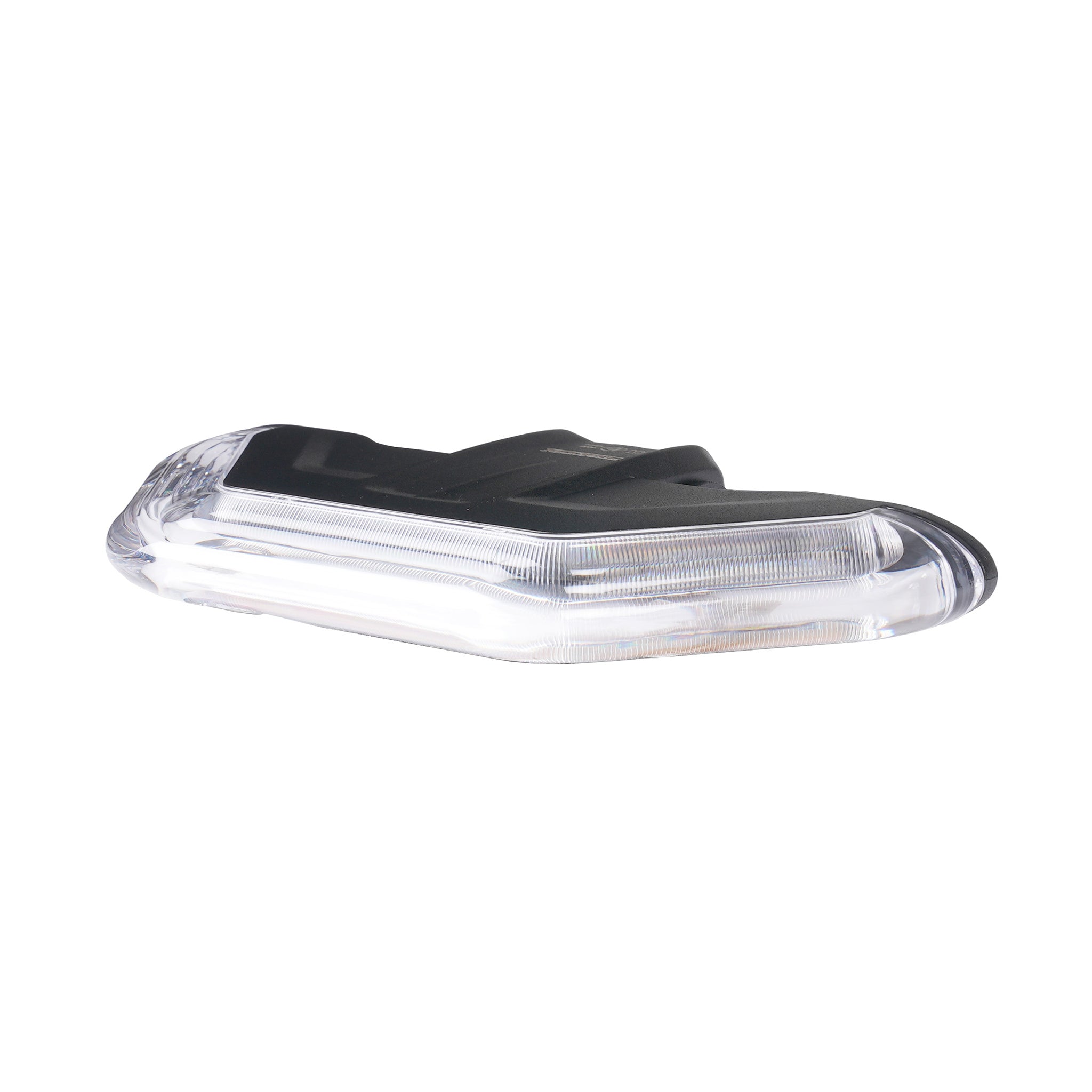

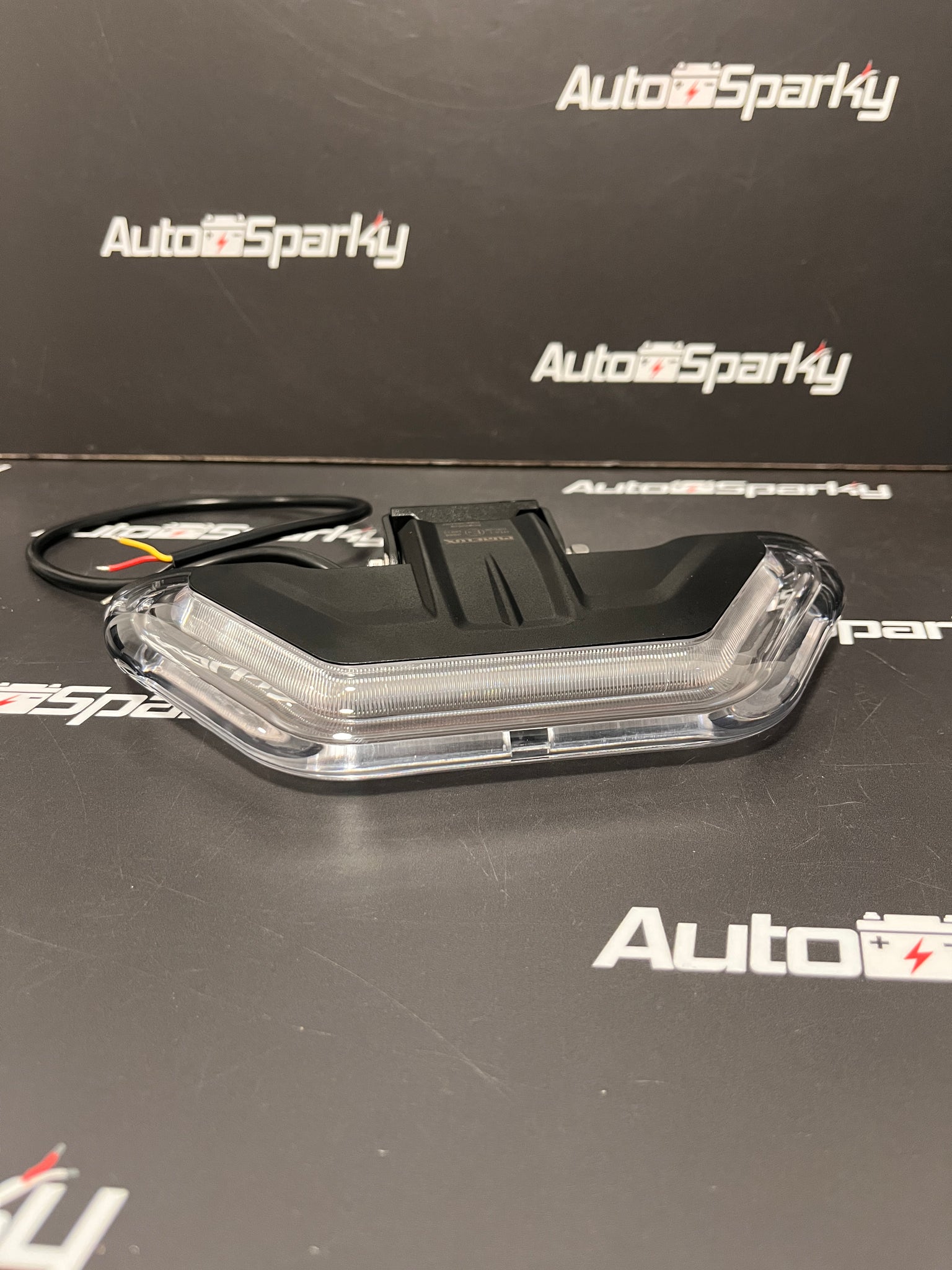

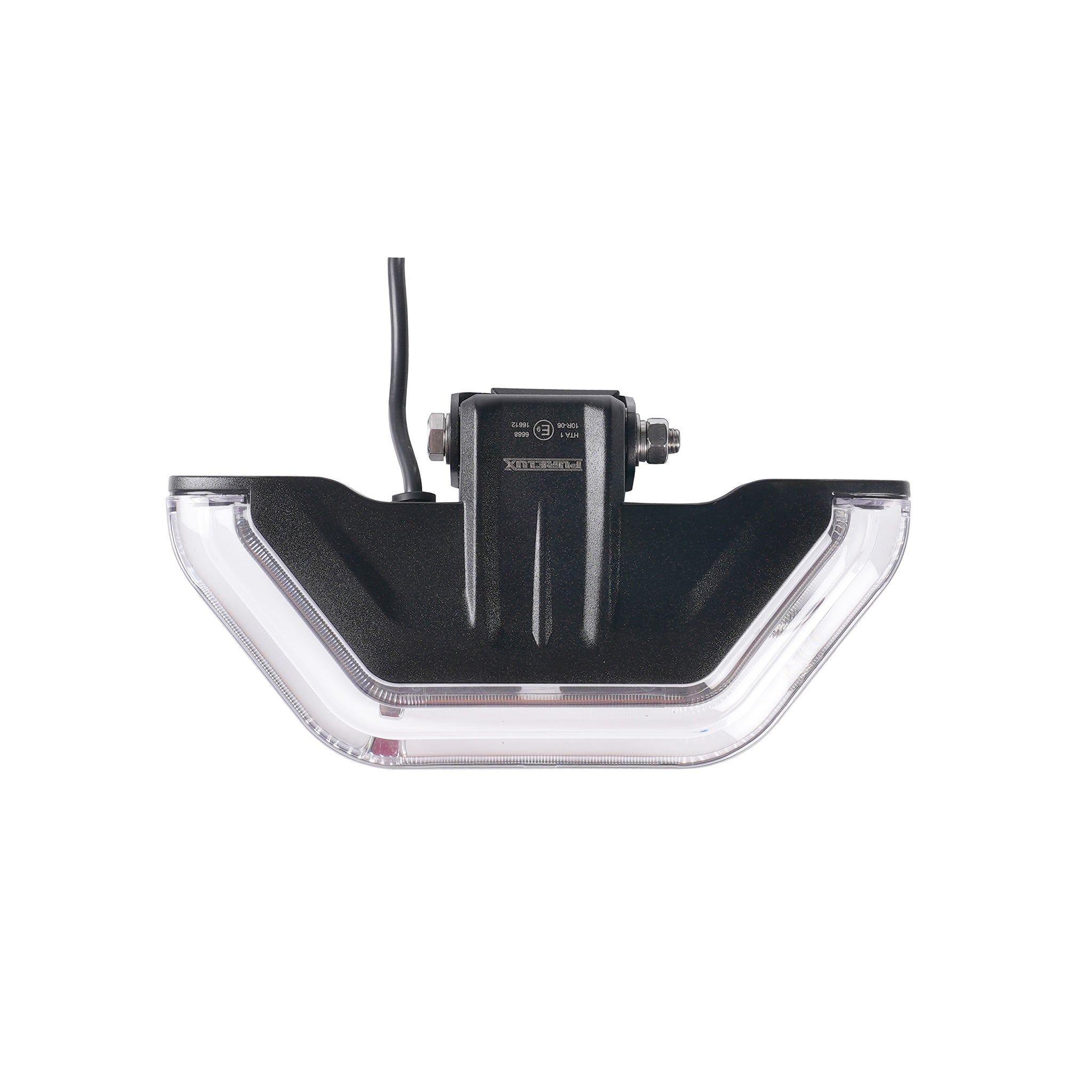

The Purelux Flash Panel Halfbar is a stylish half-moon shaped warning/attention light suitable for use in both 12V and 24V systems. The lamp is specially designed for use where the light must be directed at a certain angle, for example at the back or front of the vehicle. Since Halfbar lights approx. 180° instead of the traditional 360°, perfect for mounting on the roof or the lower parts of a vehicle. In this way, the light is not directed unnecessarily at the vehicle or at the back of the cabin of work machines, but the light is directed where it is needed. Due to its low frame, the Purelux Flash Panel Halfbar is ideal for installation in cars and vans as well as construction machinery or as part of the equipment for heavy equipment.

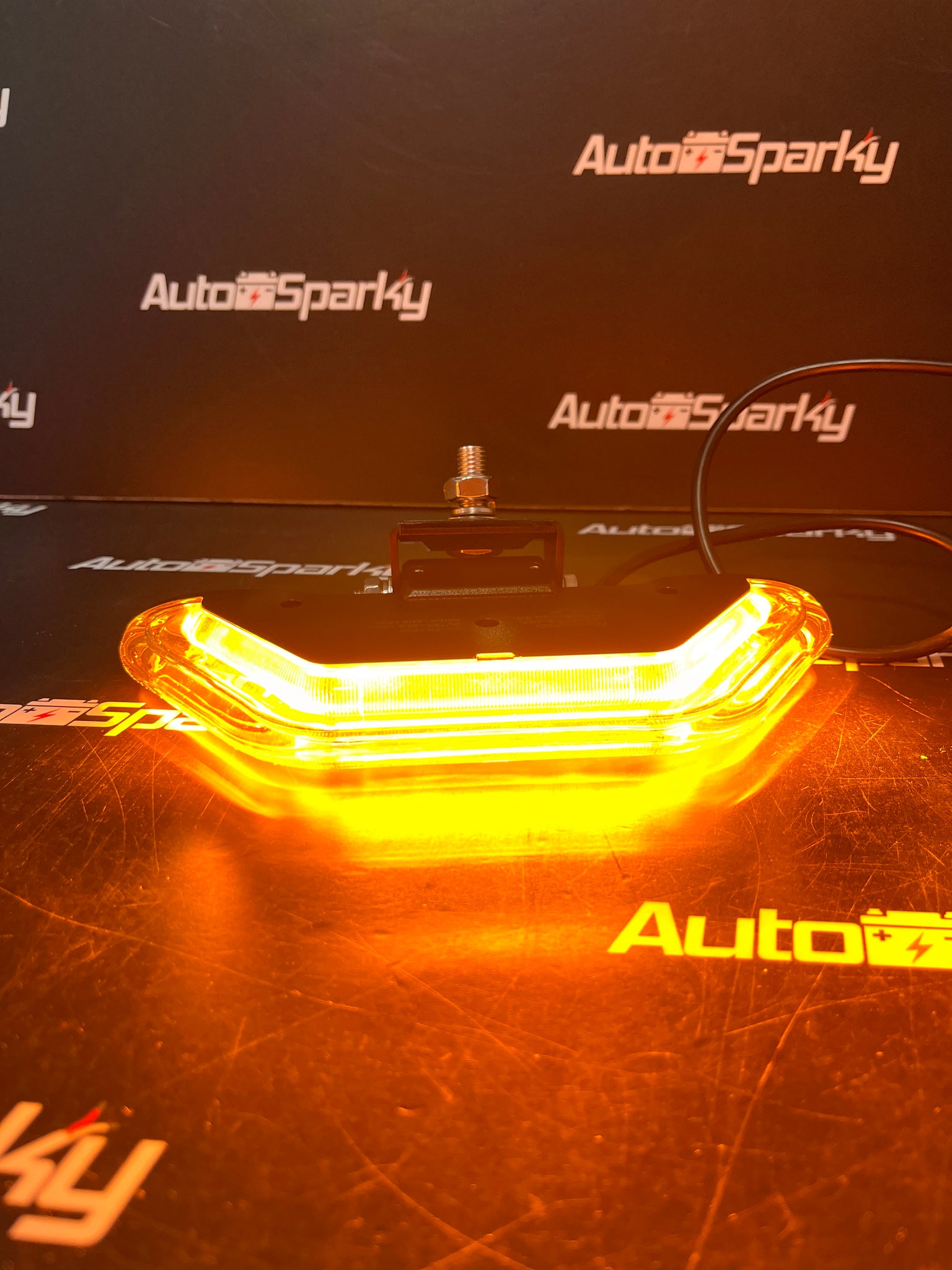

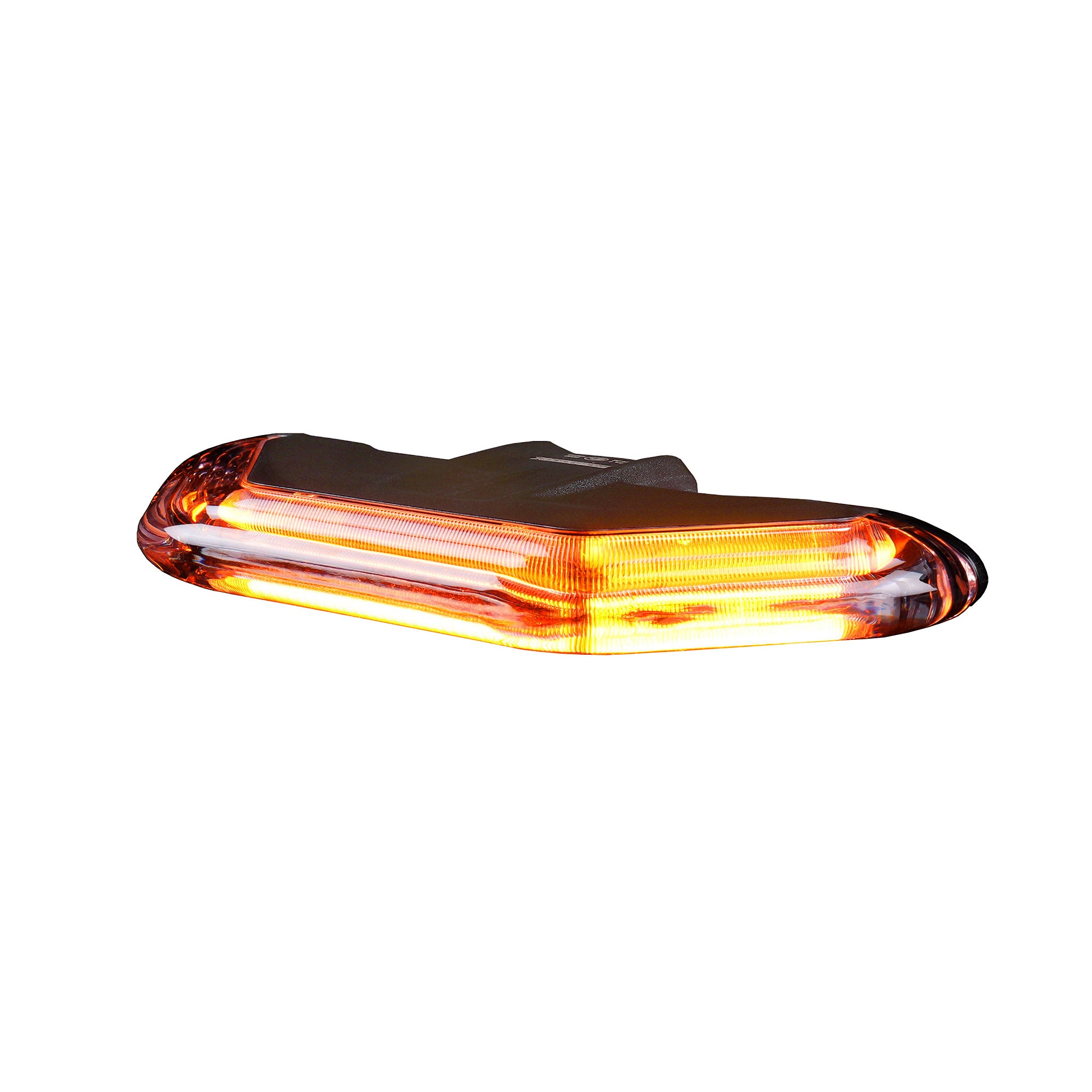

Of the light's 12 different operating modes, there is guaranteed to be something suitable for all purposes. Halfbar is E-approved for road traffic and ECE R65 class 2 approved, which means that the lamp is approved for both day and night use. Halfbar has flash functions specially developed for day and night use, of which the day mode with flash light has full strength, while the night mode has a reduced brightness so that it does not dazzle other road users or the driver. The warning light is also protected against radio interference according to the R10 standard.

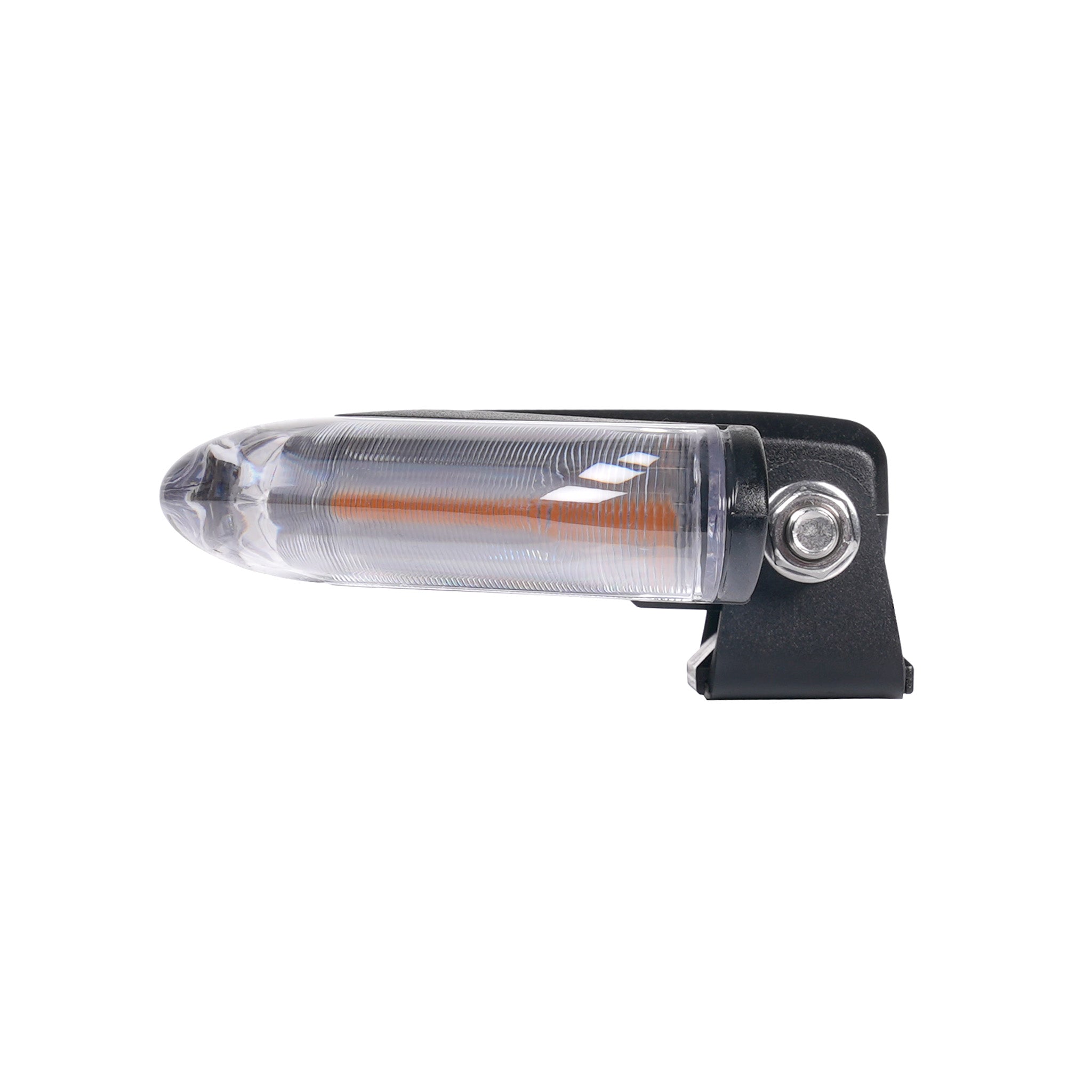

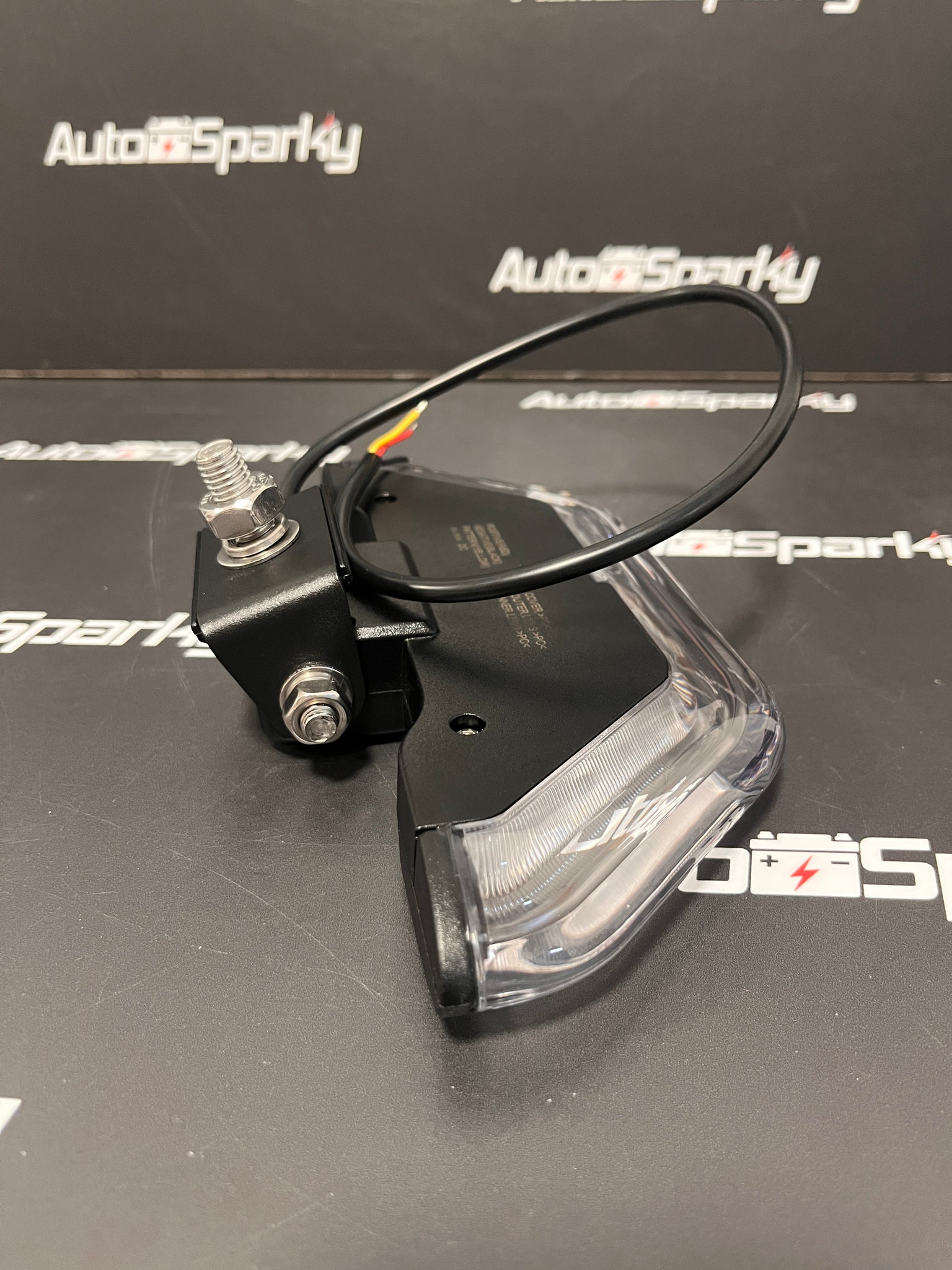

The lamp comes with a mounting foot and its angle can be adjusted 180°. Thanks to this, the installation can be done under the vehicle, as the Halfbar does not add more height to the vehicle and the driver does not have to worry about the light hitting something while driving. Halfbar's slim and elegant design, combined with a low frame, allows for neat mounting on any object, and thanks to its small size, it can also be installed in tighter spaces. The durable polycarbonate frame is vibration and corrosion protected and, according to protection class IP67, it is also waterproof and dustproof. The operating voltage of 10-30V means that the lamp can be used in cars and vans as well as in heavier equipment (trucks and various work machines, etc.). Two year (24 month) warranty!
Note! Purelux Flash Panel Halfbar is ECE R65 Class 2 approved, so it can be used in European road traffic! The Class 2 marking in the approval means that the light has both day and night mode.

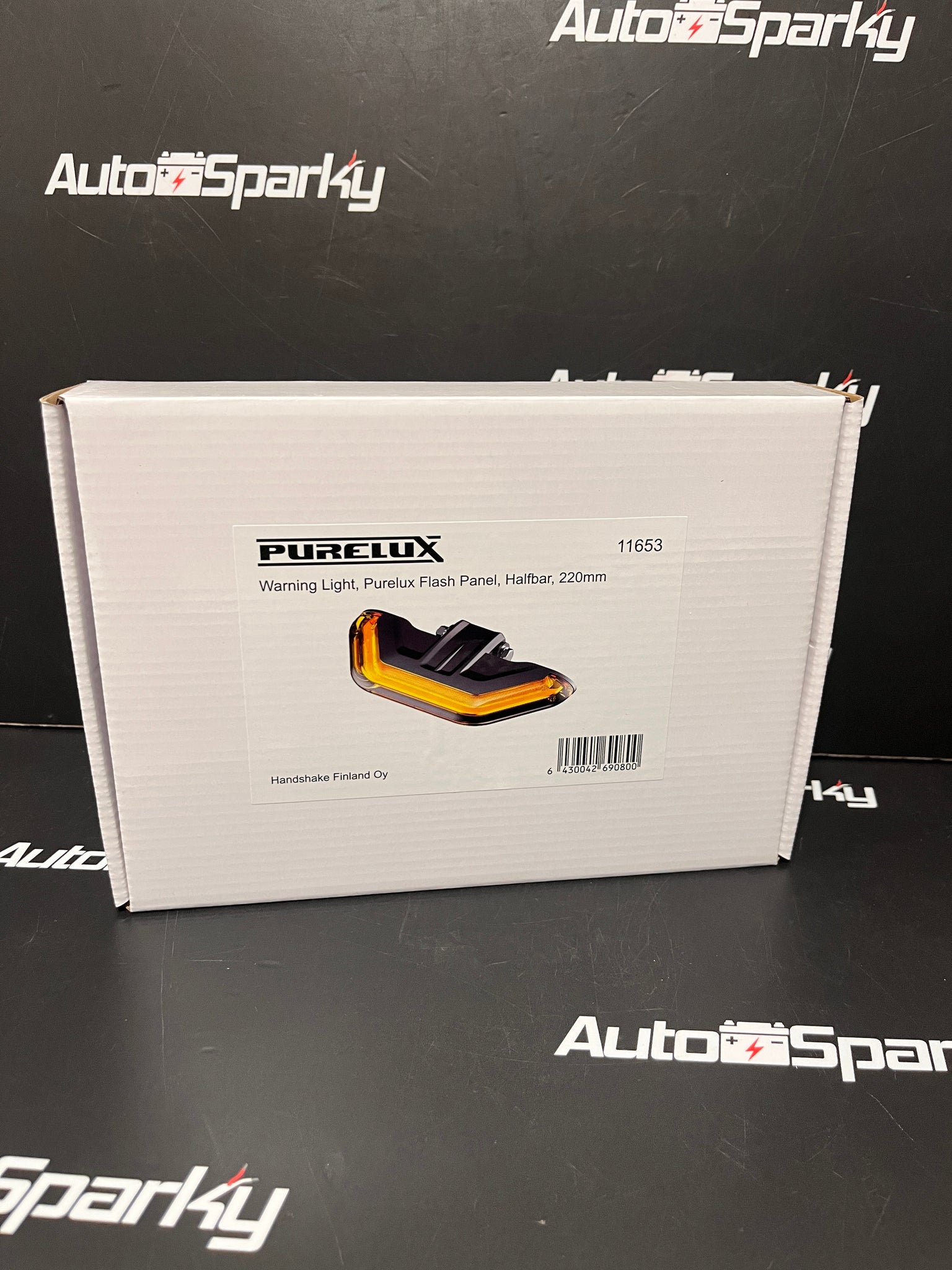

Content
Purelux Flash Panel Halfbar
Mounting foot
Mounting curve
Installation and operating instructions (EN)
Technical specification
Brand and model: Purelux Flash Panel Halfbar
Area of use: As a warning and attention light
Operating voltage: 12V / 24V
Measured power: 30W
Operating modes: 12
Contact: No contact, directly connected
Cable length: approx. 50 cm
Dimensions: 220 x 110 x 25 mm (Width x Height x Depth)
Weight: 495 g
Protection class: IP67
Approval: EMC: ECE: R10, R65 Class 2
Mounting: Mounting foot
Other: 180° lighting

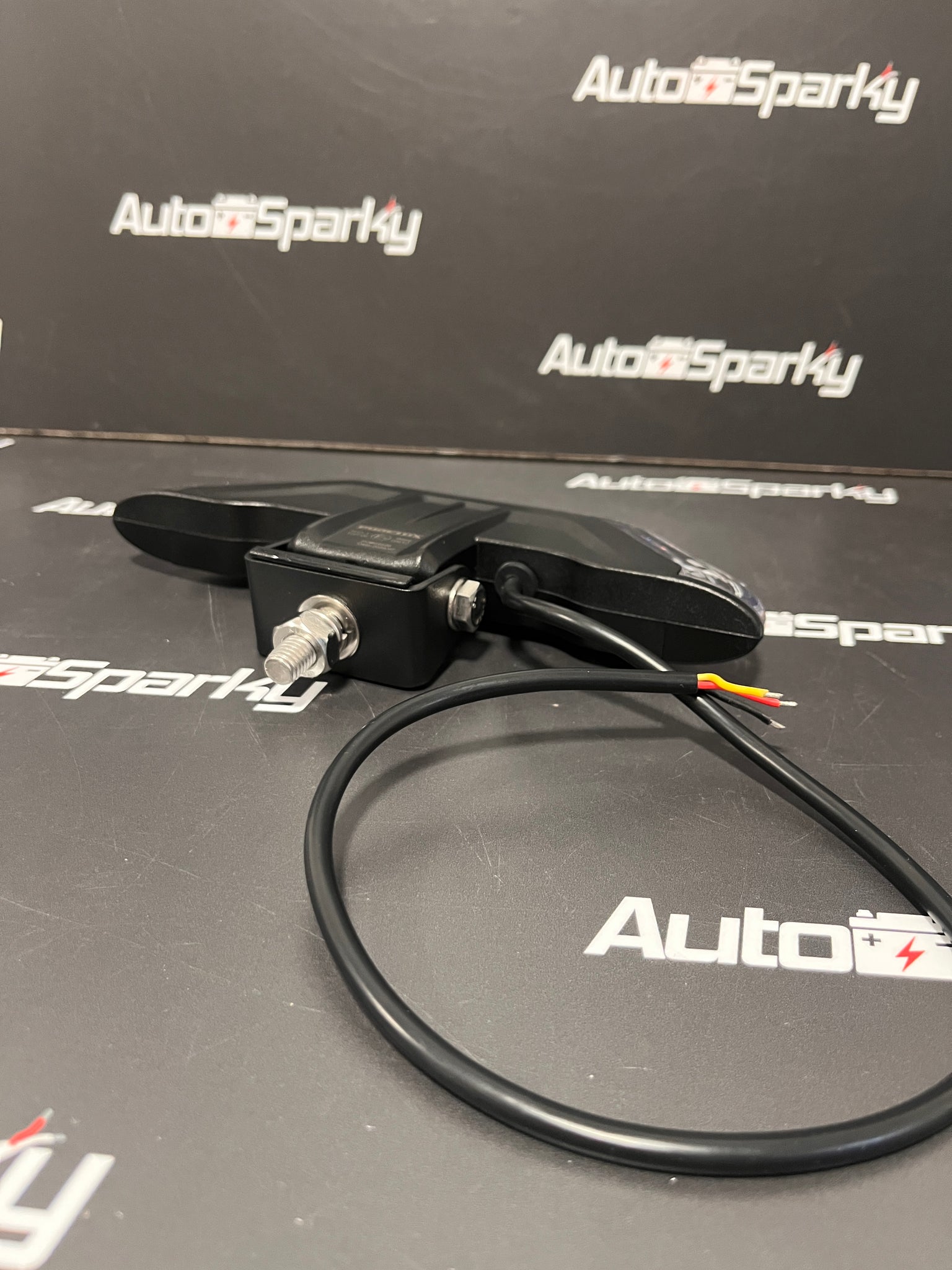

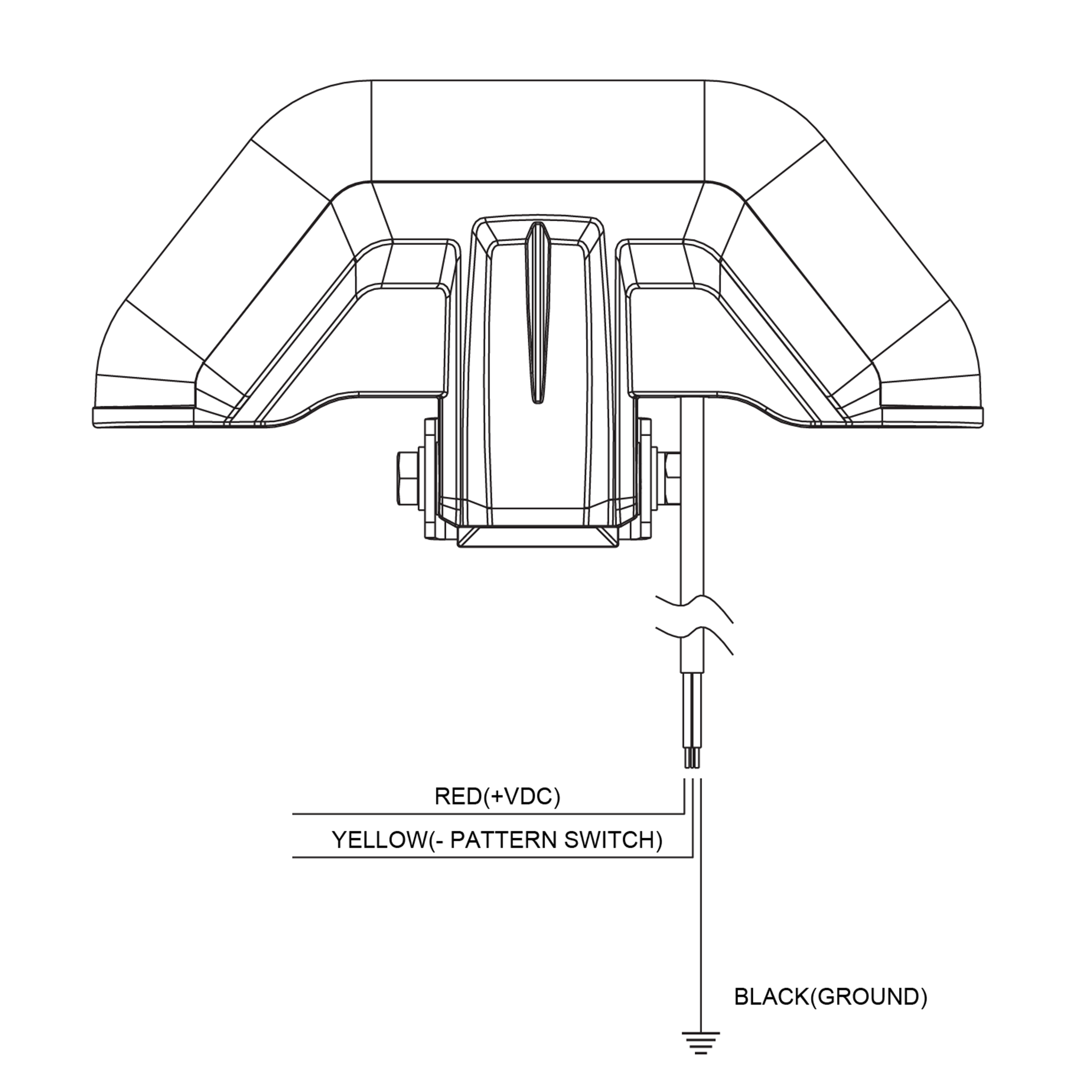

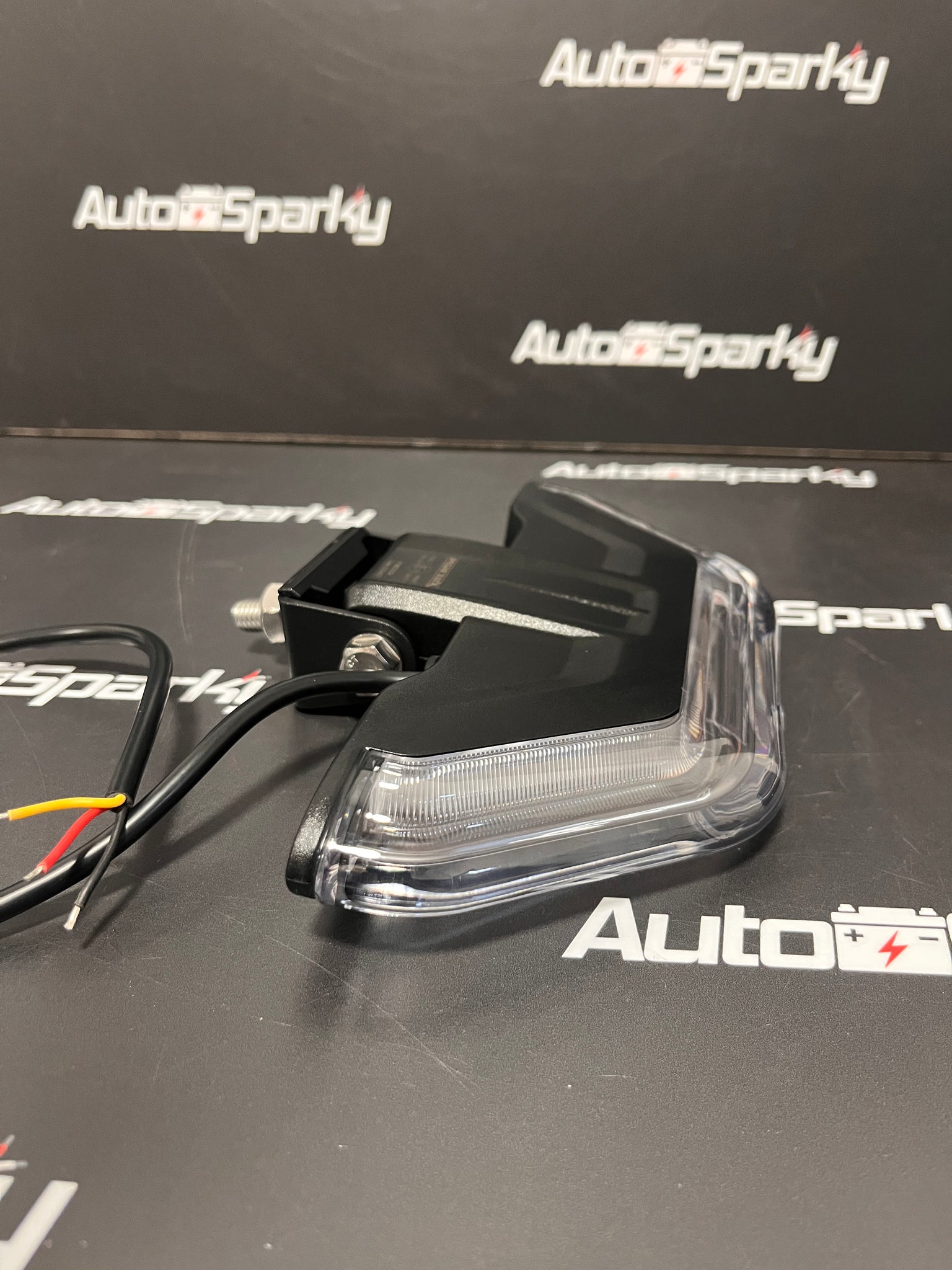

Quick guide Coupling
Red: Power (+)
Black: Ground (-)
Yellow: Change of operating mode:
Apply power (+) to the yellow wire and the lamp changes operating mode. Can be implemented with a circuit breaker (the cable is connected to the battery or other power source, and a pressure switch is inserted in between)
