Purelux Road Black MF160 - 4 Function 6" Mini Lightbar - Tail, Brake, Indicate & Reverse
Multifunctional work lighting for mounting on the back of vehicles. Reverse lights, orange warning lights, and red warning and brake lights - All in one!
The Purelux Road Black MF160 is a compact, multifunctional work light specially designed for installation on the back of the vehicle. In keeping with its Multi-Function name, the MF160 has several different functions, which include a steady orange warning light, a white reverse light, an orange turn signal, as well as red brake lights and parking lights. The various functions can be wired to take the excitation current from the vehicle's own lights, making them work with each of the car's functions (reverse lights, indicators, tail and brake lights) simultaneously, or the functions can be wired behind a separate switch. In the latter case, the driver can choose when which function should be used. Each function has its own cord that comes from the power cord, thanks to which all or only some of the functions can be switched on.
The MF160 is ideally suited for, for example, trucks, construction vehicles, all-terrain vehicles and as part of the equipment of heavy equipment. Of course, it can also be used in ordinary cars, as it is approved as a reversing light, brake light, parking light and direction of travel light according to standards R6, R7, R23 and R148. Thus, the Road Black MF160 can be used, for example, as an additional brake light or parking light for a truck trailer, as a reversing light for an SUV or, for example, as a turn signal for a construction vehicle.
The light is easy to attach with the included mounting foot, and the panel's slim fixture allows for discreet mounting even in tight spaces, so mounting options are almost limitless. The fixture is made of durable and UV-protected powder-coated aluminum, which is designed to withstand hard and daily use even under extreme conditions. The elegant dark structure combined with the frameless, virtually unbreakable polycarbonate lens makes the MF160 a modern addition to any vehicle. Installation is facilitated by the direct plus cables that come from the power cord separately for each function, making connection easier. The MF160 can be connected to both 12V and 24V systems.
Content

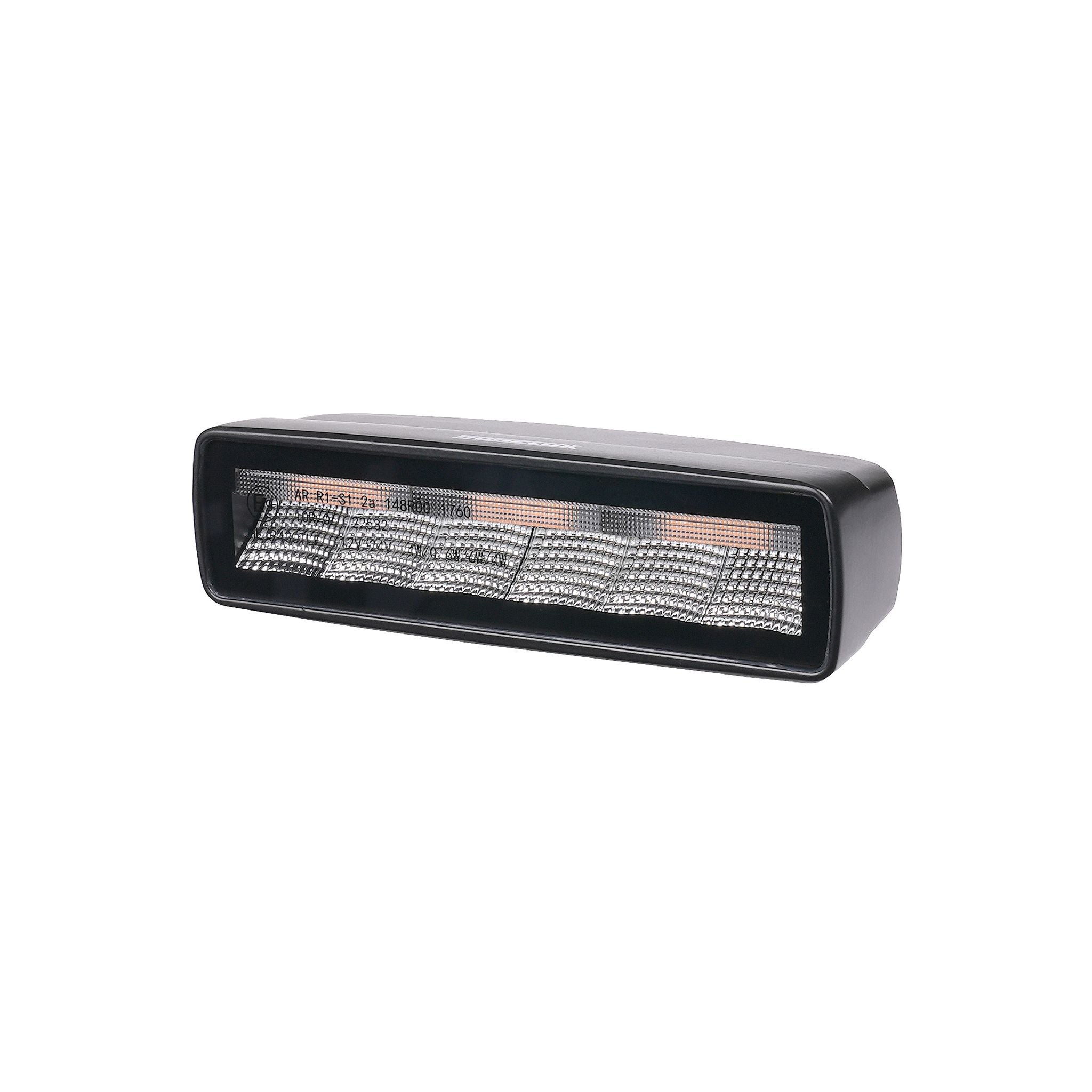

Purelux Road Black MF160
Mounting foot
Power cord
Connection and installation instructions (EN, FI, SE, NO)
Technical specification
Brand and model: Purelux Road Black MF160
Purpose: As reversing and warning lights in cars/contract machines
Operating voltage: 12 / 24 V
Estimated power: 12W

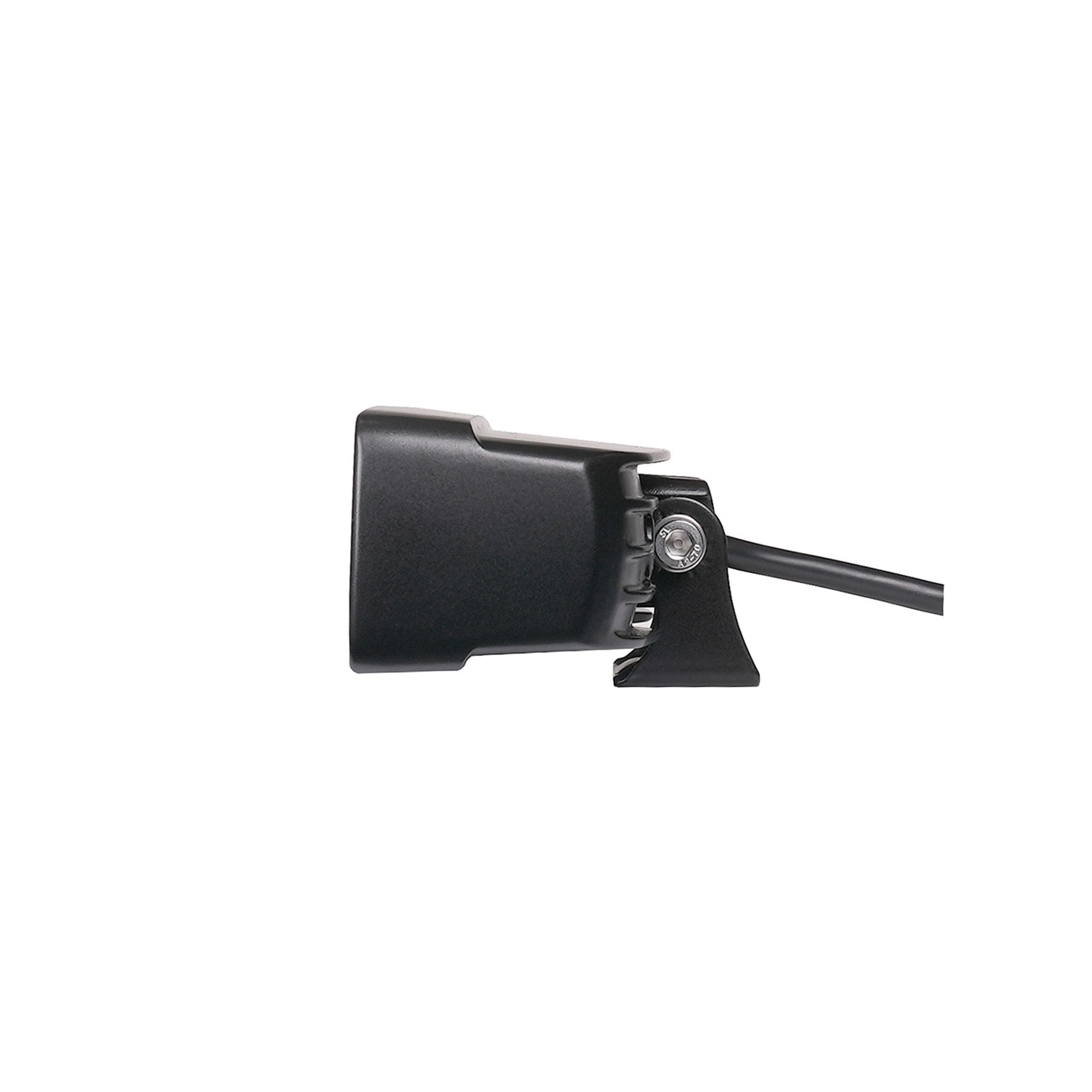

Mounting: Mounting foot
Contact: No contact, straight wires
Cable length: approx. 50 cm

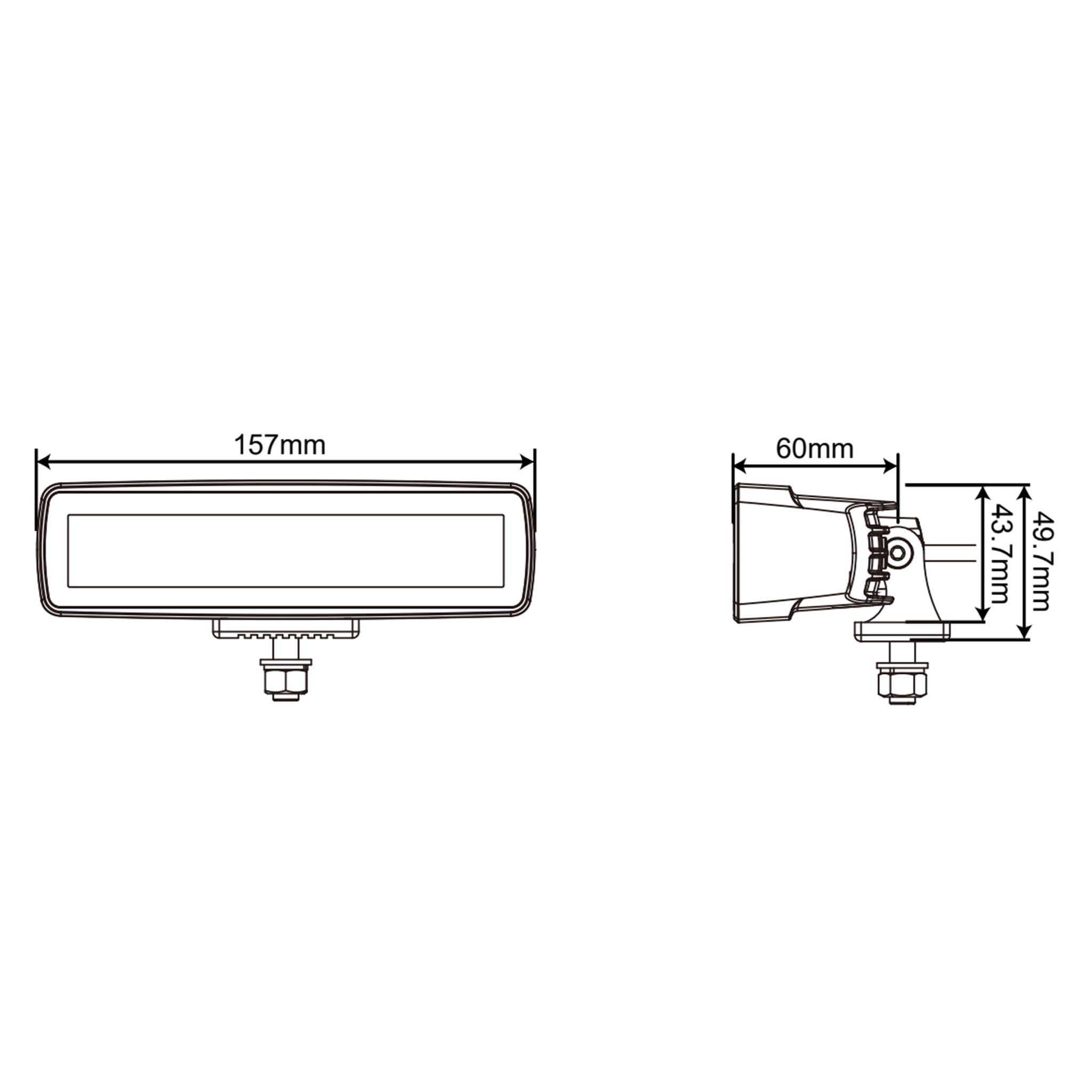

Dimensions: 157 x 60 x 49.7 mm (Width x Length x Depth)
Weight: 450 g
Protection class: IP68
Approvals: EMC: ECE: R6, R7, R23, R148
Warranty: 24 months
Quick guide
Coupling

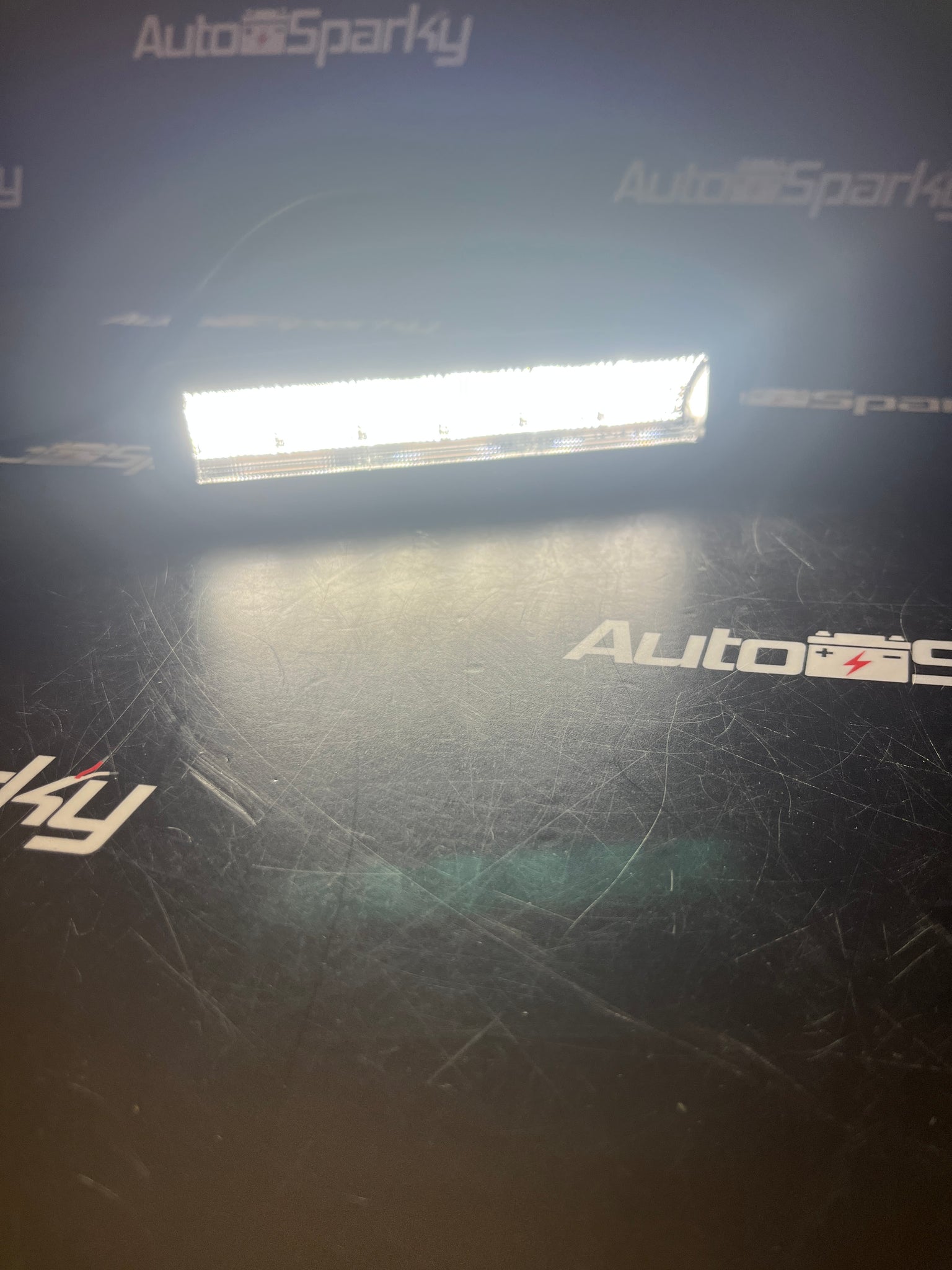

Grey: White reverse light

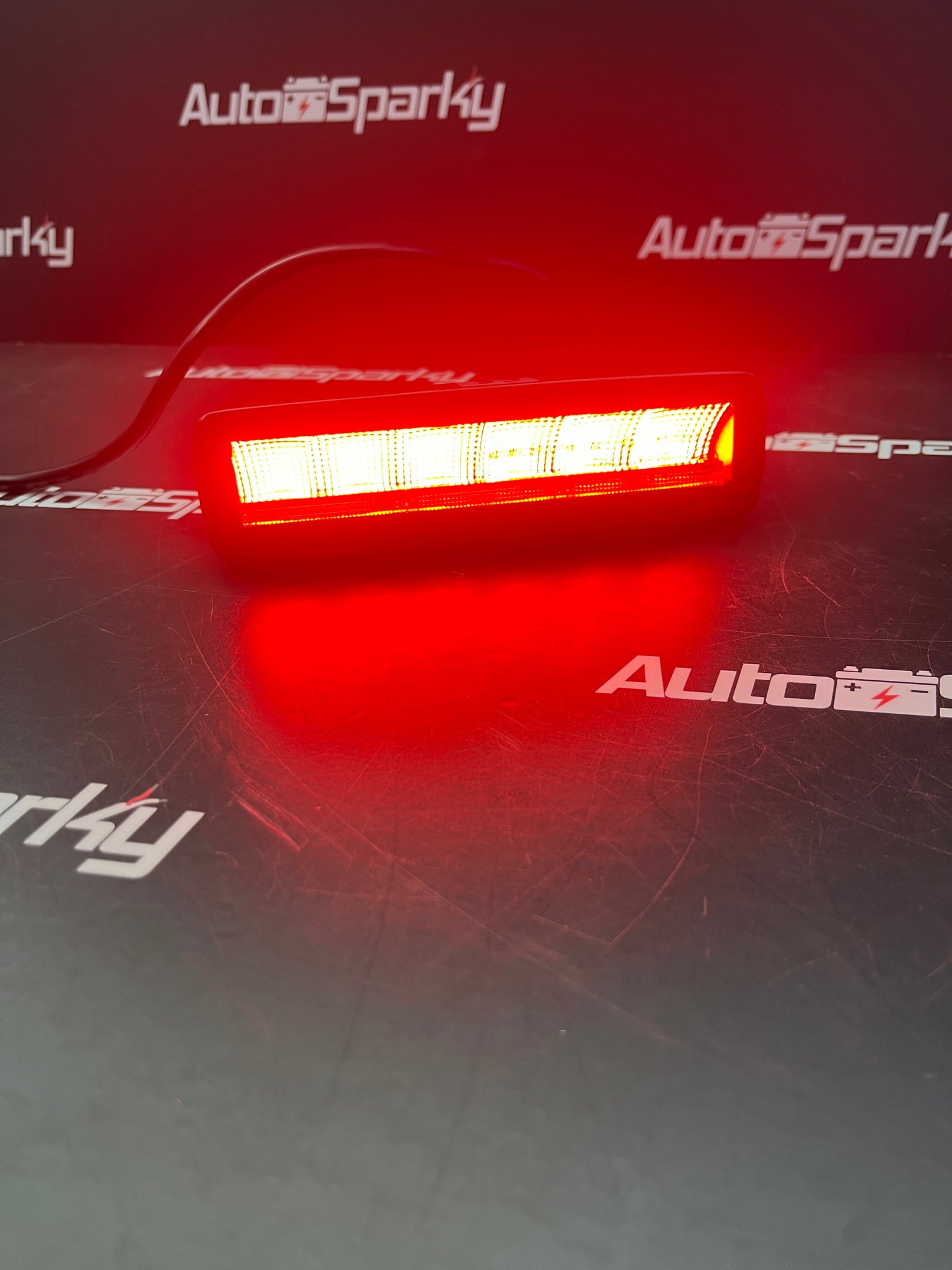

Red: Red brake light

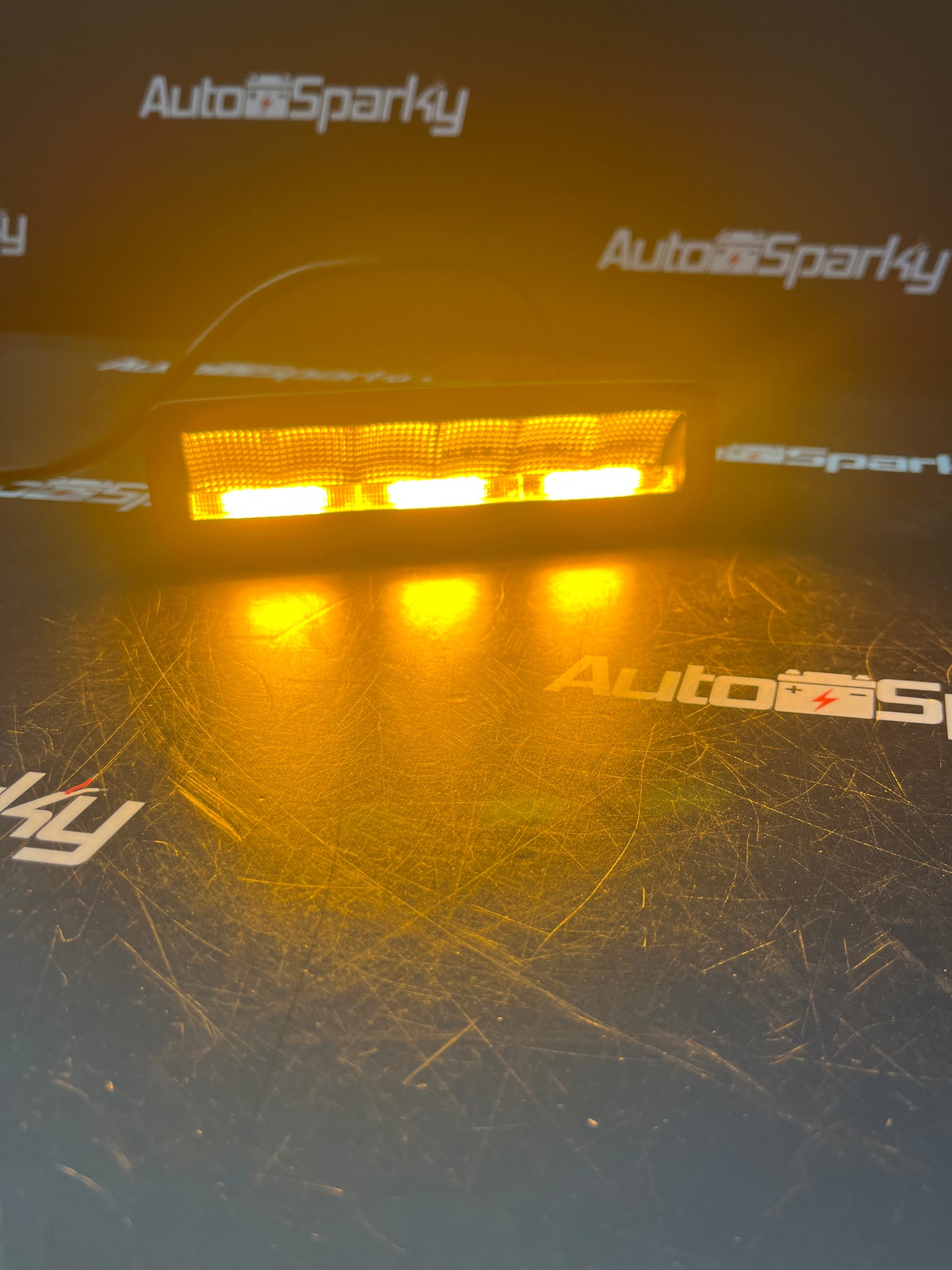

Yellow: Orange blinkers
Green: Red parking light
Black: Earth
Light sequence: Reverse light -> Brake light -> Parking light. That is, if the parking and brake lights are on, and the reversing light is on, the work lighting is switched on in reversing light mode.
