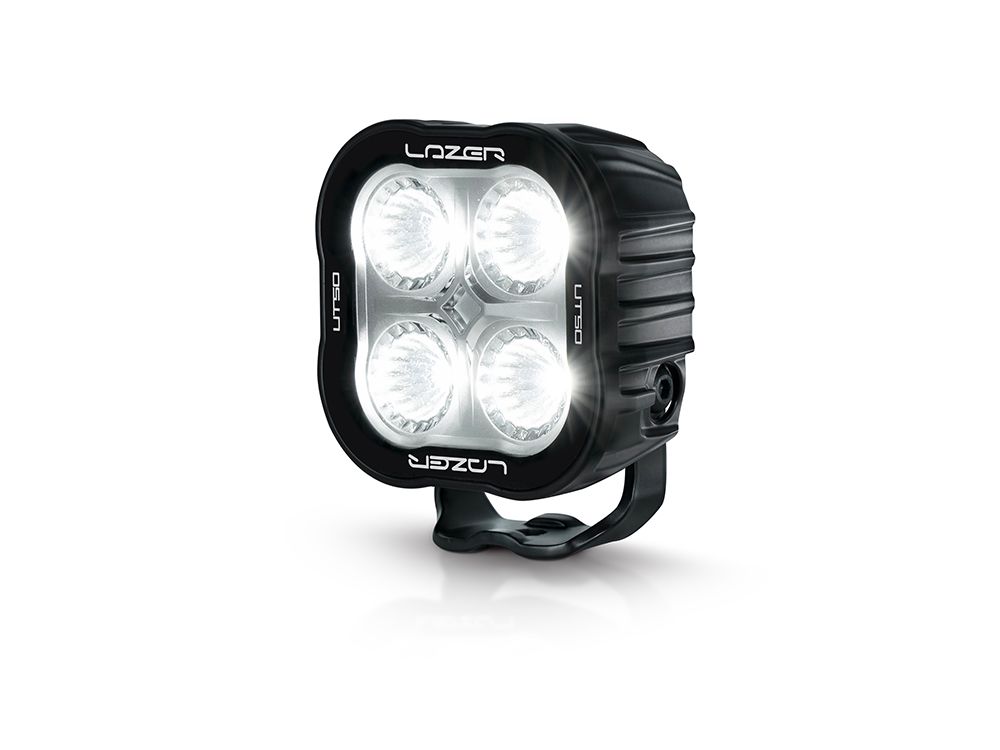

Lazerlamps UTILITY-50 LED Work Light with Red Tail Light
Matching form and function, the Utility-50 is a medium duty LED work light packed with performance, style, robustness, and functionality. At its core, 4x high power, premium-bin 13W LEDs deliver high levels of illumination befitting a vast array of applications and vehicles and machine types. The carefully selected 5000K colour temperature helps define the light output which is both powerful, comfortable to use over prolonged periods, and proven to optimise sharpness and definition between shapes and colours thanks to its high CRI (colour rendering index).
The Utility-50 is able to deliver more than just a high-performance work light. A version of the Utility-50 is available with integrated red tail-light function. Approved to UNECE Reg 148-R1, the red tail-light is characterised by 4 outline markers in each corner of the lamp, creating a unique and stylish appearance, over and above its safety benefits.
With its front-on dimensions shared with the Utility-80 HD, 107mm (h) x 107mm (w), this gives an indication of the lamp’s lighting competency, while the reduced depth of the lamp facilitates installation. That reduction in overall size isn’t to the detriment of performance however with the lamp carefully designed and engineered in-house, in the UK, to optimise light output considering thermal conductivity, crucial to preserving the lamps longevity and trouble-free use over many years. The strength and reliability of the Utility-50 is furthered by additional design features and build quality an upshot of our UK production, including: unbreakable polycarbonate lens with hardcoat, EMC protection - CISPR:25 (Class 3 or 5 available), automotive grade corrosion resistance a result of our in-house pre-treatment and powder coat facility, and IP68 and IP69K approval. All this backed up by our comprehensive 5-year warranty (2 years for non-automotive / industrial applications).

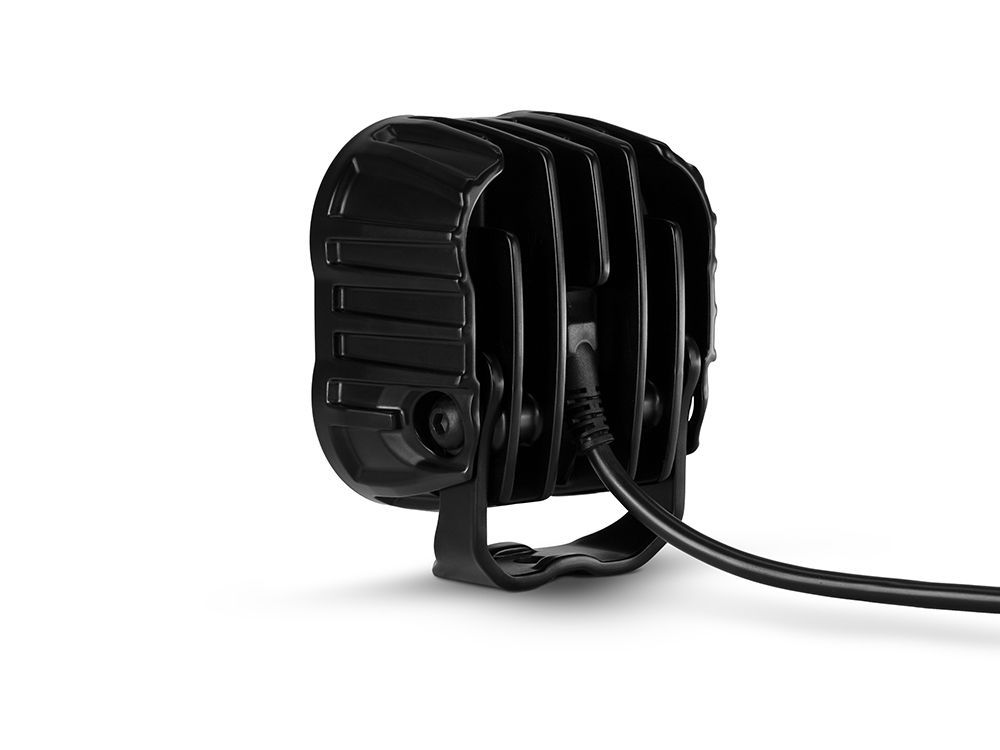

Depending on the model selected the Utility-50 comes supplied with male/female Deutsch connectors. The Utility-50 also comes supplied with a satin black painted stainless-steel mounting system, with either loose M10 bolts and fasteners, or fixed M10 bolt and fasteners, the latter providing for simplified installation in some instances.
5000k colour temperature
CAE optimised cooling system with Electronic Thermal Management
Vacuum-metallised optics for superior light utilisation
Supplied with versatile stainless steel mounting bracket and fasteners
Fixed bolt ‘fast-mount’ solution available
‘Unbreakable’ polycarbonate lens with hardcoat
Automotive grade corrosion resistance
EMC protected- CISPR:25 (Class 3 or Class 5)
IP68 / IP69k approved
Over voltage protected
Reverse polarity protected
Includes male/female Deutsch connectors
Comprehensive range of lens covers available
5year warranty (2year for non-automotive / industrial applications)
Made in the UK
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 0.65 kg
HIGH BEAM FUNCTION
Total Luminous Flux 5,000 Lm
Effective Lumens † 4,380 Lm
Colour Temperature 5000K
Power Consumption 50 Watts
Peak Current Draw 7.25 Amps
Current Draw (14.4V) 3.6 Amps
Connector 2-Pin/4-Pin Deutsch DT (+28cm Cable)
DIMENSIONS
Width 104 mm
Depth 58 mm
Height 104 mm
CERTIFICATION
IP Rating # IP68
Red Tail Light ECE R148 (R1)
Beacon Function ECE R65 (XA1)
EMC Certification ECE R10
EMC Protection CISPR-25 (Class 3/5)
Salt Spray Test ISO 9227
Dump Load Protection ISO 7637-2
OPERATING CONDITIONS
Operating Temperature -40oC … +90oC
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 80° / 80°
1 Lux 71m
5 Lux 32m
20 Lux 16m
50 Lux * 10m
