Epix5+ Mini LED Work Lightbar with Strobe - Amber or Red Position Light - LEDSON
✓ Incredibly wide 120 degrees light spread
✓ Choosable red or yellow-orange position light
✓ 10 strobe patterns, one R65-approved
The Epix+ series stands out from the crowd with a uniquely designed, sporty aesthetic, developed with today's modern vehicles in mind. EPIX5+ Work strobe is a work bar with approved R65 strobe lights that ensure your visibility. Choose between red or yellow-orange position light. Approved as reverse light and tail light (ECE R23, R148).
EPIX5+ Work Strobe is the work light bar that offers a modern look and has the performance to meet all conditions. With its 30W, this bar provides a work light with a range of 59m at 1 lux and a wide 120° wide light pattern, giving you maximum light coverage over a large area. With 1,700 actual lumens and a color temperature of 5000K, it provides strong and natural illumination that facilitates work in all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.
Position Lights
The bar features Epix series specially designed reflectors. The color of the position lights is also selectable between yellow/orange and red, which is also approved for road use.
Strobe Lights
The Epix5+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved. By easily connecting two units together, you can achieve both synchronous and asynchronous flash patterns between them. Use your Epix5+ Work Strobe LED light bar as a work light or reverse light; the strobe turns off when activated and then resumes your previously selected flashing pattern immediately when you turn off the work light again.
What more is needed?
DT-relay: We strongly recommend using our cable harness with 1 x 6-pin DT (part no. 7801006). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars
If you want to reduce the energy consumption of your Epix Work LED-bar, you can easily install our E-screw (part no. 334915020). By mounting this screw on the back of the LED-bar, it enters eco-mode, reducing the brightness and energy consumption.
Features and technical data:
ECE approved as tail light and reverse light with approved strobe light
E-marked ECE R148 (R1, SM1), R65, R23 and R10 (EMC rated)
Position lights, integrated in the reflector
Selectable position light in red or yellow/orange
120° wide light pattern
Range: 59 m (1 lux)
2,450 lumens (theoretical), 1,700 lumens (actual)
Color temperature 5000K (Neutral White)
30 W (8 x 15 W LEDs)
Voltage: 9-36V
IP69K (water/dustproof)
Aluminum housing and polycarbonate lens
Side reflective optics
Pressure equalization membrane
Electronic heat management
DT connector (supplied)
1,8A at 12V and 0,9A at 24V
Supplied:

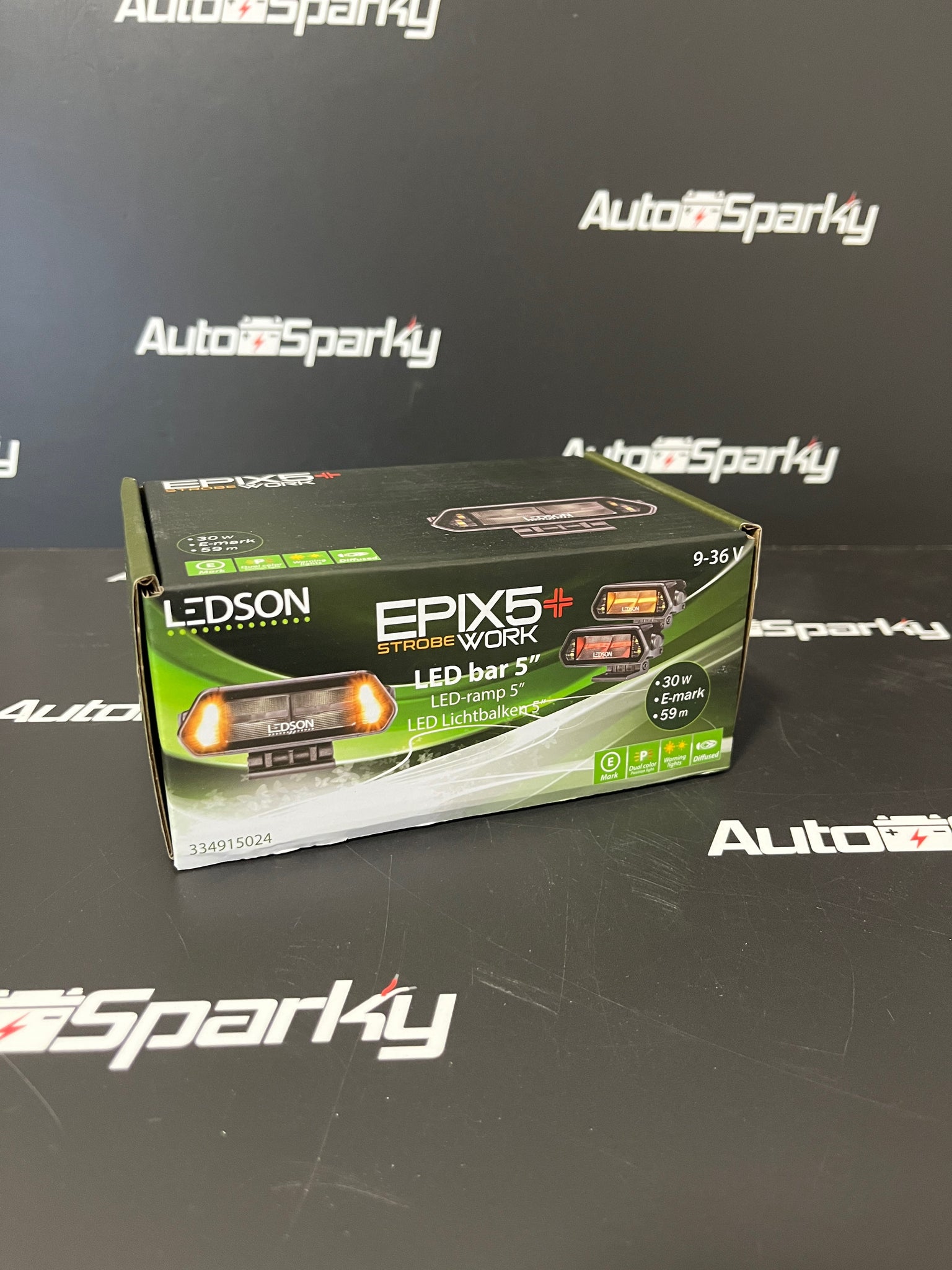

Epix5+ Work Strobe LED bar
Bolts and screws to attach the bar to appropriate surface
Smart mounting details
DT cable 6-pin
Dimensions (excl mounting):
Width: 128 mm
Height: 43 mm
Depth: 61 mm
Flash patterns:
Single flash synchronization: 2.2HZ
Single flash asynchronous: 2.2HZ (when using 2 LED bars)
Triple flash synchronization: 1.1HZ
Triple flash asynchronous: 1.1HZ (when using 2 LED bars)
Quadruple flash synchronization: 1.25HZ
Quadruple flash asynchronous: 1.25HZ (when using 2 LED bars)
Combination of one long and five short synchronization: 0.83HZ
Combination of one long and five short asynchronous: 0.83HZ (when using 2 LED bars)
Burst flash synchronization: 10HZ
Burst flash asynchronous: 10HZ (when using 2 LED bars)
NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
