Epix30+ LED Work Lightbar with Strobe - 30" 270Watt 23'200Lumen Powerboost Wide Beam - Amber or Red DRL - LEDSON

EPIX30+ Work Strobe is the work light bar that offers a modern look and has the performance to meet all conditions. With its impressive 270W, this bar provides a work light with a range of 167m at 1 lux and a wide 120° wide light pattern, giving you maximum light coverage over a large area. With 16,300 actual lumens and a color temperature of 5000K, it provides strong and natural illumination that facilitates work in all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.

Position Lights

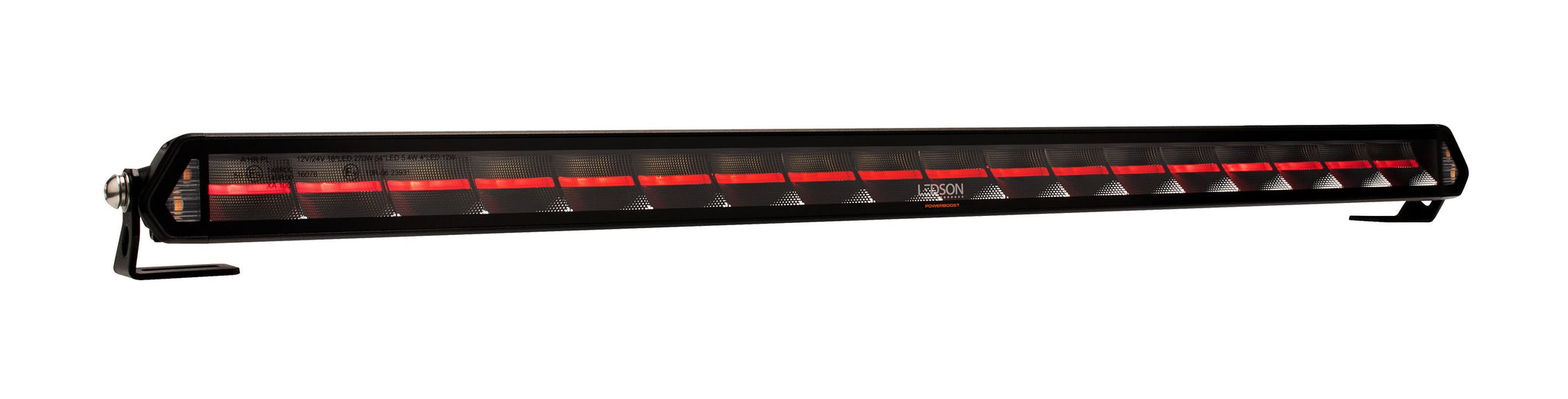

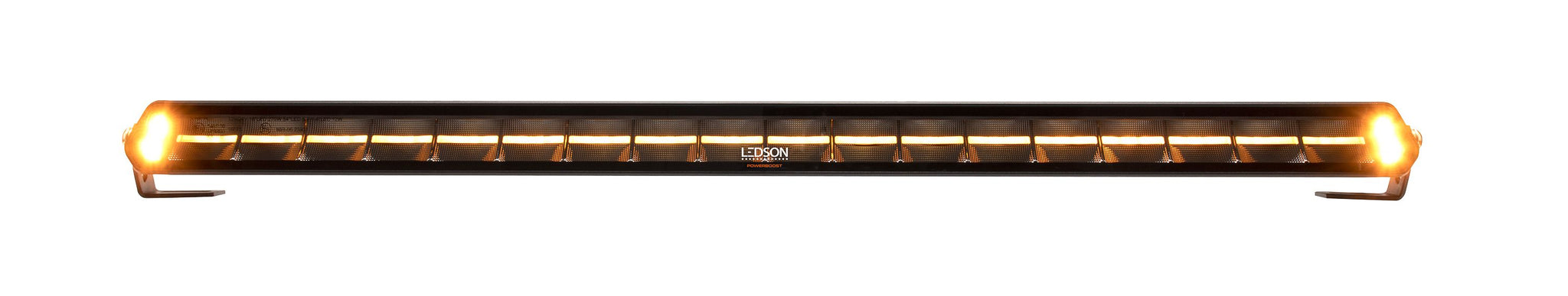

The bar features Epix series specially designed reflectors with dynamic ignition of the position lights. The color of the position lights is also selectable between yellow/orange and red, which is also approved for road use.

Strobe Lights

The Epix30+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved.


Features and technical data:

Position light with unique dynamic ignition, integrated in the reflector
Selectable position light in red or yellow/orange
120° wide light pattern
Range: 167 m (1 lux)
23'200 lumens (theoretical), 16'300 lumens (actual)
Color temperature 5000K (white)
270 W (18 x 15 W LEDs)
Voltage: 9-36V
IP69K (water/dustproof)
Aluminum housing and polycarbonate lens
Side reflective optics
Pressure equalization membrane
Electronic heat management
DT connector (supplied)
16 A at 12V and 7,8 A at 24V
E-marked ECE R148 (R1, SM1), R65 och R10 (EMC rated)


Supplied:

Epix30+ Work Strobe LED bar
Bolts and screws to attach the bar to appropriate surface
Smart mounting details


Dimensions & weight (excl mounting):

Width: 740 mm
Height: 43 mm
Depth: 61 mm
Weight: 2 kg


Flash patterns:

Single flash synchronization: 2.2HZ
Single flash asynchronous: 2.2HZ
Triple flash synchronization: 1.1HZ
Triple flash asynchronous: 1.1HZ
Quadruple flash synchronization: 1.25HZ
Quadruple flash asynchronous: 1.25HZ
Combination of one long and five short synchronization: 0.83HZ
Combination of one long and five short asynchronous: 0.83HZ
Burst flash synchronization: 10HZ
Burst flash asynchronous: 10HZ


NOTE: The DT connector must not be cut as it entails an increased risk of moisture damage and the warranty then ceases to apply.
