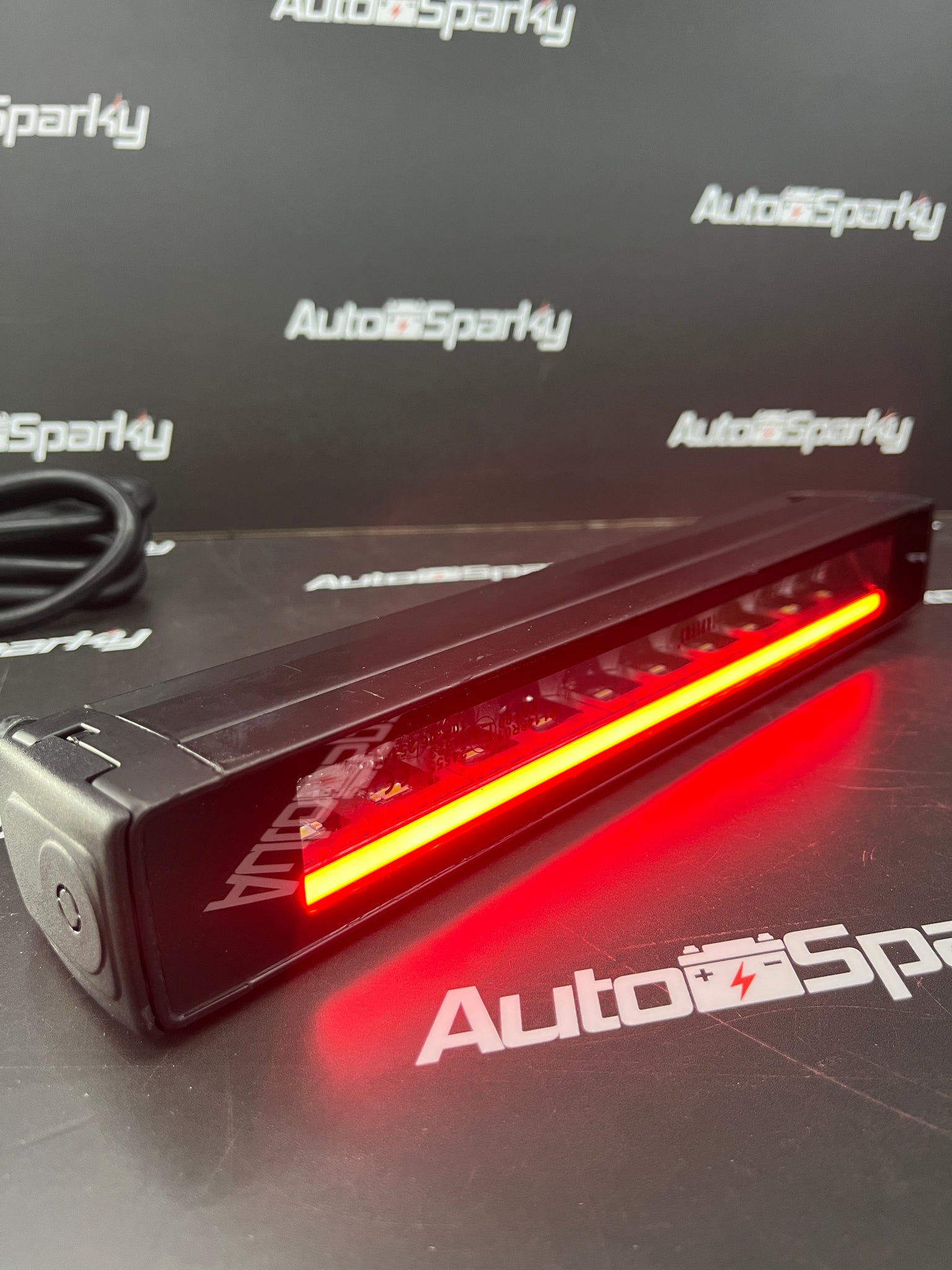

12" LED Stratos 5 Function Lightbar - Red Or Amber DRL, R65 Warning Light, Amber Strobe & 12,300Lumen Main Beam
This LED bar from TRALERT®'s LD9 series is designed for multifunctional use on commercial vehicles and special vehicles. With a combined light colour of red and amber , it is suitable as marker lights and warning lights. The LED bar features rear marker lights and an integrated warning light function. Certificates ECE-R10, ECE-R148, ECE-R149 and ECE-R65 confirm its suitability for public road use, if applied correctly.
The aluminium housing offers solid protection under harsh conditions. Thanks to protection class IP69K, the unit is resistant to dust, water and high-pressure cleaning. The LED bar operates on 10-30 V, delivers 12,300 lm light output and is connected via an open wire end with 300 cm cable. The model has dimensions of 326x45x75 mm and comes with brackets for side and rear mounting, allowing flexible installation.
Plus points of this series:
- Built-in R65 warning lights
- Choice of amber or amber position lights
- Two mounting brackets included for side and rear use
LD9-1033RA
General
Voltage
10-30v
Pattern type
Flashing
Certification
CE , ECE-R10 , ECE-R148 , ECE-R149 , ECE-R65
Warranties
3 years
Brand
TRALERT®
Suitable for:
4×4 , Commercial vehicles , Excavator , Tractor , Semi-trailer , Trucks
Dimensions
Dimensions
301 x 45 x 56mm
Shape
Lightbar
Centre distance
275 mm (side mounting)
Light image
Light colour
Red, amber
Warning light colour
Amber
Warning light function
Amber
Lumen
12,300 lumen
Flash patterns
1
Pattern type
Flashing
Light range
40 Lux @ 50m / 1 Lux @ 385m
Number of LEDs
10
Rear marker lights
Yes
Position lights
Yes
White position lights
No
Amber position lights
Yes
Materials
Housing material
Aluminium
Technical
Connectors
Open wire end
Cable length
300cm cable
Wattage
14.5W R65 warning lights , 85W Highbeam
Lumen
12,300 lumen
Protection class
IP69K
Power consumption
High beam：12v: 7.08A / 24V: 3.54A
Mounting bracket
Side & rear mounting
Warning light functions
Yes
Driving lights functions
Amber position lights. , R65 Warning lights , Red position lights
