Strands D-Line Number Plate LED Light Bar 9600Lumen with Amber or White DRL

Strands D-Line License Plate LED Light Bar with 9600 Actual Lumens

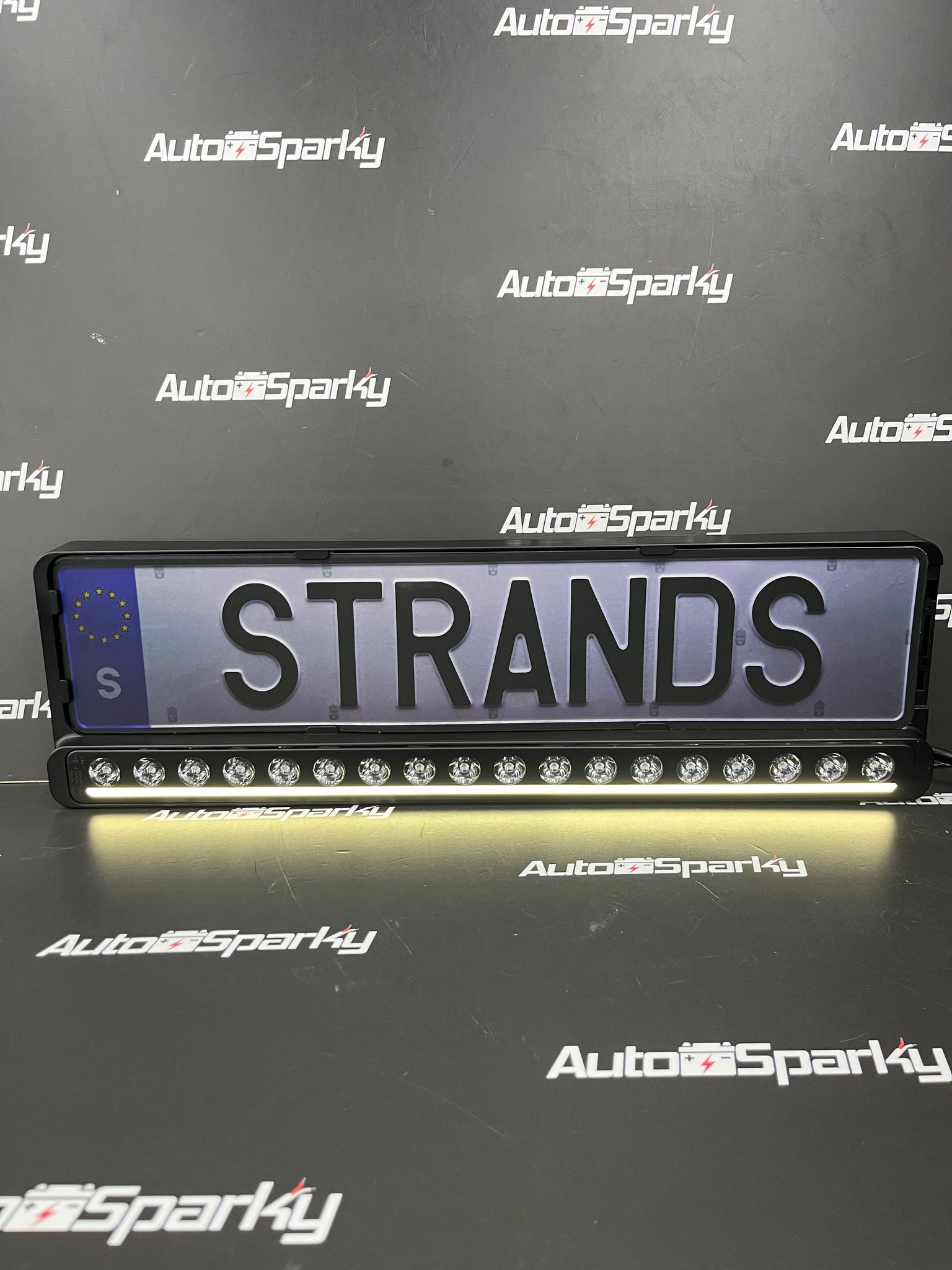

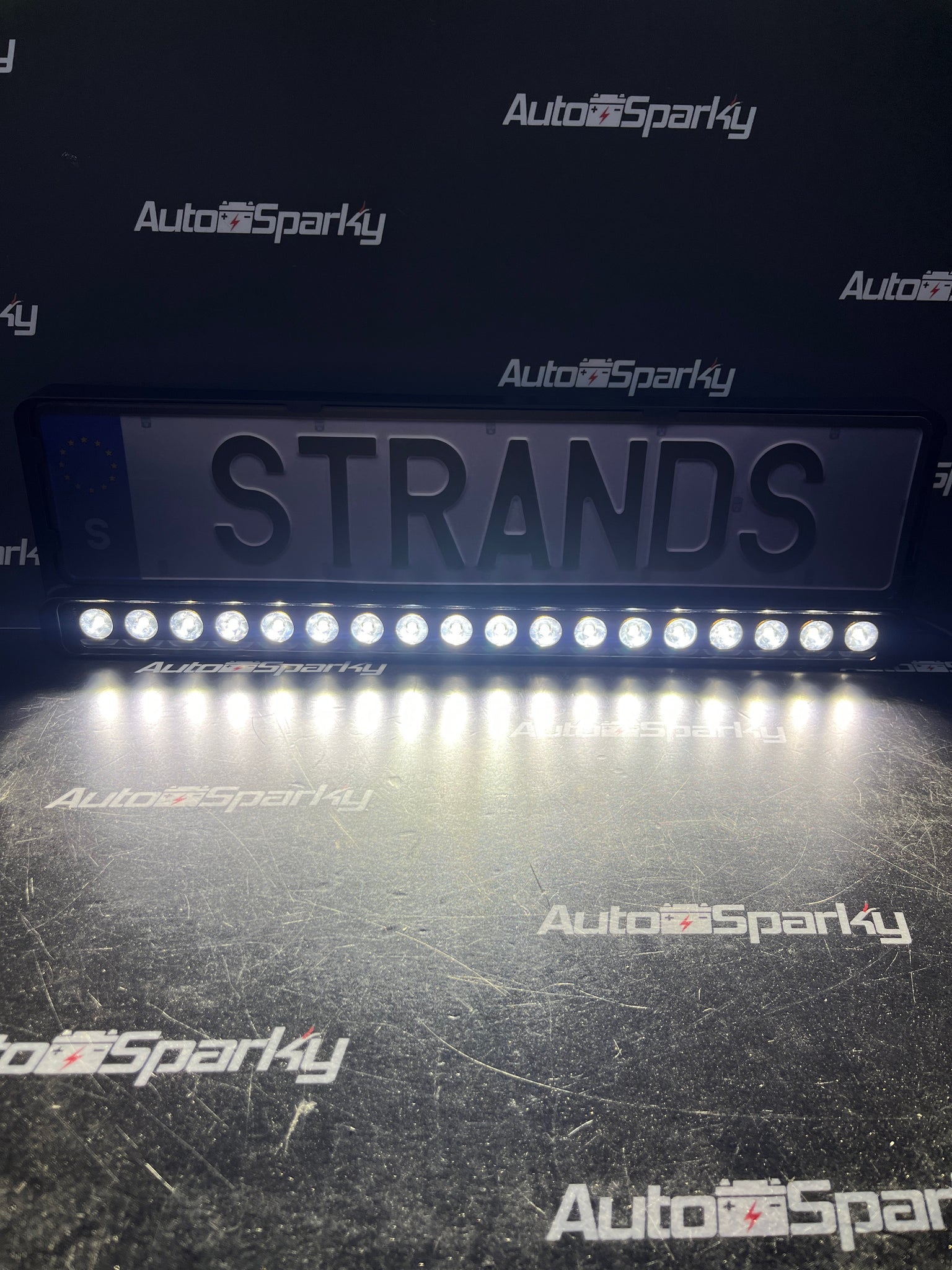

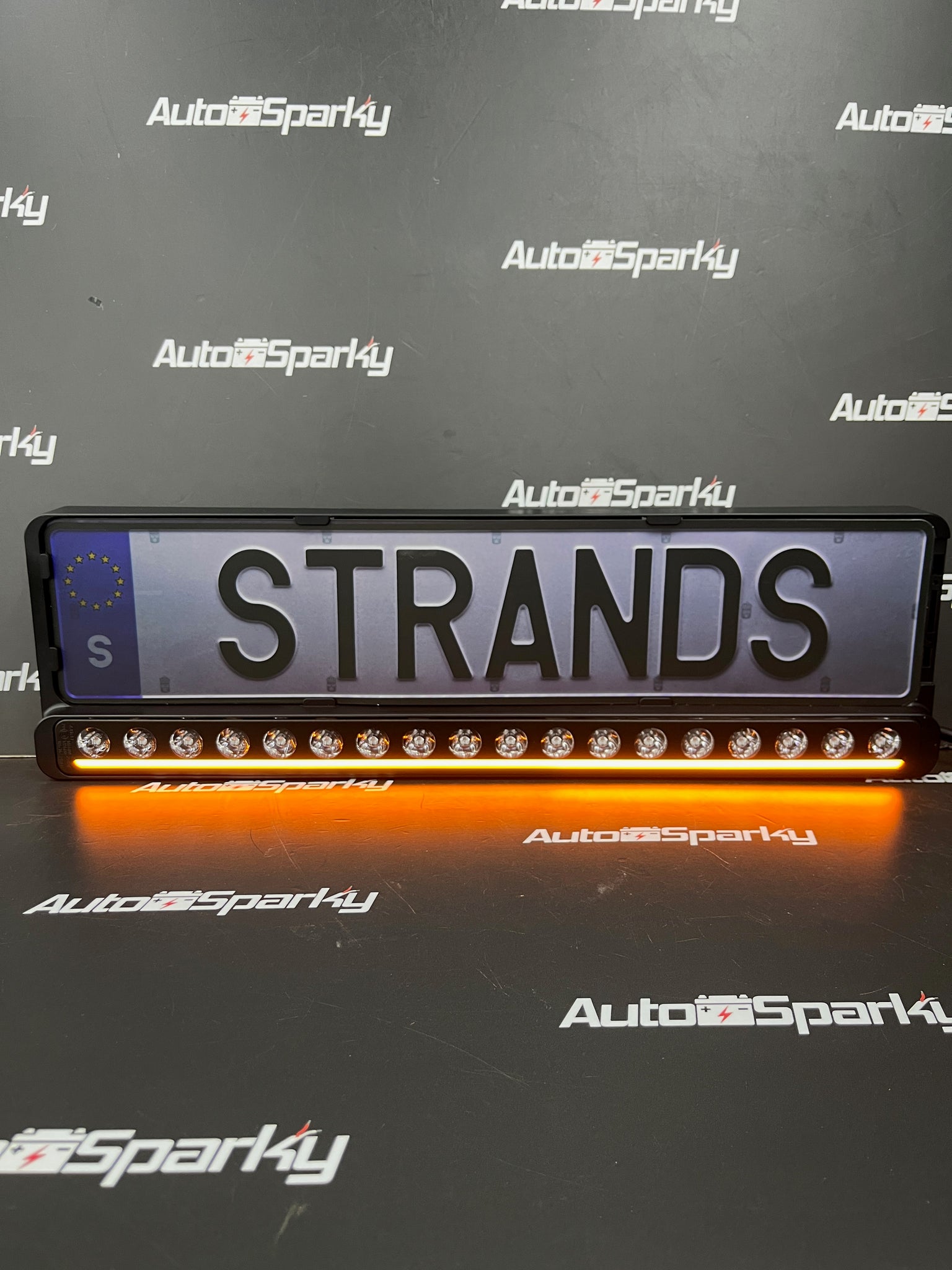

The Nuuk D-Line 20” LED bar has an optimized beam with a range of more than 492 meters and 9600 actual lumens in Xperience mode (XP). The position light strip can be set to white or amber.

What is Xperience Mode?
Lights with Xperience Mode built in have two modes of operation:

E-approved mode – Road-legal, high-performance lighting
The E-mode is E-approved R148/149 with reference number 20. Many drivers prefer this mode when driving in rainy or snowy weather, as it reduces the glare from water particles.
XP Mode – Extreme brightness for off-road adventures
With Xperience mode, you’ll discover a powerful output ideal for the darkest nights.
The driver can easily switch between these modes by flashing the headlights three times.

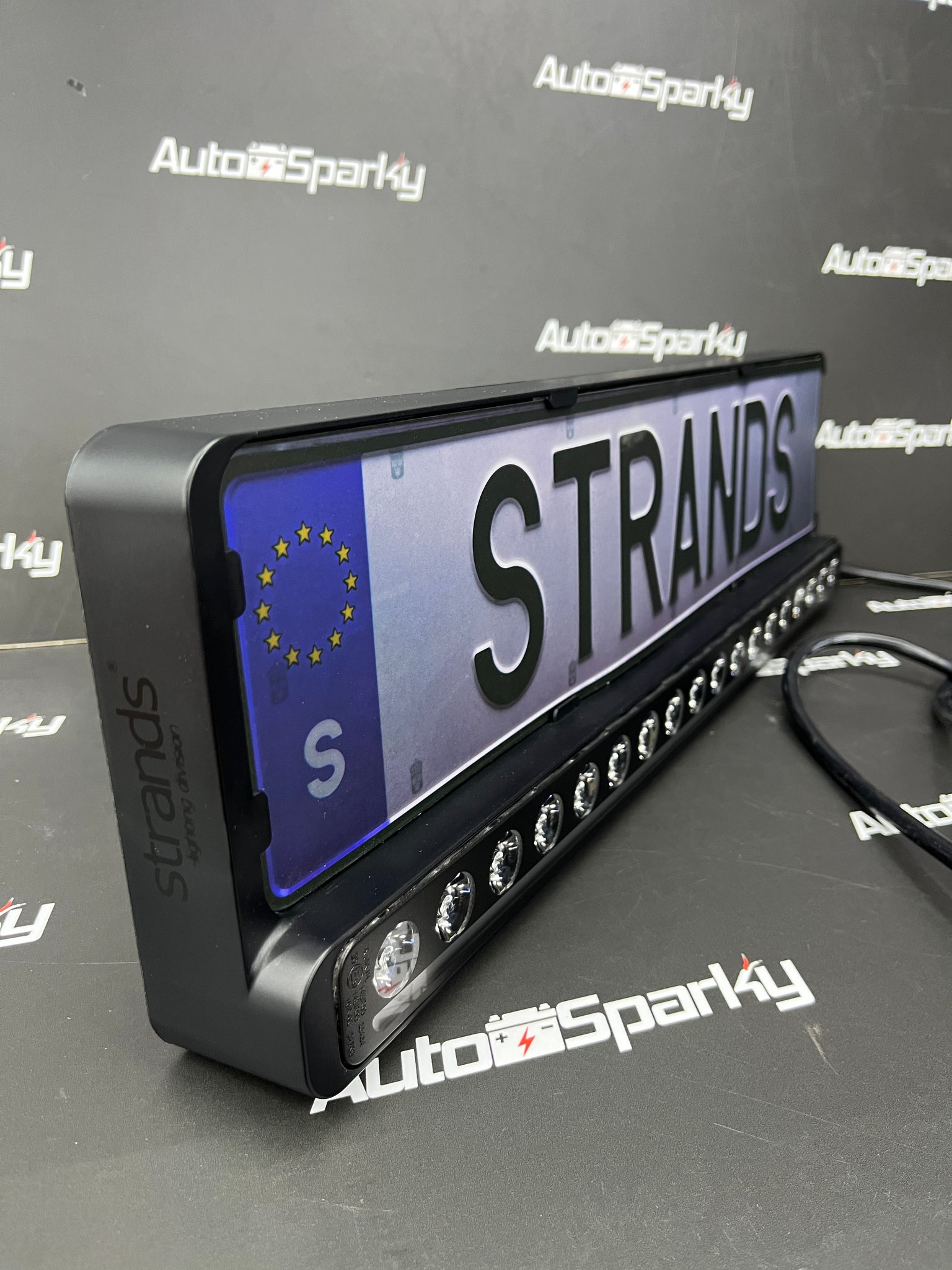

It’s incredibly lightweight and slim, only 3,3 cm deep and 4,5 cm high, including the bracket. D-Line is an ideal addition to your built-in high beam. A standard high beam is usually quite broad, illuminating the sides of the road. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience.

Easy installation

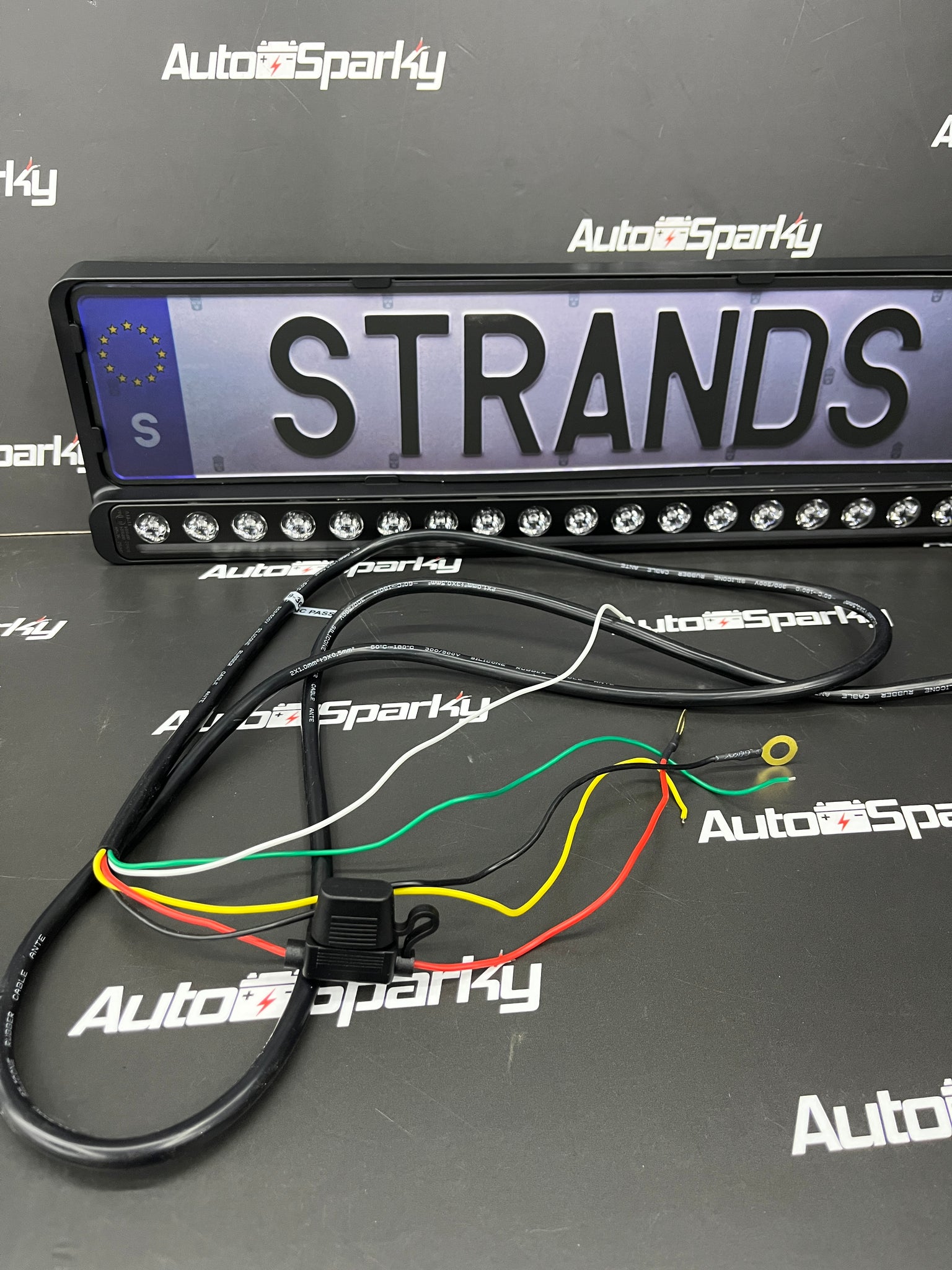

The Nuuk D-Line has a slim black housing and lens, underlined by the glow of the white and amber position light. It’s easy to use, lightweight, has a built-in relay, and everything you need for installation is included.

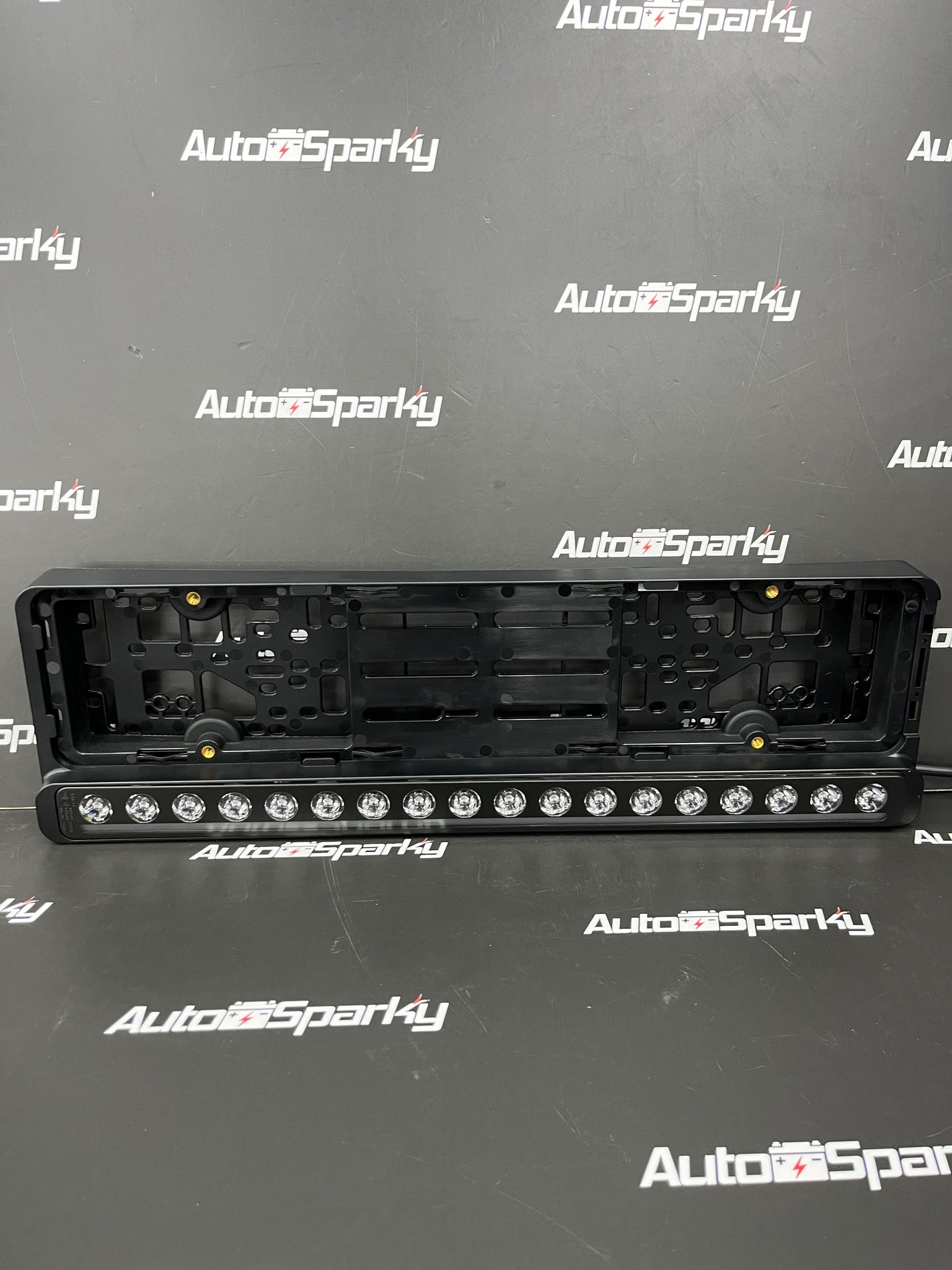

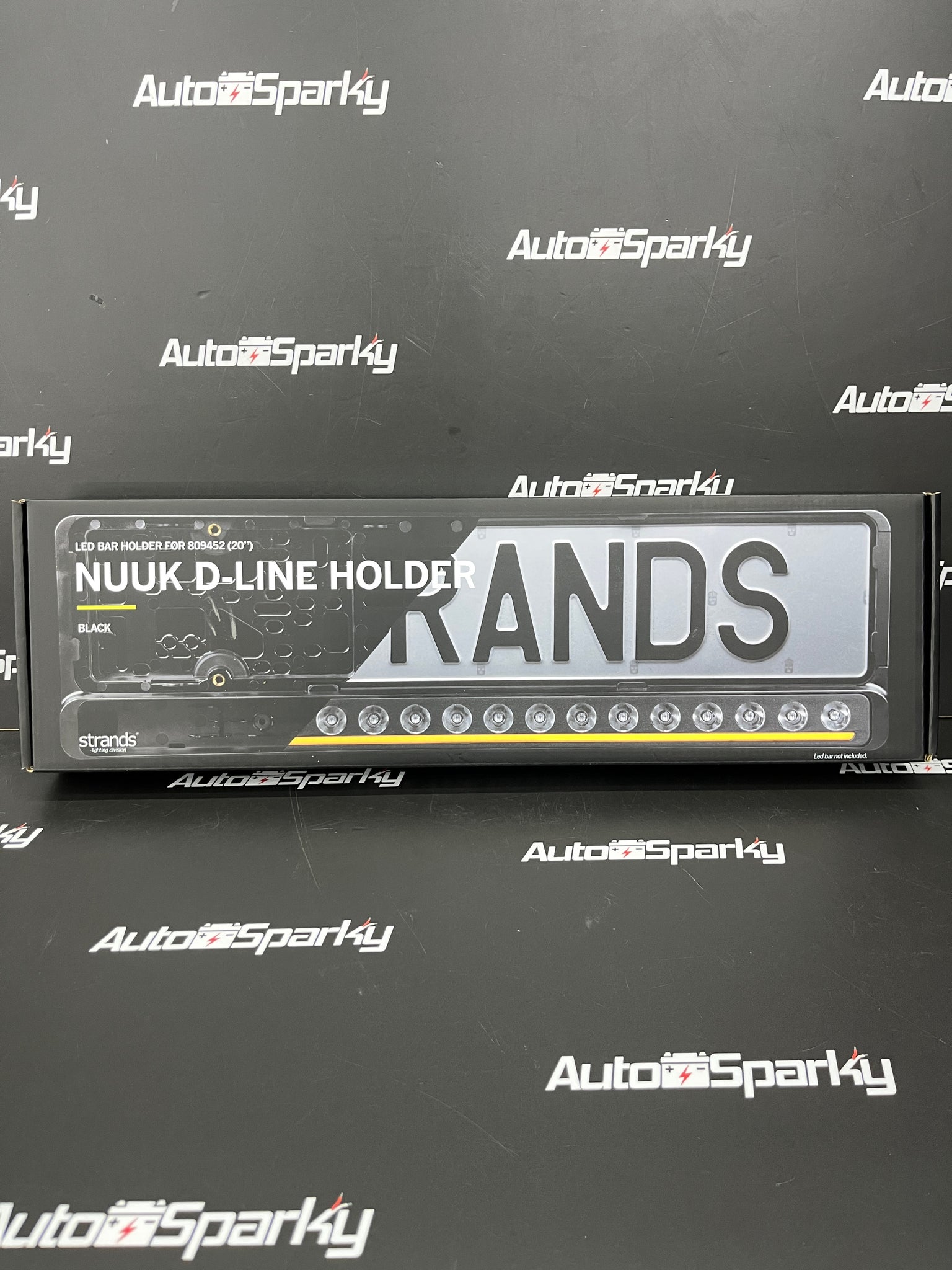

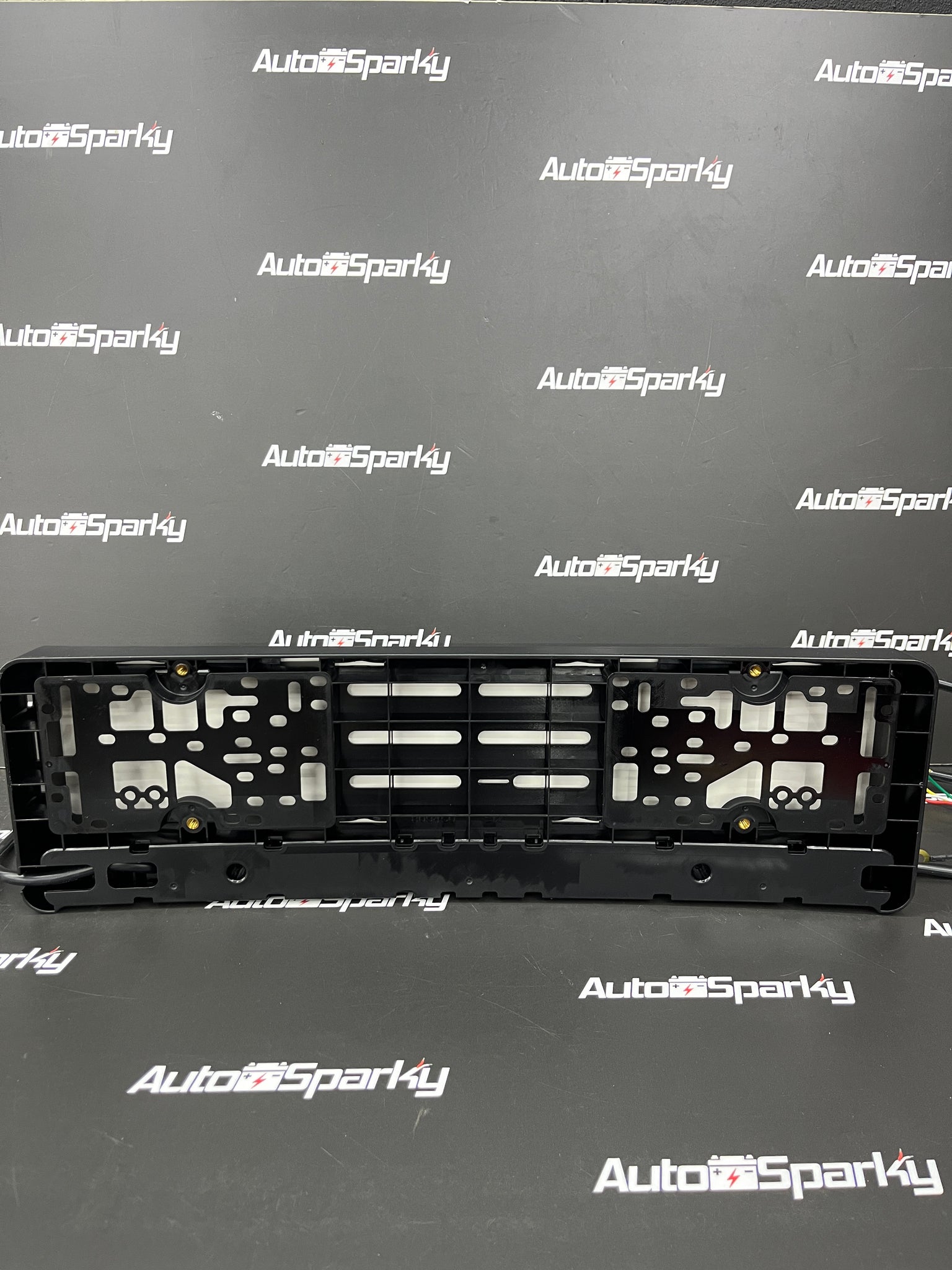

This kit includes the Nuuk D-Line 20” LED bar and the license plate bracket. It’s an easy and innovative way to install your LED bar. Fasten your LED bar into the bracket and replace your old license plate holder. The bracket has a slightly curved shape and follows the lines of your car. Thanks to the screw pattern you can attach it without unnecessary impact to your vehicle.

Like all Strands products, this kit comes with a 3 Year Warranty

Strands Nuuk D Line 20" Specifications:
Voltage: 9–36V DC
Theoretical Power: 124W
Power Consumption:
E-mode: 32W
Xperience mode: 124W
Functions: High beam, white & amber position light
Specific Power Use:
White position light: 8.8W
Amber position light: 9W
Theoretical Lumen Output: 11,000 lm
Actual Lumen Output:
E-mode: 3,300 lm
Xperience mode: 9,600 lm
1 Lux Range:
E-mode: 291 m
Xperience mode: 492 m
Colour Temperature: 5000K
Beam Pattern: Optimized beam
Beam Angle: 28.8°
Connection: Cable
Cable Length: 2500 mm
Housing Colour: Black
Lens Colour: Black
Material - Bracket: Stainless steel
Material - Housing/Chassis: Aluminium
Material - Lens: Polycarbonate
Dimensions:
Length: 513.5 mm
Depth: 32.8 mm
Height: 35.4 mm
Height incl. bracket: 44.5 mm
Weight: 1.2 kg
IP Rating: IP68 / IP69K
Operating Temperature: -40°C to +60°C
E-Approved: Yes
Regulations: ECE R148, R149
Reference Number: 20
EMC Certification: ECE R10

2 × M4 screws with washers (for mounting LED bar)
4 × M6 adjustable screws
8 × M6 mounting screws
1 × 5mm spacer
1 × 8mm spacer
1 × number plate buckle
1 × extra buckle
