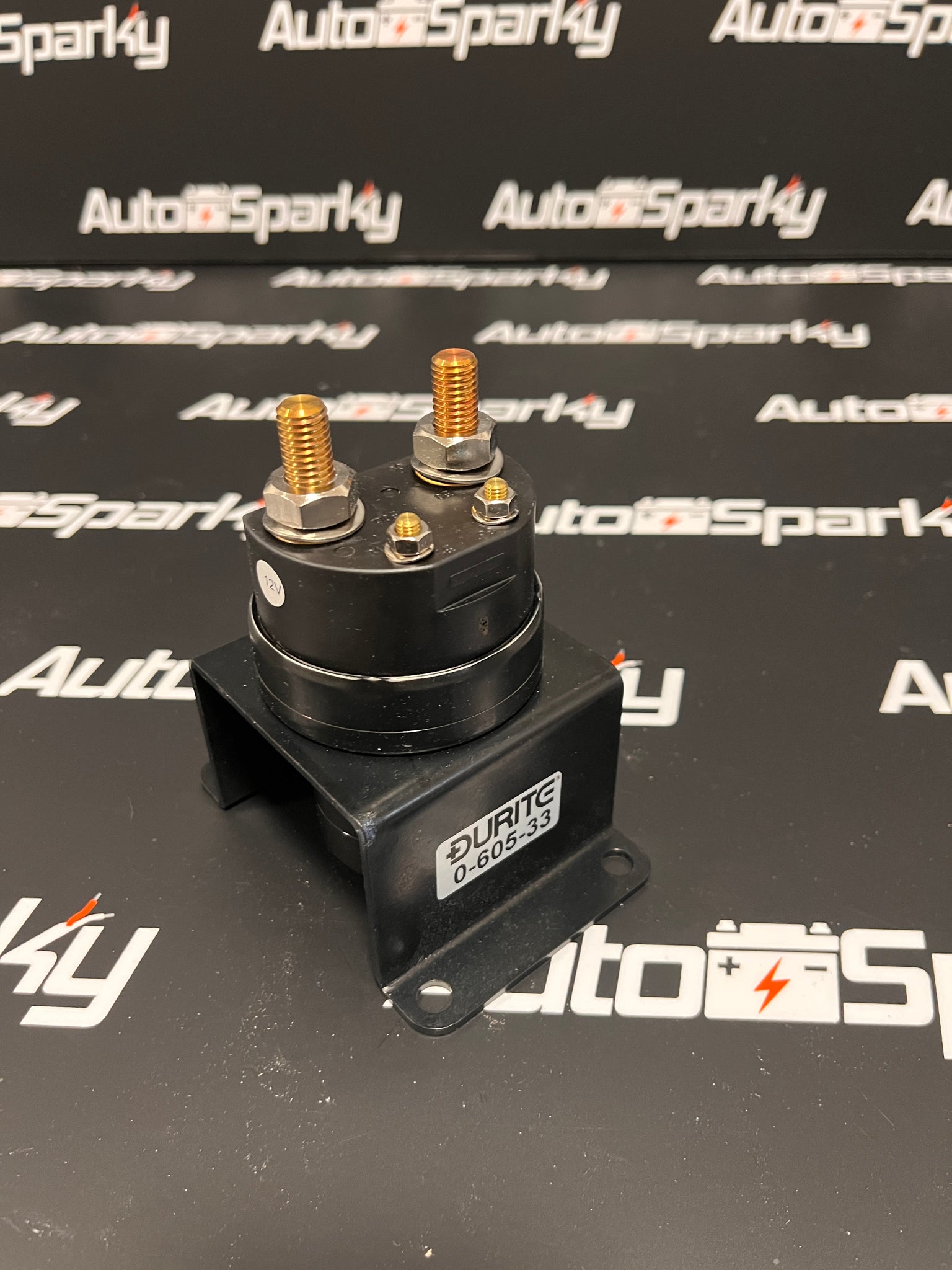

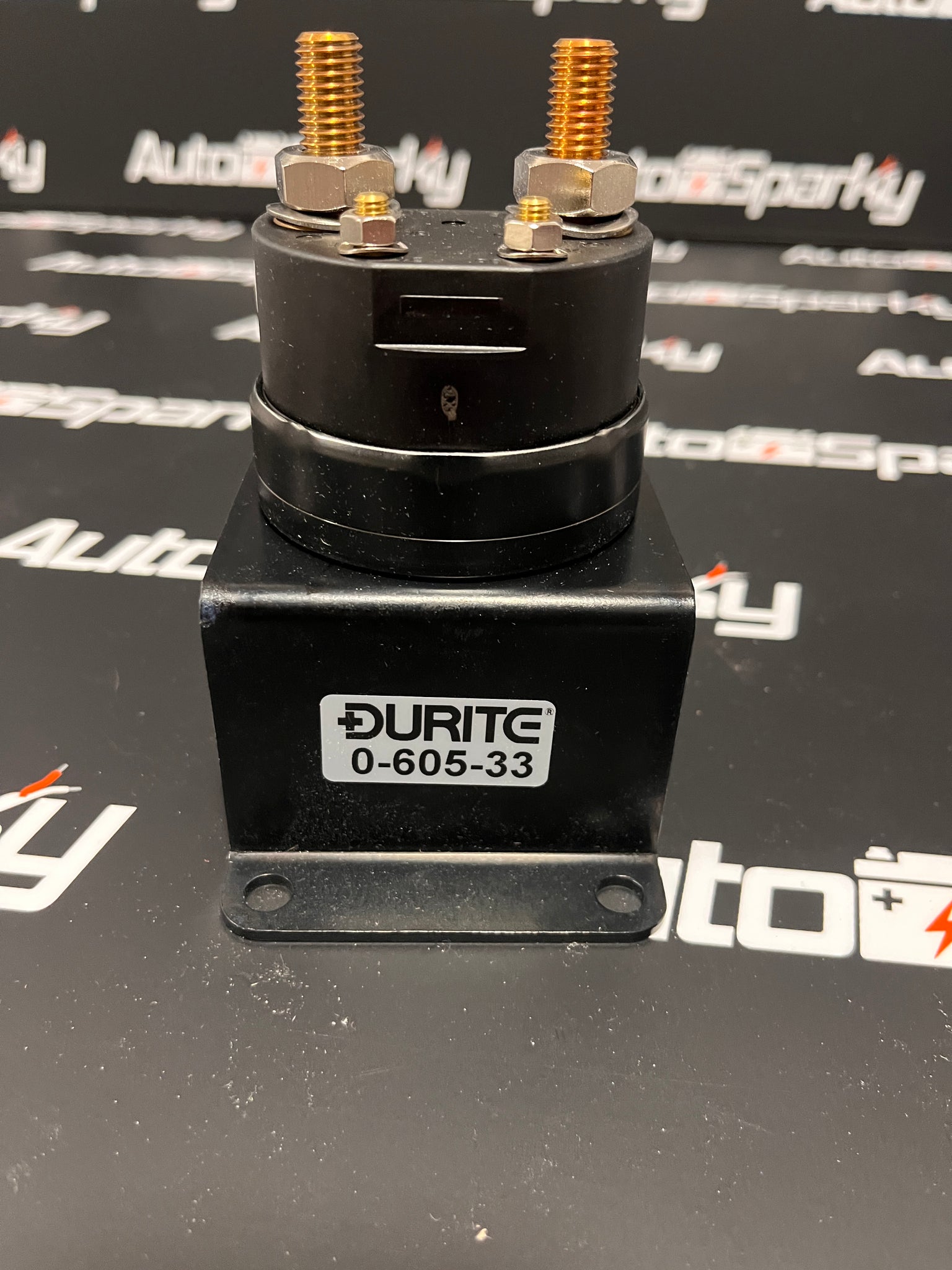

Remotely-Switched Single-Pole Battery Isolator - 300A 12V - Durite
Remotely-Switched Single-Pole Battery Isolator - 300A 12V - Durite
Remotely-Switched Single-Pole Battery Isolator - 300A 12V - Durite

Remotely-Switched Single-Pole Battery Isolator - 300A 12V - Durite

Tax included. Shipping calculated at checkout.

Part No. 0-605-33
Battery isolator, 12 volt, single pole remotely switched
electrically. Bosch ‘U’ type fixing bracket. Rated at 300
amps continuous, 600 amps for 20 seconds and 2400
amps for 1 second.
M10 and M5 studs.

Remotely switched electrically. Bosch ‘U’ type fixing bracket. Rated at 300 amps continuous, 600 amps for 20 seconds and 2400 amps for 1 seconds. M10 and M5 studs.

Specification
Type 12 volt dc battery isolator
Current max continuous 300 amp
Current intermitant 600 amp (20 sec), 2400 amp (1 sec)
Coil current 7 amp (20ms) operate, 0.3 amp to maintain
Tightening torque M10 nuts 14Nm
Tightening torque M5 nuts 4Nm
Housing and bracket Galvanised ZnFe 8-12 black passivated
Protection IP65
Operating Temperature -40˚C to +80˚C
Dimensions See diagram
Weight 1.2kg
Approvals CE
