Driving Light / Lightbar Wiring Kit - 12V HD DTP Plugs - Available in 1,2,3 or 4 Outputs - Purelux

€26,99
Unit price per

Tax included. Shipping calculated at checkout.

Purelux ProSerie relay wiring kit with DTP connectors, e.g. for installing Purelux additional lights. Contains everything you need to connect additional lights!

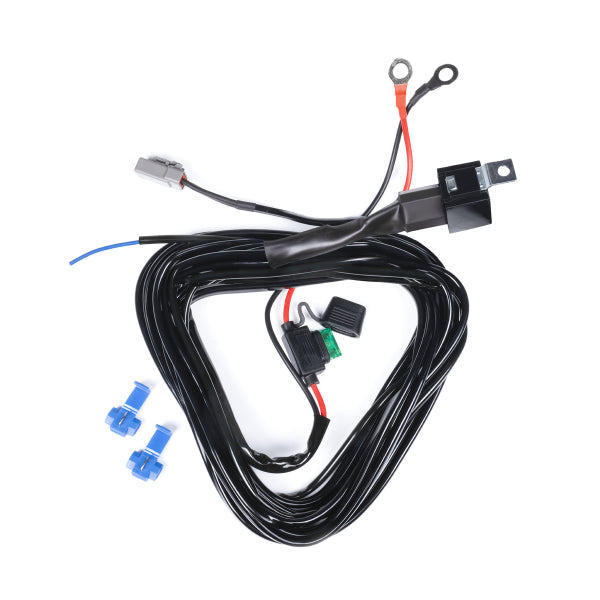

1x output: Max. current endurance 280W, Wire thickness (from battery to relay) 12AWG / 2.94 mm2, Wire thickness (from relay to light) 12AWG / 2.94 mm2, Fuse 30A, Relay 40A 12V

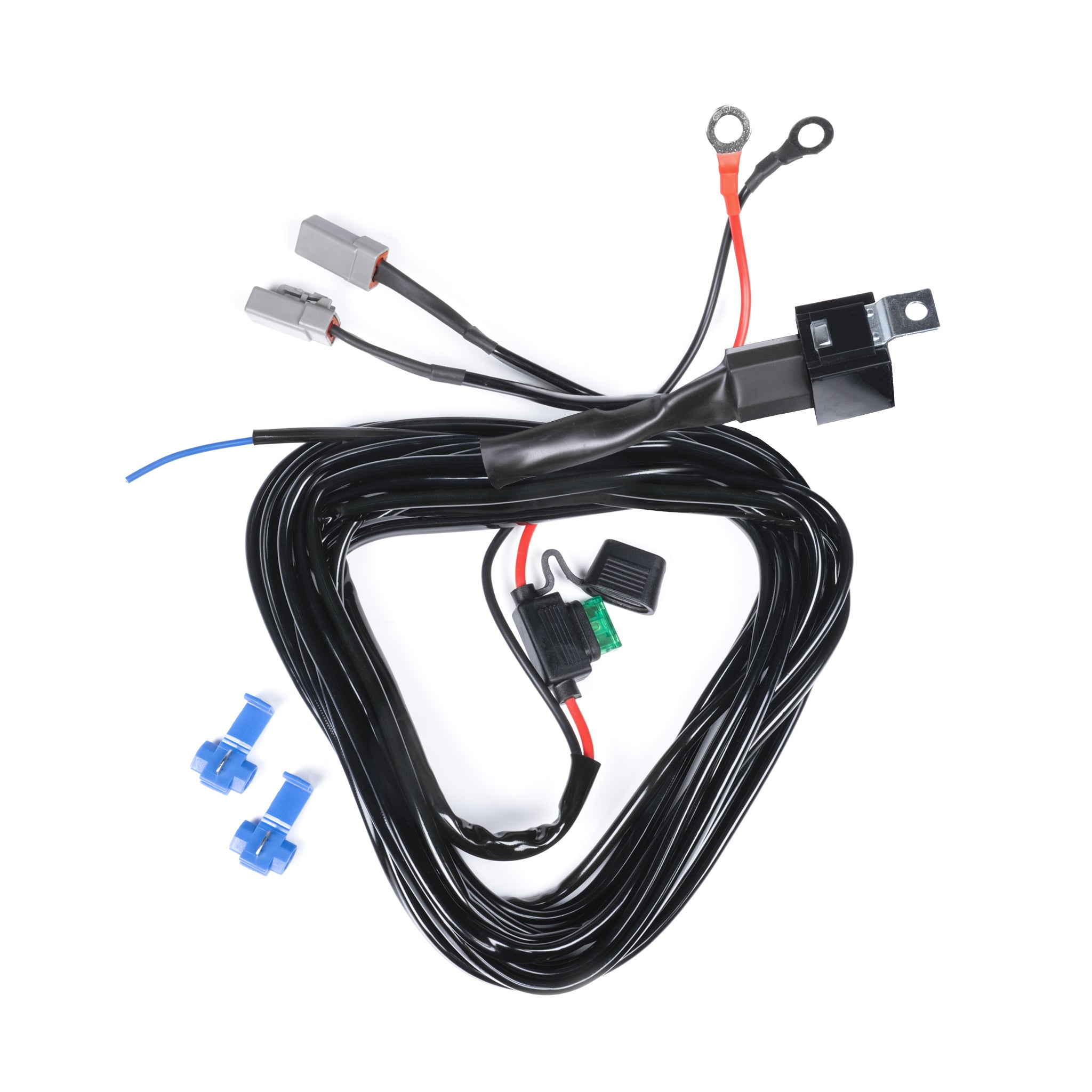

2x outputs: Max. current endurance 480W, Wire thickness (from battery to relay) 10AWG / 4.75mm2, Wire thickness (from relay to light) 14AWG / 1.86mm2, Fuse 40A, Relay 60A 12V

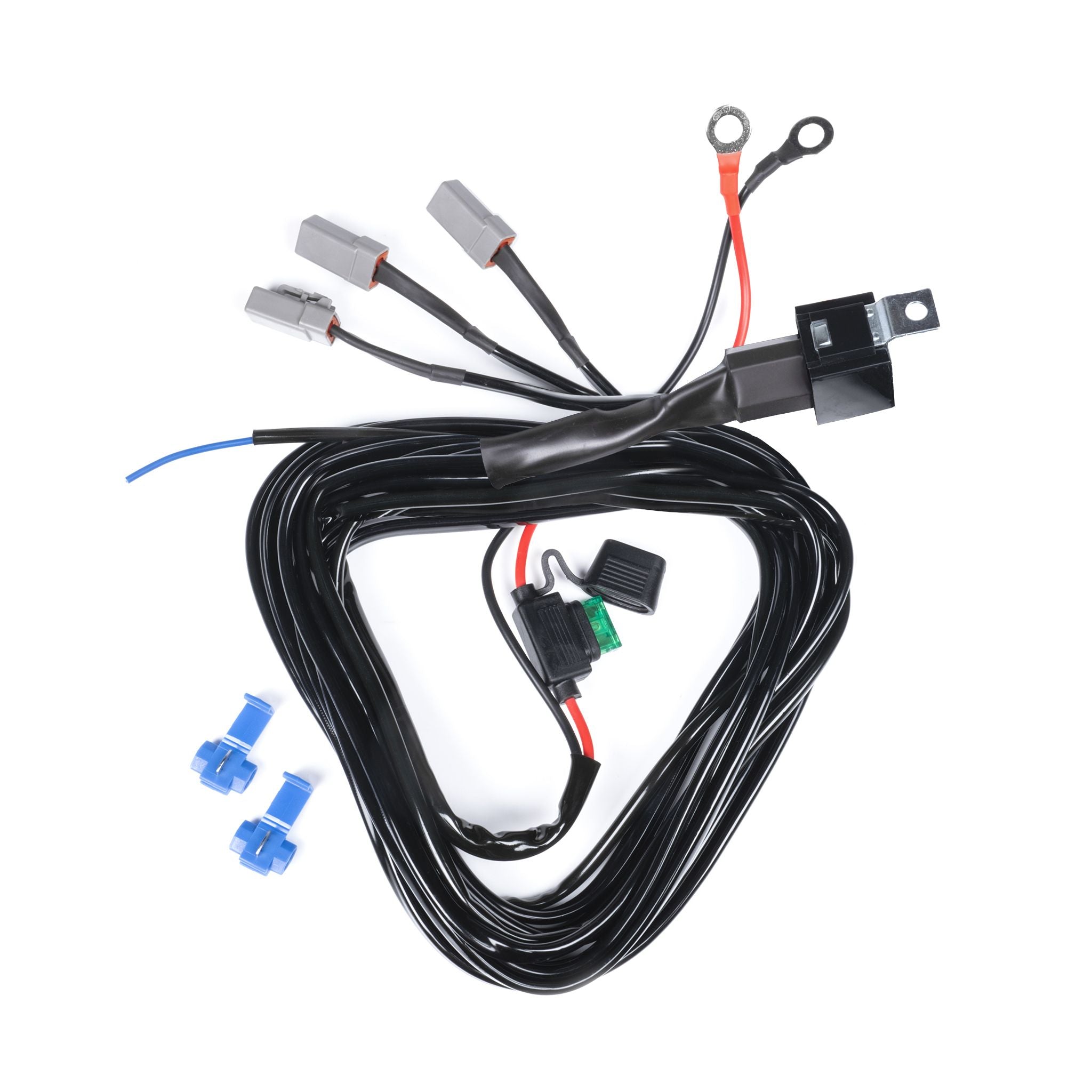

3x outputs: Max. current endurance 720W, Wire thickness (from battery to relay) 8AWG / 8.1mm2, Wire thickness (from relay to light) 12AWG / 2.94mm2, Fuse 60A, Relay 80A 12V

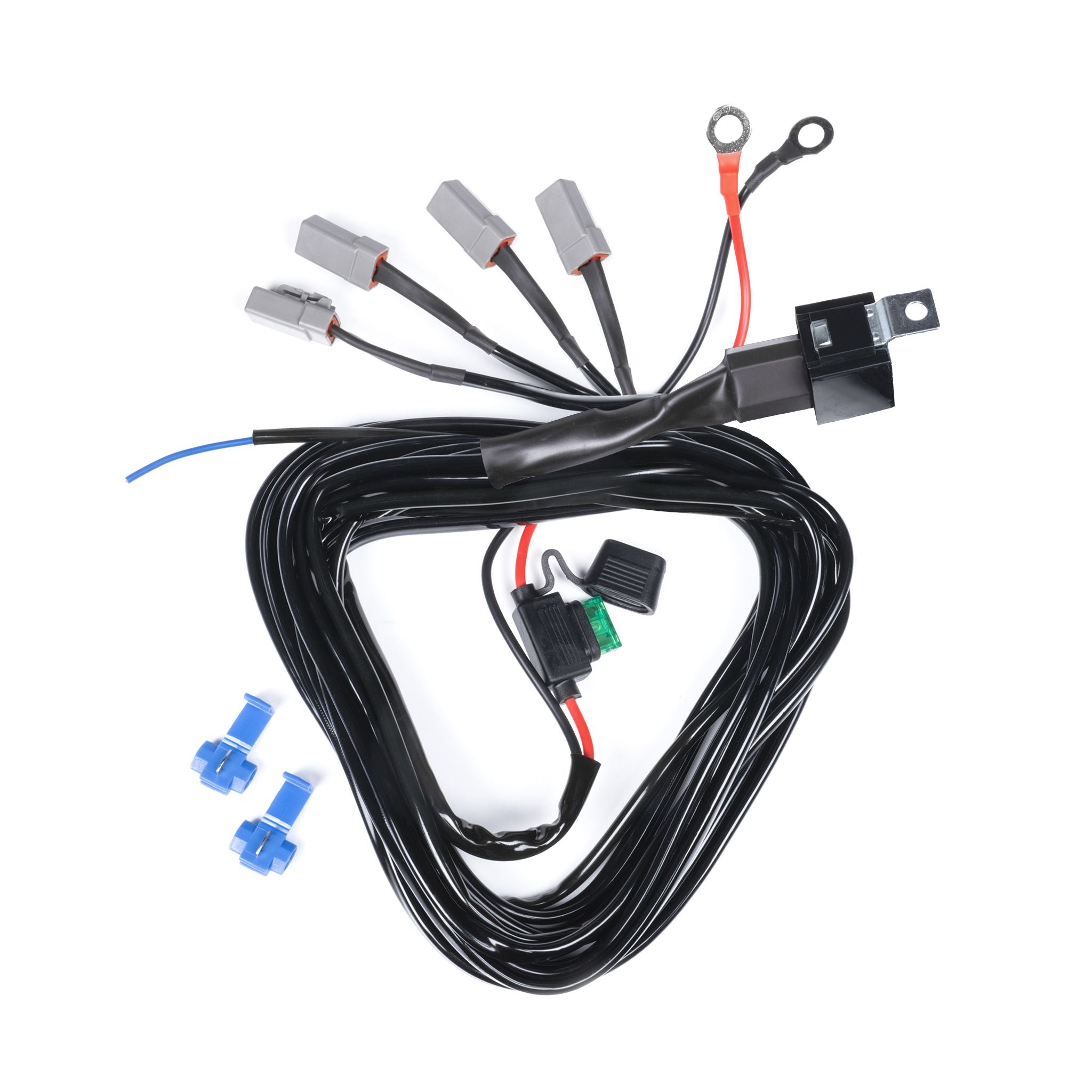

4x outputs: Max. current endurance 800W, Wire thickness (from battery to relay) 8AWG / 8.1mm2, Wire thickness (from relay to light) 14AWG / 1.86mm2, Fuse 70A, Relay 80A 12V

NOTE! The Purelux relay wiring harness is also suitable for connecting additional lights other than Purelux.

The Purelux ProSerie DTP relay wiring harness is a solution for easy and convenient installation of additional lights. This wiring harness contains everything you need to connect additional lights! Other relay wiring harnesses on the market often require additional connectors, etc. depending on the connection method, but this relay harness has everything you need . The wiring harness is available with 1-4 DTP connectors, meaning that it can be used to connect one, two, three or four lamps easily and painlessly. A wiring harness with one connector is sufficient for connecting a single lamp, but if you intend to add another light at some point, it is worth buying a two-position wiring harness from Direct, where you can leave the other connector unused at first. The wiring harness is suitable for direct 12V power.

Specifications
What: Relay wiring kit Purelux Pro Serie 12V, HD DTP
Purpose: Connecting additional car lights

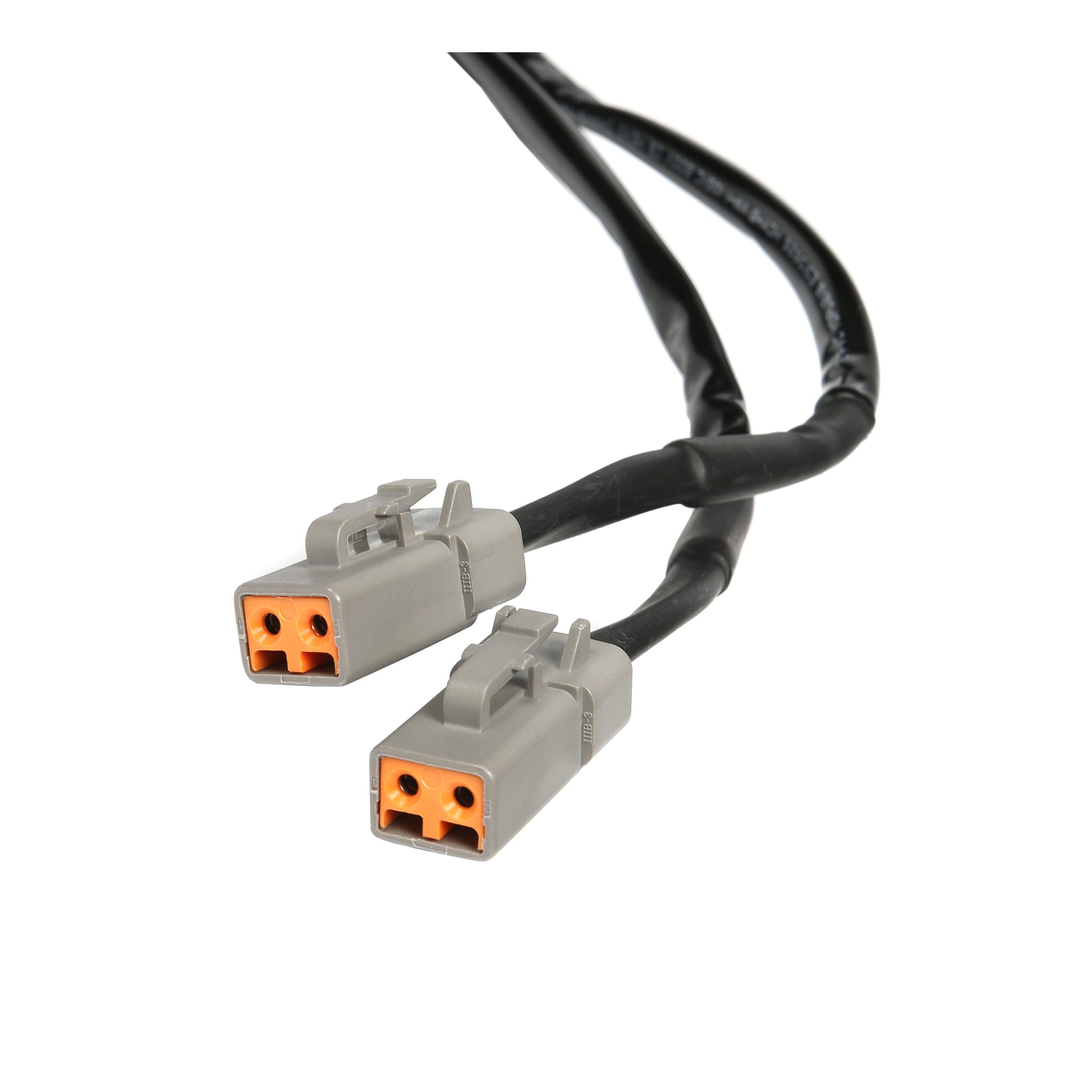

Connector: 1-4 x DTP (for 1, 2, 3 or 4 lights)
The length of the wires from the relay to the lights is approx. 2 meters
Suitable for 12V voltage
Warranty: 12 months
