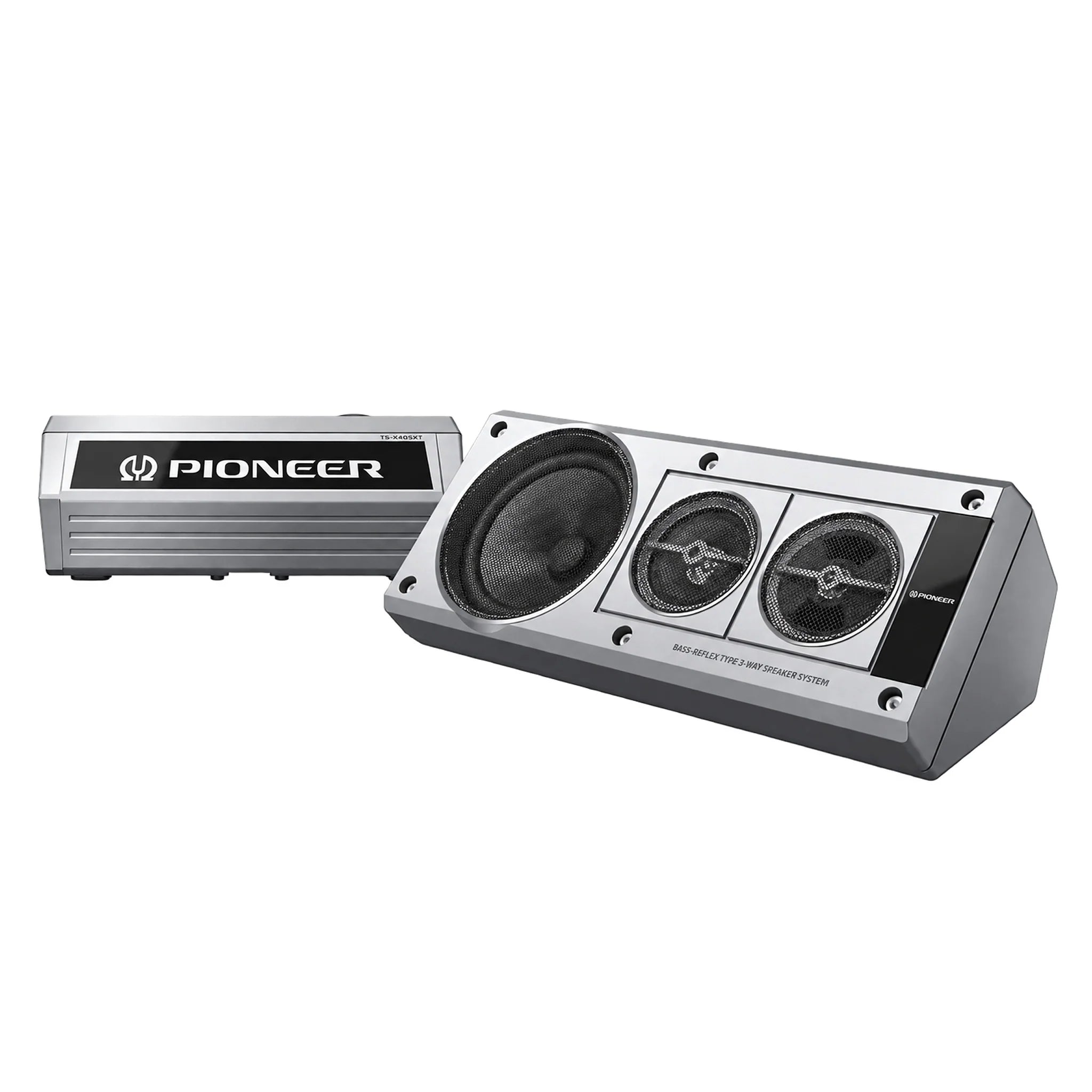

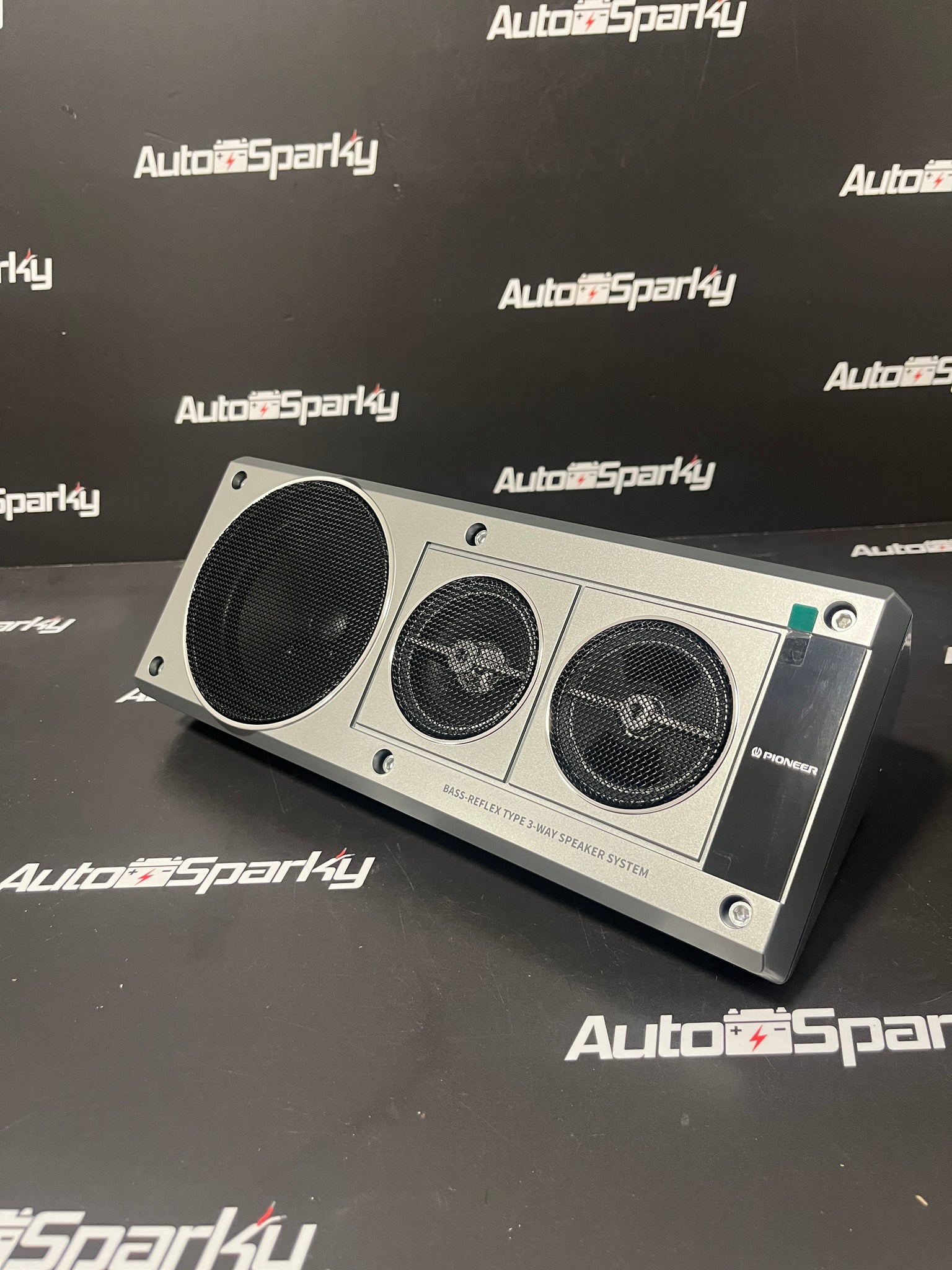

Pioneer TS-X40SXT Heritage Surface-Mount 3-Way Box Speakers
A Japanese Classic, Reimagined for Today
Inspired by the TS-X60—a beloved Pioneer classic first introduced in 1984—the TS-X40SXT carries forward its iconic box speaker design. It brings nostalgic appeal to longtime fans and fresh, JDM-inspired style to a new generation of drivers. One design, with appeal across generations.
Close-up of a Pioneer audio component or speaker enclosure with brushed silver metal panels, a black…
Details That Do the Original Justice

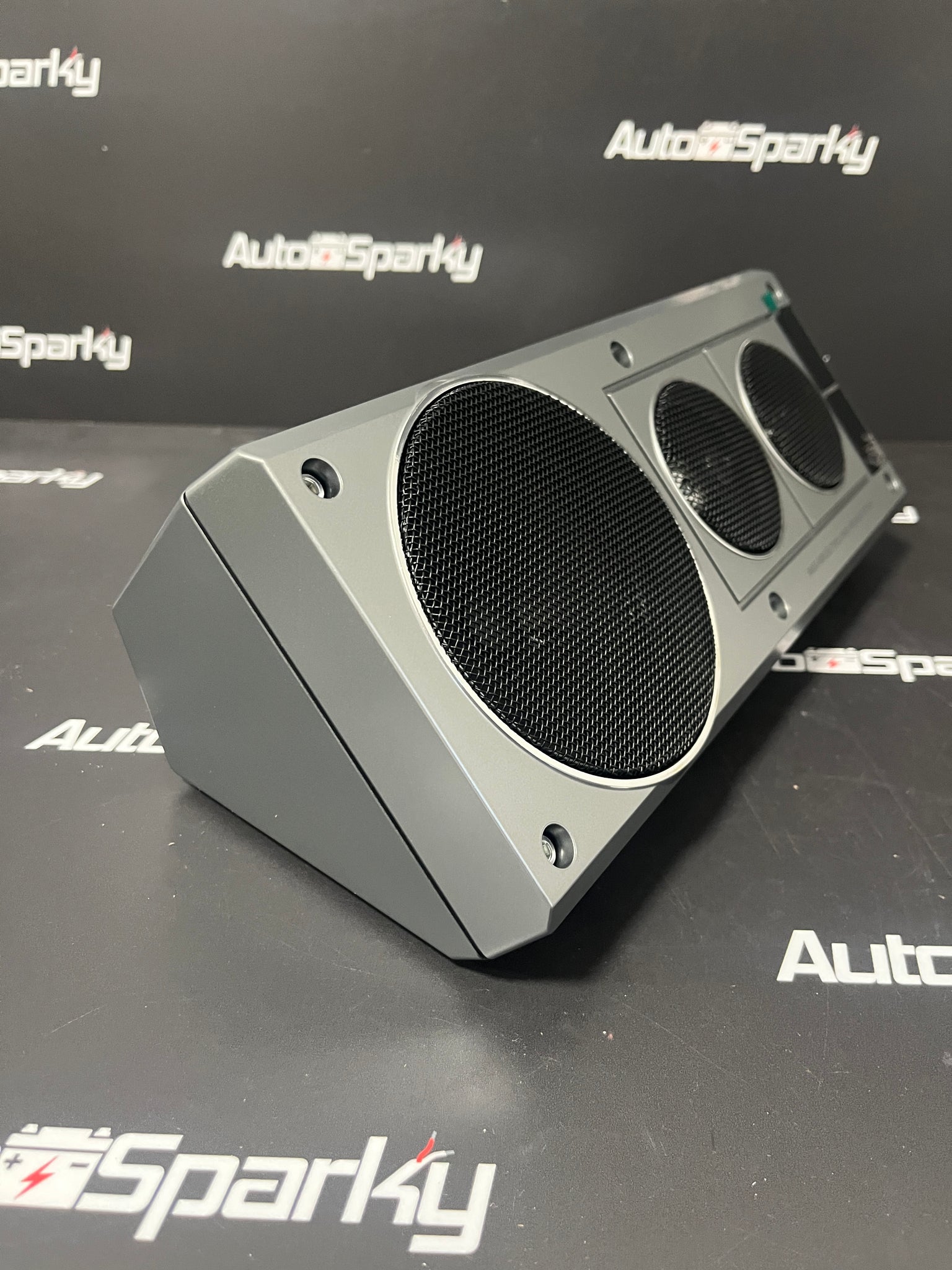

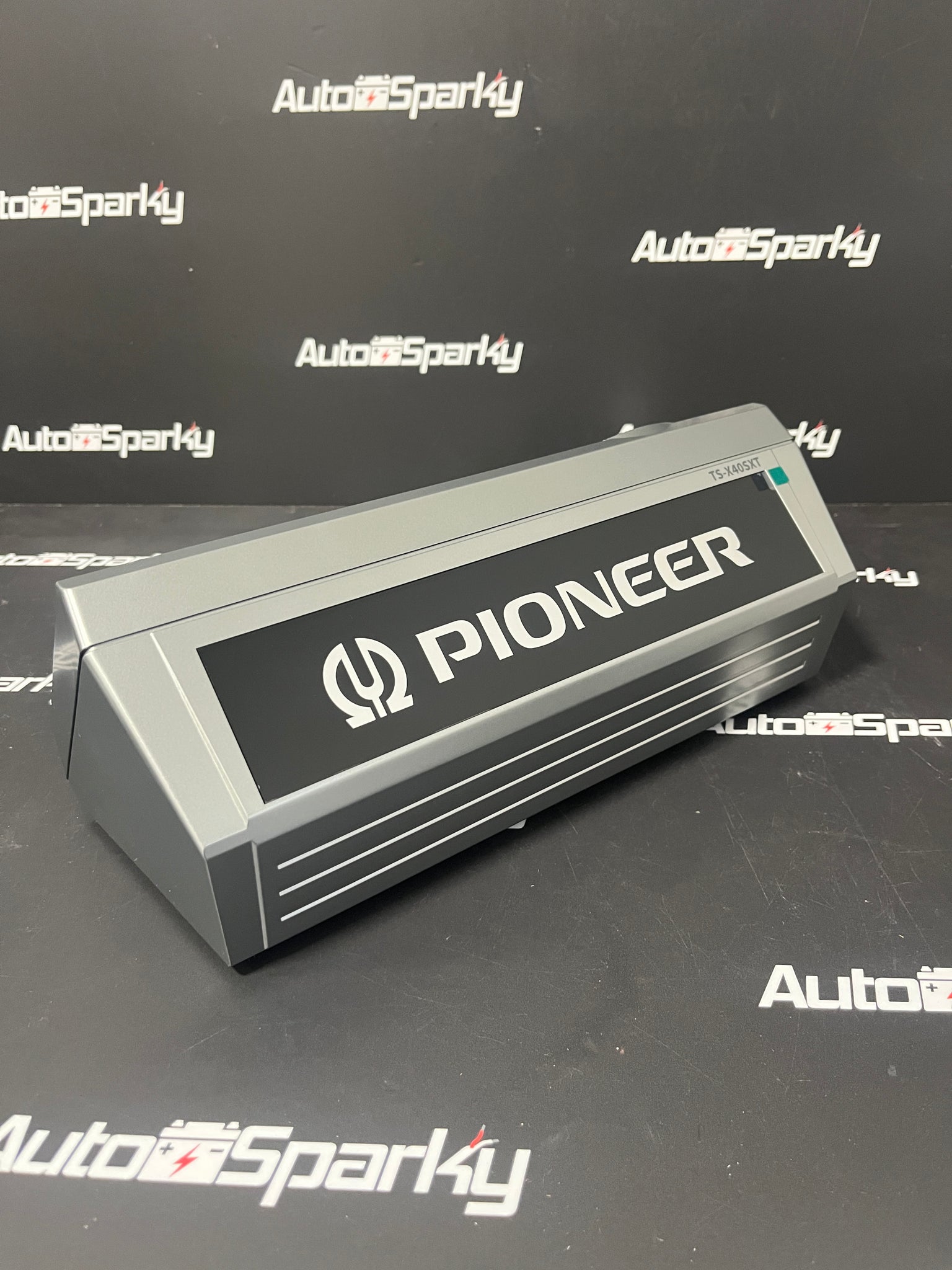

A wire-mesh grille delivers a premium look and feel. A dark silver painted finish retains the metallic character of the TS-X60, while resin construction keeps it lightweight. Distinctive clear parts inspired by the original are crafted with meticulous attention to detail.
Two Pioneer car window tint trim pieces mounted on the rear window of a black vehicle, shown in warm…
Deep-Profile Cellulose Fiber Woofers
The 5-1/4" woofers use deep-profile cellulose fiber cones that are lightweight yet highly rigid, combining classic looks with natural, responsive sound. The result is warm, detailed low-end that complements the TS-X40SXT’s classic character.
Close-up of a silver 3-way bass-reflex speaker system with two large black mesh-covered drivers and…
Bass Beyond Its Size

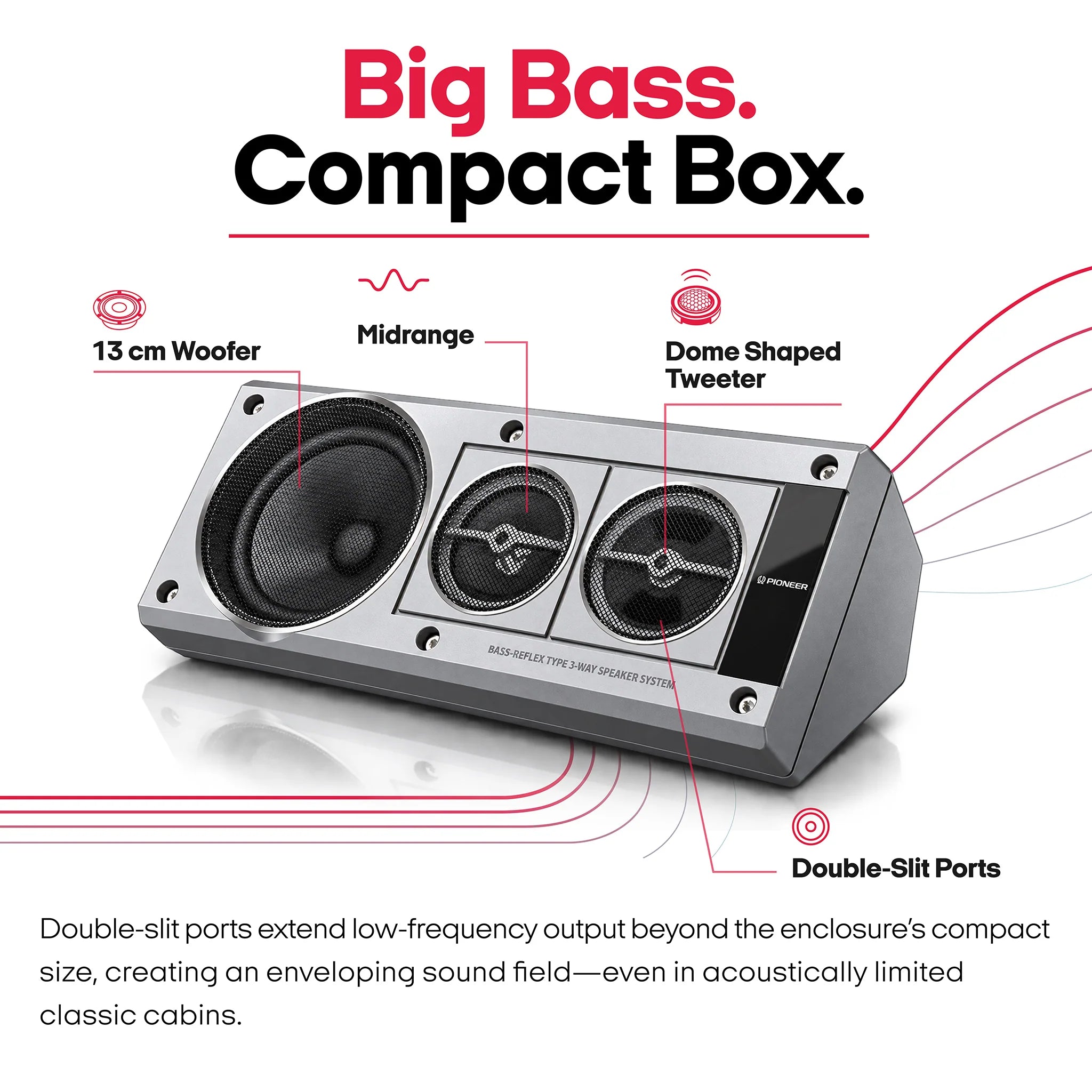

An optimized bass-reflex enclosure with double-slit ports delivers rich, full-bodied bass with a sense of scale beyond the speaker’s compact footprint. Mounted on the rear deck, the TS-X40SXT creates an enveloping sound field throughout the cabin—while preserving its classic appearance.
Pioneer audio system components including a silver and black amplifier and a matching speaker enclos…
Clear, Expressive Mids and Highs
A 2-1/4" midrange with a cellulose fiber cone integrates smoothly with the deep-profile woofer to reproduce bright, expressive mid-range frequencies, while a 5/8" tweeter adds clarity and presence up top. Vocals and instruments come through with detail across a 45 Hz–36 kHz frequency response.
Two rectangular car audio speakers mounted on the back seat of a vehicle, with a brown leather rear…
Surface-Mount Simplicity
Skip the cutting and custom fabrication. The TS-X40SXT’s free-standing, surface-mount design installs on your rear deck with the included brackets and hardware—keeping your original panels and trim intact. 5m speaker cables are included for a clean run to your head unit.
Classic box speaker design inspired by Pioneer’s iconic 1984 TS-X60
3-way system: 5-1/4" woofer, 2-1/4" midrange, 5/8" tweeter
Surface-mount install—no cutting into original panels or trim
Deep-profile cellulose fiber cones for natural, responsive sound
100W max / 25W nominal power handling, 4-ohm impedance

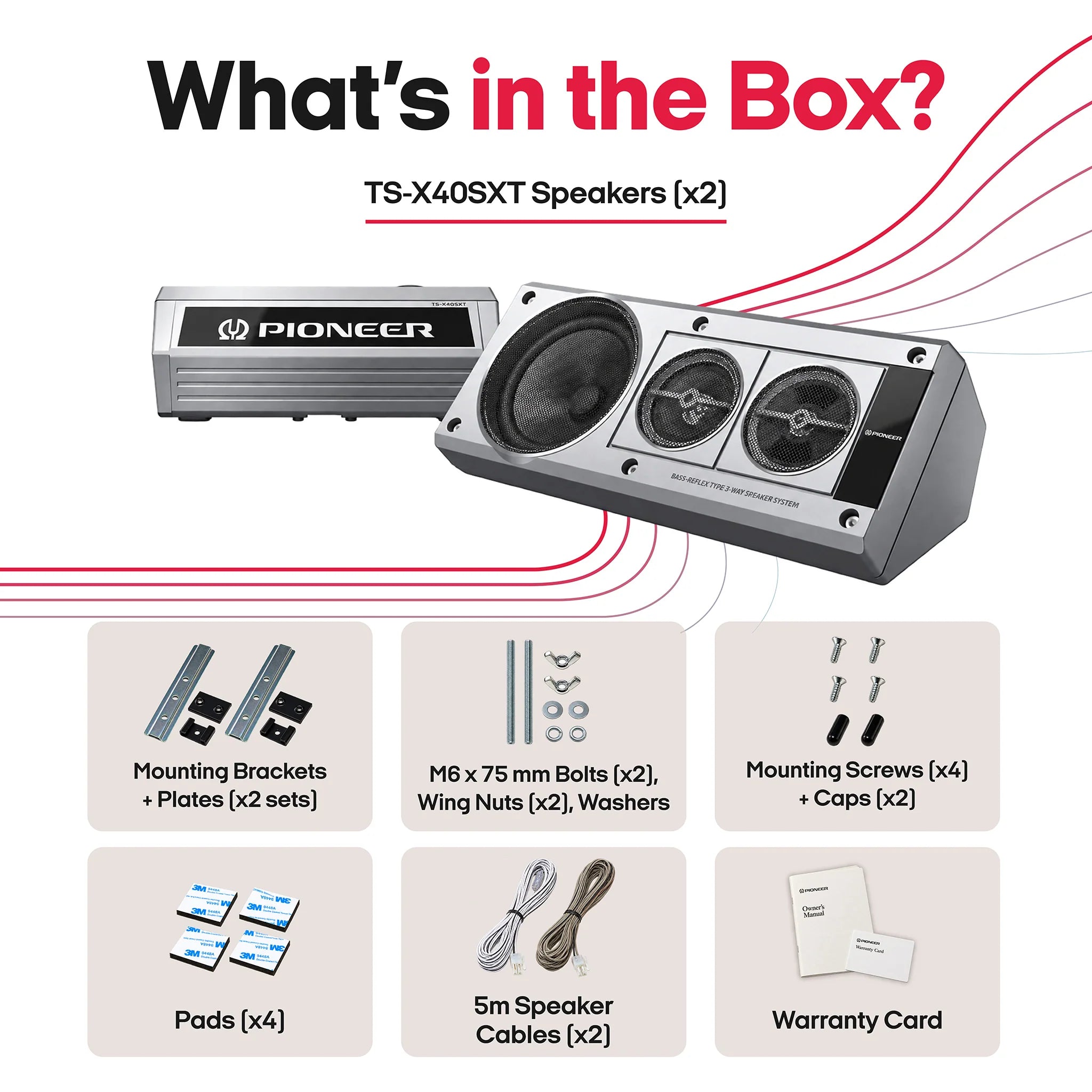

Mounting hardware and 5m speaker cables included
Product
TS-X40SXT Heritage Surface-Mount 3-Way Box Speakers
Model Number
TS-X40SXT
Product Type
Car Speakers
Product Highlight Features
-
Category
Speakers Special Fit
Speaker Size
5-1/4"
Speaker Depth
-
Speaker Ohms
4
Continuous Power Handling (RMS) Watts
25
Product Performance
Continuous Power Handling (Rms) : Watts~25
Frequency Response : 45 Hz to 36 kHz
Maximum Peak Power Handling - Watts : 100
Nominal Impedance : Ohm~4-Ohm
Sensitivity : 84 dB (±1.5 dB)
System-Type : 3-way Bass-Reflex Surface Mount Speakers
Features
Midrange Dimensions : 2.25"
Tweeter Dimensions : 0.67"
Woofer : 5-1/4" (130mm)
Woofer Dimensions : 5.25"

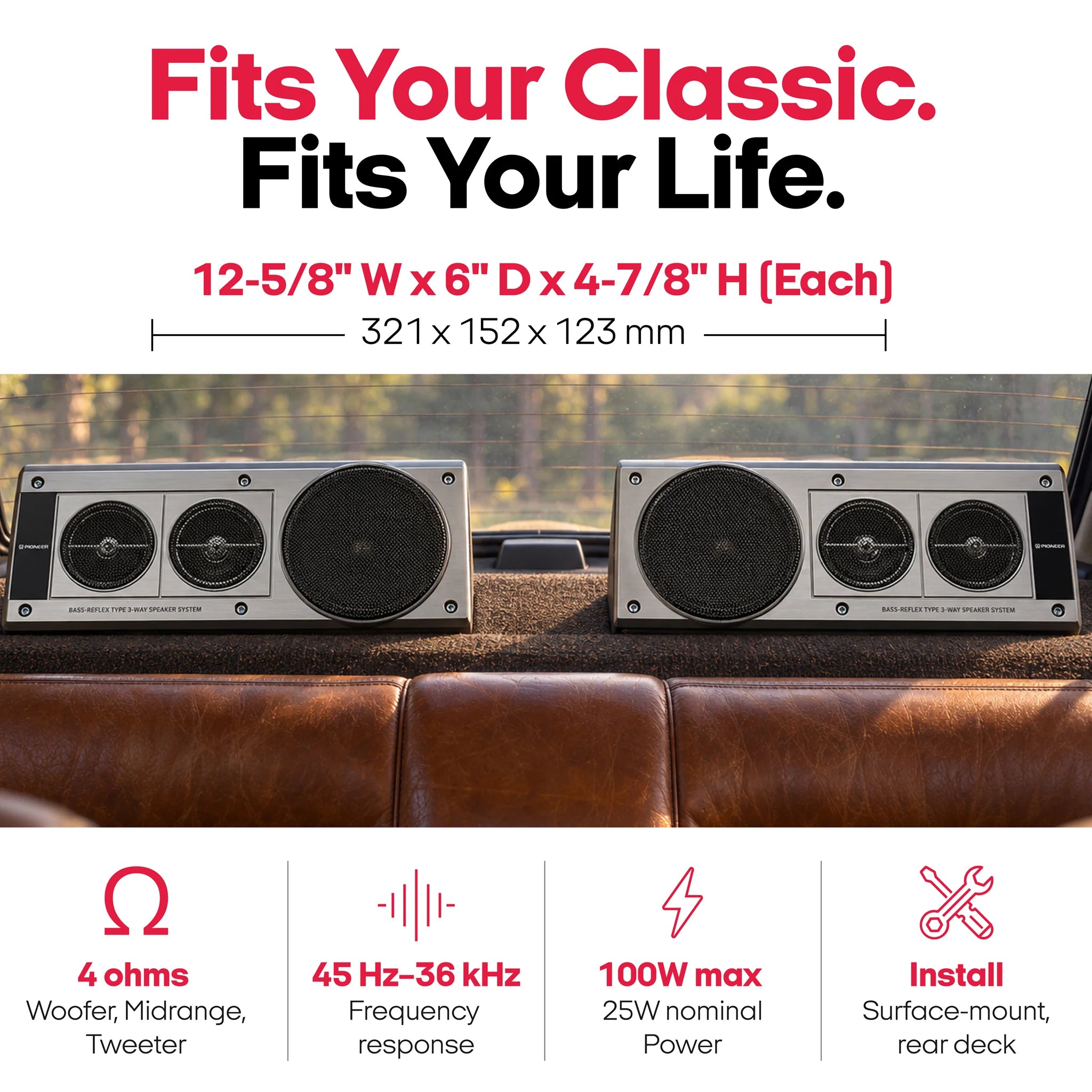

Enclosure Dimensions : 12-5/8" (W) x 6" (D) x 4-7/8" (H)
Speaker Cables : 16.4 ft (5m) x 2, included
Mounting Hardware : Included (brackets, M6 bolts, wing nuts, washers, screws, pads)
