Lazerlamps Grille Kit - Nissan Navara Lower Grille (2014-2021) 18" Slimline Driving Light

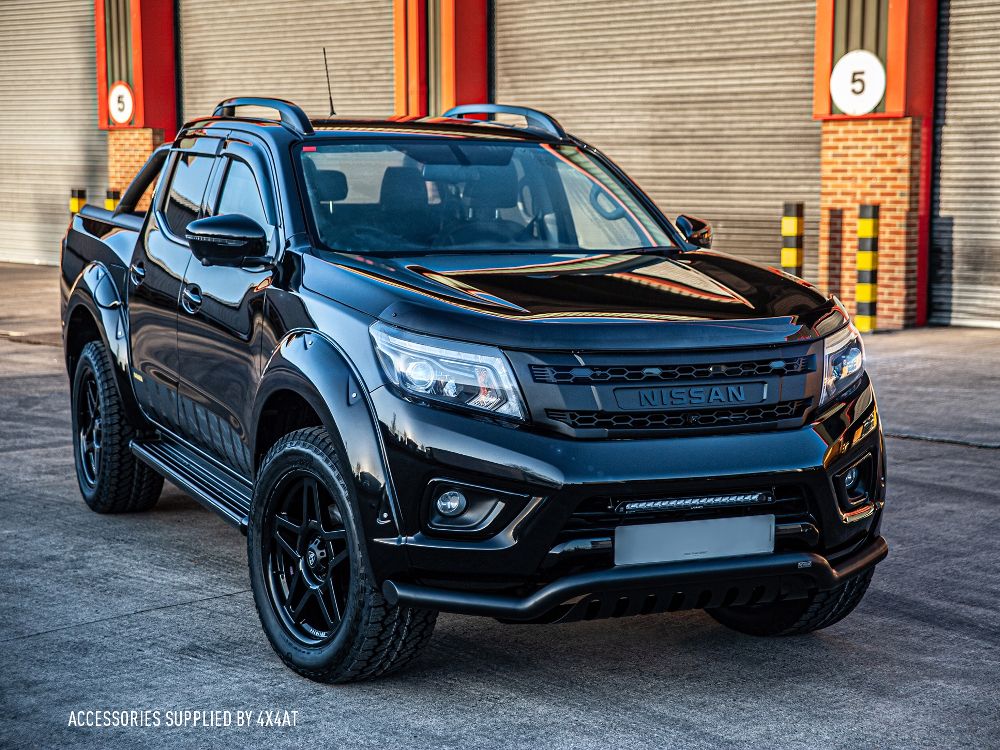

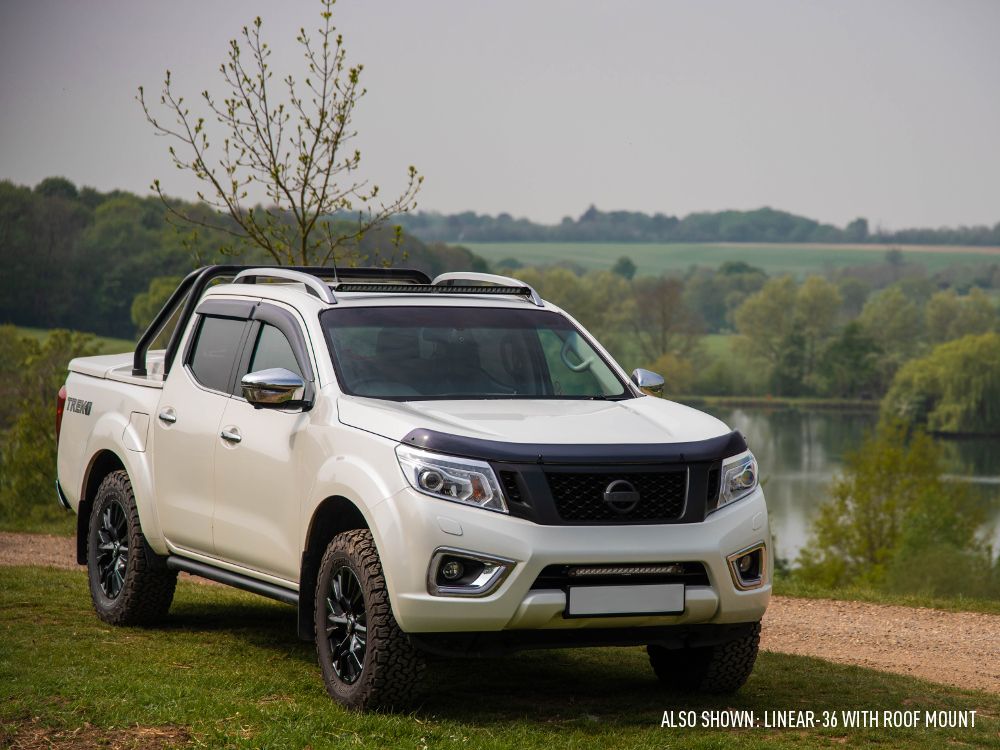

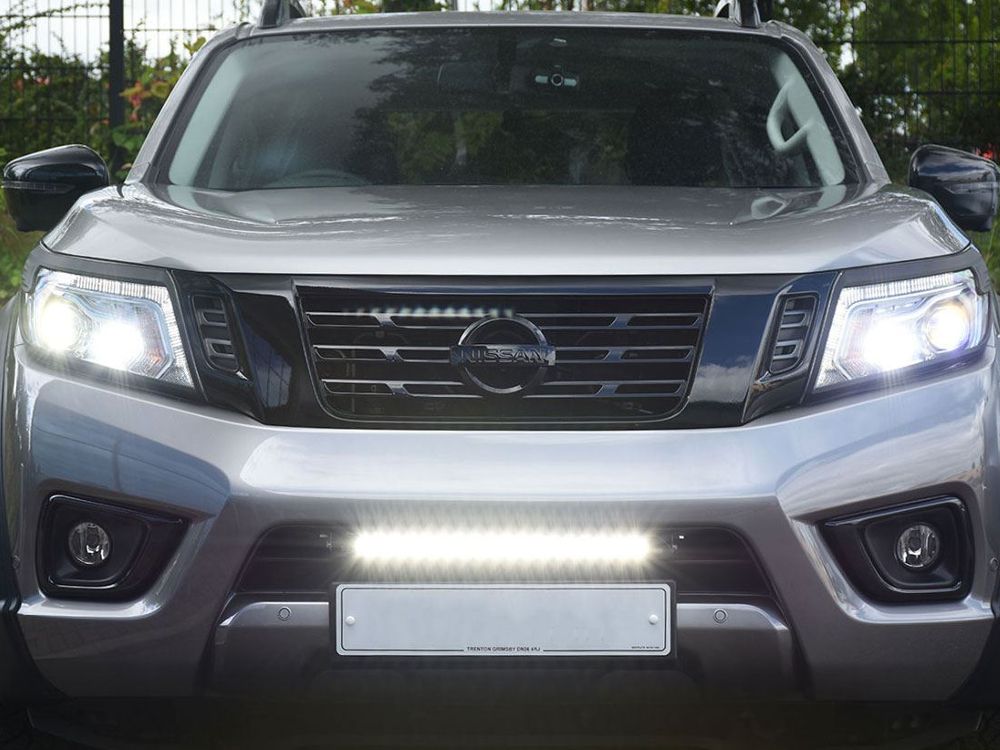

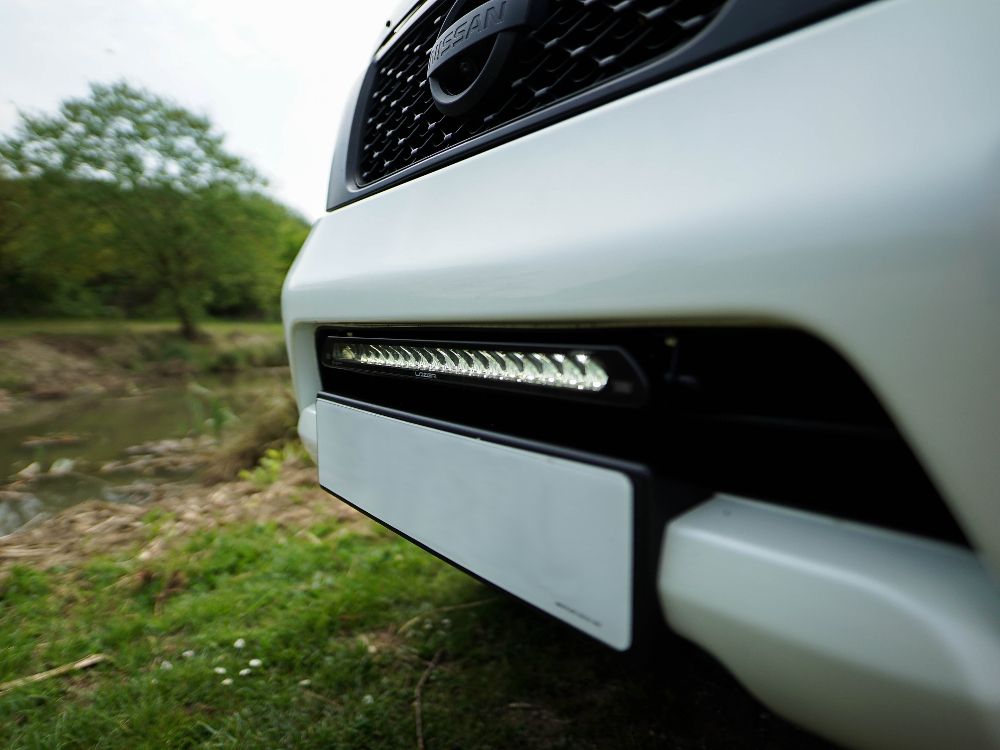

Effortlessly positioned into the lower front grille, the Lazer Lamps vehicle integration kit for the Nissan Navara (2014-2021), allows for flush mounting of our class-leading Linear-18 (Standard or Elite), for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
ECE compliance allows for connecting into the vehicle's electrical system so that the light activates with the vehicle's standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Navara lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.
The mounting of the light is quick and simple, requiring only a slight modification to the original lower grille. The resulting setup is secure and robust, with anti-theft fasteners included when utilising the Linear-18 Elite light, and as an optional extra when using the equivalent Standard light. Like all lighting products from Lazer Lamps, the Linear-18's are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a CAN Interface, with our recommended solution being a CANNY Interface
Vehicle integration kit for Lazer LED Spotlight installation
Optimised for Nissan Navara Lower Grille (MY 2014-2021)
Utilises Linear-18 High Performance LED Spotlight
Fully road-legal
5-year warranty
Made in Britain
Kit includes:
2x Mounting Brackets

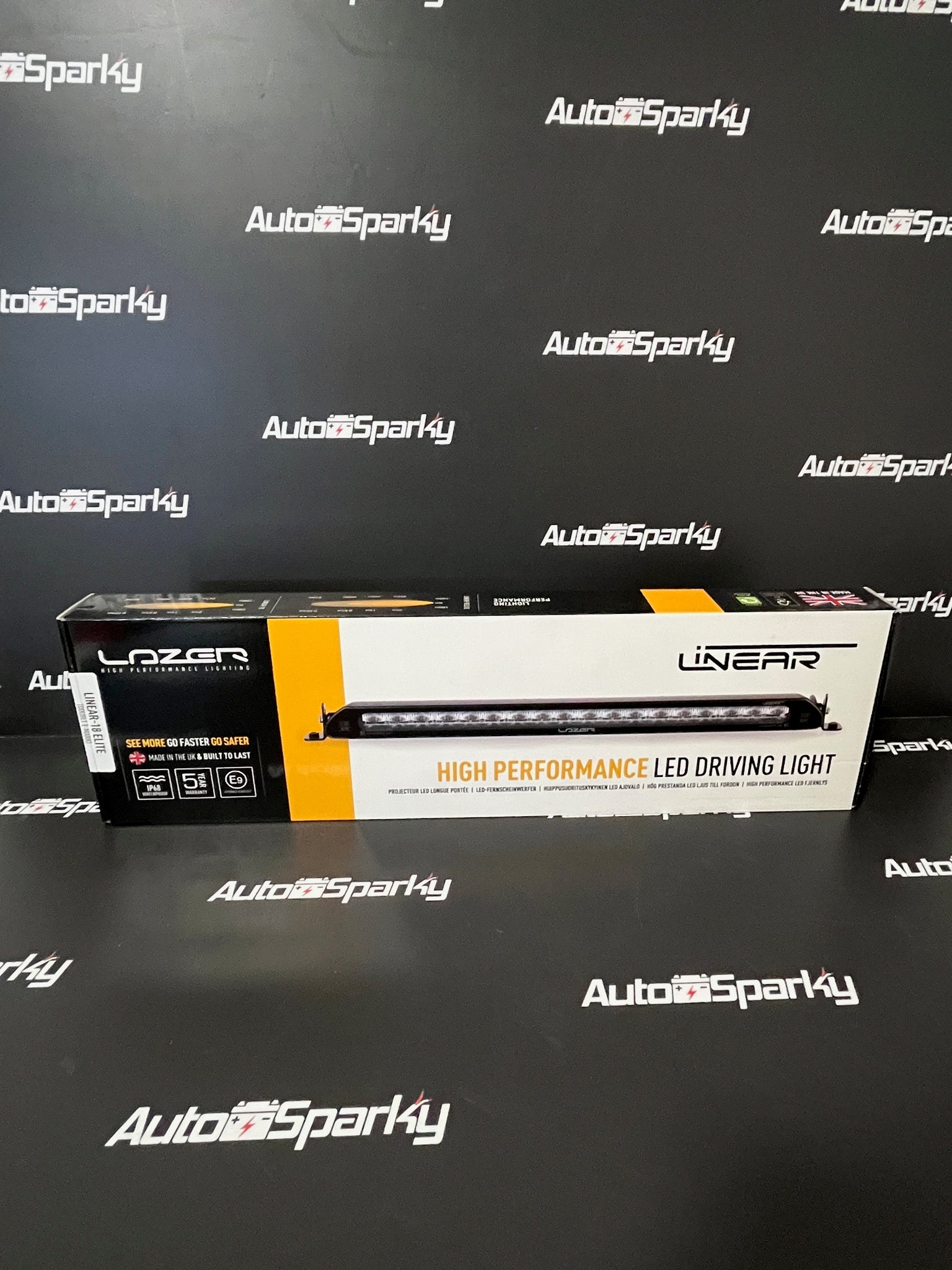

LINEAR-18 ELITE - 18" Slimline Driving Light
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.
All Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18/24 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.
Linear-18 Elite and Linear-24 Elite lights support dual-output functionality, where in certain countries the requirement is for a lower UNECE E-mark reference. The lower output mode is enabled through application of the ‘Linear E-mark Cap’ – sold separately.
Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.
Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.
Combination of highly efficient 3W ‘premium bin’ LEDs
Dual-output mode allows the light to be operated at a lower UNECE E-mark reference (requires Linear E-Mark Cap – sold separately)
5000K LED colour temperature and 80CRI maximises sharpness and definition
Vacuum-metallised optics deliver wide spread of light
Reduced up/down spread of light suits even low mounting positions, or roof mounting
Sleek, low profile design eases installation
Aero design virtually eliminates wind noise on roof installations
Flexible mounting options – anti-theft side mounting brackets included
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
UNECE approved Reg 10
IP68 watertight
5 year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed and manufactured in UK
TECHNICAL SPECIFICATIONS
Technical Specifications
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux 13,500 Lm
Total Driver 'FOV' Flux † 9,612 Lm
Colour Temperature 5000K
Number of High Output LEDs 36
Power Consumption 130 Watts
Current Draw (at 14.4V) 9 Amps
CERTIFICATION
High Beam ECE R112
ECE Reference 2x25
(2x 10 - With E-Mark Cap)
DIMENSIONS
Width 532 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle 64°
0.25 lx Line 1023m
0.5 lx Line 723m
1 lx Line 511m
3 lx Line 295m
