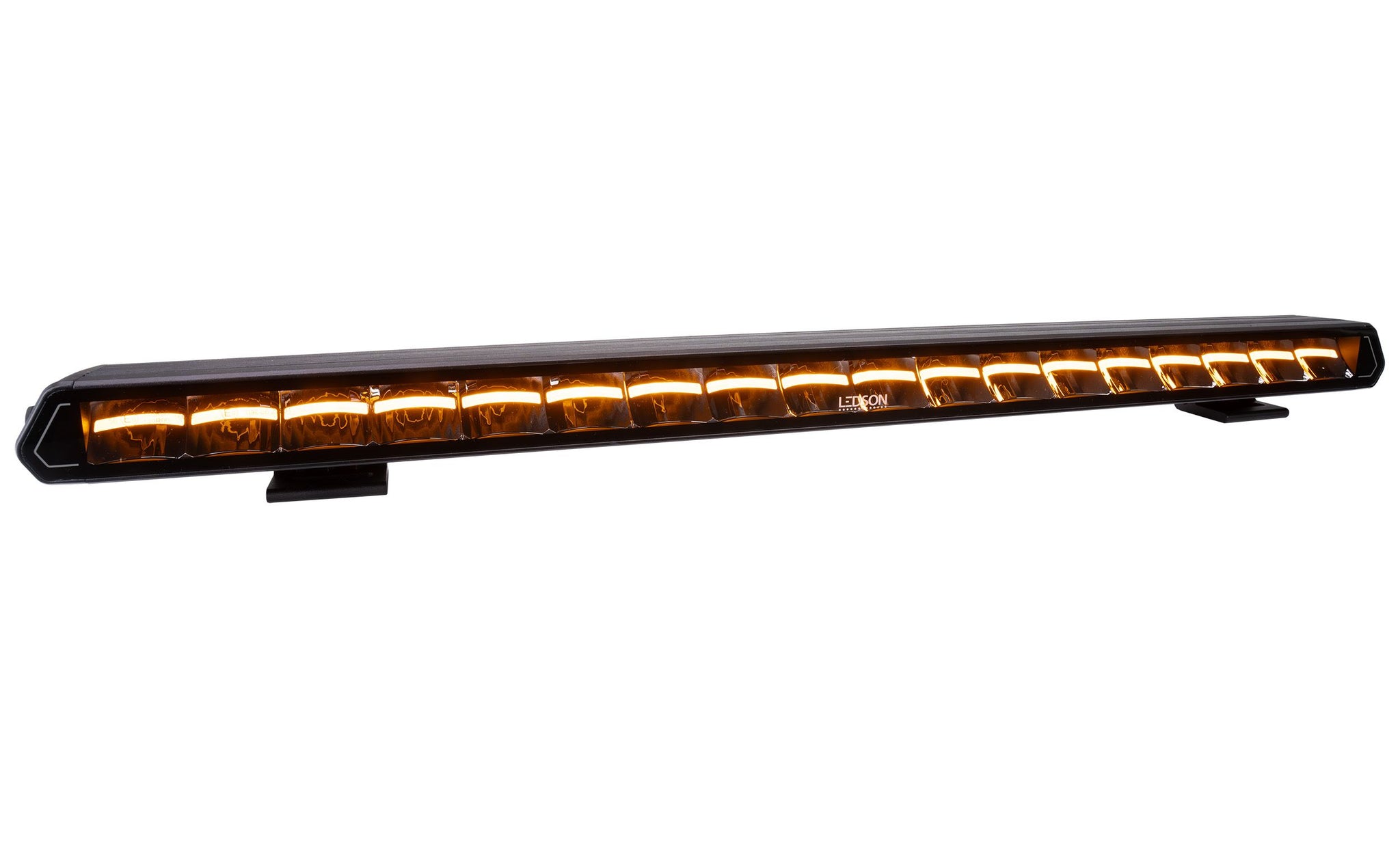

Epix30+ LED Lightbar - 30" 270Watt 16,300Lumen Powerboost Driving Beam - Amber or White DRL - LEDSON
The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar, you’ll find with Epix30+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go ”off-road". Approved R65 strobe lights ensure your visibility when working on the road and keep you safe in all weather and times of the day. Self-developed smart mounts ensure easy installation almost anywhere on the vehicle, however you prefer.
Epix+ series is for you who want a futuristic experience
The design of the bar is uniquely developed by Ledson and is in harmony with today's most modern cars, taking your vehicle to the next level. Its dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the next before fully lighting up. The position light is integrated into the reflector, a completely unique feature that makes you stand out a little extra.
Powerboost: how much light do you want?
As if this wasn’t enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw in the back of the LED bar to switch between E-approved mode or ”off road” Powerboost mode, for occasions when you need maximum brightness on the road ahead.
Driving Beam light pattern
Driving Beams reflectors are all computer generated and manufactured to provide a similar light image as combo. It mimics and enhances the car's existing headlight and light pattern.
What more is needed?
DTP relay harness: We strongly recommend using our Connect cable harness with 1 x 2-pin DTP (part no. 7801010). Ledson Connect provides a super easy connection while being interconnectable if there is a future desire to easily expand with additional lights or bars
Features and technical data:
Position light with unique dynamic ignition, integrated in the reflector
Selectable position light in xenon white or yellow/orange
Driving Beam light pattern (wide and oblong)
E-marked R112 (ref. no 50), R7, R10 (EMC rated)
Range in E-approved mode: 458 m (1 lux),
Range in powerboost mode: 672 m (1 lux)
E-marked mode: 7 800 lumens (theoretical), 6 240 lumens (actual)
Powerboost mode: 23 200 lumens (theoretical), 16 300 lumens (actual)
Color temperature 5000K (Neutral White)
270 W (18 x 15 W LEDs)
Voltage: 9-36V
IP69K (water/dustproof)
Aluminum housing and polycarbonate lens
Side reflective optics
Pressure equalization membrane
Electronic heat management
1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 2 pole (LED bar position light)
Supplied:
Epix30+ Powerboost 30" LED bar
Bolts and screws to attach the bar to appropriate surface

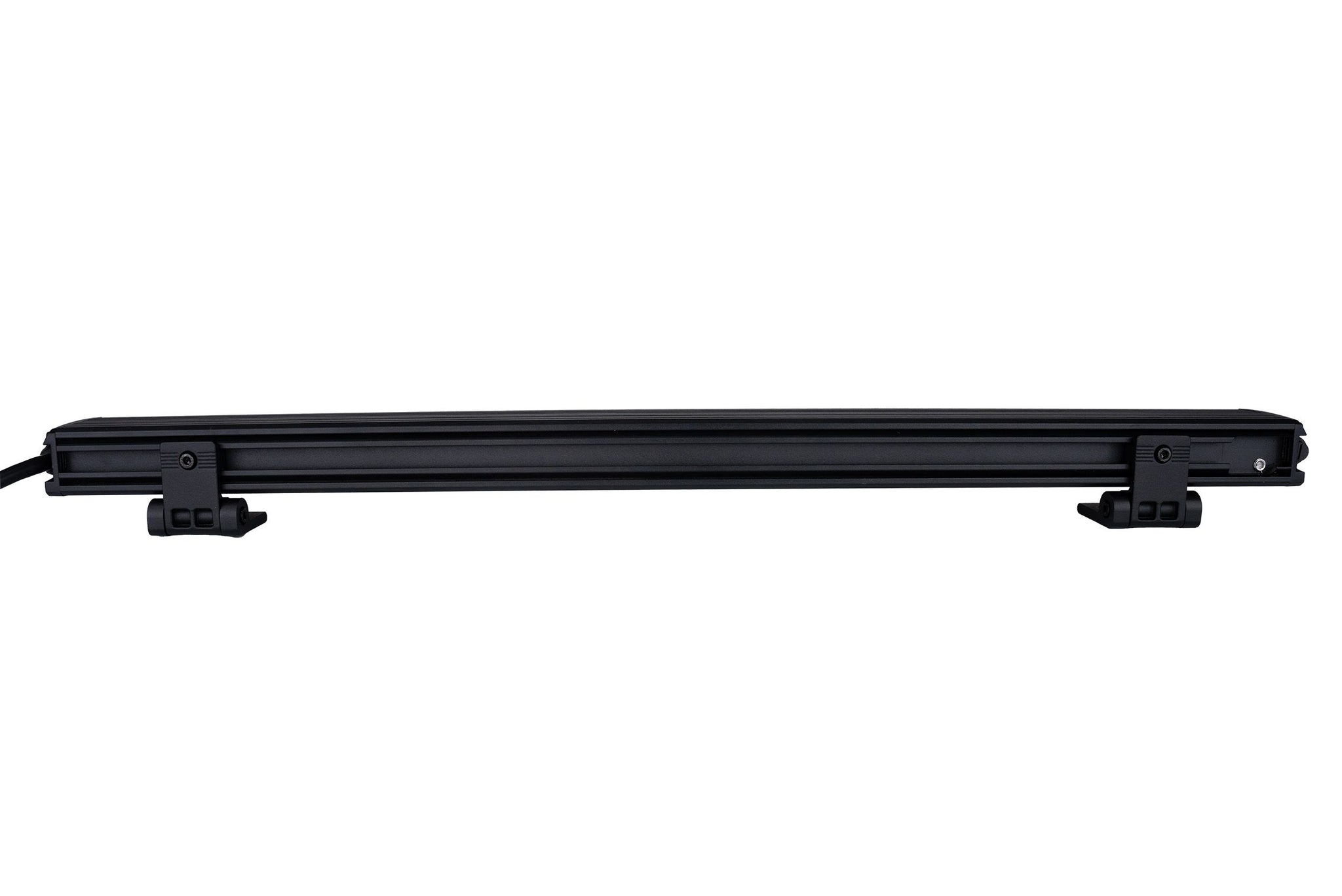

Smart mounting details
Dimensions & weight (excl mounting):
Width: 740 mm
Height: 43 mm
Depth: 61 mm
Weight: 2.25 kg
