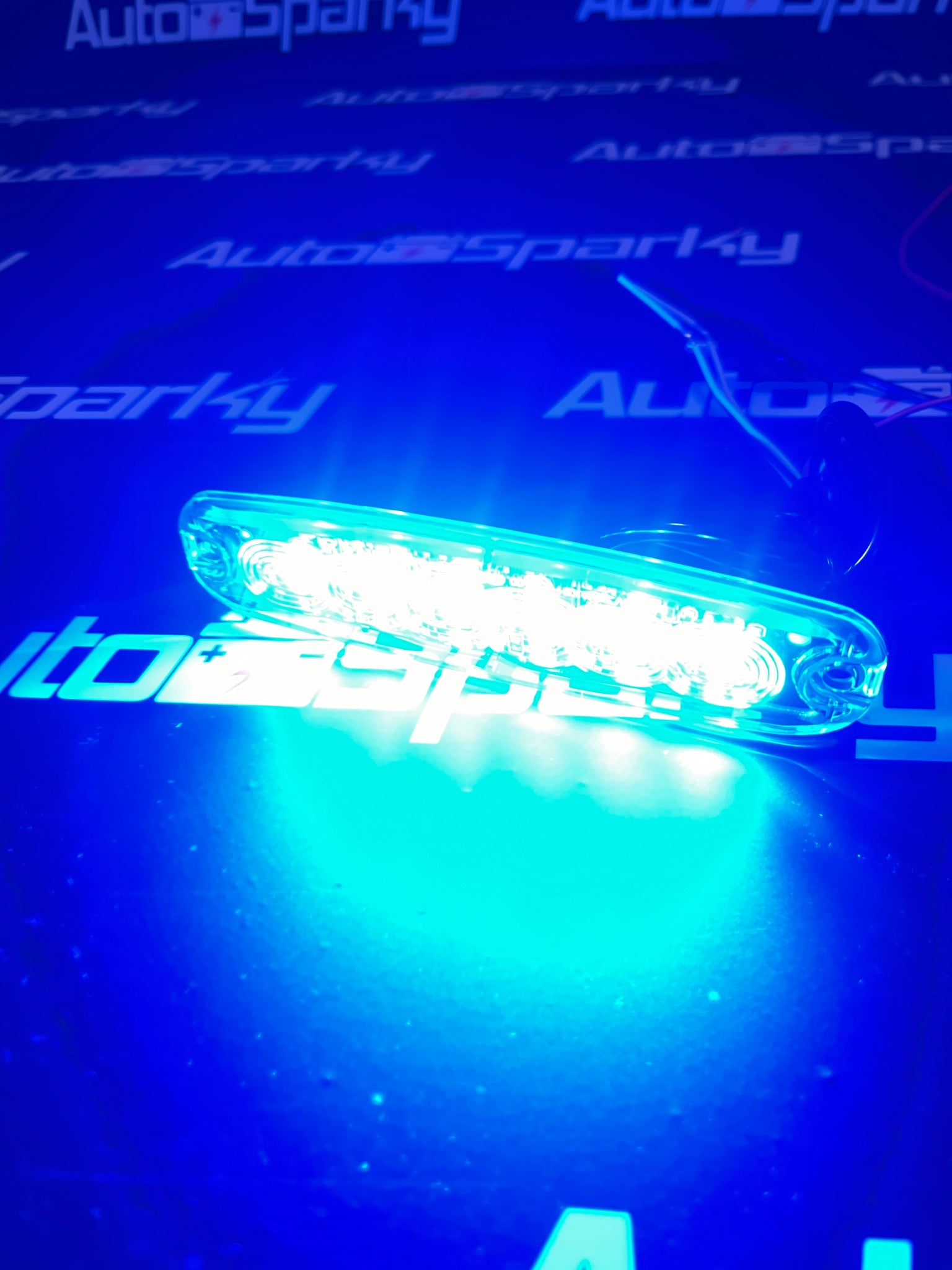

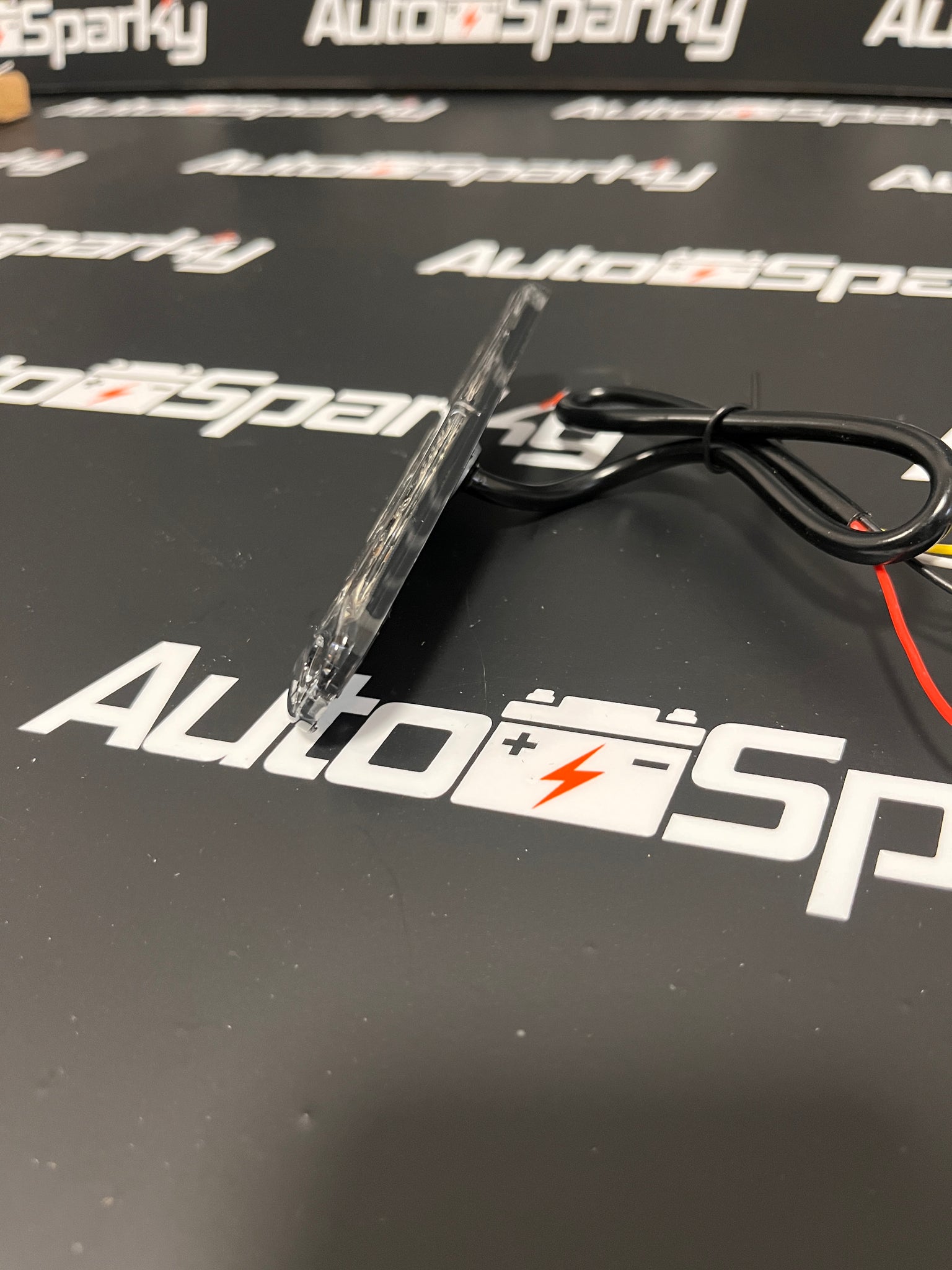

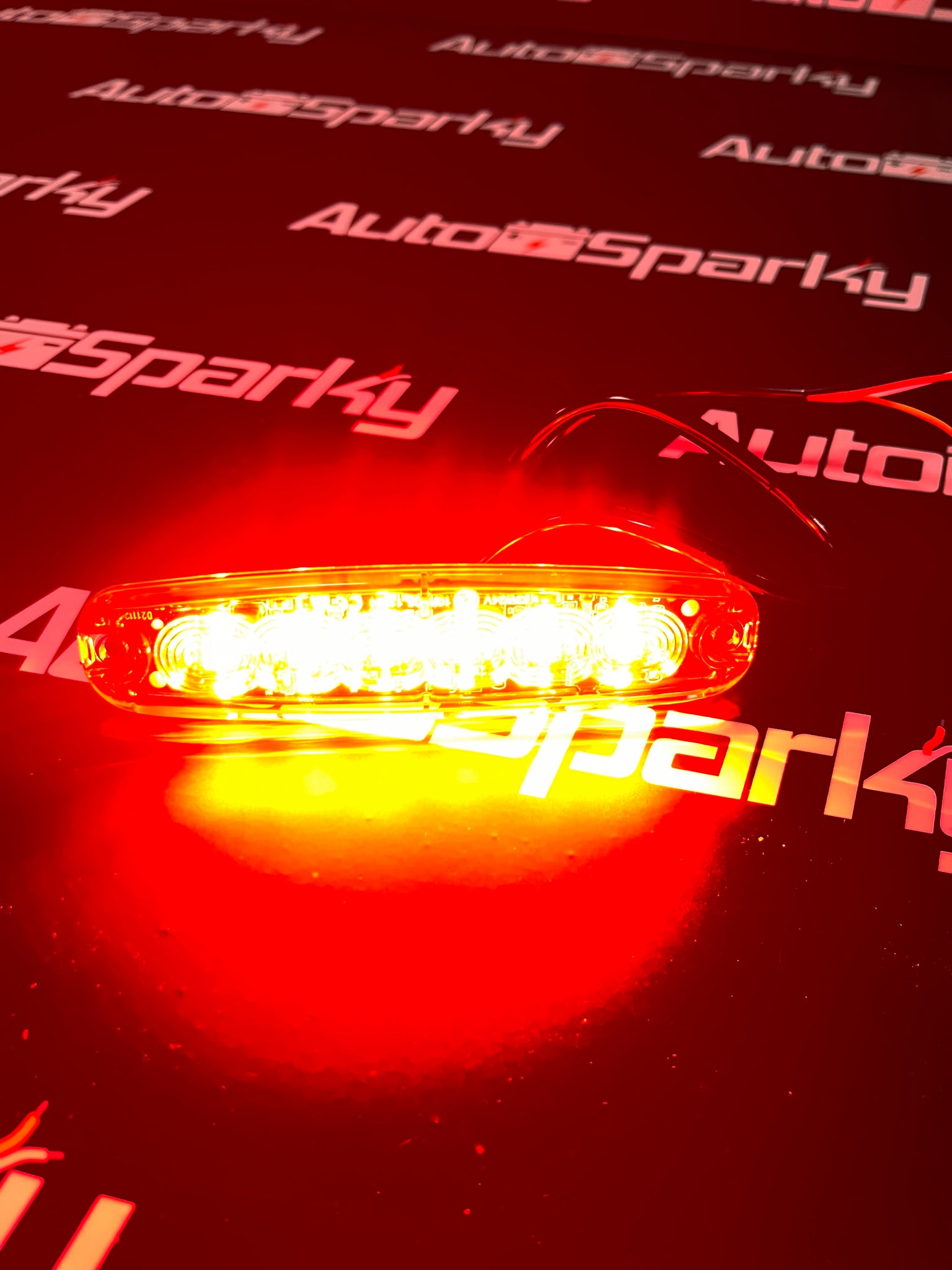

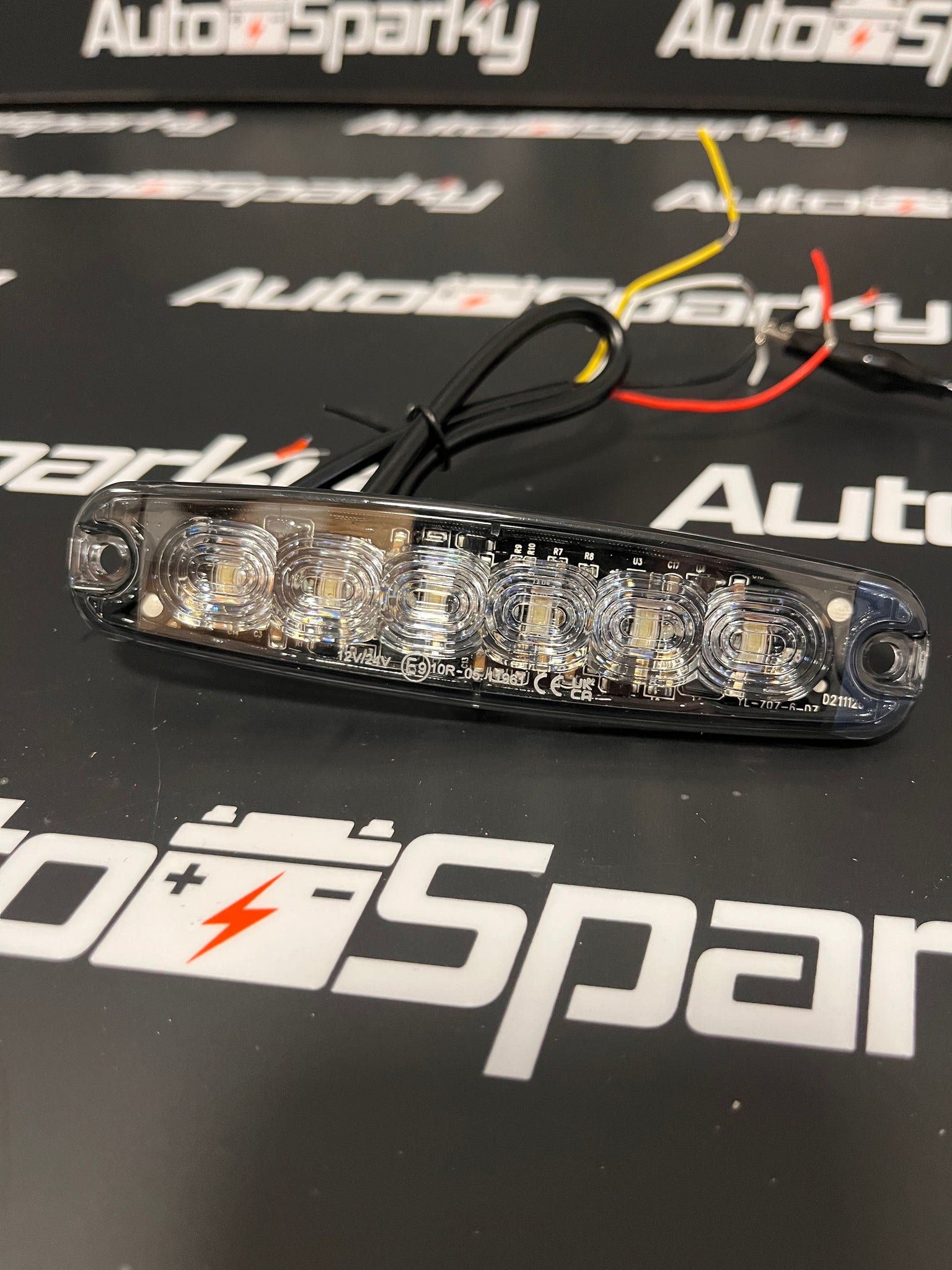

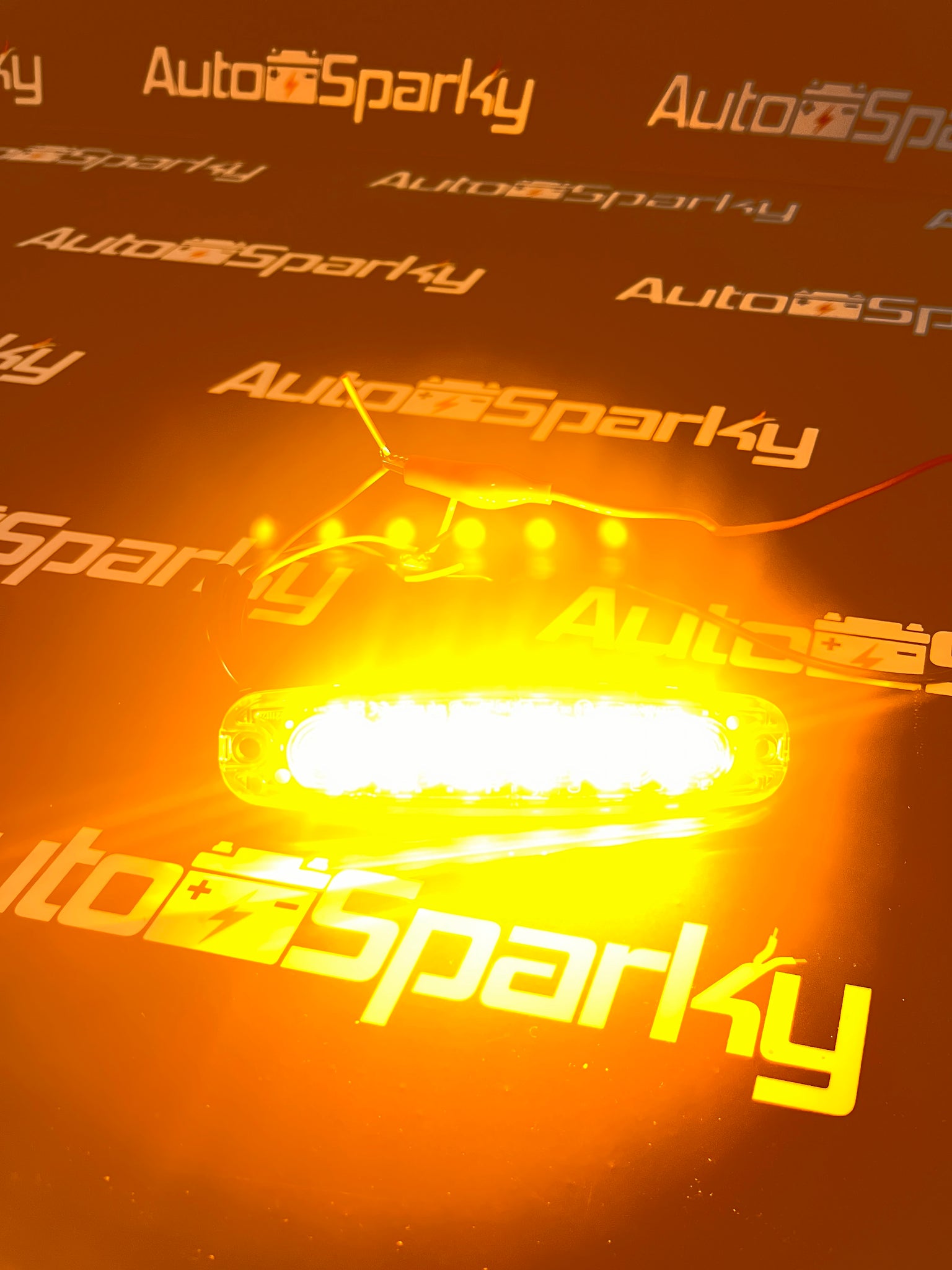

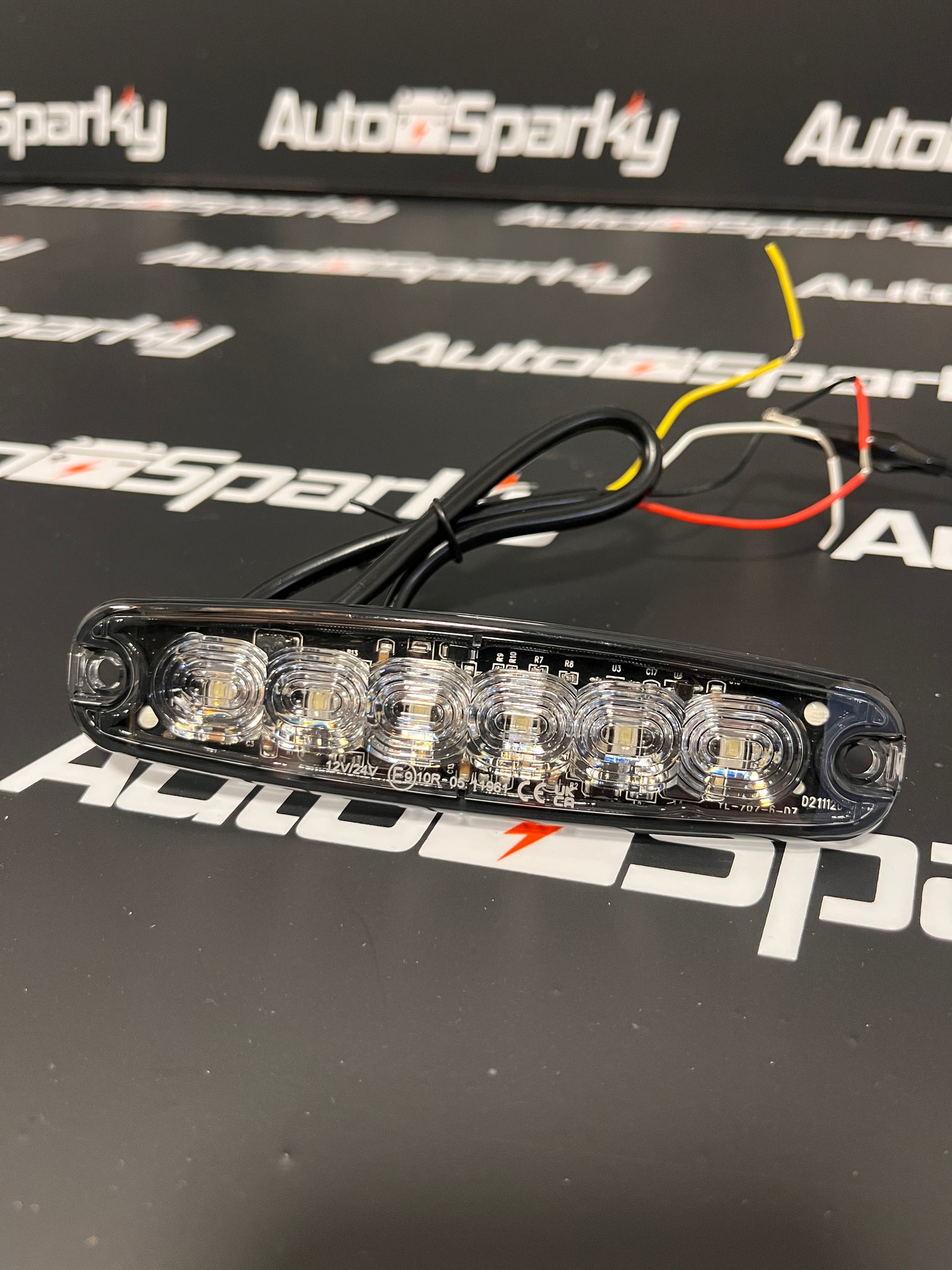

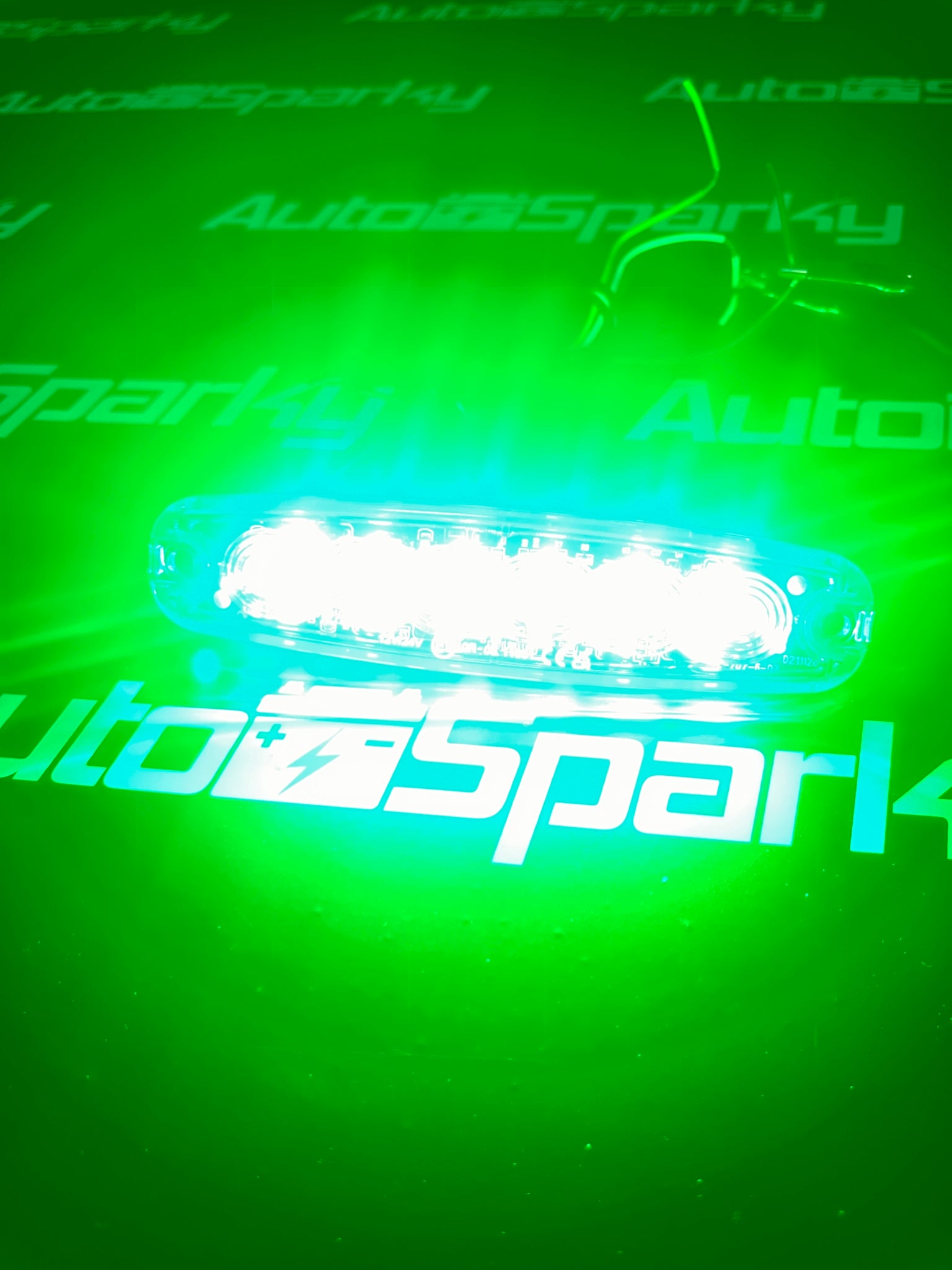

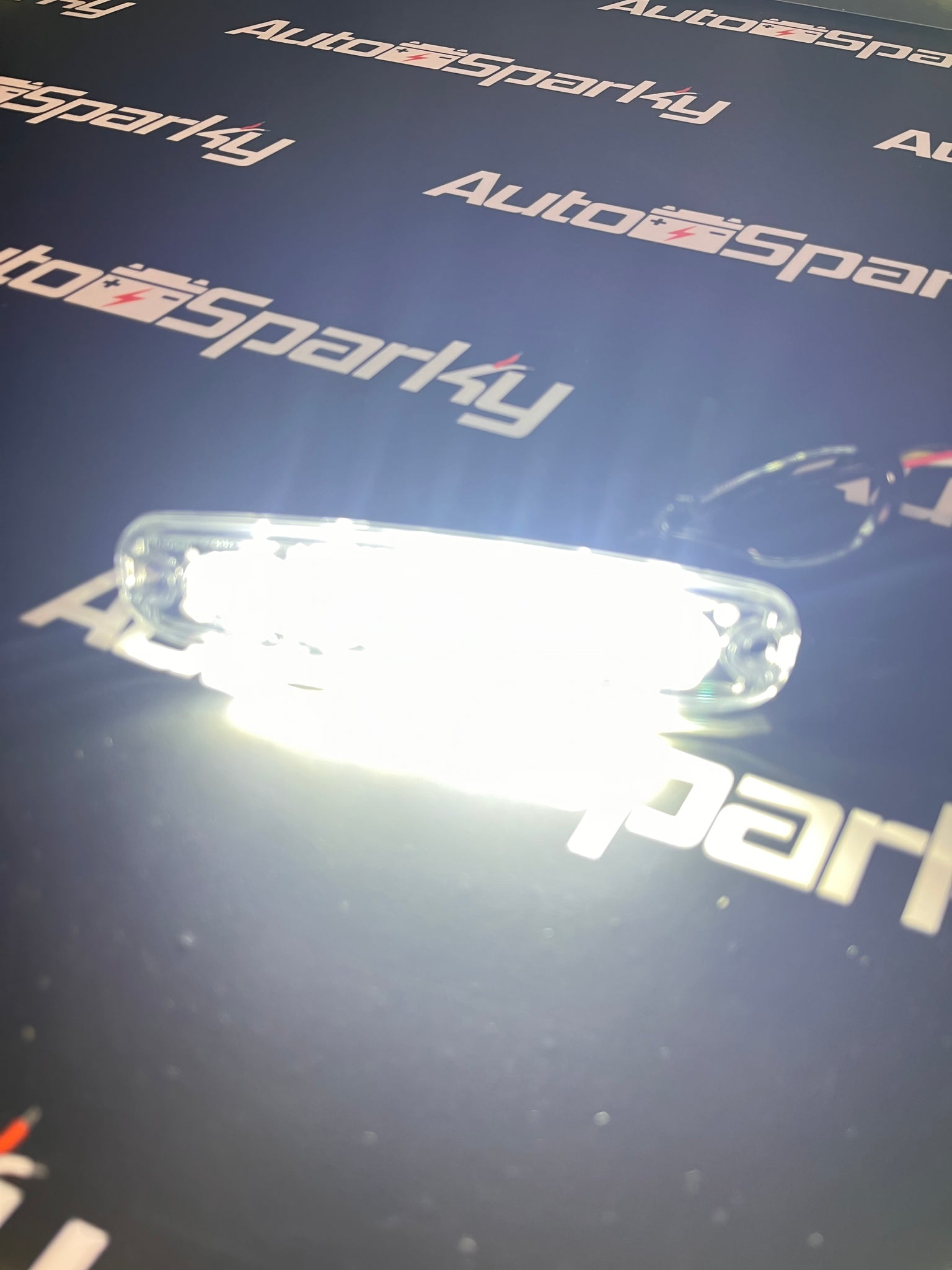

6LED Ultra Slim Warning Strobe - 26 Flash Patterns - Available in Amber, Blue, Green, Red or White

1x Light per box

Dimensions: W:131 x H:31 x D:7

Mounting hole centres: 117mm

Multi-Voltage input 12-24VDC
5W SMD LEDs
26 Flash Patterns
Up to 15 Unit Synchronisation
Wiring
Red - Positive
Black - Negative
Yellow - Flash Pattern
White - Sync

Features:

Up to 100,000 hours rated Long-Life LED
Built-in selectable flash patterns
Memory recall for the last flash pattern used at power-up
Weatherproof and vibration-resistant
Aluminium base for excellent heat dissipation;
Reverse polarity protection
Warranty: 3 Years
Available in Amber, Red, White, Blue and Green

Approvals:

ECE R10; ECE R65; E-Approved, CE, Waterproof Rating of IP67 | IP69K.

Flash Patterns:

1 - Single
2 - Single (slow)
3 - Double
4 - Double (slow)
5 - Triple
6 - Quad (fast)
7 - Quad (slow)    8 - Octa (fast)
9 - Octa (slow)
10 - Twelve
11 - Sixteen
12 - Single (alternate)
13 - Double (alternate)
14 - Triple (alternate)    15 - Quad (alternate)
16 - Octa (fast, alternate)
17 - Single (split)
18 - Double (split)
19 - Quad (split)
20 - Octa (split)
21 - Single (split accelerate)    22 - Single (split accelerate)
23 - SOS
24 - Cycle (1, 8, 3, 9, 4, 18)
25 - Cycle (2, 7, 9 11, 19, 21)
26 - Steady
