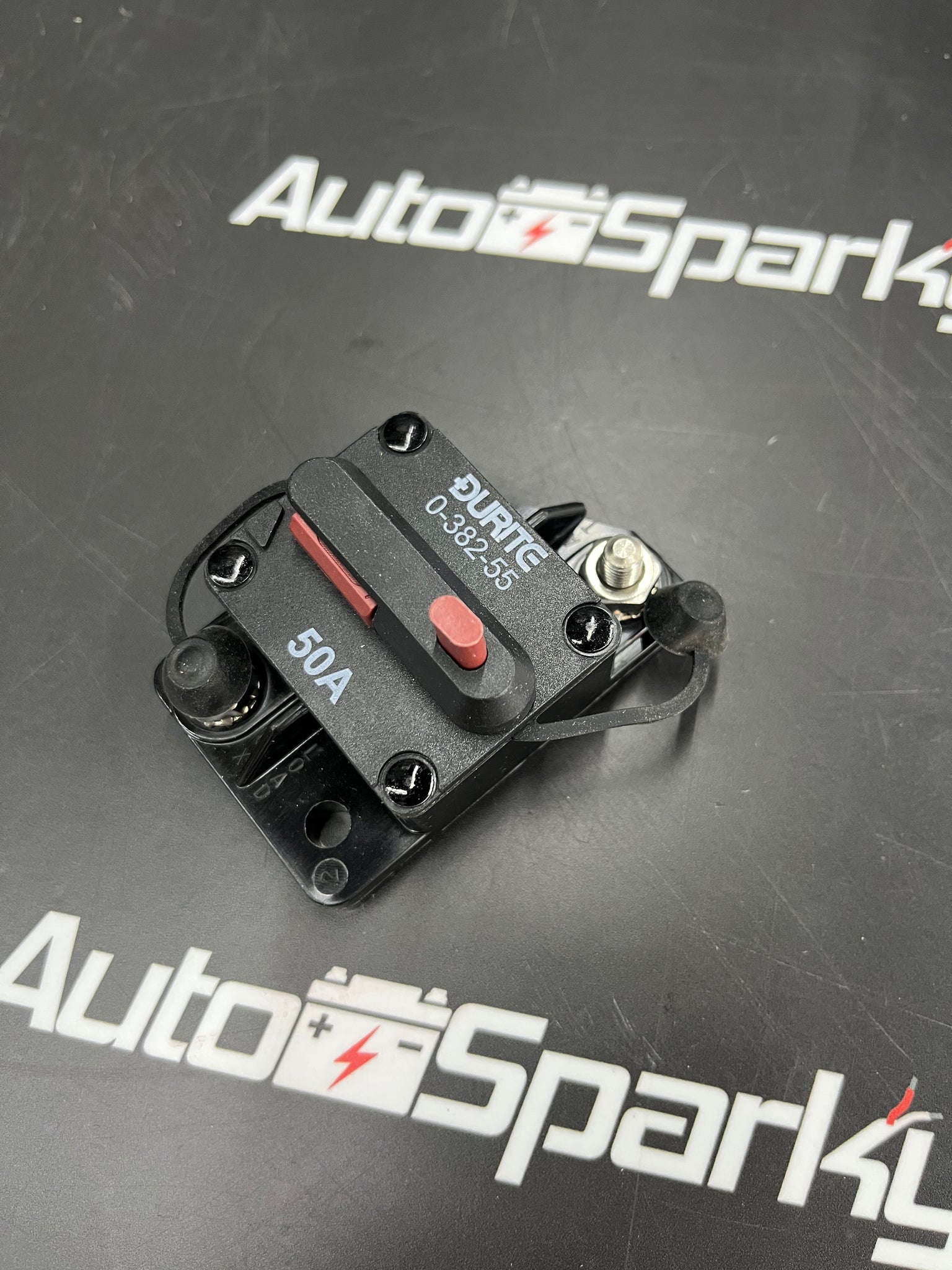

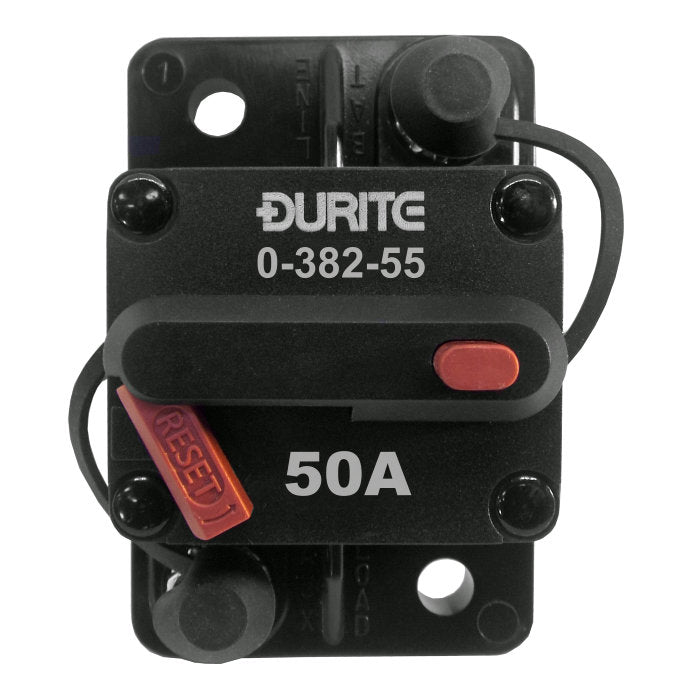

12V-24V DC 50A Manual Reset Circuit Breaker - Durite

Durite 0-382-55, 50 Amps circuit breakers for 12 or 24 Volts DC auxiliary and accessory circuits found on cars, vans, HGV trucks, buses, RVs and marine vehicle battery charger/audio systems.

Voltage: 12V-24V DC.
50 Amps manual reset protection for ignition circuits.
Thermoplastic housing.
Surface-mounted version.
Quarter-inch terminal bolts.
Pack Quantity: 1 piece.

Height: 74.5mm
Width: 49mm
Depth (including button): 46mm

Specifications
Type    Single-pole thermal device
Voltage    12-24VDC
Amps    55 Amps
Colour    Black
Body Material    Polybutylene Terephthalate (PBT 4830)
Operating Temperature    -32°C to 82°C (-25°F to 180°F)
