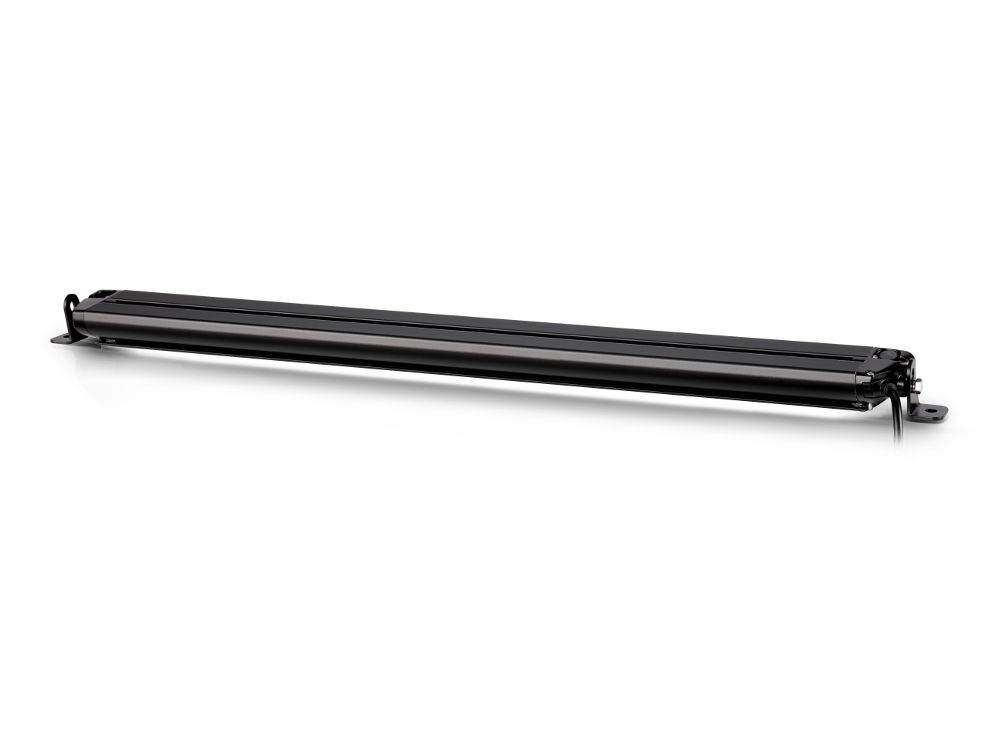

Lazerlamps LINEAR 24 Flood - 27" Industrial Work Light Bar
Designed and engineered specifically for industrial sectors, the Linear-24 Flood challenges conventional work light solutions, offering outstanding lighting performance optimised for heavy machinery. Like all Lazer products built in the UK, the light boasts exceptional durability and reliability, even in the harshest environments, alongside high operational safety.
Adopting the same high-output LED arrangement as found in our Linear Elite range, the Linear-24 Flood produces 16,200 raw lumen, and which combined with a customised assembly of ultra-reflective, vacuum-metallised optics, delivers ‘zonal’ lighting perfectly aligned to work cabs, whether mining or construction, forestry or agriculture. On the one hand the high intensity lighting provides a simply unmatched level of illumination in the immediate area in front of the cab, while the length of the light bar itself enables a spread of light to the sides which makes for a safer and more productive work environment. At 5000 kelvin, the colour temperature of the light is also proven to improve sharpness and definition of the immediate surroundings, while also being comfortable to operate with for longer periods of time.
Superior lighting performance aside, the Linear-24 Flood offers a number of other benefits over more traditional work light solutions. With a power consumption rating of 168W, the lamp provides for a more straightforward installation than multiple smaller lamps, to achieve a similar level of light output (the lamp utilises 2-pin Deutsch connector). Reduced fitting time is one immediate advantage, alongside reduced ongoing maintenance time and cost. Fitting a single, low-profile light bar also has the benefit of being less susceptible to misalignment or getting damaged.
From a durability and build quality perspective, the Linear-24 Flood comes with a 2 year warranty (5 year for Automotive or Commercial Fleet applications). The polycarbonate lens with hardcoat lacquer has a lifetime guarantee, while Dynamic Drive Modulation optimises the light output considering environmental and thermal conditions, to preserve the longevity of the LEDs over a longer lifespan. Manufactured in the UK, and extensively tested, this is a product to be trusted year-after-year.
What's included:
- x1 Linear-24 Flood
- x1 Anti-Theft Side Mount (1127k)
PRODUCT FEATURES
High output work light for industrial applications.
Utilises the latest, highly efficient LED technology.
Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.
Colour temperature - 5000 kelvin.
Supplied with stainless steel, side mounting brackets.
Electronic thermal management
‘Unbreakable’ polycarbonate lens
IP68 watertight
2 year warranty (5 year for Automotive/Commercial Fleet applications)
Supplied with male/female 2-pin Deutsch connectors
Designed & manufactured in Britain
Technical Specifications
Based on: 1x Linear-24 Flood Work Lamp.
Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 1500 gr
HIGH BEAM FUNCTION
Total Luminous Flux 16200 Lm
Total Driver 'FOV' Flux † 11534 Lm
Colour Temperature 5000K
Number of High Output LEDs 48
Power Consumption 168 Watts
Current Draw (at 14.4V) 11.7 Amps
CERTIFICATION
Work Lamp ECE R10
IP Rating IP68 / IP69K
Salt Spray Test ISO 9227 (2000H)
EMC Protection CISPR-25 (Class 3)
OPERATING CONDITIONS
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature -40deg C ... +90degC

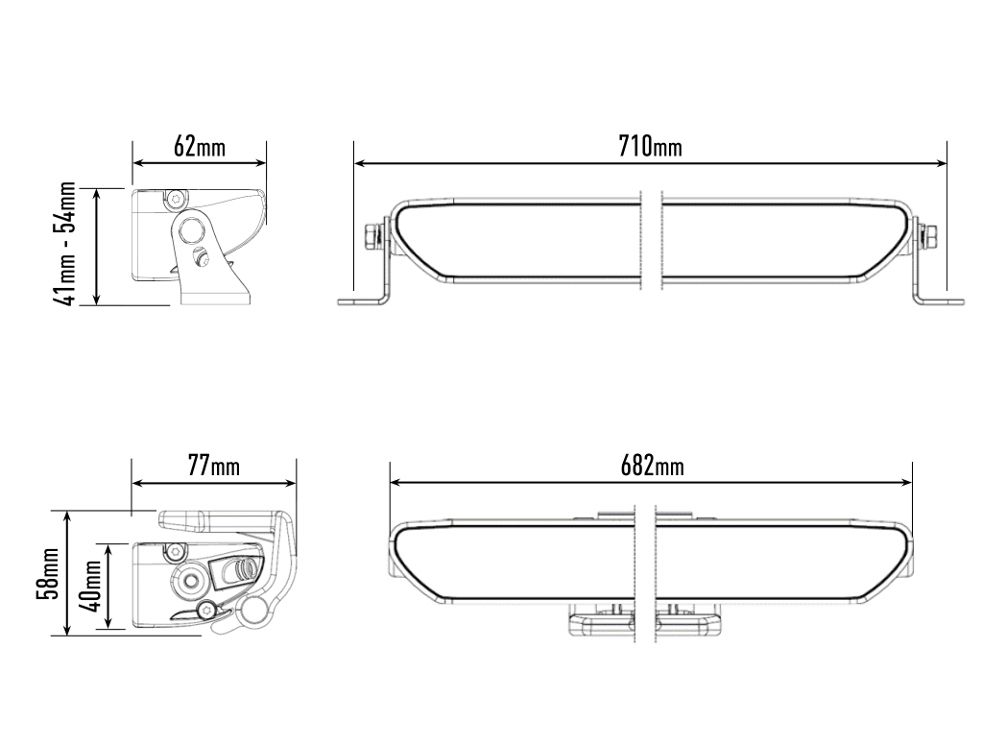

DIMENSIONS
Width 682 mm
Depth 62 mm
Height 40 mm
PHOTOMETRIC DATA
1Lx Line @ 44m
5Lx Line @ 33m
20Lx Line @ 23m
50Lx Line @ 18m*
