Lazerlamps LINEAR 18 ELITE with DRL - 18" Slimline Driving Light

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear-18 Elite support dual-output functionality, where in certain countries the requirement is for a lower UNECE E-mark reference. The lower output mode is enabled through application of the ‘Linear E-mark Cap’ – sold separately.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

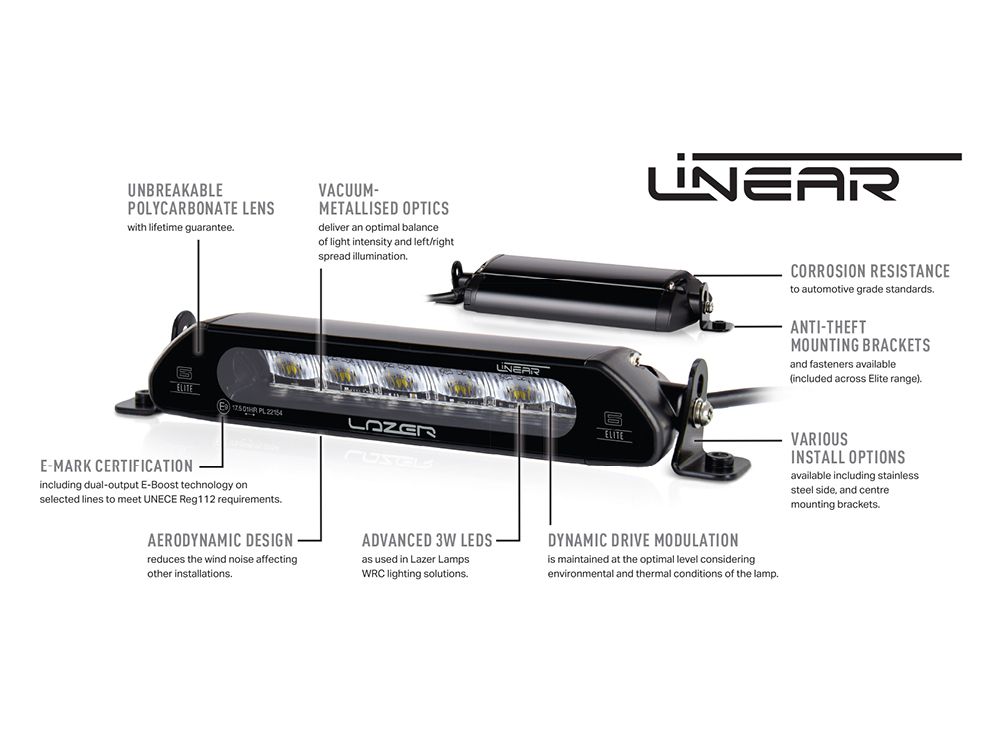

Combination of highly efficient 3W ‘premium bin’ LEDs

Integrated position light function

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Flexible mounting options – anti-theft side mounting brackets included

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function

UNECE approved Reg 7 for on-road position light function

UNECE approved Reg 10

IP68 watertight

5 year warranty

Supplied with pre-wired male/female 3-pin Superseal connectors

Designed and manufactured in UK

Voltage Range (DC)    10-32V
LED Life    50,000 hrs
Weight    1.09 kg
HIGH BEAM FUNCTION
Total Luminous Flux    12,150 Lm
Total Driver 'FOV' Flux †    8,651 Lm
Colour Temperature    5000K
Power Consumption    126 Watts
Current Draw (14.4V)    8.8 Amps
Peak Current Draw    10.3 Amps
Connector    3-Pin Superseal (+20cm Cable)
CERTIFICATION
IP Rating #    IP68
High Beam (E9 approval)    ECE R112 - Ref: 45
Position Light (white)    ECE R7
EMC Certification    ECE R10
Salt Spray Test    ISO 9227
Dump Load Protection    ISO 7637-2
