Victron Energy Phoenix Pure Sine Wave Inverter - 24V/375W (VE.Direct-enabled)

The Phoenix 24/375 VE.Direct inverter allows you to power domestic equipment “ requiring 230V “ using leisure or automotive batteries rated at 12V, 24V or 48V DC.

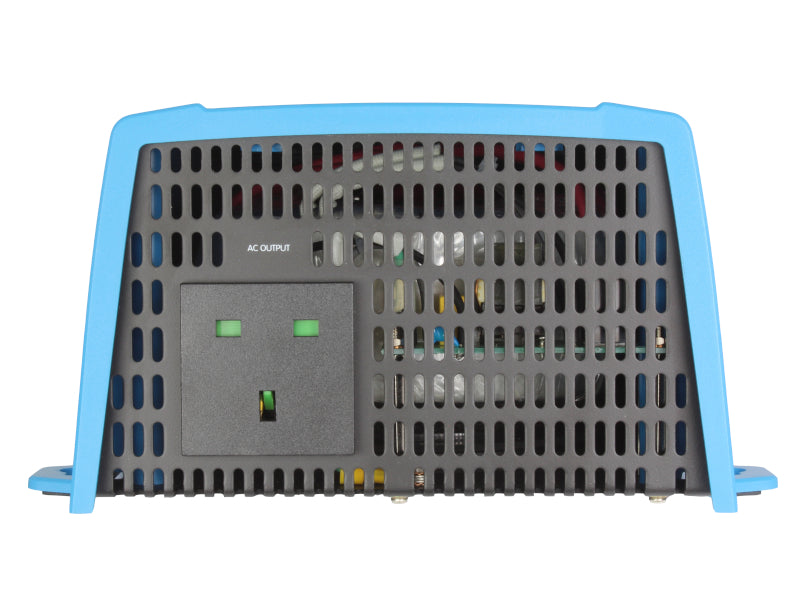

This unit has the UK plug.

Features of the Phoenix Inverter 24/375 VE.Direct

VE.Direct communication port

The VE.Direct port can be connected to:

A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, MacBooks and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage 210 “ 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level

Monitoring:

In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The Phoenix Inverter 24/375 VE.Direct are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the Phoenix Inverter 24/375 VE.Direct will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

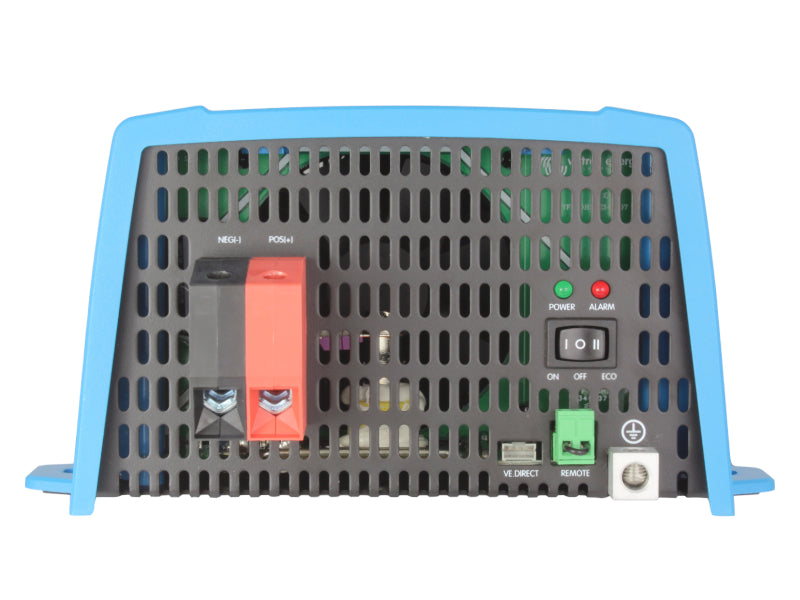

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

DC connection with screw terminals

Monitor, operate & control your system

VictronConnect lets you get live status information and configure your Phoenix Inverter 24/375 VE.Direct when connected to a VE.Direct Bluetooth Smart Dongle.

Brand
Victron Energy

Manufacturer Part Number
PIN241371400

GTIN
8.72E+12

Voltage
24V

Cont. Output Power at 25°C
375VA

Peak Power
700W

Output AC Voltage
230V

Protection Category
IP21

Efficiency
89%

Plug Type
UK

Dimensions
H86 x W165 x D260mm
