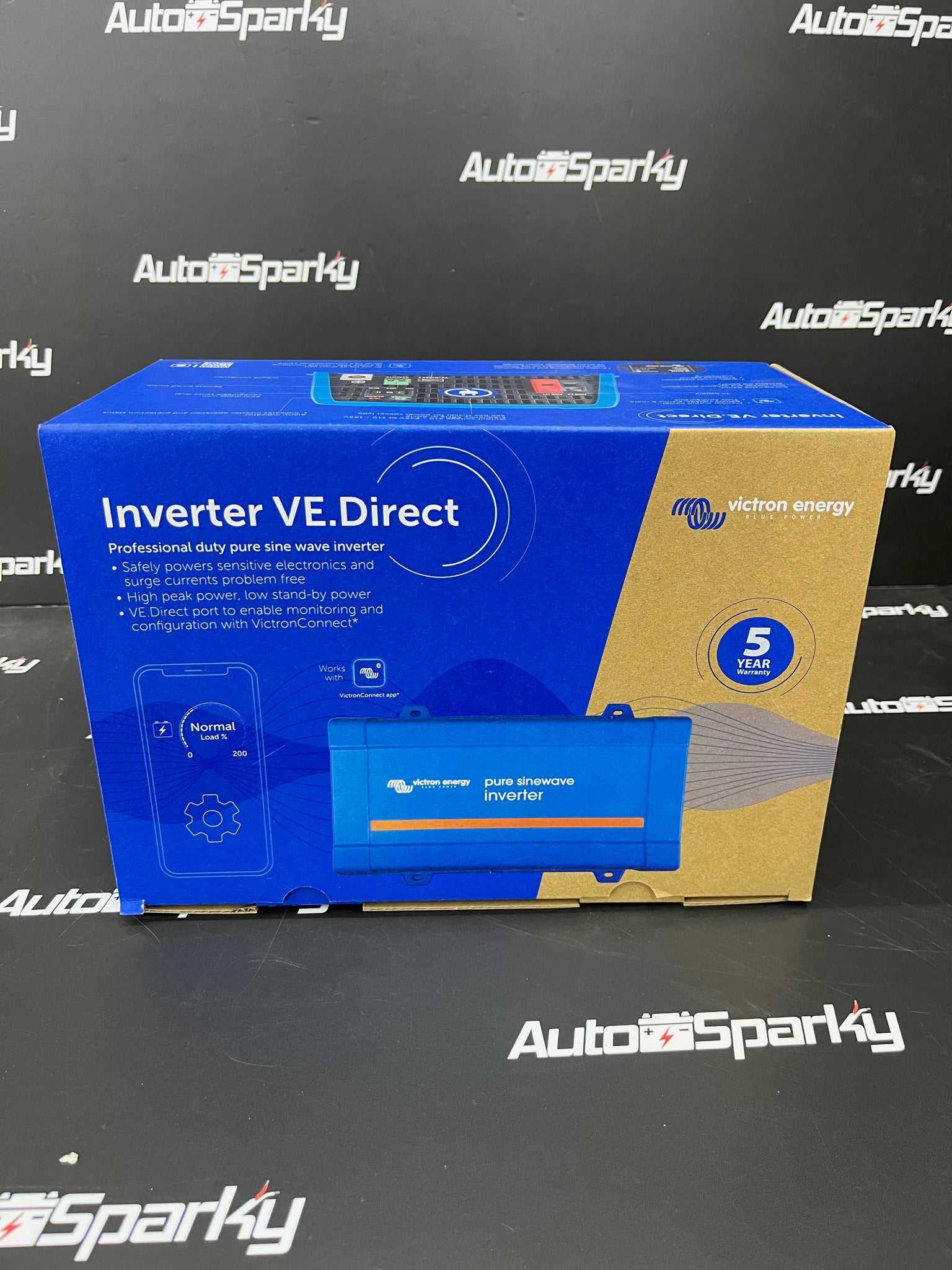

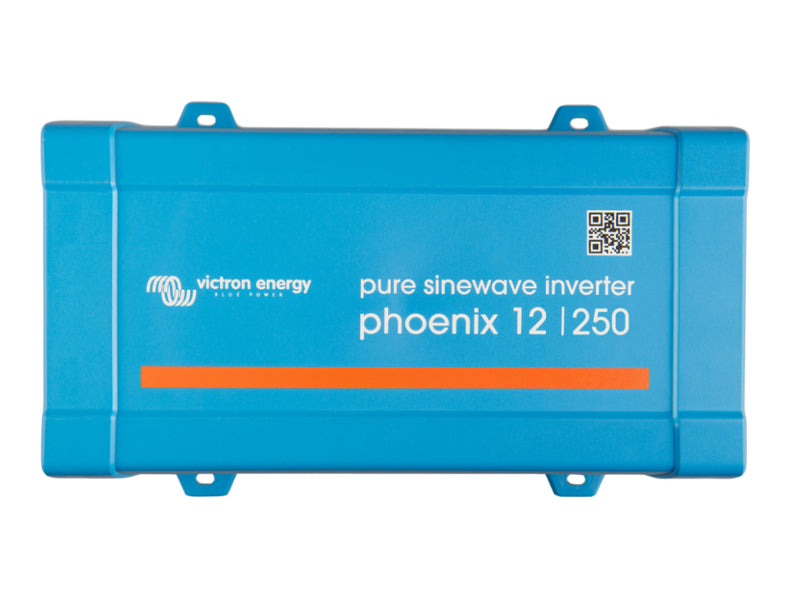

Victron Energy Phoenix Pure Sine Wave Inverter - 12V 250VA (VE.Direct-enabled)
The 250VA 12V Phoenix Pure Sine Wave inverter from Victron Energy has been developed for professional duty in the widest possible range of applications. The technology employed has proven its reliability over many years and is designed to run at optimal efficiency, offering extremely high performance regardless of the load being powered. This inverter has a pure sine waveform output so will power any 240V electrical appliance with none of the problems that can be associated with modified sine wave inverters. One of its main features is the ability to provide a very high start-up power output, easily powering-up difficult loads such as computers and low power electrical tools.
This inverter also has a VE.Direct port that enables communication with external devices. By connecting an optional Bluetooth Smart Dongle to the VE.Direct port you can configure and monitor the inverter from your Apple or Android device via the Victron Connect app.
Please note: Cables are not included. We recommend using 6.0mm²-8.5mm² cable.
Suitable for use in caravans, motorhomes, campervans, cars, boats, off-road, industrial and commercial vehicles.
Features
Pure sine wave output
Extra start-up power
LED fault diagnosis
ECO mode
Remote On/Off switching
Output short circuit protection
Battery voltage low/high protection
Power overload protection
Thermal overload protection
5-year manufacturer's warranty
Specifications
Manuals & Guides
Customer Reviews (3)
Victron Energy is at the cutting edge of power management technology, offering a range of innovative and highly reliable products for every leisure application. This highly respected brand has a wealth of experience in the automotive, industrial, off-grid, marine, energy-storage and telecoms sectors.
Input voltage rating: 9.2 - 17.0VDC
Output voltage: 230VAC +/- 3%
Continuous AC power at 25°C: 250VA
Continuous power at 25°C/40°C: 200/175W
Peak power: 400W
Max. efficiency: 87%
No-load power consumption: 4.2W
Default zero load power in ECO mode: 0.8W
Operating temperature: -40°C to +65°C (fan assisted cooling)
DC low shut down: 9.3V (adjustable)
Dynamic (load dependent) DC low shut down: Fully configurable
DC low restart and alarm: 10.9VDC (adjustable)
Battery charged detect: 14.0V (adjustable)
Cable connection: Screw clamp terminals (cable size 10mm² max.)
Output socket: BS1363 UK 3-pin socket
Remote On/Off connection: 2 pole connector
Ingress Protection rating: IP21
Body material: Steel with plastic cover (blue RAL5012)
Mounting holes: x4 on sides of chassis
Weight: 2.4kg
Overall dimensions: 260 (L) x 165 (W) x 86 (H) mm
