CANNY is a CAN interface, developed by Lazer Lamps, that enables installation of auxiliary lights for selected vehicles using CAN communication systems, where it is otherwise not possible to pick up 12V lighting signals at the back of the vehicle headlamp, for example. Comprising a CANNY dongle, plus wiring loom, and supported by a dedicated app (CANNY.LZR), the system benefits from being able to mount within your vehicle’s engine bay for faster and easier installation, or inside the vehicle. Over-the-air Bluetooth synchronisation and updates further the system's ease of use and speed of installation.

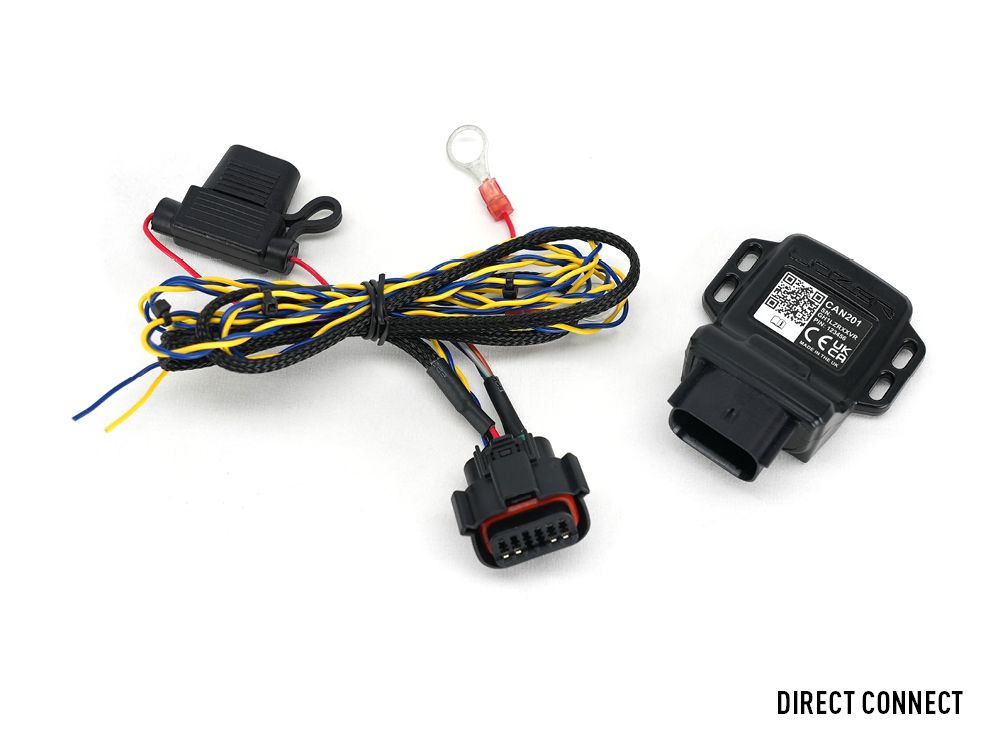

The CANNY dongle comprises an automotive-standard Molex connector, ensuring a completely watertight solution to IP68 (IP64 on the Contactless Reader). Integrated design features and included cable ties facilitate mounting of the unit. Locating the device within the engine bay is preferable for ease of installation, but is dependent on the CAN Hi / CAN Lo wires' pick-up location on each vehicle.

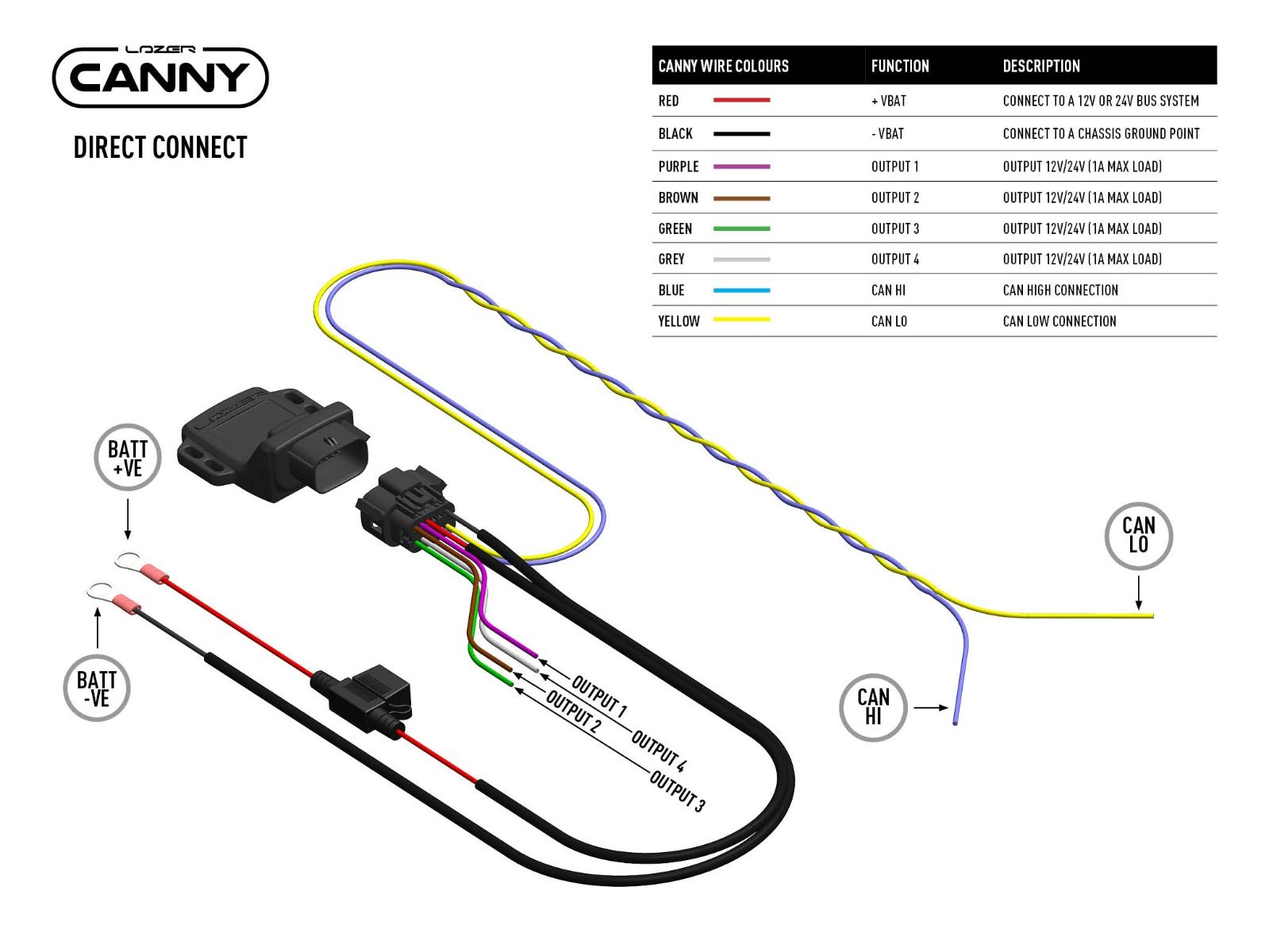

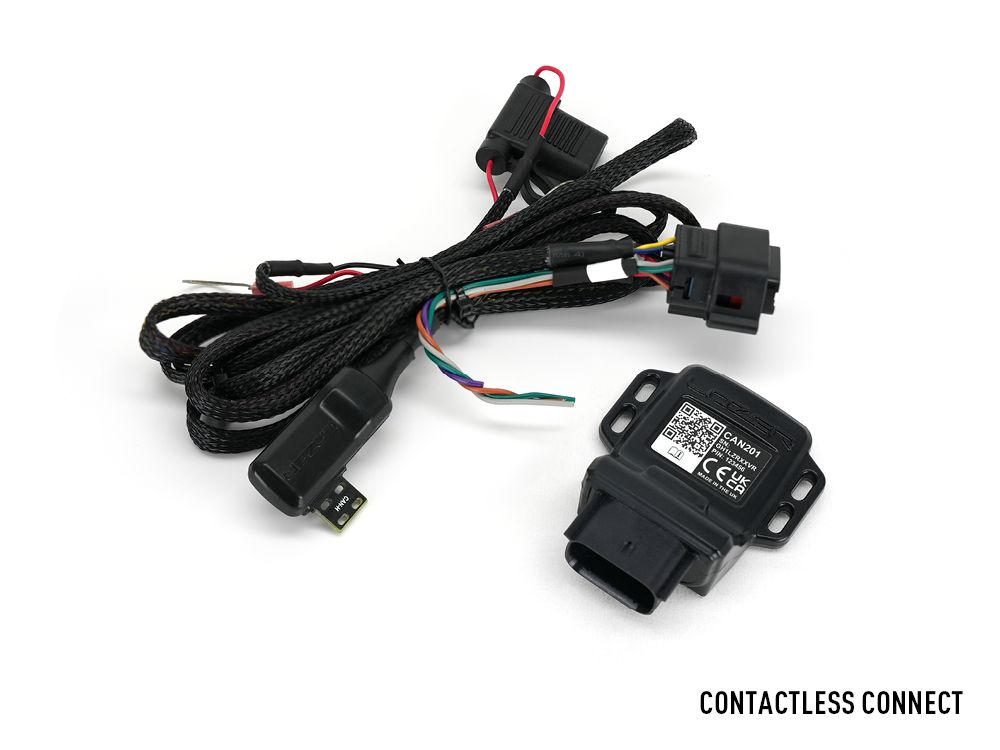

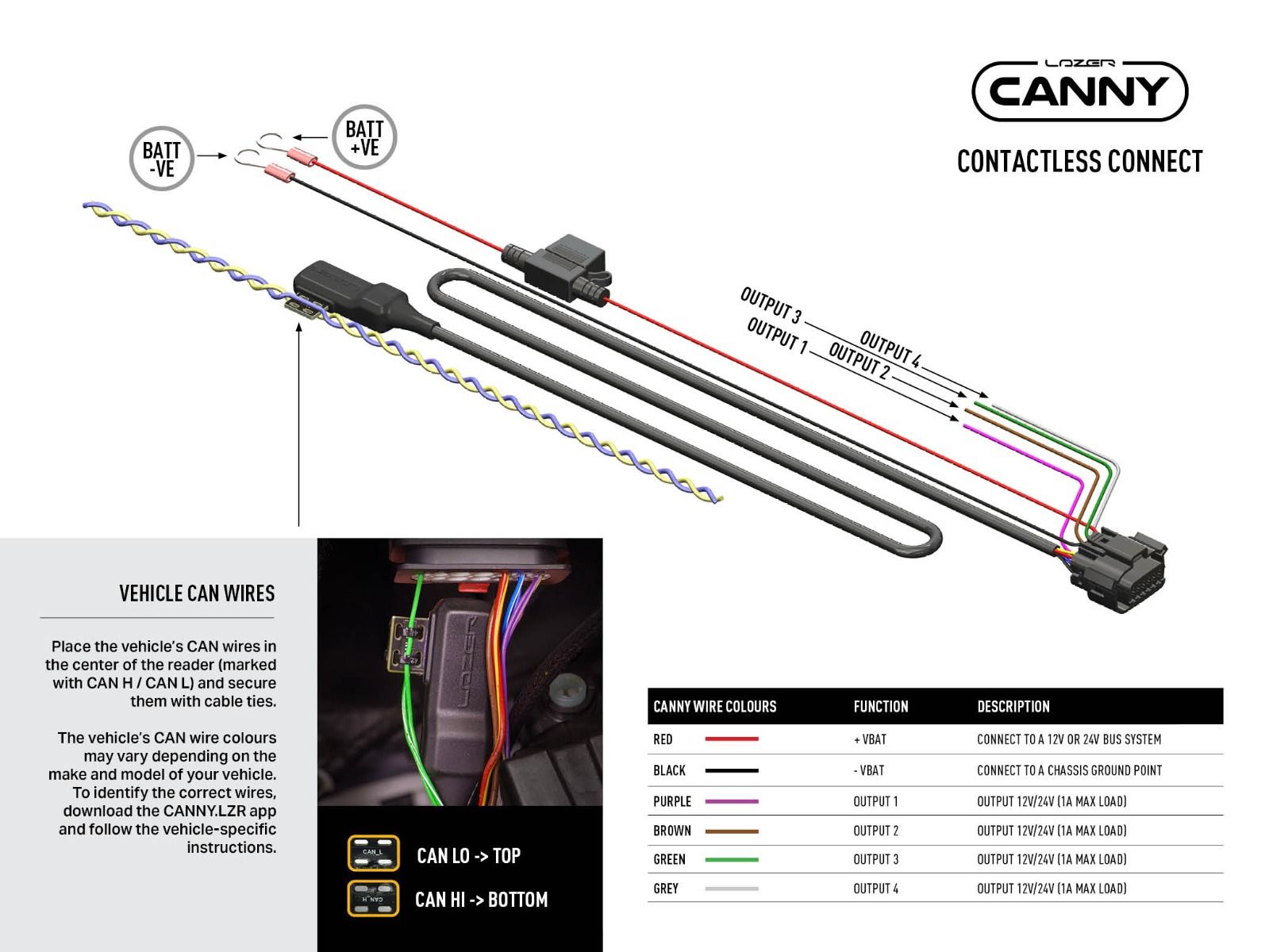

Connection to the vehicle CAN wires is made via the supplied wiring loom, with the blue (CAN Hi) and yellow (CAN Lo) wires supplied with automotive-grade heat-seal crimps for completing watertight connections. Alternatively, for customers not wanting to cut the CAN Hi/CAN Lo wires, a version is available with a Contactless Reader allowing vehicle data to be read without any metal-to-metal connection between the interface and vehicle CAN wiring. The supplied wiring loom also includes a fused battery positive connection and ground wire. Additionally, 4 output wires, each programmable to respond to different inputs; high beam, position light, ignition, reverse etc., and compatible with any of our vehicle wiring kits (where the required output is >1Amp).

Activation, synchronisation, and ongoing updates of your CANNY dongle are achieved through the app. Having gained full access via the unique serial number and PIN on your device, users can then access installation guides for their vehicle, before pairing with the device, and assigning and testing the different lighting functions. Updates, for example, following a vehicle manufacturer making changes to the CAN ‘recipes’, can also be completed via Bluetooth.

IP68 Waterproof CANNY dongle with Molex connector terminal

Contactless Reader option available (IP64 compliant)

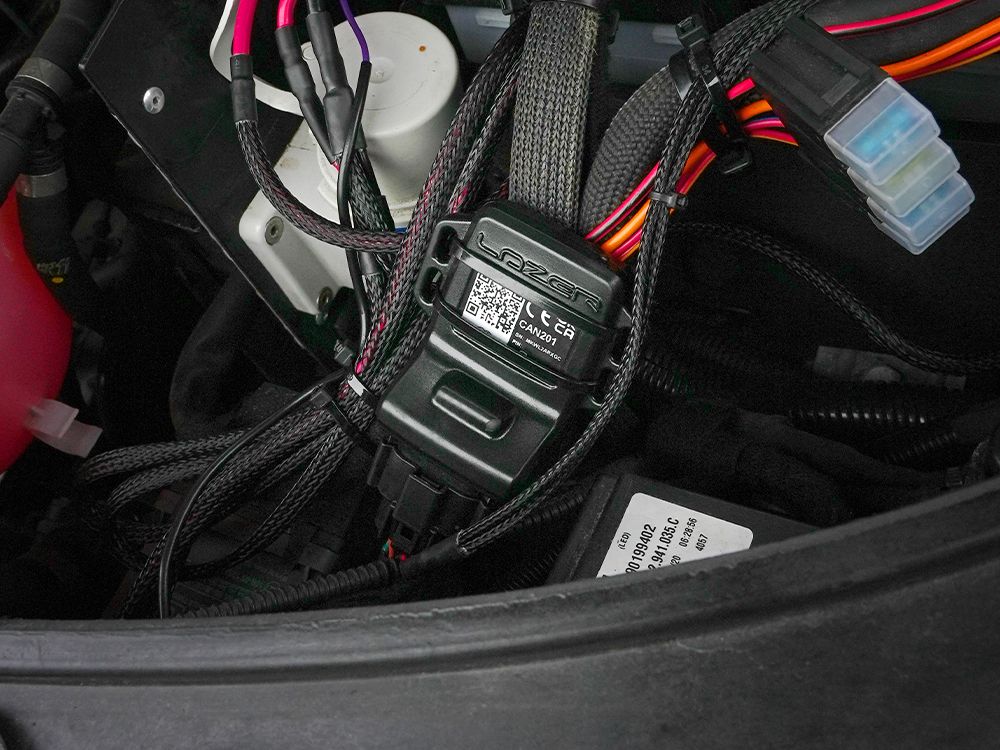

Suitable for both engine-bay or in-car mounting

Connects to vehicle CAN wires (locations of CAN wires and connection methods supplied via vehicle specific instructions, downloadable through APP, after purchase)

Activates up to 4 x different output (e.g. High Beam, Position Light, Reverse, Ignition)

Bluetooth (over the air) updates via CANNY app – available on Android and iOS

Technical Support from UK Sales Team

Compatible with vehicle-side wiring harness kits (sold separately)

Fast and user-friendly installation procedure

VEHICLE COMPATIBILITY LIST

Audi    A1    2020    LED    High Beam
Audi    A3    2021    LED    High Beam
Audi    A3    2023    LED    High Beam
Audi    A4    2017    LED 8IT 8G0 8Q3 PX2    High Beam
Audi    A4    2020    LED    High Beam
Audi    A5    2017    LED    High Beam
Audi    A6    2020    LED    High Beam
Audi    A8    2017    LED    High Beam
Audi    E-Tron GT    2022    LED    High Beam
Audi    E-tron    2020    LED    High Beam
Audi    Q2    2022    LED    High Beam
Audi    Q3    2020    LED    High Beam
Audi    Q7    2016    LED Matrix    High Beam
BMW    1 Series (F20)    2018    LED Adaptive    High Beam
BMW    1 Series (F40)    2020    LED    High Beam
BMW    2 Series Hybrid    2020    LED    High Beam
BMW    3 Series    2017    LED    High Beam
BMW    4 series    2018    LED    High Beam
BMW    5 series    2018    LED    High Beam
BMW    X1    2019    LED    High Beam
BMW    X1    2021    LED    High Beam
BMW    X1    2023    LED    High Beam
BMW    X2    2019    LED    High Beam
BMW    X3    2020    LED    High Beam
BMW    X4    2020    LED    High Beam
BMW    X5    2015    F15 XENON & LED    High Beam
BYD    Han    2023    LED    High Beam
BYD    Seal U    2024    LED    High Beam
BYD    Tang    2024    LED    High Beam
Bentley    Bentayga    2018    LED    High Beam
Citroën    C5X    2023    LED    High Beam
Cupra    Born    2023    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Cupra    Formentor    2023    LED    Low Beam Lights
High Beam Lights
Position Lights
Brake Lights
Reverse Lights
Ignition
Ford    Explorer Hybrid    2020    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Ford    F-150 Lightning    2023    LED    High Beam
Ford    Ranger WILDTRAK/LIMITED/XLT    2023    Level 2 Headlight NOT RAPTOR OR PLATINUM    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Ford    Tourneo connect    2024    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Ford    Transit Connect    2024    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Ford    Transit Custom    2018    Euro 6 Manual    Low Beam Lights
High Beam Lights
Position Lights
Break Lights
Reverse Lights
Indicator Right Lights
Indicator Left Lights
Ignition
Honda    CR-V e:PHEV    2023    LED    High Beam
Honda    Civic e:HEV    2022    LED    High Beam
Honda    HR-V Hybrid    2022    LED    High Beam
Honda    ZR-V e:HEV    2023    LED    High Beam
Honda    e:Ny1    2023    LED    High Beam
Isuzu    D-max    2023    LED    High Beam
Jaguar    E-PACE    2020    LED    High Beam
Jaguar    F-PACE    2021    LED    High Beam
Jaguar    I-PACE    2021    LED    High Beam
Jeep    Gladiator    2018    JT LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Jeep    Wrangler    2018    JL LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Kia    EV9    2023    LED    High Beam
Land rover    Defender L663    2020    Matrix LED    Low Beam Lights
High Beam Lights
Position Lights
Brake Lights
Ignition
Reverse Lights
Land rover    Defender L663    2020    LED    High Beam
Position Light
Low Beam
Reverse
Ignition
Land rover    Defender L663    2020    LED with Signature DRL    High Beam
Position Light
Low Beam
Reverse
Ignition
Land rover    Discovery sport    2020    LED premium    High Beam
Land rover    Range rover evoque    2020    LED premium    High Beam
Land rover    Range rover velar    2020    LED premium    High Beam
Lexus    ES300h    2020    LED-AHB    High Beam
Lexus    IS300h    2016    Quad LED-AHB    High Beam
Lexus    RZ    2023    LED    High Beam
Lexus    UX250h    2019    LED-AHB    High Beam
Lexus    UX300e    2020    LED-AHB    High Beam
MAN    TGE    2024    LED 2024 Facelift    High Beam Lights
Mazda    2    2022    LED HI-AHB    High Beam
Mercedes    A-Class    2017    LED    High Beam
Mercedes    A-Class    2019    LED    High Beam
Mercedes    B-Class    2017    LED high performance    High Beam
Mercedes    CLA    2021    Multibeam LED    High Beam
Mercedes    E-Class    2013    Adaptive LED    High Beam
Mercedes    EQA    2021    LED high performance    High Beam
Mercedes    G-Class    2019    LED 2019-2024    High Beam
Mercedes    GLB    2020    LED high performance    High Beam
Mercedes    GLC    2019    LED high performance    High Beam
Mercedes    Sprinter    2018    LED    High Beam
Position Light
Ignition
Mini    Clubman    2017    Adaptive LED    High Beam
Mini    Cooper    2019    Adaptive LED    High Beam
Mini    Cooper SE    2021    Adaptive LED    High Beam
Mini    Countryman SE All4    2018    LED    High Beam
Mini    Countryman SE All4    2021    LED    High Beam
Opel    Astra    2022    Standard LED    High Beam
Opel    Mokka-e    2021    LED    High Beam
Peugeot    308    2023    LED    High Beam
Peugeot    e3008    2024    LED    High Beam
Peugeot    e5008    2024    LED    High Beam
Polestar    2    2020    Pixel LED    High Beam
Polestar    4    2024    Pixel LED    High Beam
Porsche    Macan    2017    Bixenon    High Beam
Ram Trucks    1500 DT    2018        Low Beam Lights
High Beam Lights
Position Lights
Ignition
Ram Trucks    3500    2015        Low Beam Lights
High Beam Lights
Position Lights
Ignition
Renault    Trafic    2019    LED 2019-2022    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Skoda    Enyaq    2021    LED    High Beam
Skoda    Kodiaq    2020    LED    High Beam
Skoda    Octavia    2020    LED    High Beam
Smart    1    2024    LED    High Beam
Smart    3    2024    LED    High Beam
Subaru    Outback    2019    Adaptive LED    High Beam
Low Beam
Position Light
Ign
Subaru    Outback    2021    LED    High Beam
Suzuki    Across Plug-In Hybrid    2023    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Toyota    Hilux    2025    LED    High Beam
Toyota    Land Cruiser LC250    2024    Adaptive LED (AHS)    High Beam
Low Beam
Position Light
Toyota    Land Cruiser LC250    2024    LED    High Beam
Low Beam
Position Light
Toyota    Land Cruiser LC300    2020    LED    High Beam
Low Beam
Position Light
Ignition
Toyota    Land cruiser 150    2019    LED AHB    High Beam
Toyota    Rav4 Hybrid    2019    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Toyota    Rav4 Plug-in Hybrid    2020    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Toyota    Yaris    2020    LED    High Beam
Low Beam
Position Light
Ignition
Toyota    Yaris GR    2020    2020-2023 Pre Facelift ONLY    High Beam
Low Beam
Position Light
Ignition
Toyota    bZ4x    2023    LED    High Beam
Low Beam
Position Light
Ignition
Volkswagen    Amarok V6    2016    Xenon    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Volkswagen    Arteon    2021    LED    High Beam
Volkswagen    Caddy    2021    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Volkswagen    Crafter    2024    LED 2024 Facelift    High Beam Lights
Volkswagen    Golf 7.5    2019    LED    High Beam
Volkswagen    Golf MK8    2020    LED    Low Beam Lights
High Beam Lights
Position Lights
Reverse Lights
Ignition
Volkswagen    ID.4    2020    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Volkswagen    ID.Buzz    2023    LED    High Beam
Volkswagen    Multivan    2022    LED    Low Beam Lights
High Beam Lights
Position Lights
Brake Lights
Reverse Lights
Ignition
Volkswagen    Passat    2020    LED Matrix    High Beam
Volkswagen    Passat    2024    LED    High Beam
Volkswagen    Passat 3G    2016    LED    High Beam
Volkswagen    Sharan    2020    Bixenon 8IP 8G3 8Q5 PXX    High Beam
Volkswagen    T-Cross    2020    LED    High Beam
Volkswagen    T-Roc    2020    LED    High Beam
Volkswagen    Tiguan    2021    IQ Light    High Beam
Volkswagen    Touareg    2016    BiXenon    High Beam
Volkswagen    Transporter T6.1    2019    Halogen    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Volkswagen    Transporter T6.1    2019    LED    Low Beam Lights
High Beam Lights
Position Lights
Ignition
Volvo    C40    2022    Pixel LED    High Beam
Volvo    EX30    2024    LED    High Beam
Volvo    S/V60    2020    Recharge LED    High Beam
Volvo    S/V90    2018    LED    High Beam
Volvo    S/V90    2021    Recharge LED    High Beam
Volvo    Xc40    2018    LED    High Beam
Volvo    Xc40    2021    Recharge LED    High Beam
Volvo    Xc60    2021    LED & Adaptive LED    High Beam
Volvo    Xc90    2018    LED    High Beam
Volvo    Xc90    2021    Recharge LED    High Beam
