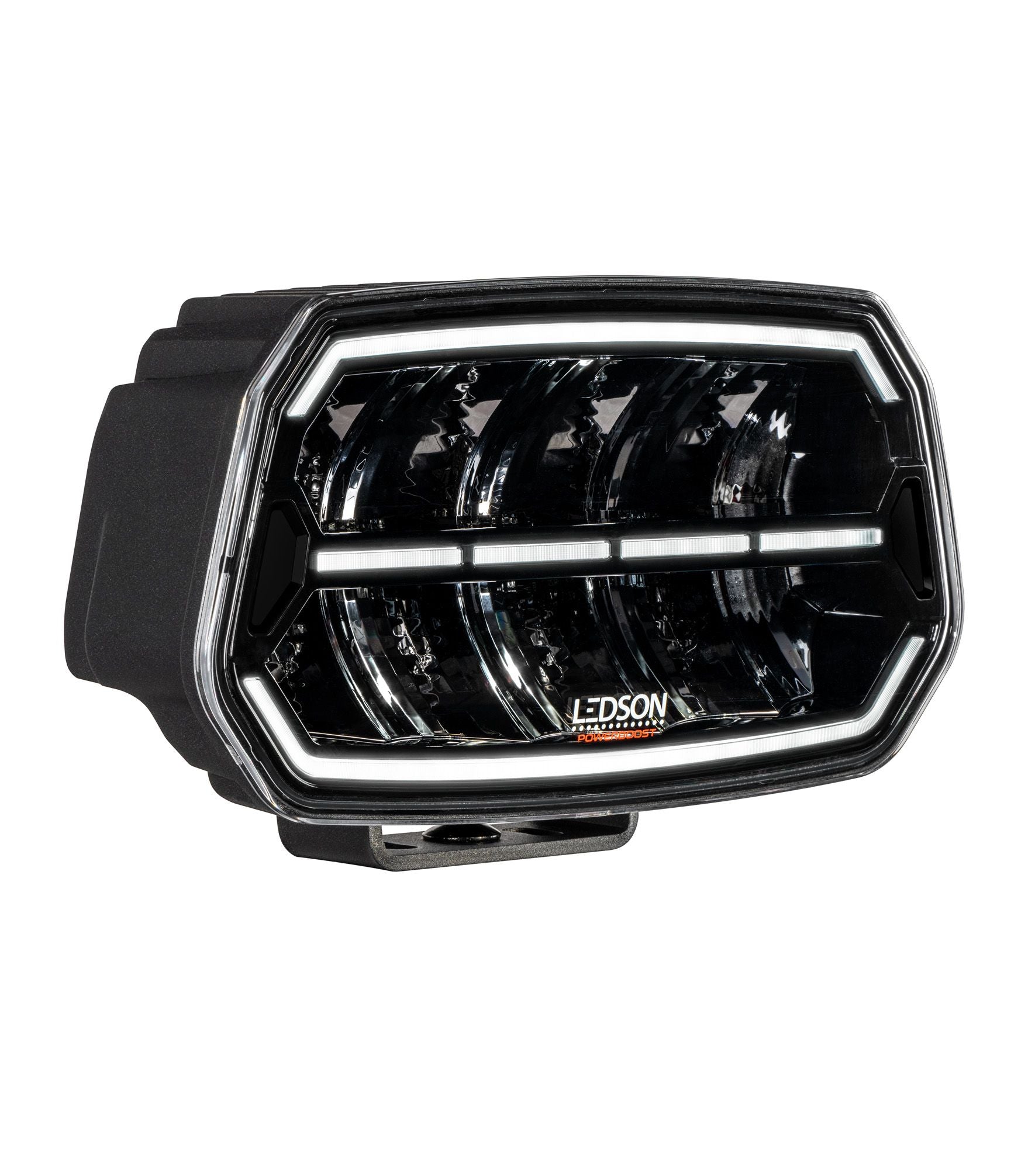

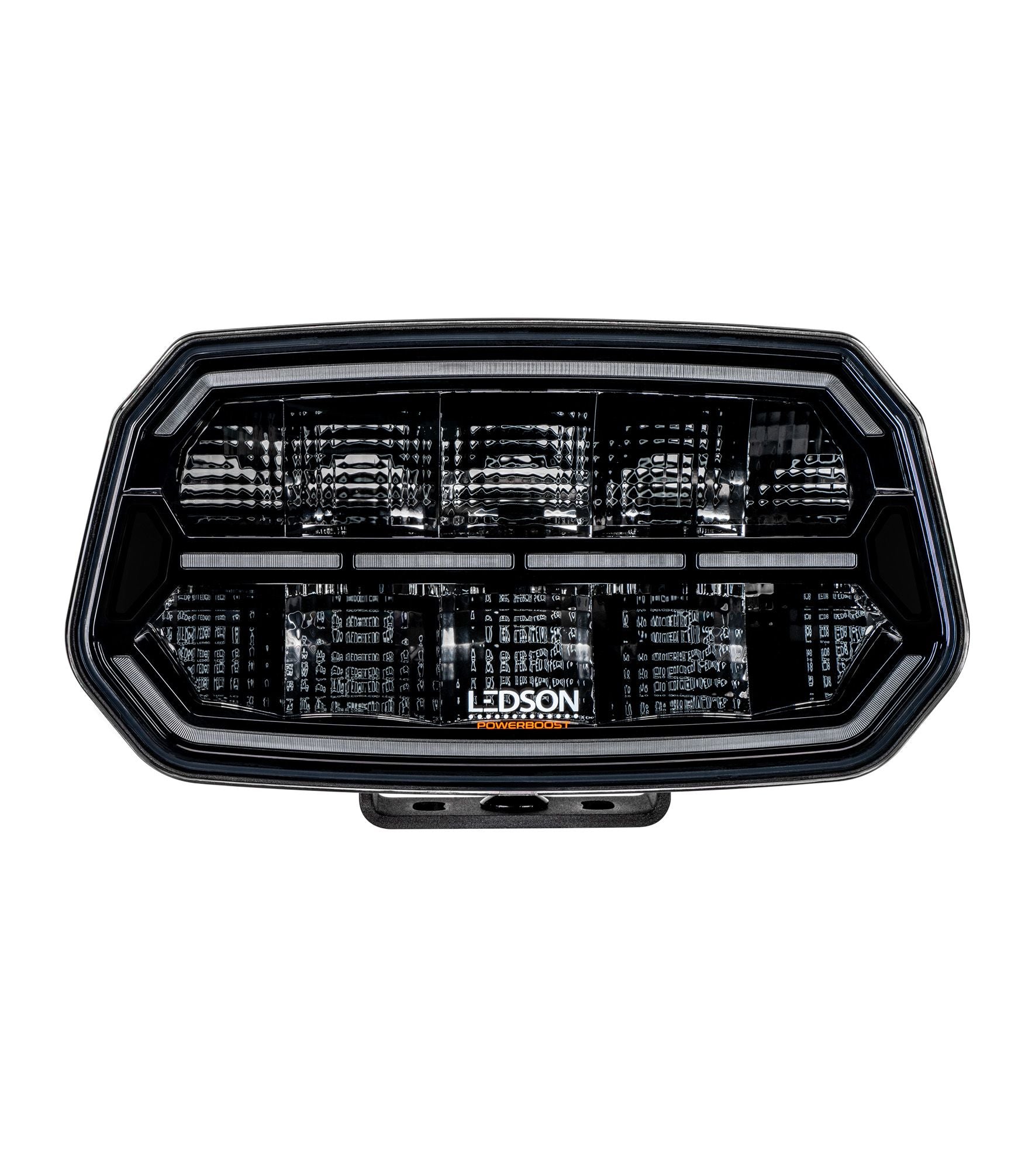

Epix10+ Auxiliary Driving Light 10" (Powerboost) 11,500Lumens - Amber or White DRL - LEDSON
✓ High-performance auxiliary light with a unique appearance
✓ Powerboost allows you to choose the intensity you prefer
✓ Design that attracts attention, both when it´s on and off
Ledson developed Swedish design
Epix10+ from Ledson is an innovative series of auxiliary lights that elevate your vehicle to the next level. With a Swedish design (developed in-house by Ledson) and outstanding performance, these auxiliary lights give your vehicle a truly unique and exclusive look that’s guaranteed to attract attention! Experience exceptional brightness and design in perfect harmony.
Dynamic Position Light
Epix10+ activates its position light dynamically, with an impressive sweeping motion that elegantly guides the light from one side of the auxiliary light to the other before fully illuminating. This effect gives you and your vehicle a distinct and unique signature.
Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This
Epix10 comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash
Features and technical specifications:

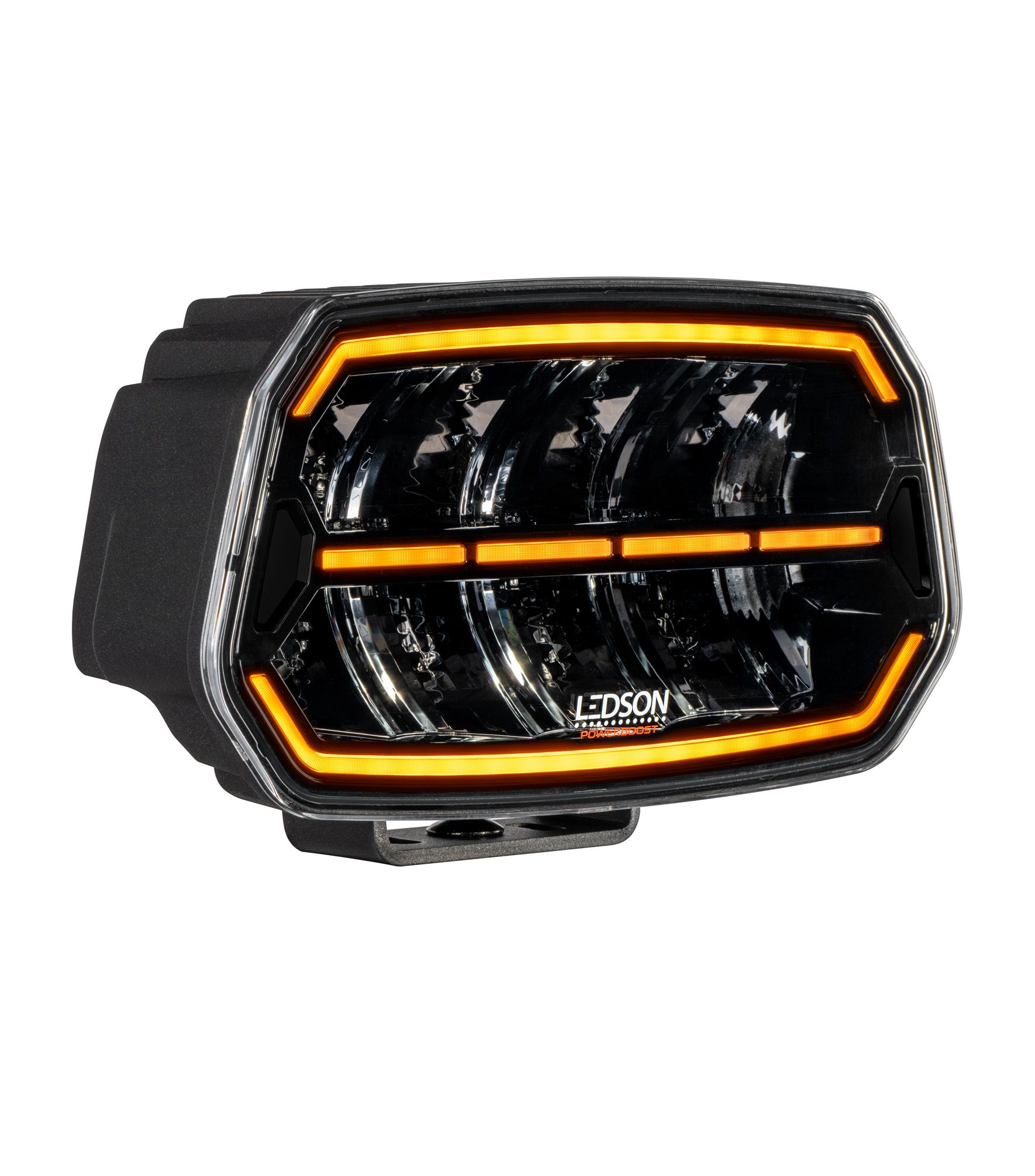

Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)
Range in E-approved mode: 359 m (1 lux)
Range in Powerboost mode: 647 m (1 lux)
Driving beam pattern: Enhances the vehicle's standard high beam pattern
E-marked: ECE R112 (Ref. 30), R7 (White position light)
EMC certified: ECE R10 (does not interfere with radio)
E-approved mode: 2 640 lumens (theoretical), 2 112 lumens (actual)
Powerboost mode: 11 500 lumens (theoretical), 8 200 lumens (actual)
Neutral white light: 5000K
ETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespan
Side-reflecting optical system
Pressure equalization membrane

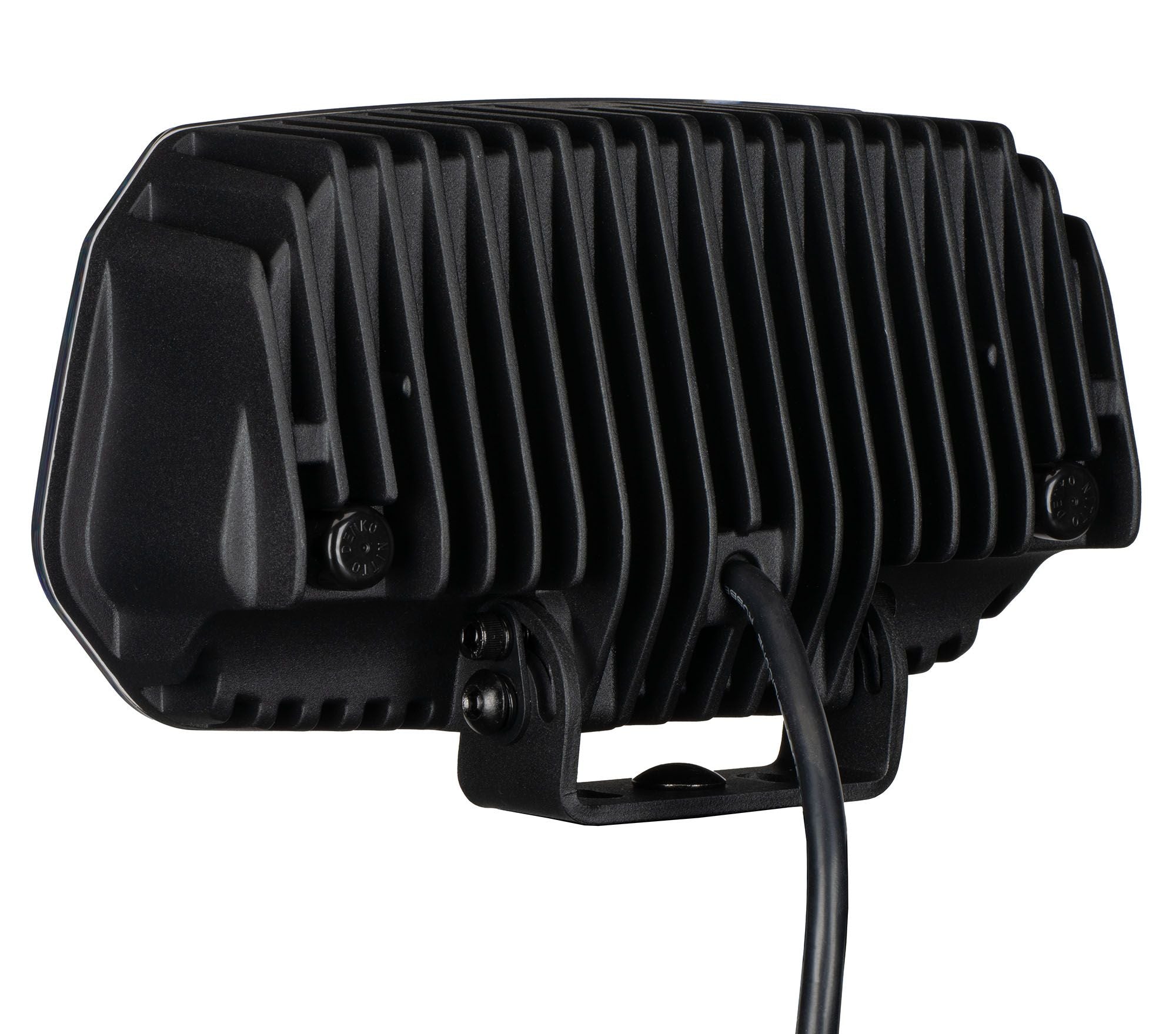

Aluminum heat sink
Adjustable stainless steel mount
Polycarbonate lens
36-month warranty
Technical data:
150W (10 x 15W Cree LED)
Nominal Power: 150W (Powerboost)
IP69K (water and dust proof)
Cable with 4-pin DT Connector
Voltage: 9-36 V
Load in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)
Load in High Beam Powerboost Mode: 10,6A @ 12V and 4,8A @ 24V (high beam only, no position light)
Dimensions & Weight:
Width: 247 mm
Height: 145 mm (incl bracket)
Depth: 86 mm
Weight: 1,6 kg
Included:
One Ledson Epix10+ LED auxiliary light 10"
Mounting bracket, bolts, and screws for single or dual mounting points
DT Connector (4-pin) (you will also need a DT harness found here)
Cable instructions (detailed instructions included)
Red: Auxiliary light (+)
Black: Auxiliary light / Position light (- Ground)
White: Position light (+) White light
Yellow: Position light (+) Yellow-orange light
Note: The DT connector must not be cut, as this increases the risk of moisture damage and will void the warranty.
