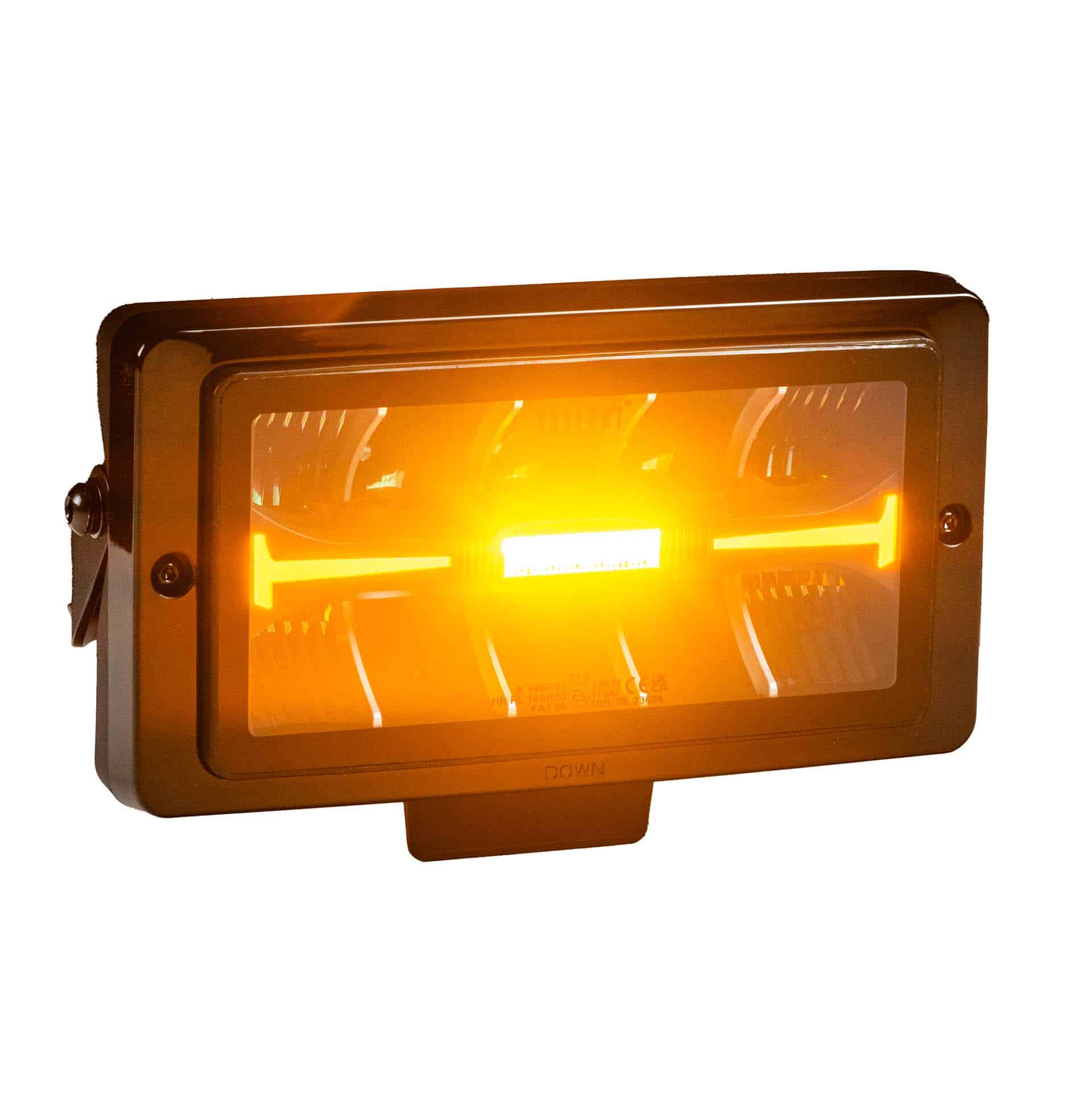

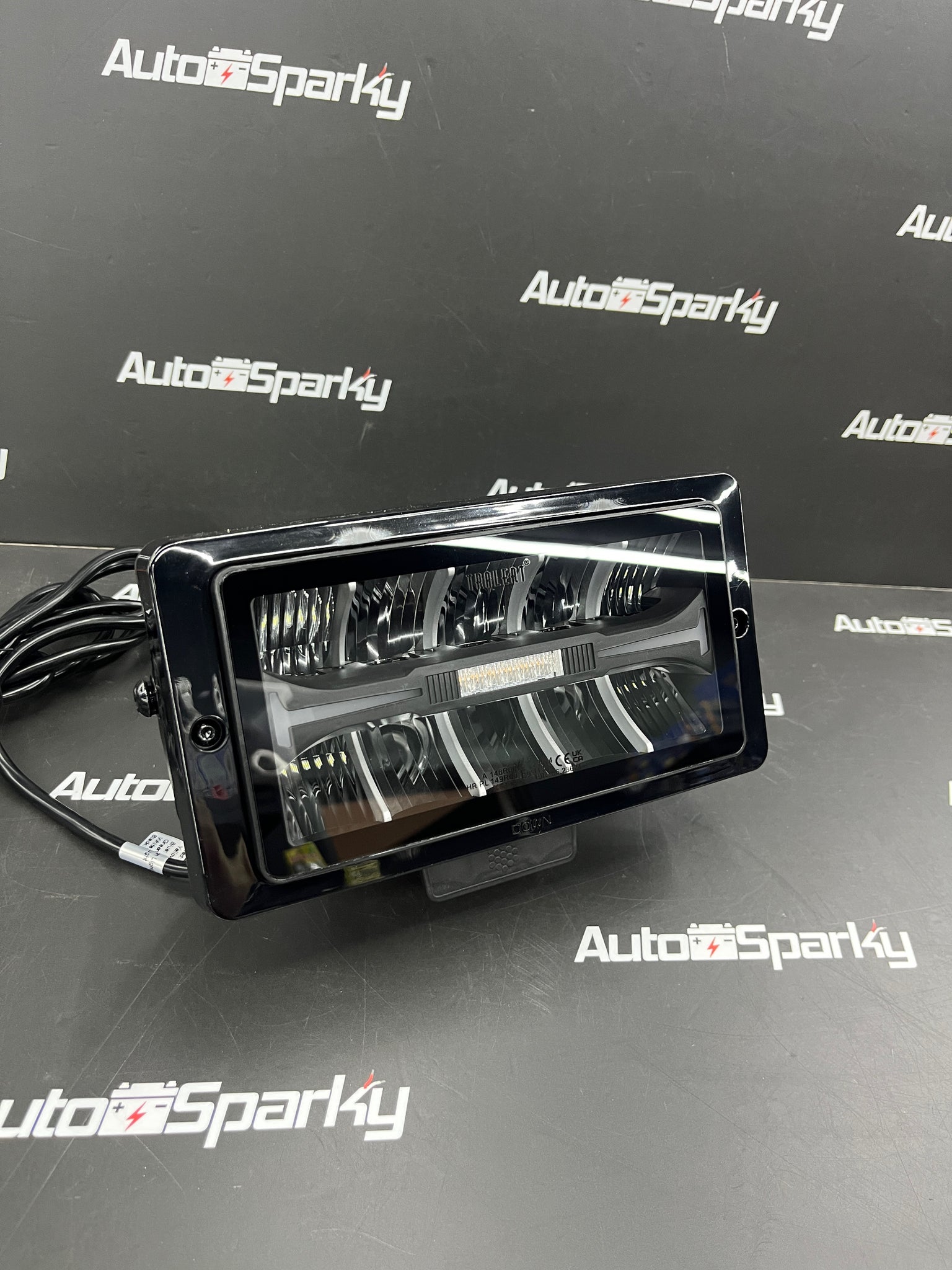

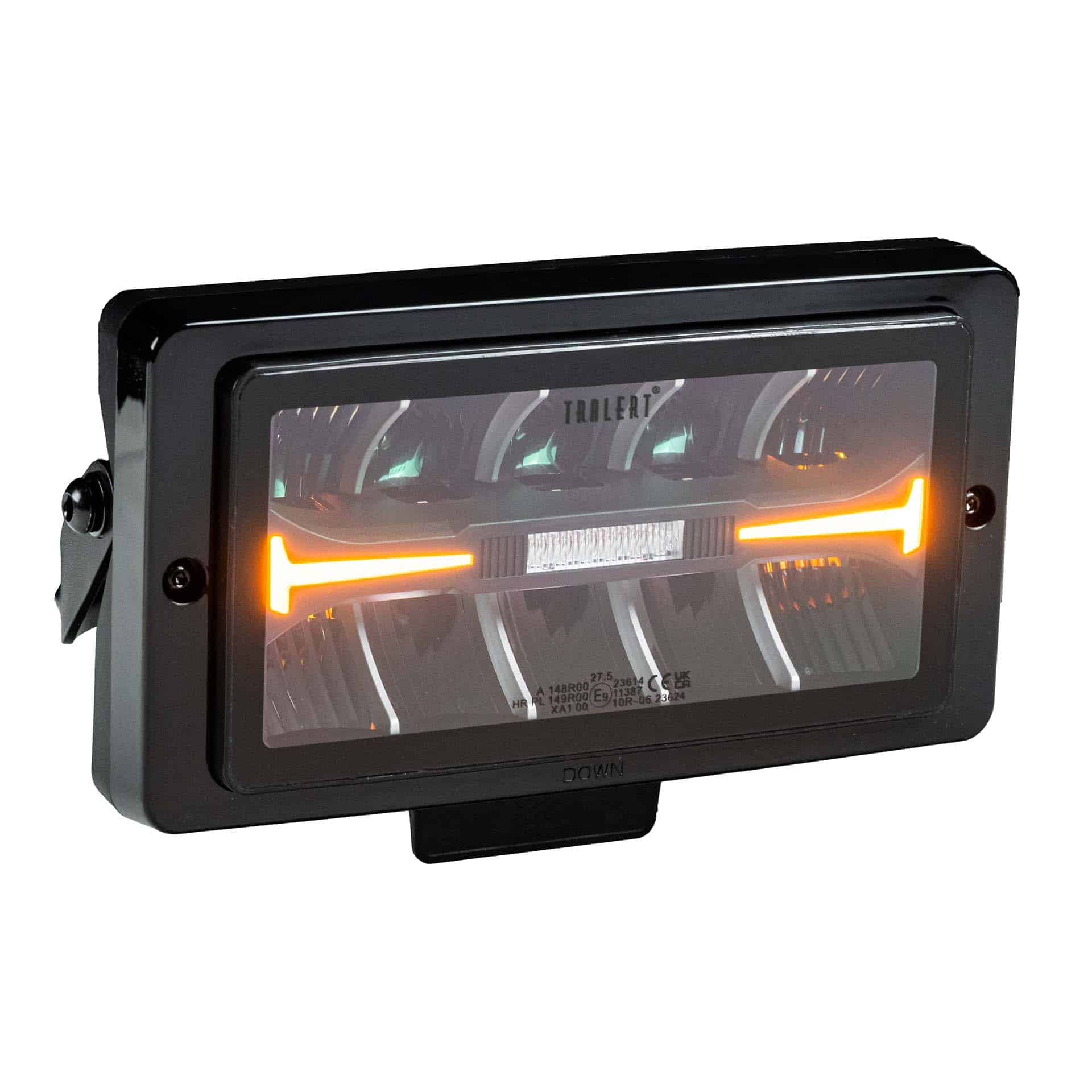

Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe
Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe

Tralert Atlas 220+ Old Skool Rectangle LED Driving Light - Amber or White DRL & Amber Strobe

Tax included. Shipping calculated at checkout.

The TRALERT® Atlas serie includes this LED driving light with Driving Beam light image, suitable for vehicles requiring targeted forward lighting combined with signalling capabilities. The housing and lens are both made of polycarbonate, which contributes to increased impact resistance and durability. Thanks to its 10-30 V voltage application and 6,000 lm light output, the driving lights can be used in a variety of vehicle specifications within the commercial and industrial sectors.

This LED driving light features a warning light function and is equipped with amber-white duo-coloured position lights. The open wire end and 300 cm long cable allow adaptation to specific installations. The dimensions of 250 x 137 x 89.2 mm make the unit compatible with common mounting surfaces. The driving lights meet IP69K and are certified according to CE, ECE-R10, ECE-R148, ECE-R149 and ECE-R65.

Plus points of this series:
- Driving lights in popular dimensions
- Equipped with duo-color position lights as standard
- Optionally available with built-in R65 LED warning lights
- RFT lens technology for an ideal beam

General
Voltage
10-30v
Certification
CE , ECE-R10 , ECE-R148 , ECE-R149 , ECE-R65
Warranties
3 years
Brand
TRALERT®
Suitable for:
Trucks
Dimensions
Dimensions
250 x 137 x 89.2mm
Shape
Rectangular
Light image
Light image
Driving Beam
Light colour
Amber, white
Warning light colour
Amber
Lumen
6000 lumens
Light range
1 lux @ 280m
Position lights
Yes
White position lights
Yes
Amber position lights
Yes
Reference number
25
Materials
Housing material
Polycarbonate
Housing colour
Black
lens material
Polycarbonate
Lens colour
Transparent
Technical
Connectors
Open wire end
Cable length
300cm cable
Wattage
58 Watt
Lumen
6000 lumens
Protection class
IP69K
Power consumption
12V: 2.85A / 24V: 1.38A

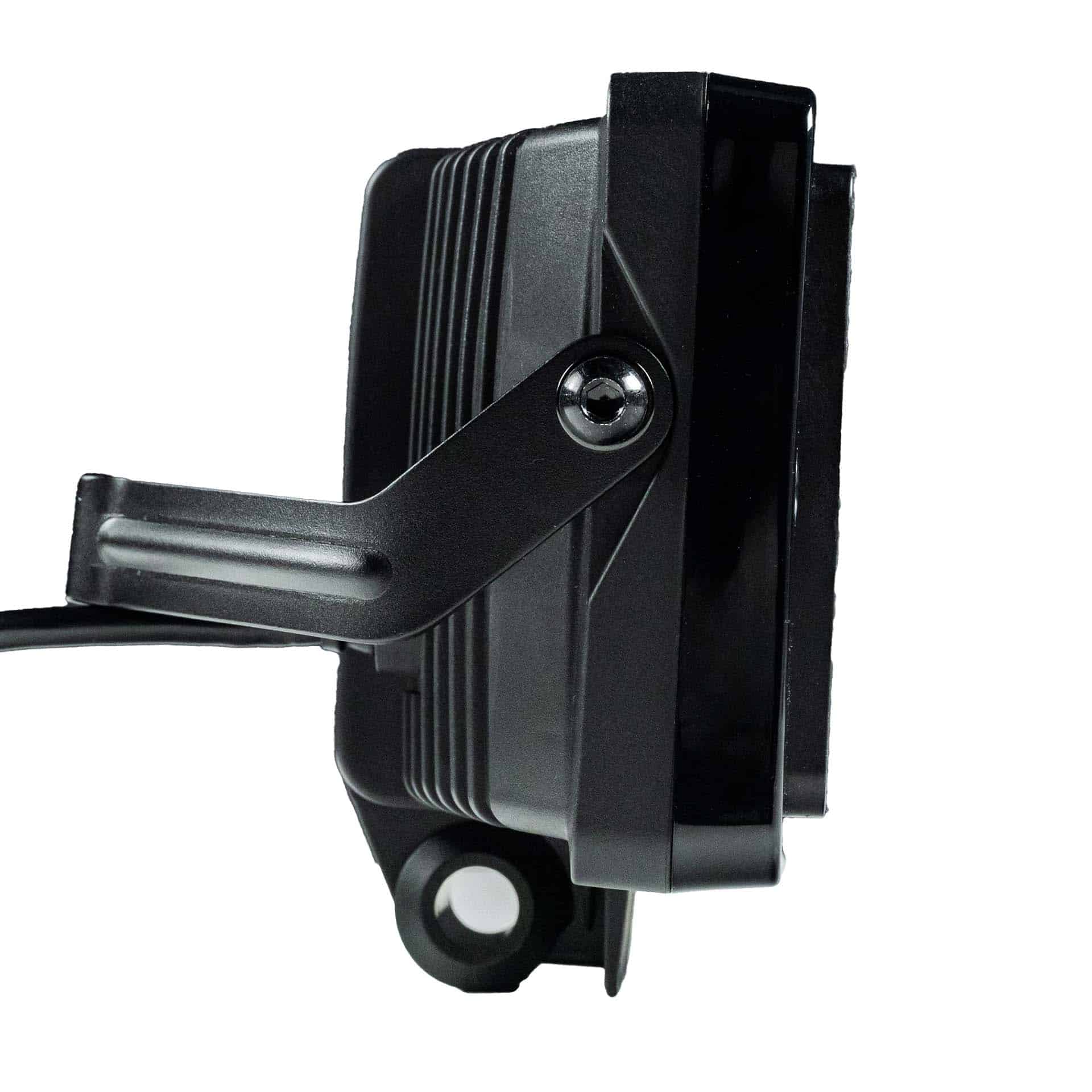

Mounting
Surface mounting
Warning light functions
Yes
Alternative for
Hella Jumbo 220
Driving lights functions
Amber position lights. , Warning light function , White position lights
